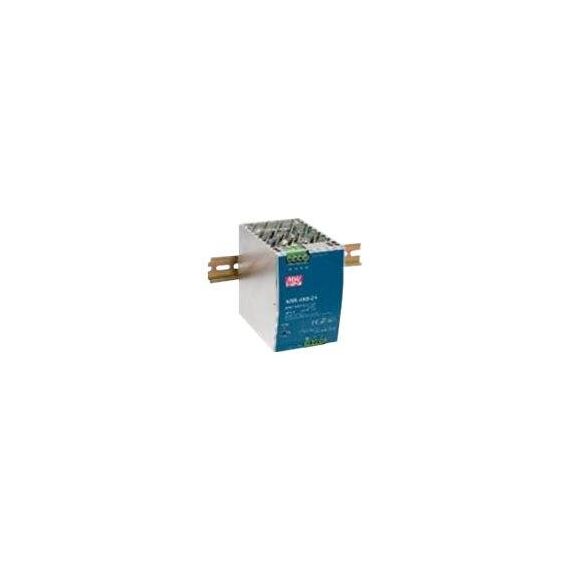

LevelOne POW-4851 / Power supply (DIN rail mountable) / AC 90 / 264 / DC 127 / 370 V / 240 Watt | POW-4851
Please sign in so that we can notify you about a reply
Special Features
- Universal AC input at full range
- Short circuit, overload / over voltage protection
- Fanless design
- Supports DIN-rail installation
- UL 508 approval
- 100% full load burn-in test
Product Specification
| Device Type | Power supply - DIN rail mountable |
| Power Device | Power Device |
| Input Voltage | AC 90 - 264 / DC 127 - 370 V |
| Output Voltage | 48 V |
| Power Capacity | 240 Watt |
| Miscellaneous | Miscellaneous |
| MTBF | 230,200 hours |
| Features | Over voltage protection, overload protection, fanless, short-circuit protection, PFC function |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-6-2, EN 61000-4-11, EN 61000-4-8, UL 60950-1, EN 60950-1, UL 508, EN 55011, MIL-HDBK-217F, EN 61204, EN 55022/CISPR 22 Class B |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | 20 - 95% (non-condensing) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 6.3 cm |
| Depth | 11.35 cm |
| Height | 12.52 cm |
| Weight | 1 kg |
Features - LevelOne - POW-4851
More Details
Product Code
04:284603
EAN Code
4015867206508
Manufacturer
LevelOne
