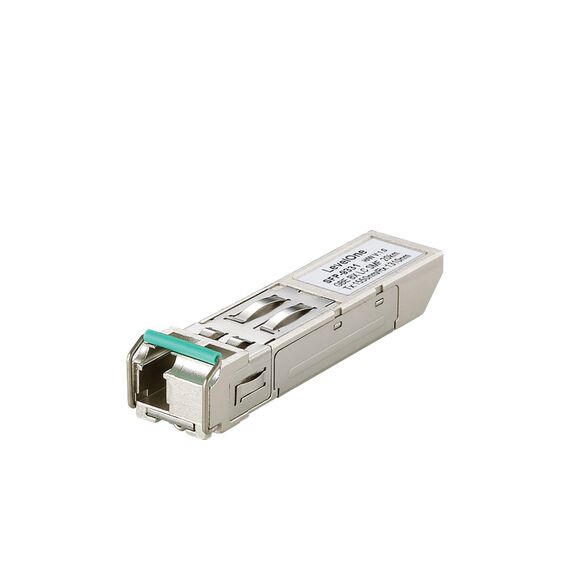

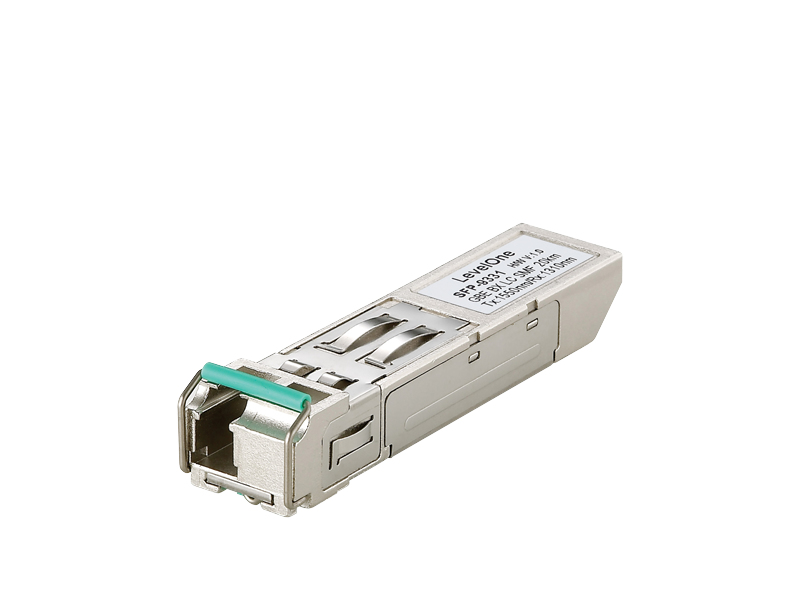

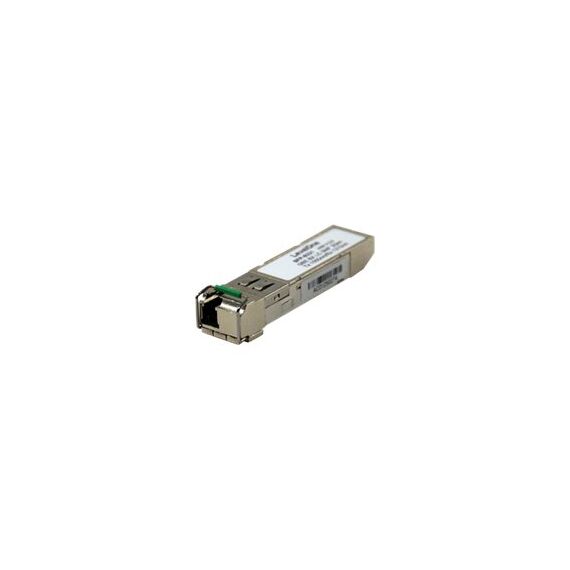

LevelOne SFP-9331 - SFP (mini-GBIC) transceiver module - GigE, Fibre Channel - Fibre Channel, 1000Base-BX10-D - LC single-mode - up to 20 km - 1550 (TX) / 1310 (RX) nm | SFP-9331
Please sign in so that we can notify you about a reply
Special Fetures
- 1550nm DFP LD
- Single +3.3V power supply
- RoHS compliant and lead-free
- AC/AC differential electrical interface
- Compliant with Multi-Source Agreement (MSA)
- Simplex LC connector
- Gigabit Ethernet at 1.25Gbps
- Compliance with ANSI specifications for fiber
- Channel applications at 1.06bps
- No configuration or installation software required
- Eye safety designed to meet LASER class 1 comply with EN60825-1
Product Specification
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | Fibre Channel, 1000Base-BX10-D |
| Data Link Protocol | GigE, Fibre Channel |
| Data Transfer Rate | 1.25 Gbps |
| Optical Wave Length | 1550 (TX) / 1310 (RX) nm |
| Line Coding Format | NRZ |
| Max Transfer Distance | 20 km |
| Features | Hot swap module replacement |
| Compliant Standards | IEEE 802.3z, IEEE 802.3ah |
| Expansion / Connectivity | |
| Interfaces | 1 x Fibre Channel / Ethernet 1000Base-BX10-D - LC single-mode female |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS, Lead-Free, Laser Class 1, EN 60825-1, MSA |
| Dimensions & Weight | |
| Width | 1.37 cm |
| Depth | 5.65 cm |
| Height | 0.895 cm |
| Weight | 20 g |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - LevelOne - SFP-9331
More Details
Product Code
04:117369
EAN Code
4015867154809
Manufacturer
LevelOne
