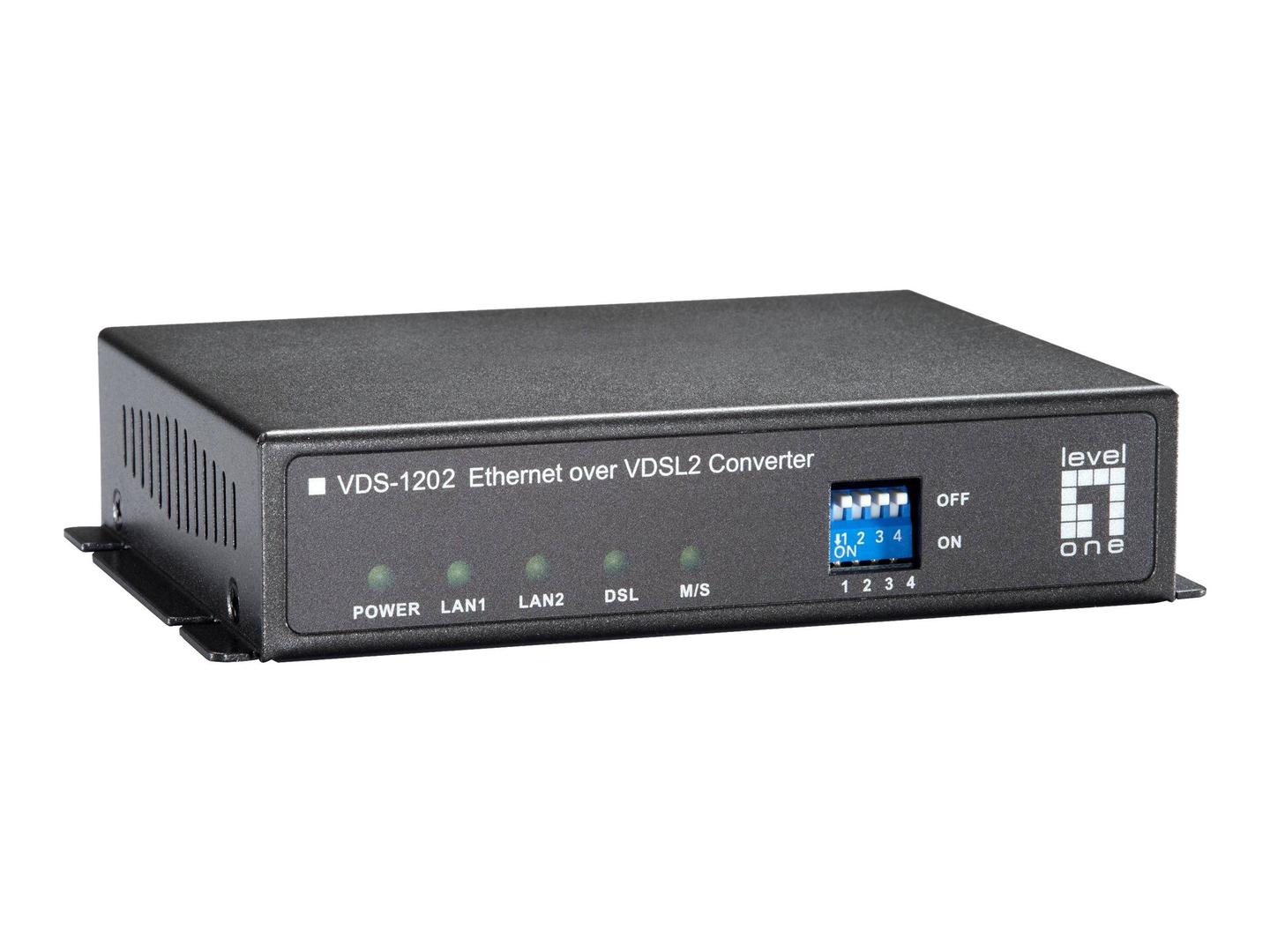

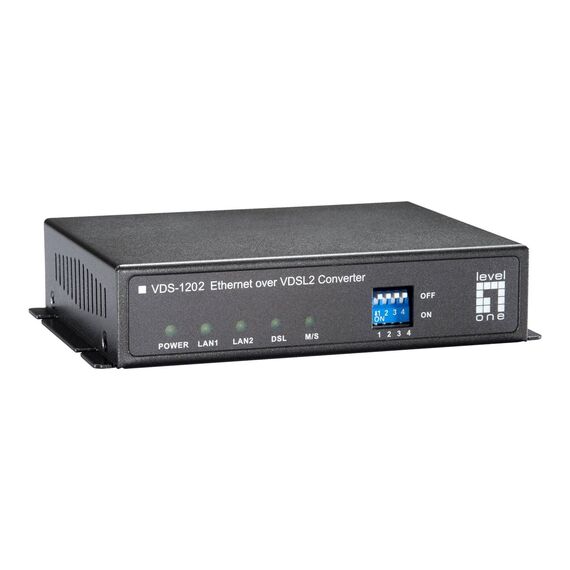

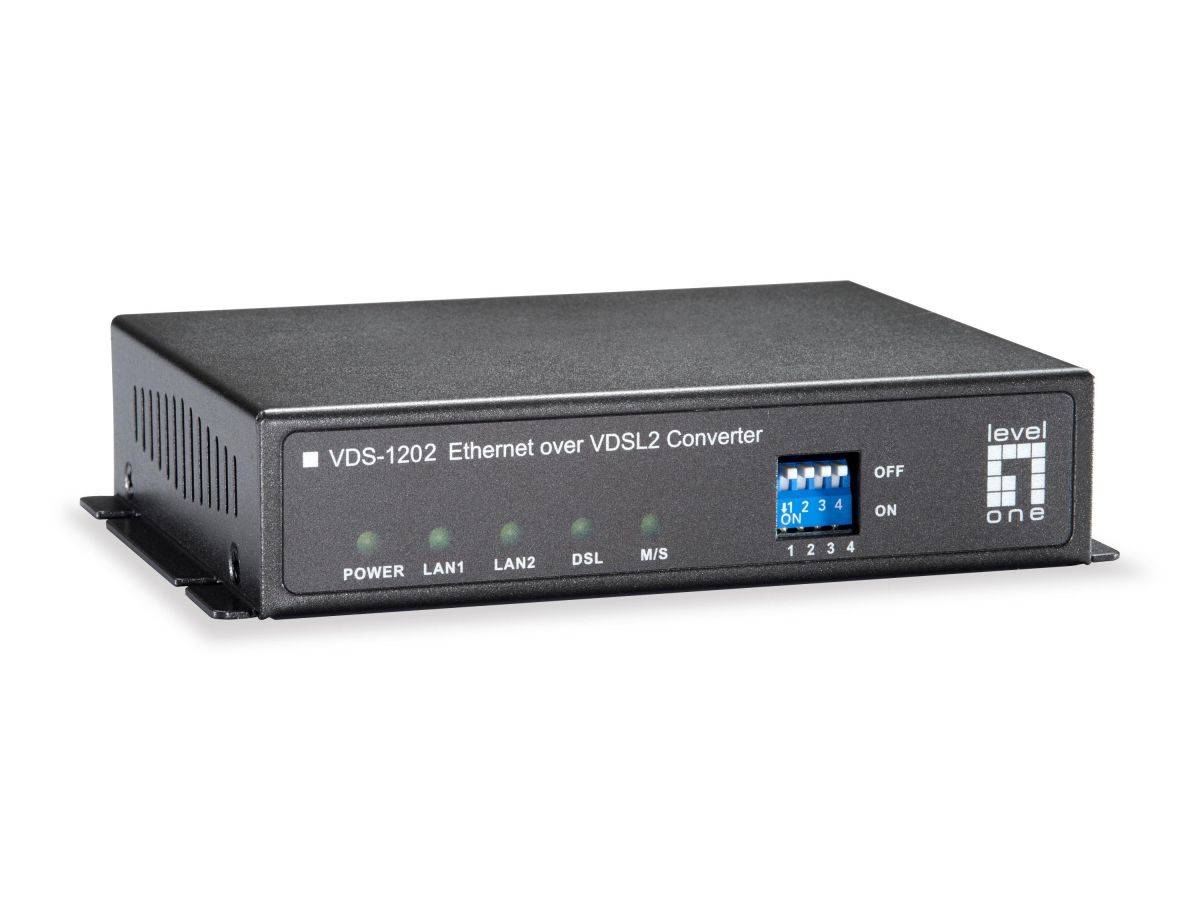

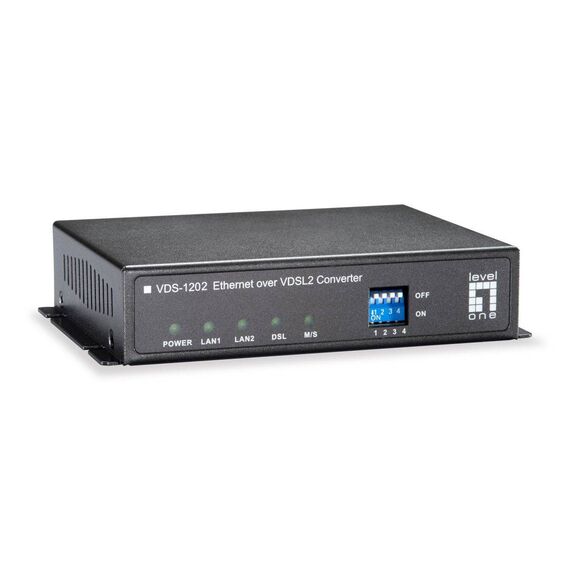

LevelOne VDS-1202 / Short-haul modem / 100Mb LAN, Ethernet over VDSL / 10Base-T, 100Base-TX / up to 2 km | VDS-1202
Please sign in so that we can notify you about a reply
Product Features
- Cost-effective deployment
When using VDSL2 (Very High Speed Digital Subscriber Line) technology, users can transmit data up to 250 meters without having to add expensive Ethernet switches or cables to extend the network reach. And with 100Mbps downstream and 100Mbps upstream, VDSL2 technology provides ample space for all high bandwidth usage. - Customized settings
Each VDS-1202 also allows for customized settings for advanced use. Using a built-in DIP switch, users can customize the behavior of the device to match the desired network configuration.
Special Features
- Trellis coding support up to 1024 discrete multi-tone bins and 4 Dip Switches for configuration settings
- Low-Latency for Video/Voice/Data applications
- Supports a VDSL connection of up to 2 km over single pair copper wire
- Features selectable Fast and Interleaved modes
- Selectable fixed data rate and fixed SNR margin
Product Specification
| Device Type | Short-haul modem |
| Form Factor | External |
| Networking | Networking |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, Ethernet over VDSL |
| Data Transfer Rate | 100 Mbps |
| Max Transfer Distance | 2 km |
| Status Indicators | Power, LAN, VDSL, master/slave |
| Features | Auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, ITU-T G.993.1, ITU-T G.993.2 |
| Expansion / Connectivity | Expansion / Connectivity |

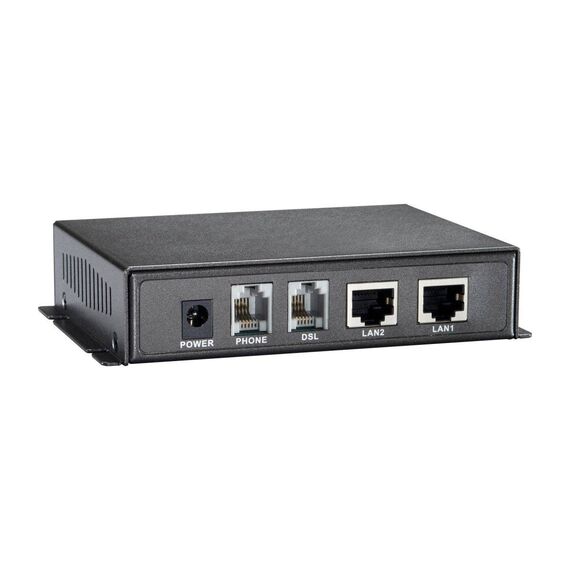

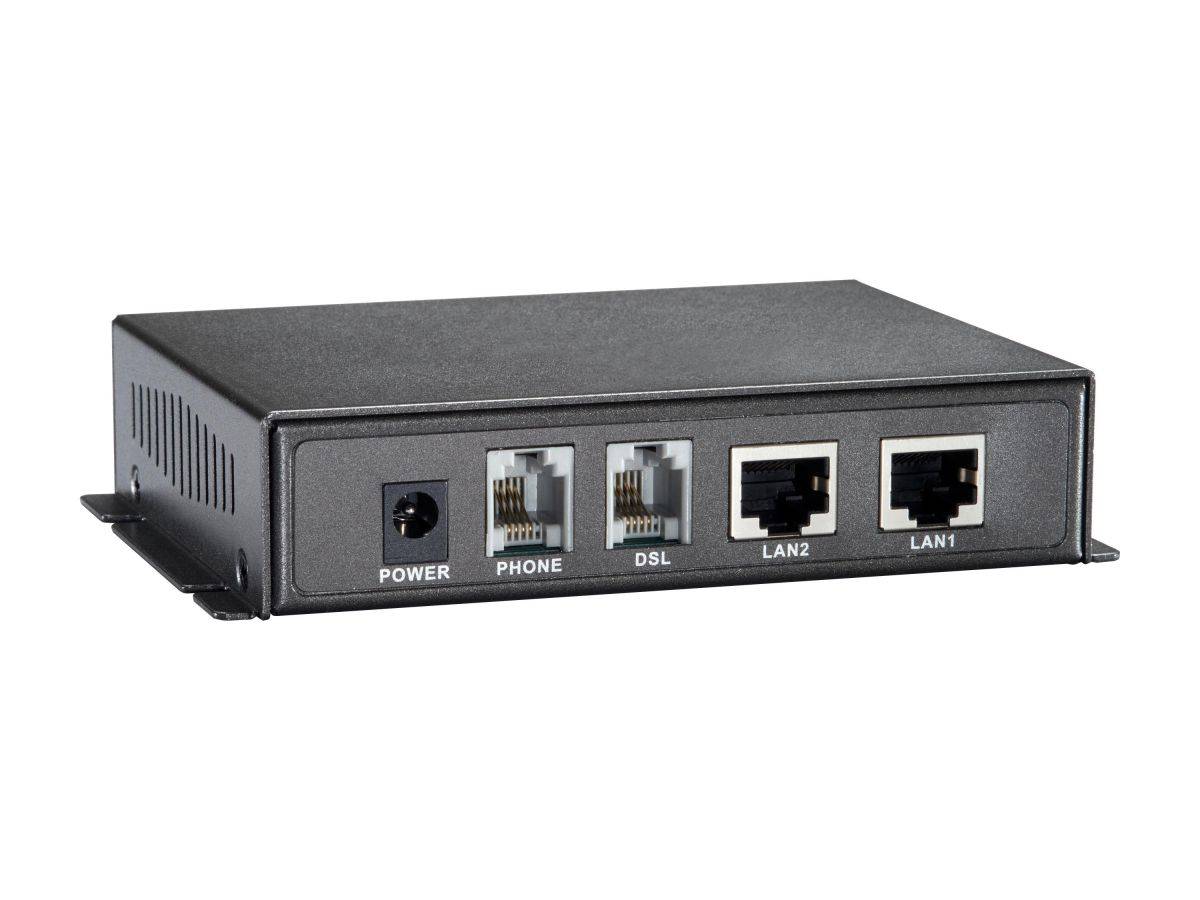

| Interfaces | 1 x VDSL2 - RJ-11 ¦ 2 x Ethernet 10Base-T/100Base-TX - RJ-45 |
| Miscellaneous | Miscellaneous |
| Compliant Standards | JATE, FCC, LVD |
| Power | Power |
| Power Device | External power adapter |
| Dimensions & Weight | Dimensions & Weight |
| Width | 12 cm |
| Depth | 9 cm |
| Height | 2.8 cm |
| Weight | 330 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - LevelOne - VDS-1202
More Details
Product Code
04:309450
EAN Code
4015867209073
Manufacturer
LevelOne
