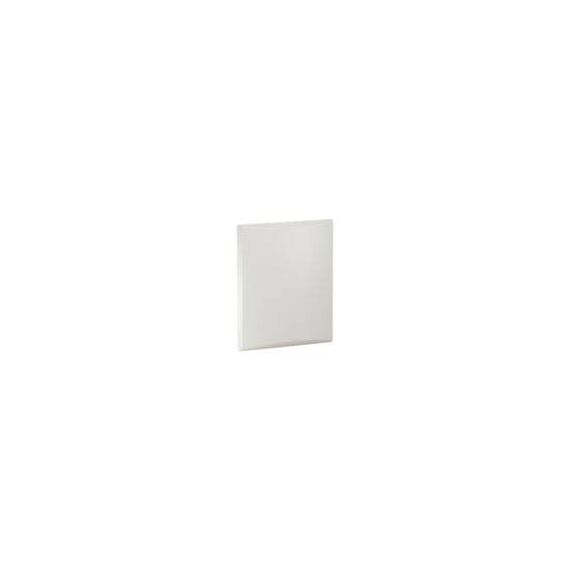

LevelOne WAN-4201 / Antenna / panel / Wi-Fi / 20 dBi / directional / Indoor / Outdoor, pole mount | WAN-4201
Please sign in so that we can notify you about a reply
Special Features
- Provides 20dBi directional operation
- Directional operation provides extended point to point coverage
- For IEEE 802.11a/n/ac Wireless applications in 5 GHz frequency range
- Low wind loading
Product Specification
| Product Type | Antenna |
| Width | 33 cm |
| Depth | 29.5 cm |
| Height | 3.5 cm |
| Weight | 1.044 kg |
| Aerial | Aerial |
| Form Factor | Panel |
| Intended For | Wi-Fi |
| Aerial Placing / Mounting | Indoor / Outdoor, pole mount |
| Compatibility | 802.11 a, 802.11n |
| Frequency Range | 5.1 - 5.835 GHz |
| Gain | 20 dBi |
| Directivity | Directional |
| Voltage Standing Wave Ratio (VSWR) | 2.0:1 |
| Horizontal Beamwidth | 15.9° |
| Vertical Beamwidth | 14.9° |
| Impedance | 50 Ohm |
| Cabling & Wiring | Cabling & Wiring |
| Connector Provided | 1 x N-Series connector female |
| Miscellaneous | Miscellaneous |
| Mounting Kit | Included |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 60 °C |
| Humidity Range Operating | 95% (non-condensing) |
Features - LevelOne - WAN-4201
More Details
Product Code
04:248508
EAN Code
4015867203569
Manufacturer
LevelOne
