Description

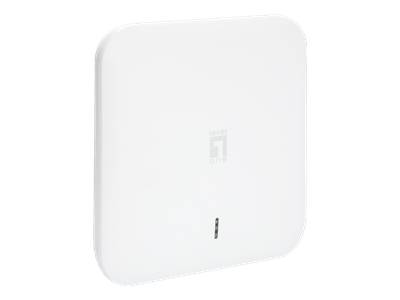

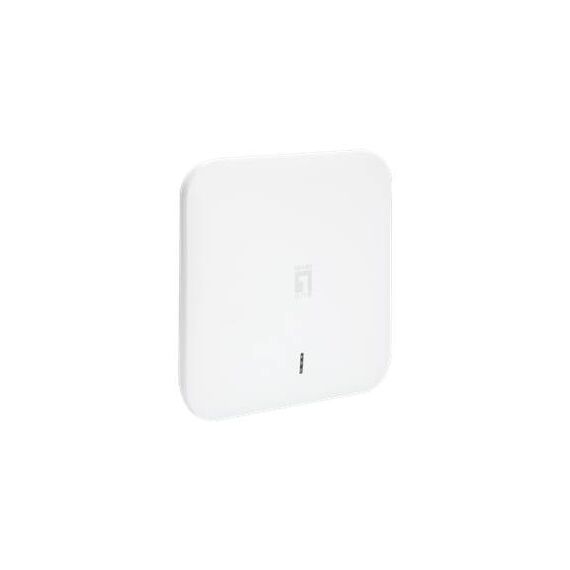

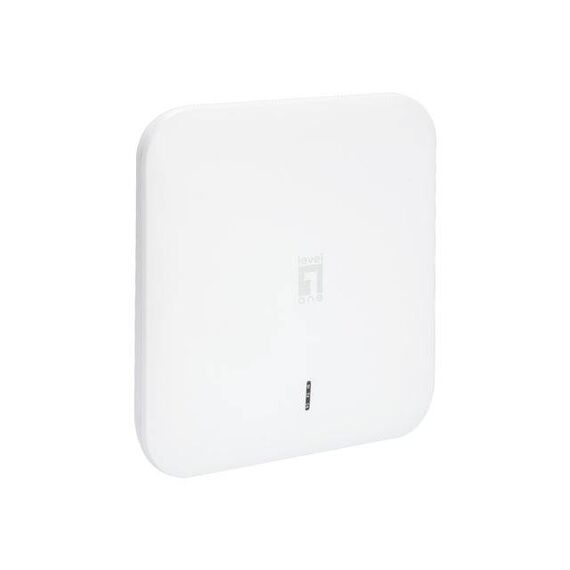

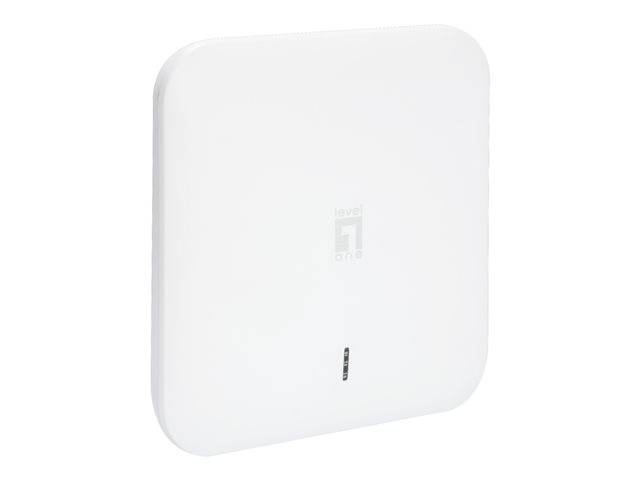

LevelOne's WAP-8123 is a managed, dual-band wireless access point, Supply 802.11ac Wave 2 MU-MIMO (Multi-User Multiple-Input Multiple-Output), allows multiple devices to get high- bandwidth Wi-Fi signal at the same time, distributing data more efficiently. capable of a combined speed of up to 1200 Mbps. The device runs on 2.4 and 5 GHz frequencies, and can be used as part of a managed network when controlled by the LevelOne WAC-2000/WAC-2003 Wireless LAN Controller. LevelOne WAP-8123 also offers PoE, removing the need for an external power supply, which makes it easy to install. A fast, versatile and secure access point for a wide variety of network requirements.
LevelOne WAP-8123 / Radio access point | WAP-8123
Special Features
- Share your wireless network up to 1200Mbps
- Compatible with IEEE 802.11a/b/g/n/ac Wave 2 wireless standards
- MU-MIMO technology greatly enhances WLAN performance for all clients
- Dual power support: 12V DC/PoE (IEEE 802.3at)
- Multi-operation modes to suit different wireless applications
- Auto Channel Selection for low interference band
- Provides up to 8 SSIDs to separate network traffic and enhance security
- High power and receiver sensitivity designed to boost your signal coverage and link speed
Product Specification
| Device Type | Radio access point |
| Width | 19.8 cm |
| Depth | 19.8 cm |
| Height | 2.8 cm |
| Weight | 521 g |
| Form Factor | External |
| Connectivity Technology | Wireless, wired |
| Data Transfer Rate | 866.7 Mbps |
| Line Coding Format | 128 QAM, DBPSK, DQPSK, CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2 |
| Remote Management Protocol | HTTP |
| Frequency Band | 2.4 GHz, 5 GHz |
| Capacity | Maximum number of configured SSIDs (2.4 Ghz): 4 ¦ Maximum number of configured SSIDs (5 Ghz): 4 ¦ Maximum number of clients: 128 |
| Wi-Fi AC Rating | AC1200 |
| Status Indicators | Power, system |
| Features | Flow control, repeating mode, firmware upgradable, WISP mode, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), reset button, ceiling mountable, MU-MIMO technology, gateway mode |
| Encryption Algorithm | AES, 128-bit WEP, 64-bit WEP, TKIP, WPA, WPA2, WPA-PSK, WPA2-PSK |
| Authentication Method | Radio Service Set ID (SSID), Extensible Authentication Protocol (EAP) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.3x, IEEE 802.11g, IEEE 802.11i, IEEE 802.11e, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac Wave 2 |
| Antenna | External detachable |
| Antenna Qty | 4 |
| Gain Level | 5 dBi |
| Interfaces | 1 x 1000Base-T - RJ-45 (WAN) ¦ 1 x 1000Base-T - RJ-45 |
| Included Accessories | Mounting screws |
| Cables Included | 1 x network cable |
| Compliant Standards | FCC, EMI |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power Device | Power injector |
| Voltage Required | DC 12 V / PoE |
| Power Consumption Operational | 30 Watt |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
