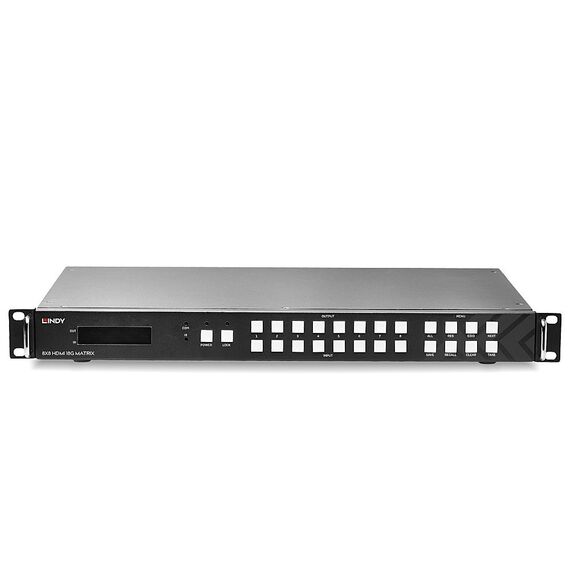

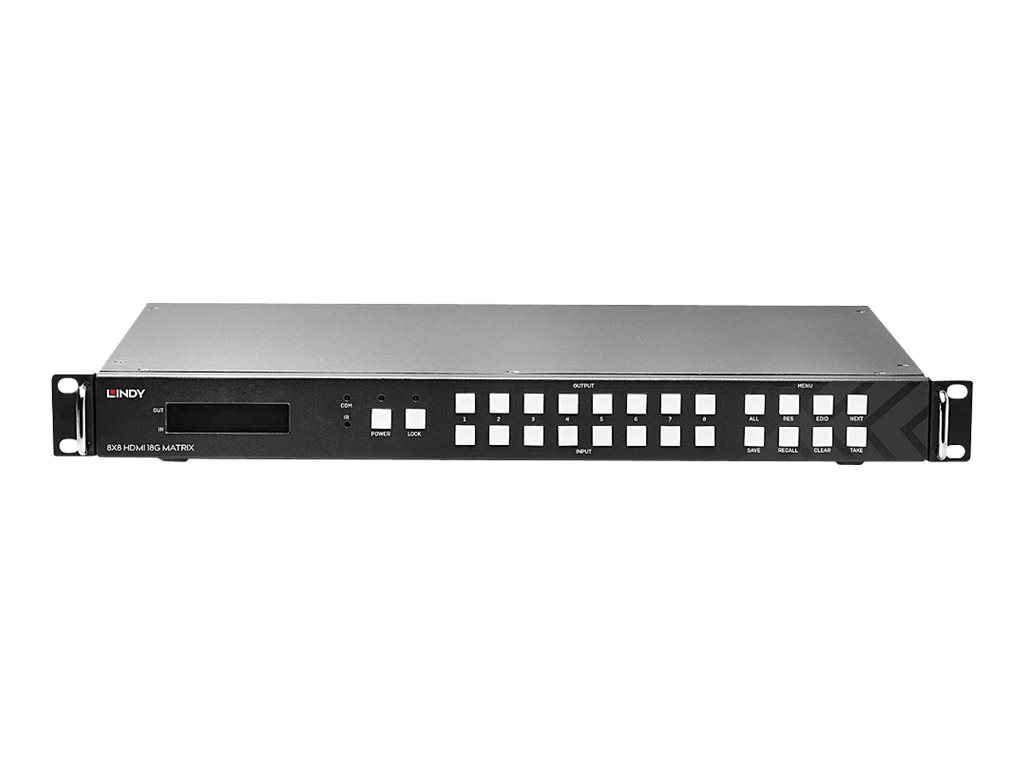

Lindy 8x8 HDMI 18G Matrix with Video Wall Scaling - Video/audio switch - Managed - rack-mountable - AC 100 - 240 V | 38260
Please sign in so that we can notify you about a reply
Special Fetures
- Switches between 8 HDMI source devices and 8 HDMI displays as a professional matrix

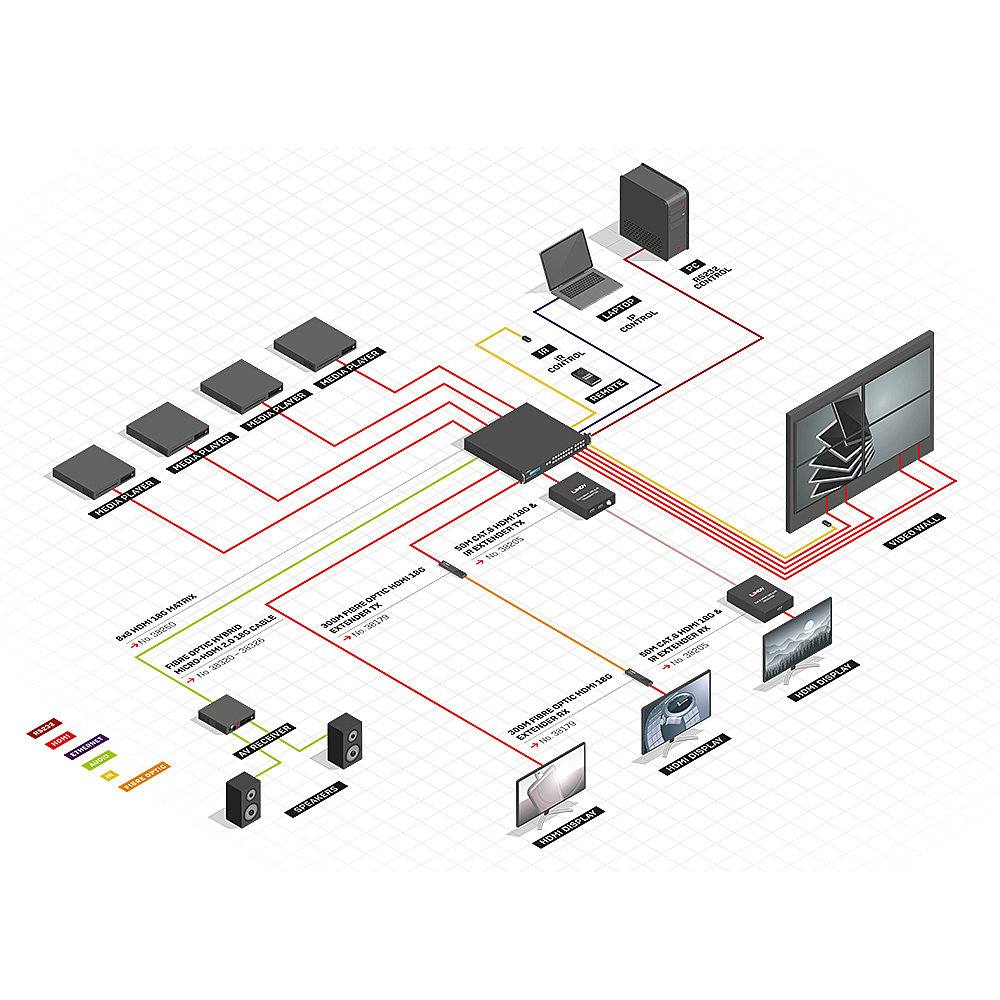

- Creates single video walls (up to 4x2) or multiple video walls (2x2)
- Seamlessly switch between devices under 0.1ms
- Control output scaling to ensure the optimum or consistent resolution is shown
Product Specification
| Device Type | Video/audio switch - Managed |
| Enclosure Type | Rack-mountable |
| Subtype | HDMI |
| Performance | Bandwidth: 18 Gbps |
| Remote Management Protocol | Telnet |
| Max Resolution | 3840 x 2160 @ 60 Hz |
| Features | 4K resolution support, scaling function, seamless switching |
| Compliant Standards | HDCP 2.2 |

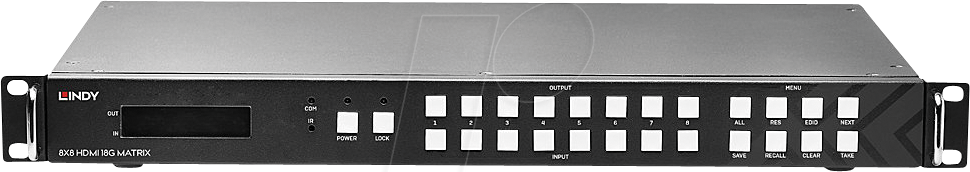

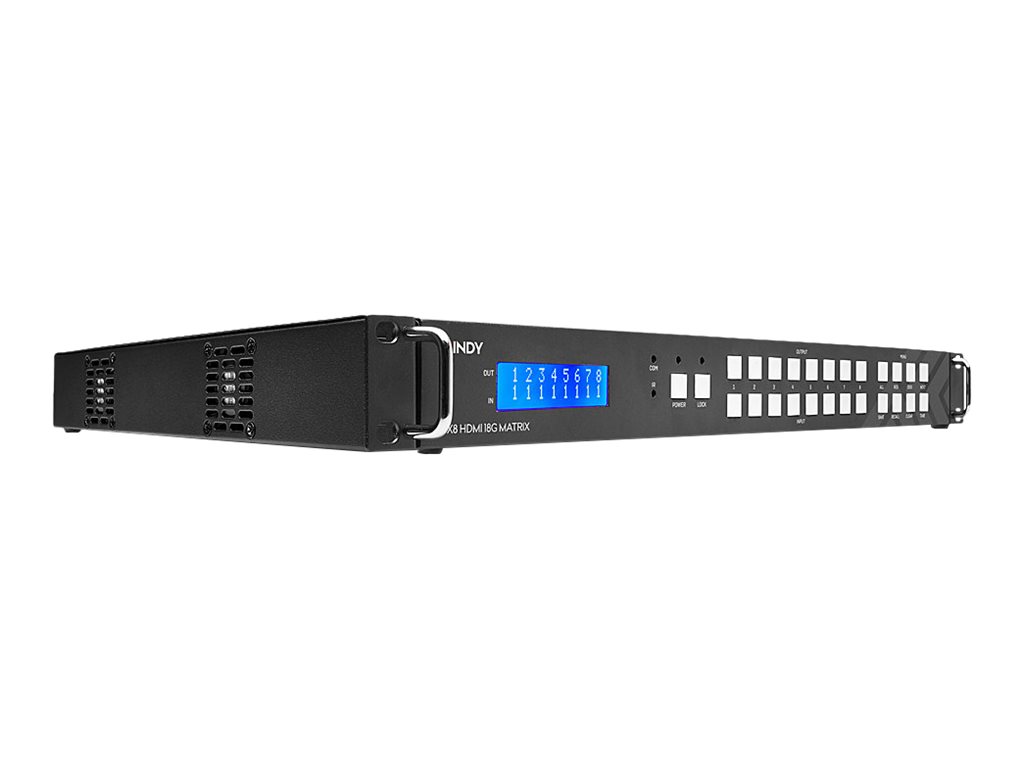

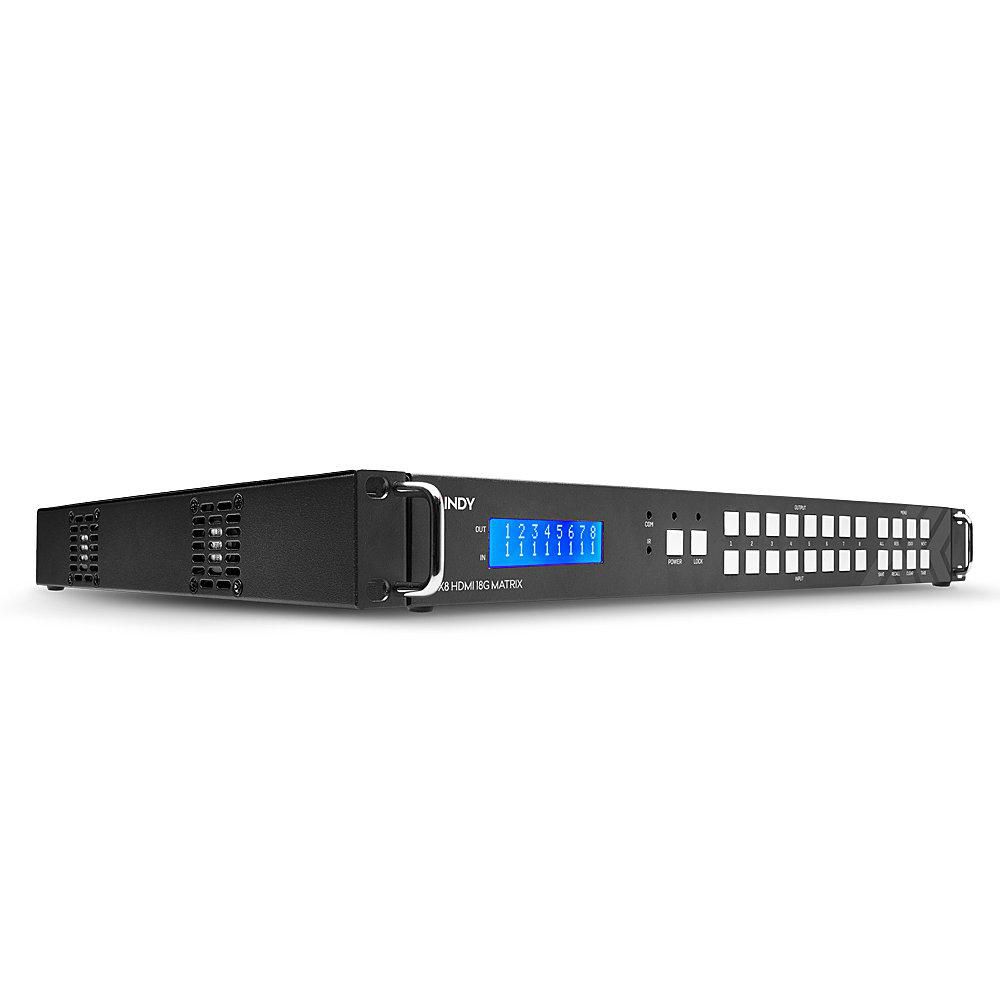

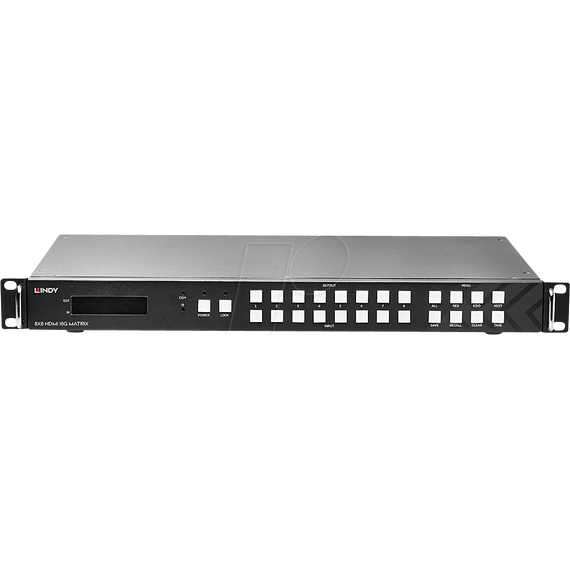

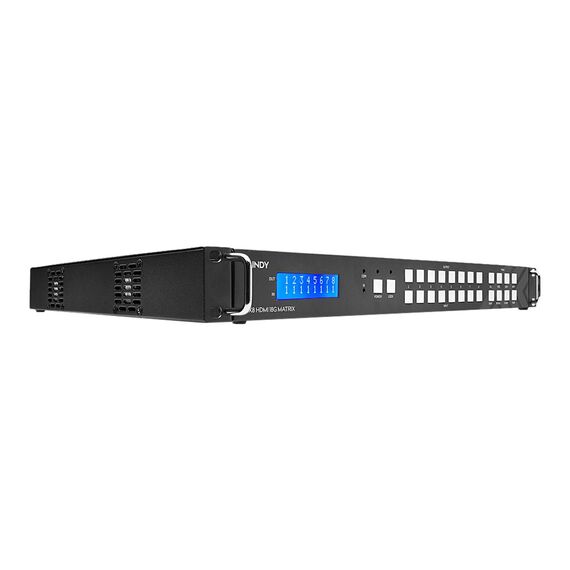

| Built-in Devices | Status LCD |
| Status Indicators | Port status, power |
| Expansion / Connectivity | |

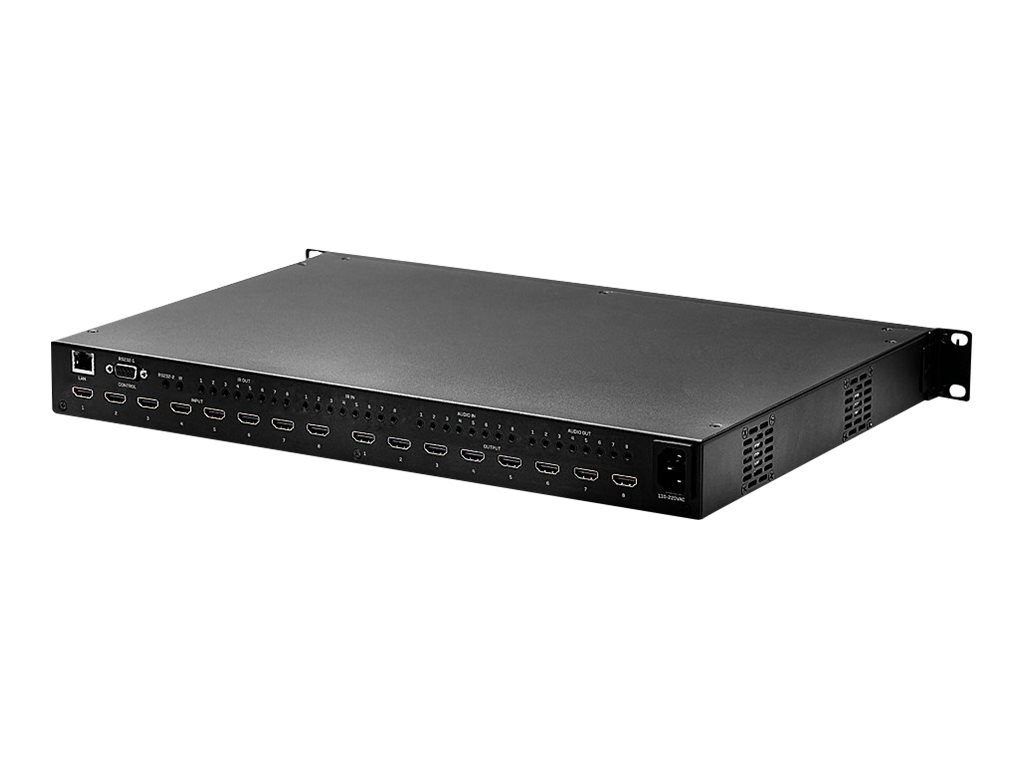

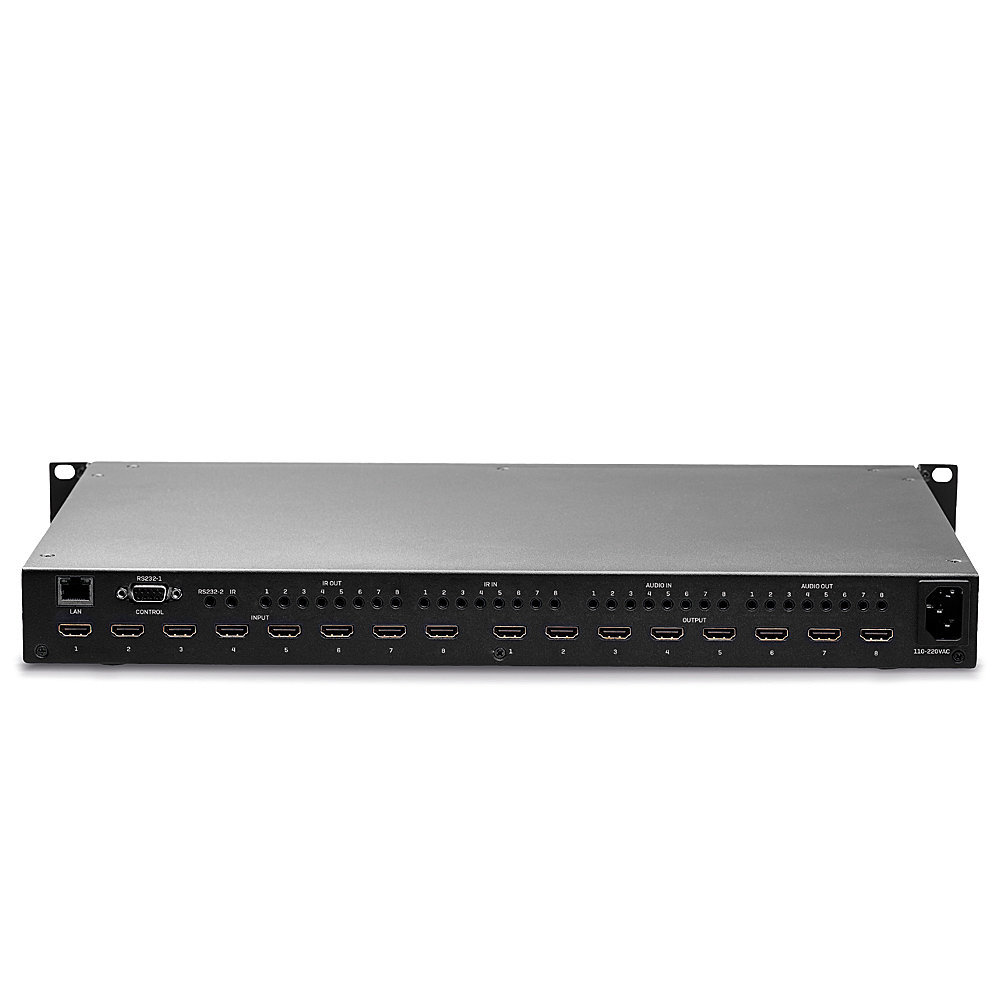

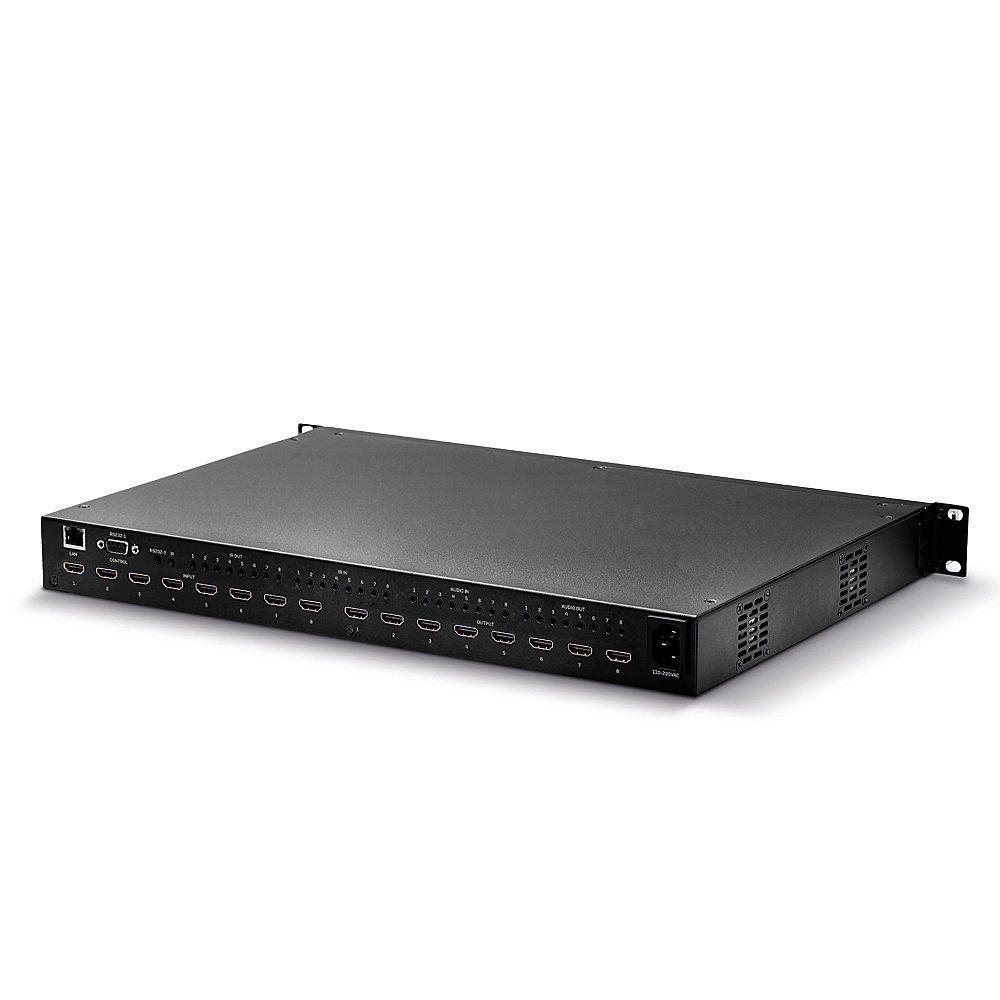

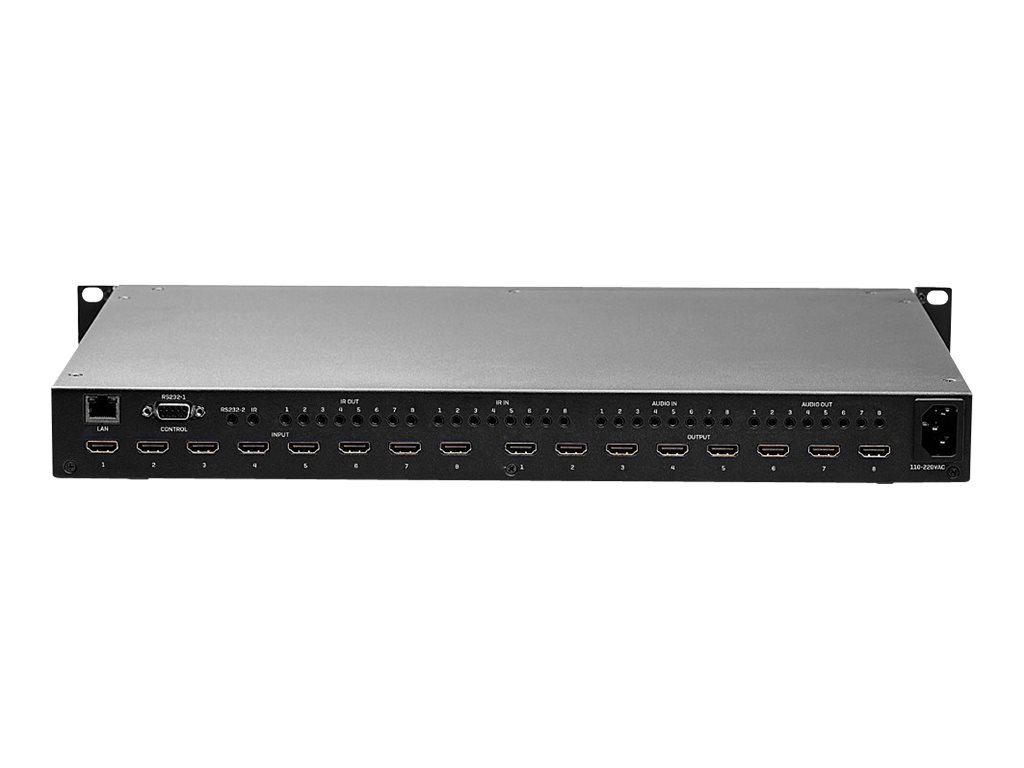

| Interfaces | 8 x HDMI input ¦ 8 x HDMI output ¦ 1 x serial (RS-232) DB-9 management ¦ 1 x management RJ-45 ¦ 1 x remote control (IrDA) mini-jack ¦ 8 x audio input mini-jack ¦ 8 x audio output mini-jack ¦ 16 x IrDA mini-jack |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100 - 240 V |
| Power Consumption Operational | 100 Watt |
| Miscellaneous | |
| Colour | Black |
| Included Accessories | Remote control, 2 mounting brackets |
| Cables Included | 1 x IR extender cable - 1.5 m ¦ 8 x IR receiver cable ¦ 8 x IR transmitter cable |
| Compliant Standards | FCC, RoHS, REACH |
| Dimensions & Weight | |
| Width | 43 cm |
| Depth | 30 cm |
| Height | 4.4 cm |
| Weight | 5 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 55 cm |
| Shipping Depth | 32.5 cm |
| Shipping Height | 5 cm |
| Shipping Weight | 5.6 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 50% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
Features - Lindy - 38260
More Details
Product Code
03:218258
EAN Code
4002888382601
Manufacturer
Lindy
