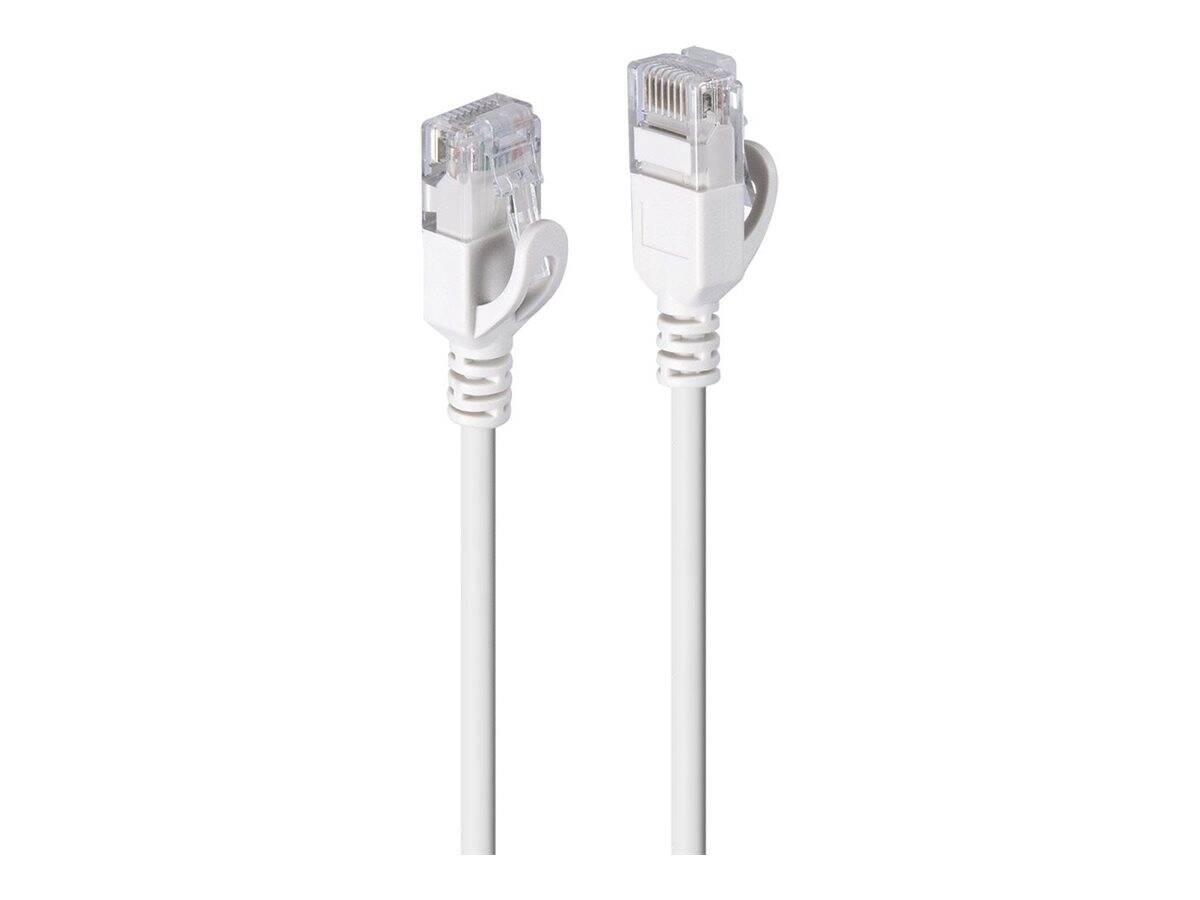

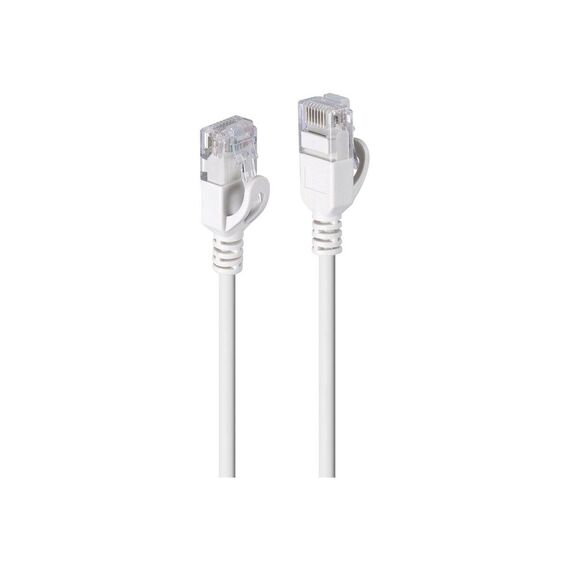

Lindy - Patch cable - RJ-45 (M) to RJ-45 (M) - 2 m - 3.6 mm - foiled unshielded twisted pair (F/UTP) - CAT 6a - halogen-free, molded, snagless, ultra-slim - grey | 47594
Product Features
- Ultraslim design
The ultraslim profile of this CAT 6a patch cable ensures a minimal footprint, allowing for easier routing and management in crowded spaces. Its sleek design does not compromise on durability, thanks to its molded construction and strain relief, which provide added protection against wear and tear. - Enhanced connectivity
Featuring high-quality copper conductors and gold-plated pins, this cable ensures superior conductivity and corrosion resistance. The nickel-plated connector, combined with aluminum foil shielding, ensures reliable, high-speed data transmission up to 500 MHz, making it ideal for demanding network environments. - Safety and compliance
Constructed with a Low Smoke Zero Halogen (LSZH) jacket, this network cable significantly reduces the amount of toxic and corrosive gas emitted during combustion. It meets several compliance standards, including CP65, ISO/IEC 11801, REACH, RoHS, and UL, ensuring it adheres to both safety and environmental regulations.
Special Fetures
- Ultraslim and halogen-free design for easy installation and environmental safety
- Gold-plated pins and copper conductors for superior conductivity
- Snagless and molded features for enhanced durability
- Complies with multiple standards including CP65, ISO/IEC 11801, and RoHS
- Operates efficiently within a wide temperature range from -10 °C to 60 °C
Product Specification
Network Cable Type | Patch cable - CAT 6a |
Technology | Foiled unshielded twisted pair (F/UTP) |
Shielding Material | Aluminium foil |
Jacket Material | Low Smoke Zero Halogen (LSZH) |
American Wire Gauge (AWG) | 30 |
Plated Connector | Nickel |
Features | Halogen-free, molded, snagless, ultra-slim, strain relief, latch protection, corrosion-resistant, polycarbonate housing, copper conductors, bending radius 60mm, gold-plated pins |
Length | 2 m |
Diameter | 3.6 mm |
Width | 11 mm |
Depth | 28 mm |
Height | 6 mm |
Colour | Grey |
Connectivity | |
Connector | RJ-45 - male |
Connector (Second End) | RJ-45 - male |
Miscellaneous | |
Compliant Standards | UL, RoHS, ISO/IEC 11801, REACH, CP65 - up to 500 MHz |
Package Details | Polybag |
Manufacturer Warranty | |
Service & Support | 10 years warranty |
Environmental Parameters | |
Min Operating Temperature | -10 °C |
Max Operating Temperature | 60 °C |
