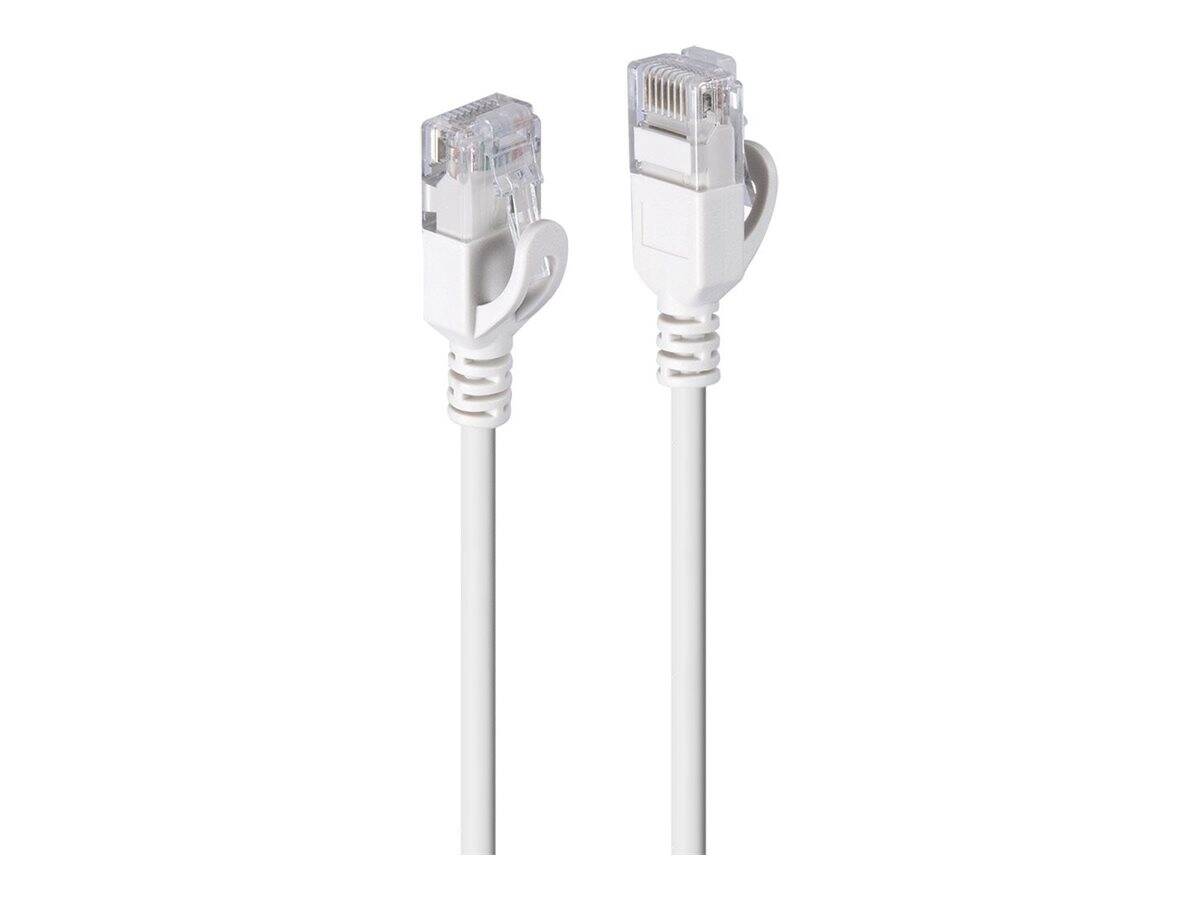

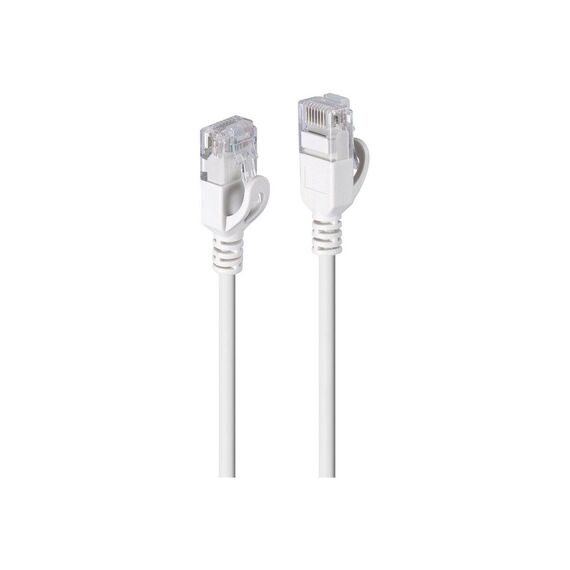

Lindy - Patch cable - RJ-45 (M) to RJ-45 (M) - 3 m - 3.6 mm - foiled unshielded twisted pair (F/UTP) - CAT 6a - halogen-free, molded, snagless, ultra-slim - grey | 47595
Product Features
- Ultra-slim design
The ultra-slim profile of this CAT 6a patch cable not only allows for easier routing and management in tight spaces but also minimizes clutter, ensuring a neat and professional setup. - Enhanced durability
Featuring a halogen-free, Low Smoke Zero Halogen (LSZH) jacket, molded strain relief, and corrosion-resistant gold-plated pins, this cable is designed for long-lasting performance and safety in various environments. - High-speed connectivity
With tested frequencies up to 500 MHz and the use of copper conductors, this network cable ensures reliable data transmission, suitable for demanding applications and network configurations. - Secure connection
The snagless design with latch protection prevents accidental disconnections, while the polycarbonate housing and nickel-plated connectors offer a secure and corrosion-resistant connection. - Environmental compliance
Adhering to CP65, ISO/IEC 11801, REACH, RoHS, and UL standards, this patch cable meets stringent environmental and safety requirements, making it a responsible choice for your networking needs.
Special Fetures
- Ultra-slim and halogen-free design for easy cable management and safety
- Gold-plated pins and copper conductors for reliable data transmission
- Snagless design with latch protection ensures a secure and uninterrupted connection
- Compliant with multiple environmental and safety standards, including RoHS and UL
- Operates efficiently within a wide temperature range from -10 °C to 60 °C
Product Specification
Network Cable Type | Patch cable - CAT 6a |
Technology | Foiled unshielded twisted pair (F/UTP) |
Shielding Material | Aluminium foil |
Jacket Material | Low Smoke Zero Halogen (LSZH) |
American Wire Gauge (AWG) | 30 |
Plated Connector | Nickel |
Features | Halogen-free, molded, snagless, ultra-slim, strain relief, latch protection, corrosion-resistant, polycarbonate housing, copper conductors, bending radius 60mm, gold-plated pins |
Length | 3 m |
Diameter | 3.6 mm |
Width | 11 mm |
Depth | 28 mm |
Height | 6 mm |
Colour | Grey |
Connectivity | |
Connector | RJ-45 - male |
Connector (Second End) | RJ-45 - male |
Miscellaneous | |
Compliant Standards | UL, RoHS, ISO/IEC 11801, REACH, CP65 - up to 500 MHz |
Package Details | Polybag |
Manufacturer Warranty | |
Service & Support | 10 years warranty |
Environmental Parameters | |
Min Operating Temperature | -10 °C |
Max Operating Temperature | 60 °C |
