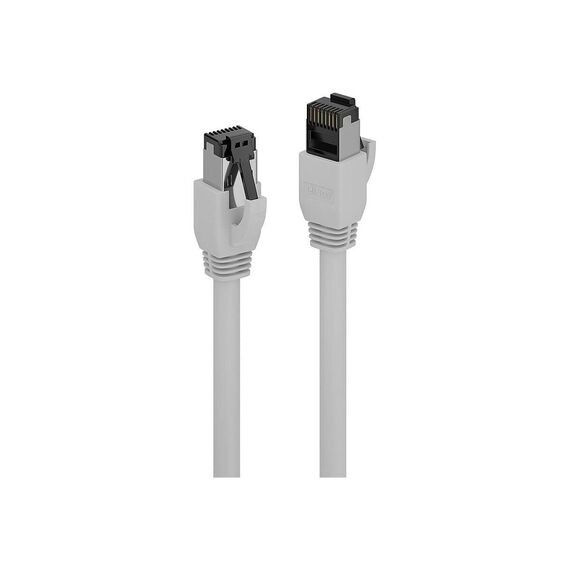

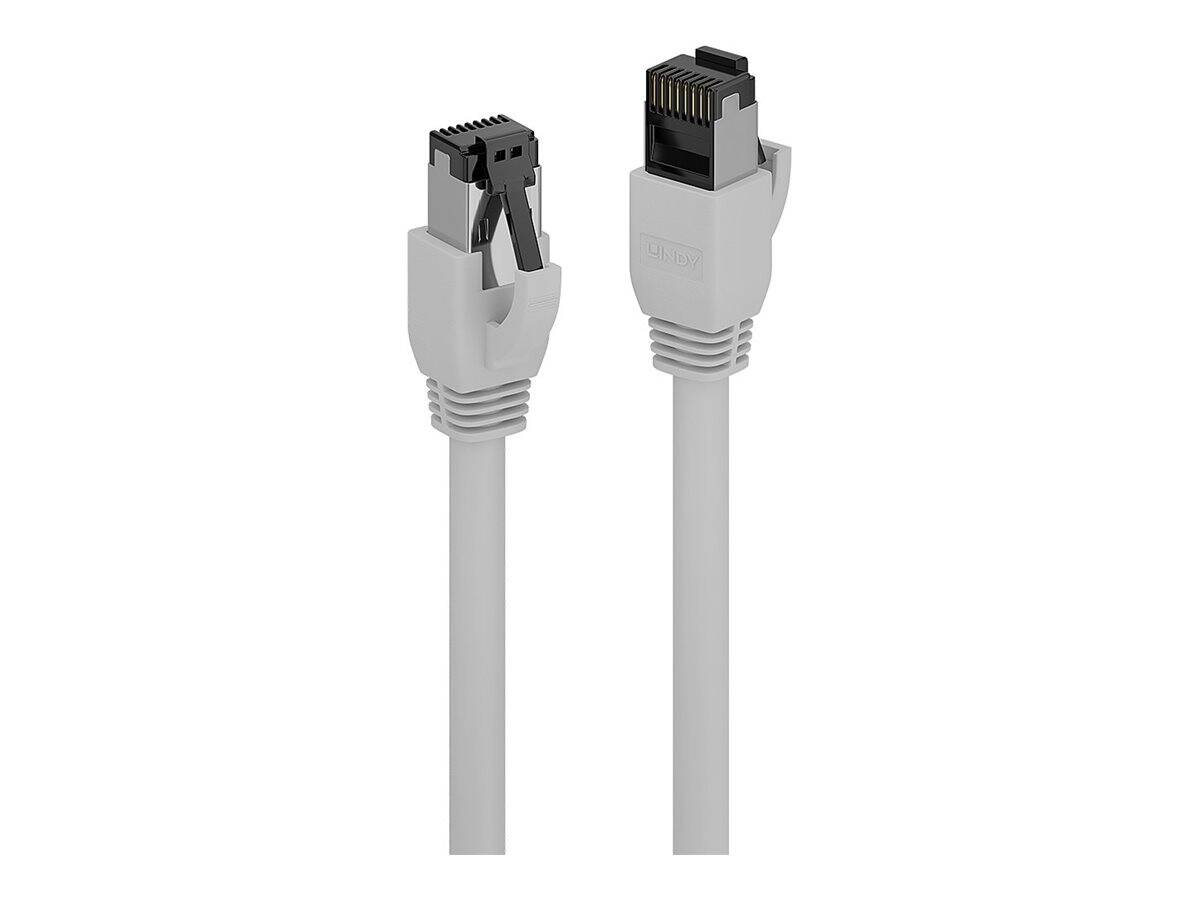

Lindy - Patch cable - RJ-45 (M) to RJ-45 (M) - 5 m - 7.5 mm - S/FTP, PiMF - CAT 8.1 - halogen-free, snagless - grey | 47446
Product Features
- Enhanced durability
Featuring gold-plated pins and corrosion-resistant copper conductors, this cable is designed for longevity and reliable connectivity. The inclusion of latch protection and strain relief further ensures a durable connection that withstands the rigors of daily use. - High performance
With tested frequencies up to 2000 MHz and the advanced S/FTP, PiMF technology, this CAT 8.1 patch cable delivers high-speed data transmission with minimal interference. Its halogen-free, snagless design, complemented by a Low Smoke Zero Halogen (LSZH) jacket, offers both safety and high performance. - Universal compatibility
Equipped with male RJ-45 connectors on both ends, this patch cable seamlessly connects to a wide range of devices. The nickel-plated connector ensures a secure connection, while the aluminum foil with braid shielding minimizes electromagnetic interference.
Special Fetures
- Gold-plated pins and corrosion-resistant copper conductors for enhanced durability
- Tested frequencies up to 2000 MHz for high data transmission
- Snagless, halogen-free design with Low Smoke Zero Halogen (LSZH) jacket for safety
- Nickel-plated connector with aluminum foil and braid shielding for minimal interference
- Compliant with ISO/IEC 11801, REACH, RoHS, and UL standards for quality assurance
Product Specification
Network Cable Type | Patch cable - CAT 8.1 |
Technology | S/FTP, PiMF |
Shielding Material | Aluminium foil with braid |
Jacket Material | Low Smoke Zero Halogen (LSZH) |
American Wire Gauge (AWG) | 26 |
Plated Connector | Nickel |
Features | Halogen-free, snagless, strain relief, latch protection, corrosion-resistant, polycarbonate housing, copper conductors, gold-plated pins |
Length | 5 m |
Diameter | 7.5 mm |
Width | 12 mm |
Depth | 38.5 mm |
Height | 17 mm |
Colour | Grey |
Connectivity | |
Connector | RJ-45 - male |
Connector (Second End) | RJ-45 - male |
Miscellaneous | |
Compliant Standards | UL, RoHS, ISO/IEC 11801, REACH - up to 2000 MHz |
Package Details | Polybag |
Manufacturer Warranty | |
Service & Support | 10 years warranty |
Environmental Parameters | |
Min Operating Temperature | -10 °C |
Max Operating Temperature | 60 °C |
