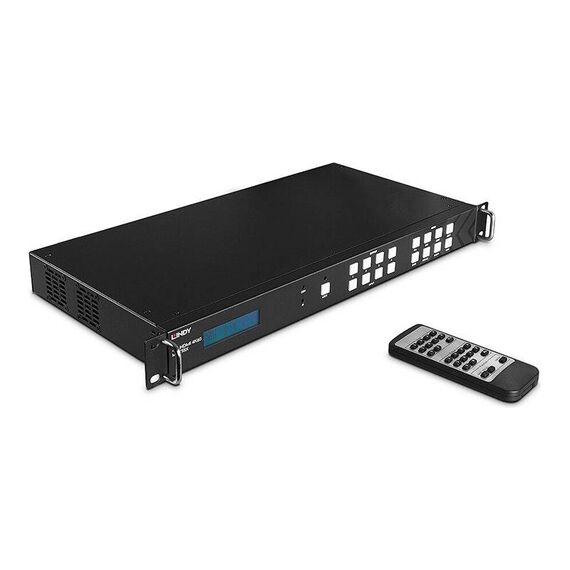

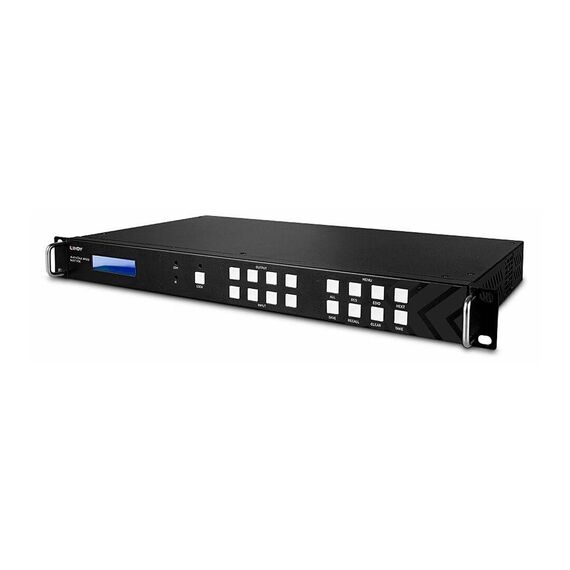

Lindy / Video/audio switch / 4x4, 4K60, matrix, with video wall scaling / rack-mountable | 38238
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Video/audio switch |
| Enclosure Type | Rack-mountable |
| Subtype | HDMI |
| Max Resolution | 3840 x 2160 @ 60 Hz |
| Features | 4K resolution support, metal housing, EDID Management, seamless switching, audio pass-through, 18 Gbps bandwidth, CEC support, 2 channel analogue audio, video wall creation, independant audio extraction, independant IR Matrix |
| Compliant Standards | HDCP 1.4 |
| Built-in Devices | Status LCD |
| Expansion / Connectivity | Expansion / Connectivity |

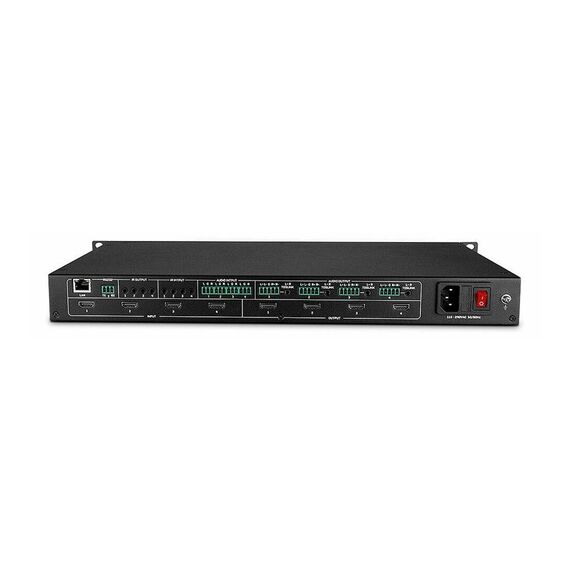

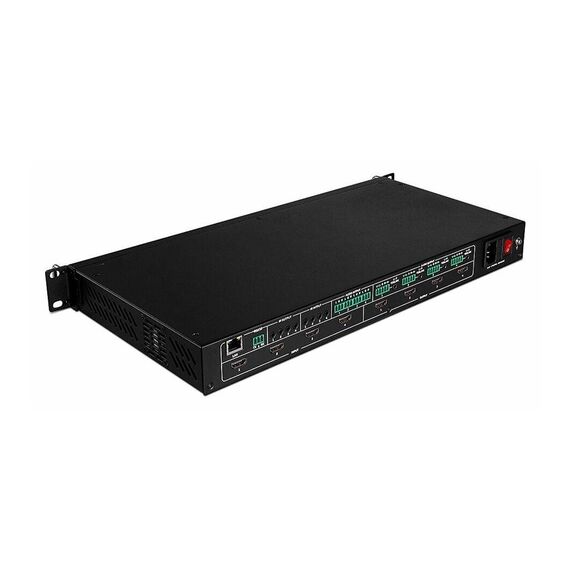

| Interfaces | 4 x HDMI input Type A 4 x HDMI output Type A 1 x serial (RS-232) management 1 x LAN RJ-45 management 4 x IrDA input 4 x IrDA output |
| Power | Power |
| Power Device | Internal power supply |
| Power Consumption Operational | 60 Watt |
| Miscellaneous | Miscellaneous |
| Colour | Black |
| Included Accessories | IR remote, CR2025 battery, 3-pin Phoenix connector, 4 x IR emiter cables, 4 x IR reciever cables |
| Cables Included | 1 x power cable (C13) - 2 m 1 x USB-A to RS-232 cable |
| Compliant Standards | FCC, RoHS, REACH, UKCA |
| Dimensions & Weight | Dimensions & Weight |
| Width | 43 cm |
| Depth | 22 cm |
| Height | 4.4 cm |
| Weight | 3.182 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 56.5 cm |
| Shipping Depth | 41.3 cm |
| Shipping Height | 8.3 cm |
| Shipping Weight | 5 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 50% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
Features - Lindy - 38238
More Details
Product Code
03:232472
EAN Code
4002888382380
Manufacturer
Lindy
