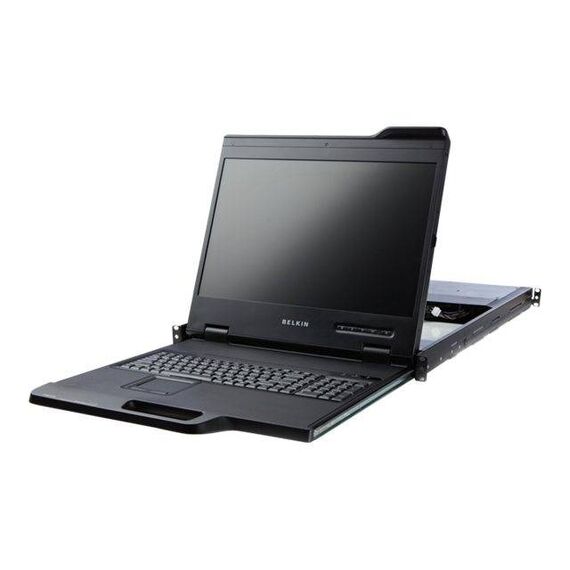

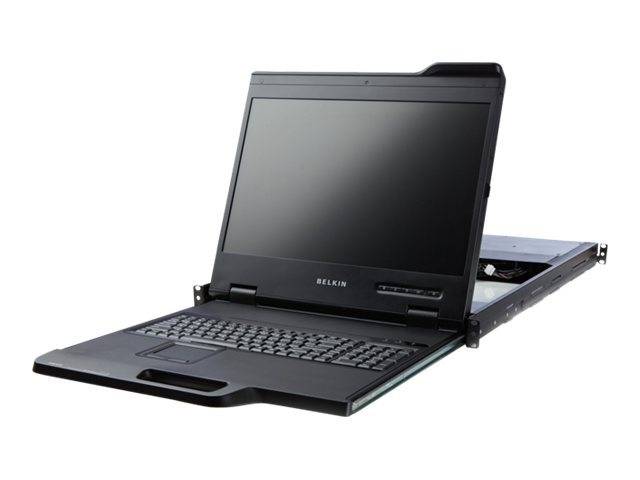

Belkin Widescreen Rack-Mount Console with PRO3 / KVM console with KVM switch / 16 ports / PS/2, USB / 19" (19" viewable) / rack-mountable / 1440 x 900 / 1000:1 / 5 ms / VGA / 1U | F1DC116HDE
Belkin Widescreen Rack-Mount Console with PRO3 / KVM console with KVM switch / 16 ports / PS/2, USB / 19" (19" viewable) / rack-mountable / 1440 x 900 / 1000:1 / 5 ms / VGA / 1U | F1DC116HDE
|
Description With an innovative design, the compact, full-featured Belkin 19-inch Widescreen Rack Console simplifies IT tasks and improves the user experience from installation to daily use.Its wide viewing area helps IT administrators perform multiple tasks simultaneously, such as viewing multiple applications or documents at once, servicing multiple virtual servers, using applications that require a large viewing space.Its user-friendly interface and trigger-less rails work together to simplify IT tasks. An easy-to-grip handle, designed to fit anyone, provides seamless access.Its compact design accommodates a keyboard, touchpad, widescreen monitor and KVM switch within a 1U rack.Its screwless mounting design, adjustable rails and lighter, slimmer build make it fast and simple to install. The product install in a fraction of the time and effort as other rackmount consoles. |
Product Specification
| Display Type | KVM console / TFT active matrix |
| Diagonal Size | 19" |
| Viewable Size | 19" |
| Aspect Ratio | Widescreen |
| Native Resolution | 1440 x 900 at 65 Hz |
| Pixel Pitch | 0.2835 mm |
| Contrast Ratio | 1000:1 |
| Colour Support | 16.7 million colours |
| Response Time | 5 ms |
| Dimensions (WxDxH) | 48.3 cm x 69.9 cm x 4.3 cm |
| Height (Rack Units) | 1U |
| Weight | 11.3 kg |
| Type | Keyboard, touchpad, keypad |
| Type | KVM switch - 16 ports |
| Keyboard / Mouse Interface | PS/2, USB |

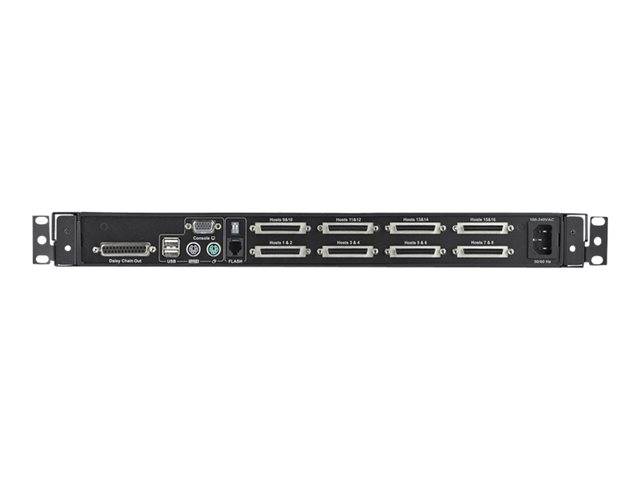

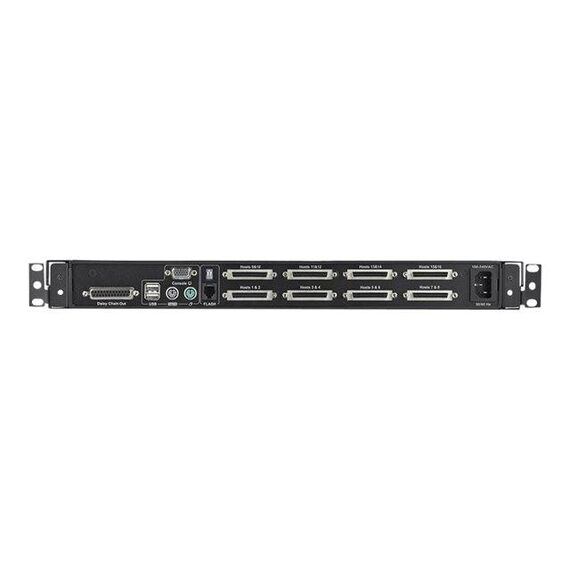

| Interfaces | VGA ¦ Keyboard (PS/2) ¦ Mouse (PS/2) ¦ Stacking (DB-25) ¦ 2 x USB ¦ Management (RJ-11) ¦ 16 x KVM (50 pin Centronics) |
| Rack Mounting Kit | Included |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| OS Required | Novell NetWare 5.x, Microsoft Windows Server 2003, Apple MacOS X or later, Red Hat Linux 8.x, Microsoft Windows 95/98/ME/NT/2000/XP, SunSoft Solaris 8 or later, Microsoft Windows Vista |
| ENERGY STAR Certified | Yes |
| Service & Support | Limited warranty - 2 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 80% (non-condensing) |
