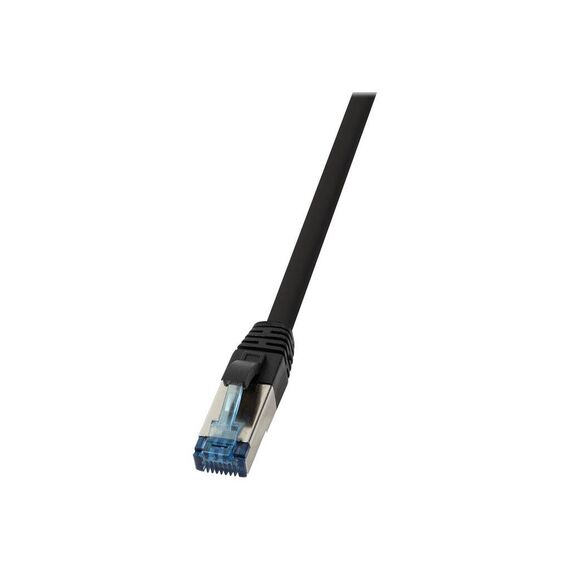

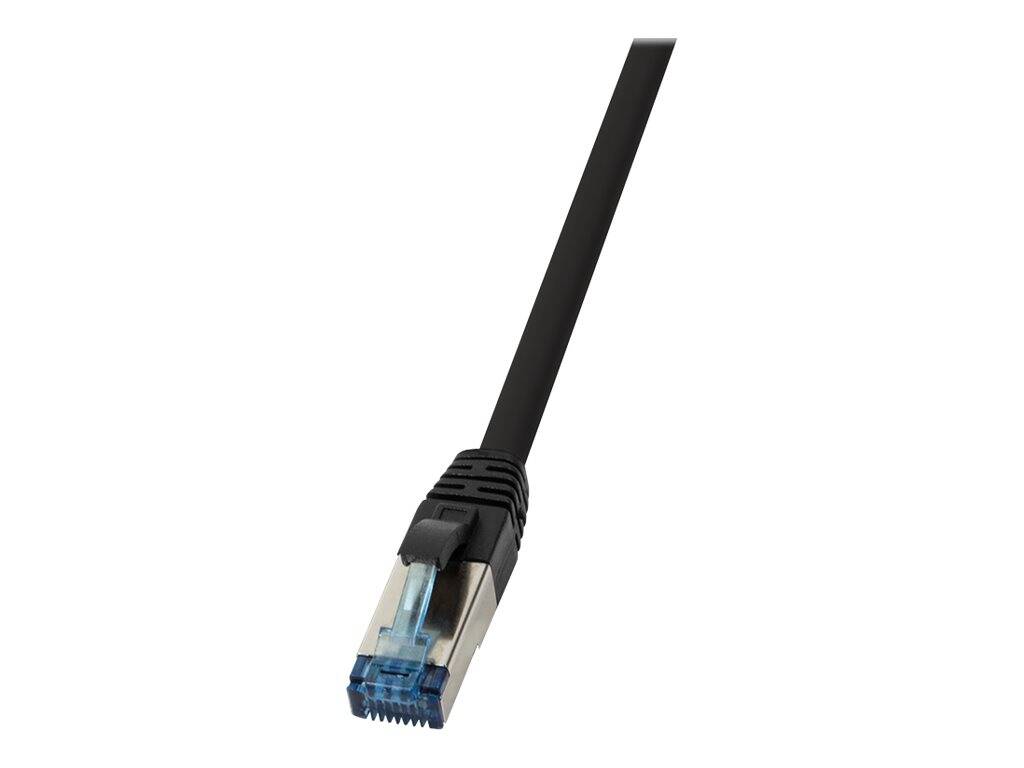

LogiLink 10G - Patch cable - RJ-45 (M) to RJ-45 (M) - 5 m - SFTP - CAT 6a - halogen-free, outdoor - black | CQ6075S
Please sign in so that we can notify you about a reply
Special Fetures
- PUR patch cord for industrial use, outdoor, IP20
- CAT.6A Class EA S/FTP 27AWG PUR 500MHz 10G
- ISO/IEC 11801 & EN50173-1 & ANSI/TIA-568-C.2
- PUR (Polyurethan) conform IEC 60754-2, IEC 61034
- Oil Resistant conform EN 60811-2-1, anti-hydrolysis, UV resistance
- Halogen free conform IEC 60754
Product Specification
| Network Cable Type | Patch cable - CAT 6a |
| Technology | Shielded foiled twisted pair (SFTP) |
| Jacket Material | Polyurethane |
| American Wire Gauge (AWG) | 27 |
| Wires per Cable | 8 wires |
| Pairs per Cable | 4 pairs |
| Features | Halogen-free, outdoor, oil-resistant, flame retardant, UV resistant, 6.2 mm sheath diameter, acid-resistant, hydrolysis-resistant |
| Length | 5 m |
| Colour | Black |
| Connectivity | |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
| Miscellaneous | |
| Compliant Standards | EN 50173-1, ISO/IEC 11801, IP20, IEC 60754-2, IEC 61034, ANSI/TIA-568-C.2, IEC 60754, EN 60811-2-1 - up to 500 MHz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 12 cm |
| Shipping Depth | 12 cm |
| Shipping Height | 3 cm |
| Shipping Weight | 182 g |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 90 °C |
Features - LogiLink - CQ6075S
Colour
black
Length
5m
General
CAT6a
More Details
Product Code
04:267191
EAN Code
4052792049800
Manufacturer
LogiLink
