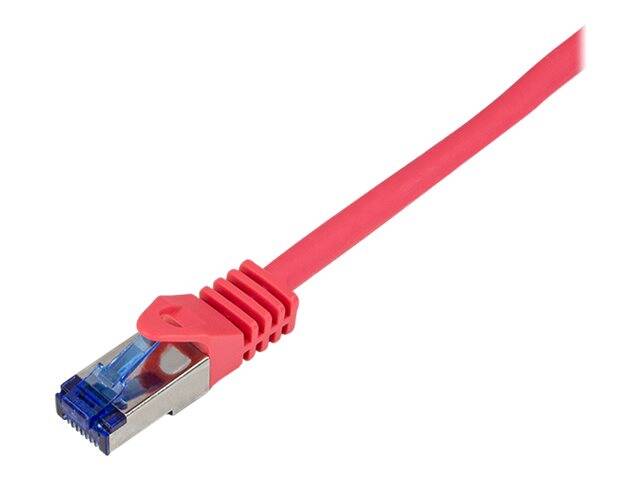

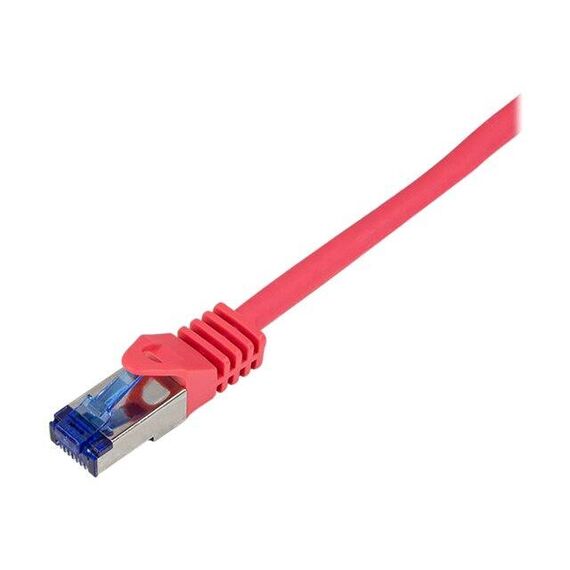

LogiLink Professional Ultraflex - Patch cable - RJ-45 (M) to RJ-45 (M) - 25 cm - 6 mm - S/FTP - CAT 7 (cable) / CAT 6a (connectors) - halogen-free, molded, snagless - red, RAL 3018 | C6A014S
Please sign in so that we can notify you about a reply
Special Fetures
- Cat.6A RJ45 shielded plugs with Cat.7 S/FTP raw cable
- Flexible and soft cable with small bending radius
- Suitable for 10 Gigabit Ethernet, PoE, PoE+, PoE++
- Comply with Cat.6A ISO11801 Channel Class EA
- 3P and GHMT tested and certified
- 4x2xAWG26/7 bare copper wire
- Low smoke (IEC 61034)
- Halogen free (IEC 60754-2)
Product Specification
| Network Cable Type | Patch cable - CAT 7 (cable) / CAT 6a (connectors) |
| Technology | S/FTP |
| Shielding Material | Copper braid |
| Jacket Material | Halogen Free Flame-Retardant (HFFR) |
| American Wire Gauge (AWG) | 26/7 |
| Wires per Cable | 8 wires |
| Pairs per Cable | 4 pairs |
| Features | Halogen-free, molded, snagless, PoE+ Ready, strain relief, PoE ready, PoE++ ready, bare copper, bending radius 25mm, ultra flex, up to 10 Gbps |
| Length | 25 cm |
| Diameter | 6 mm |
| Weight | 16 g |
| Colour | Red, RAL 3018 |
| Connectivity | |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
| Miscellaneous | |
| Compliant Standards | WEEE, 3P, IEC 60332-1-2, IEC 60754-2, IEC 61034, EN 50173, ANSI/TIA-568-C.2, ISO 11801 Class Ea, UKCA, GHMT - up to 500 MHz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 36 cm |
| Shipping Depth | 8 cm |
| Shipping Height | 0.6 cm |
| Shipping Weight | 18 g |
| Environmental Parameters | |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 75 °C |
Features - LogiLink - C6A014S
Colour
red
Length
0.25m
General
CAT7
More Details
Product Code
04:426751
EAN Code
4052792056020
Manufacturer
LogiLink
