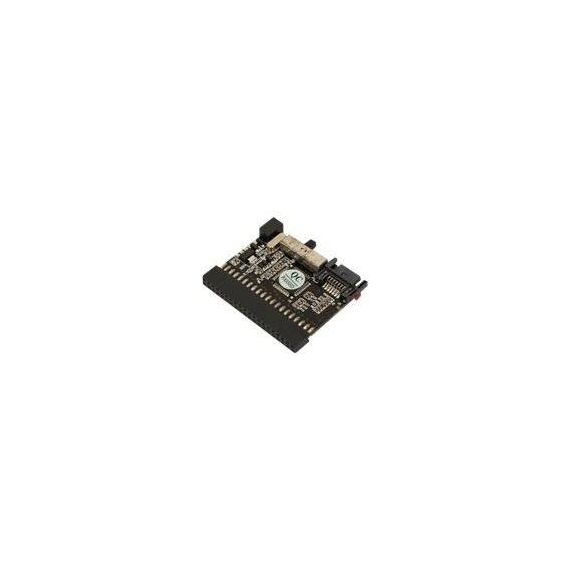

LogiLink Adapter IDE to SATA bidirectional / Storage controller / ATA / SATA 3Gb/s | AD0008
Please sign in so that we can notify you about a reply
Special Features
- Bidirectional IDE to SATA adapter
- Switchable direction
- Serial ATA 1.0 specification compliant
- Automatic Serial ATA 3.0/1.5 Gbps speed negotiation
- ATA/ATAPI PIO mode 0 to 4
- Support Serial ATA hot-plug
- Ultra low power consumption
- Provide specified OOB signal detection and transmission
- SATA II asynchronous signal recovery support
- Support partial/slumber power management
- PSU via USB port
Product Specification
| Device Type | Storage controller |
| Host Bus | SATA 3Gb/s |
| Storage Controller | Storage Controller |
| Interface | ATA |
| Data Transfer Rate | 150 MBps |
| Supported Devices | Hard drive, CD drive, DVD drive |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x ATA - 40 PIN IDC |
| Connections | 1 storage - Serial ATA-300 - 7 pin Serial ATA |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x Serial ATA cable - external - 35 cm |
| Dimensions & Weight | Dimensions & Weight |
| Width | 5 cm |
| Depth | 4 cm |
| Height | 5 mm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
Features - LogiLink - AD0008
More Details
Product Code
04:66362
EAN Code
4260113567159
Manufacturer
LogiLink
