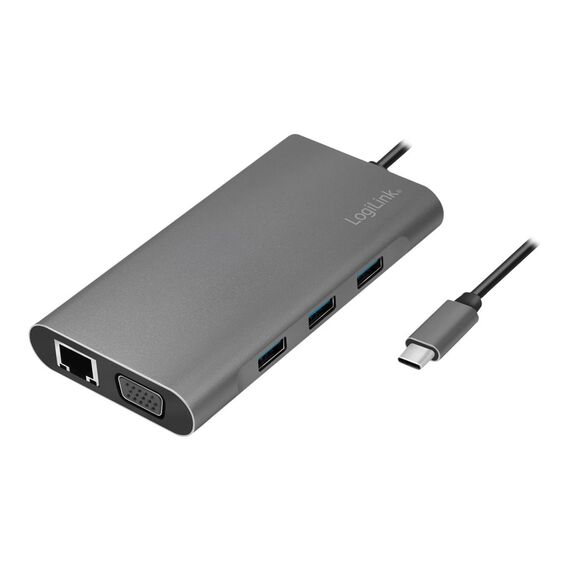

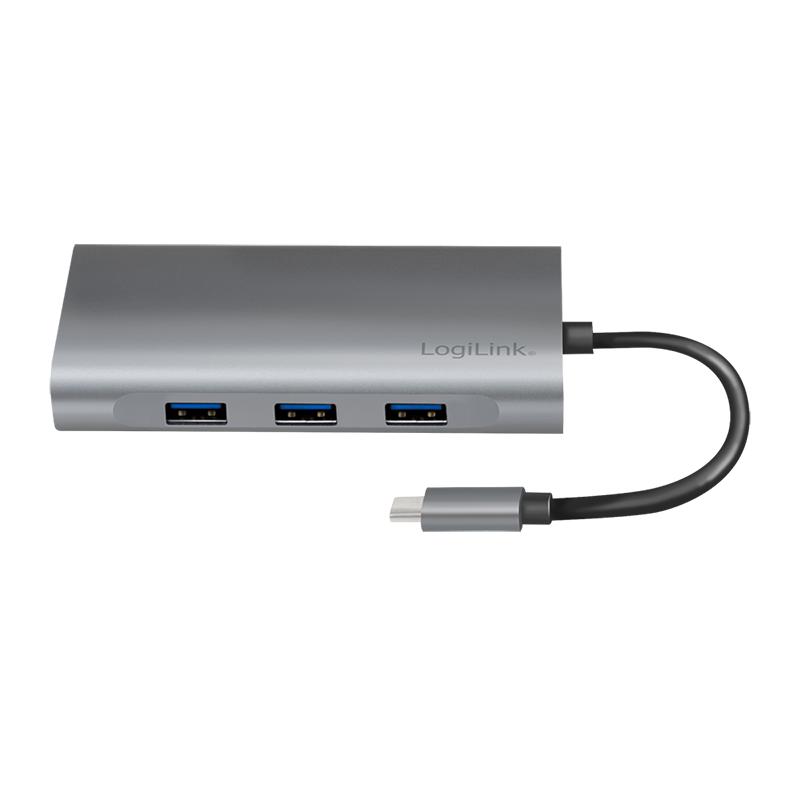

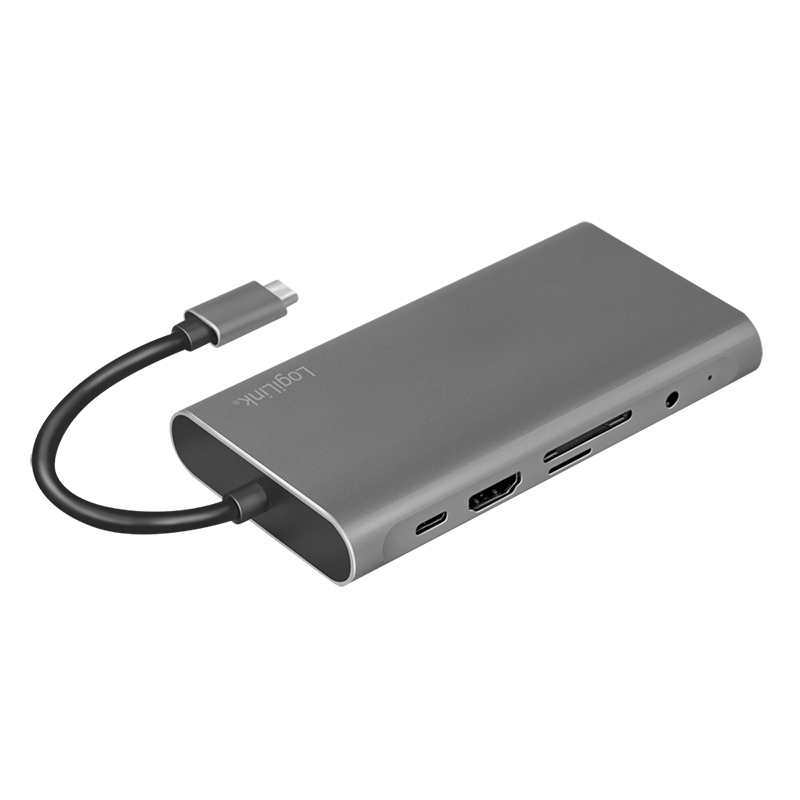

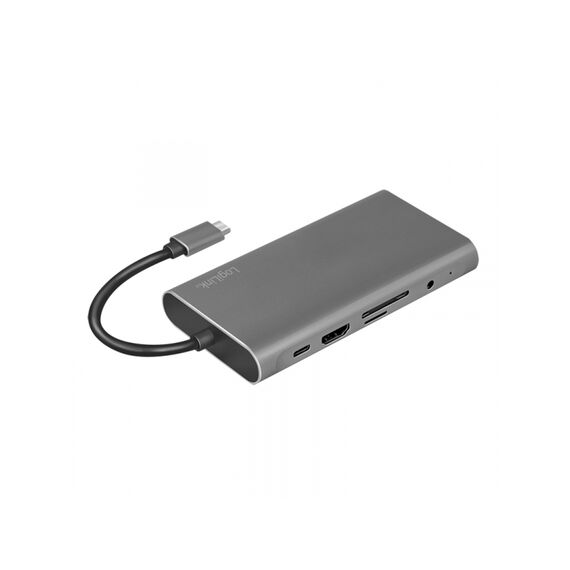

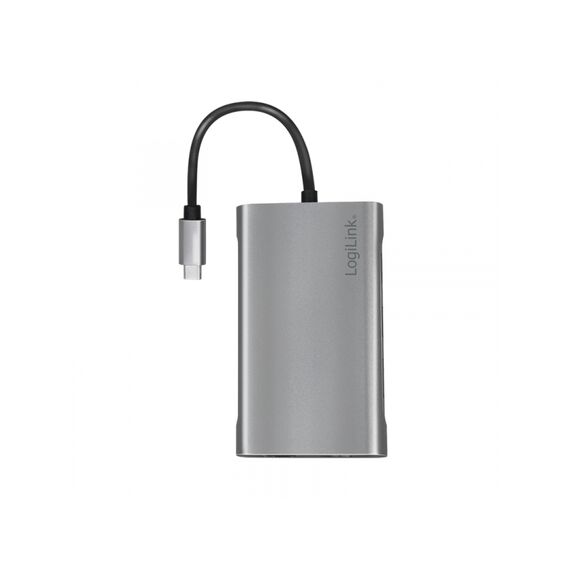

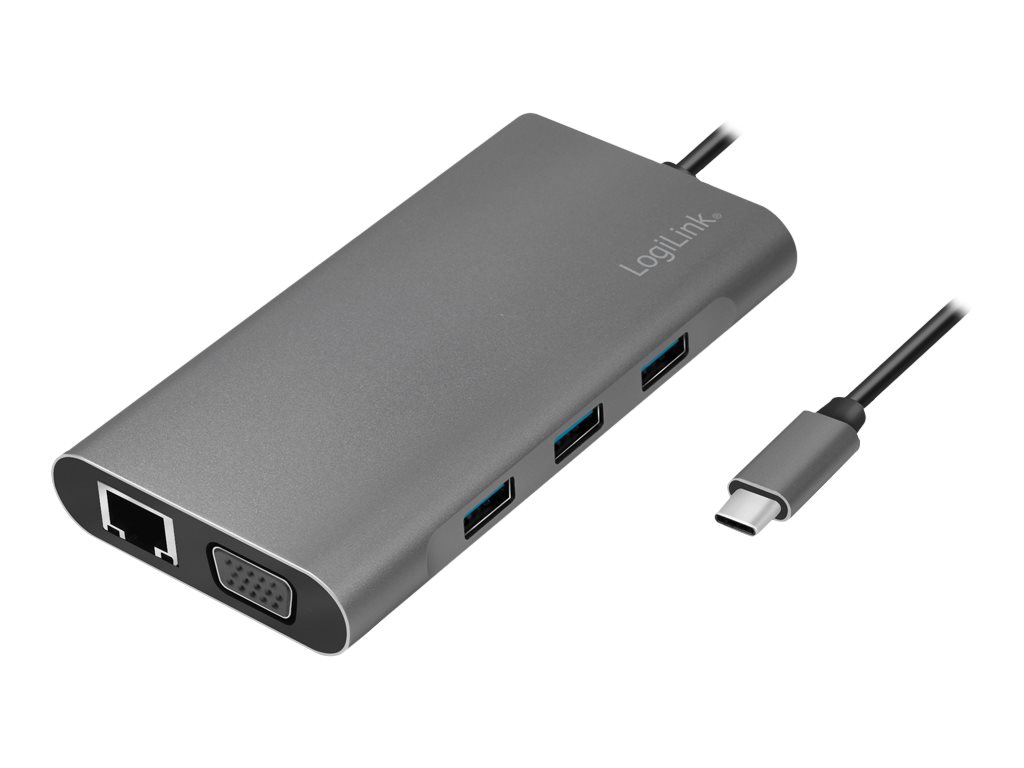

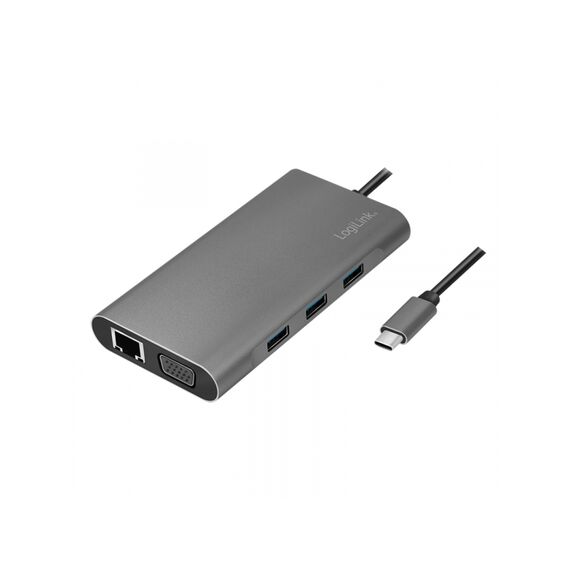

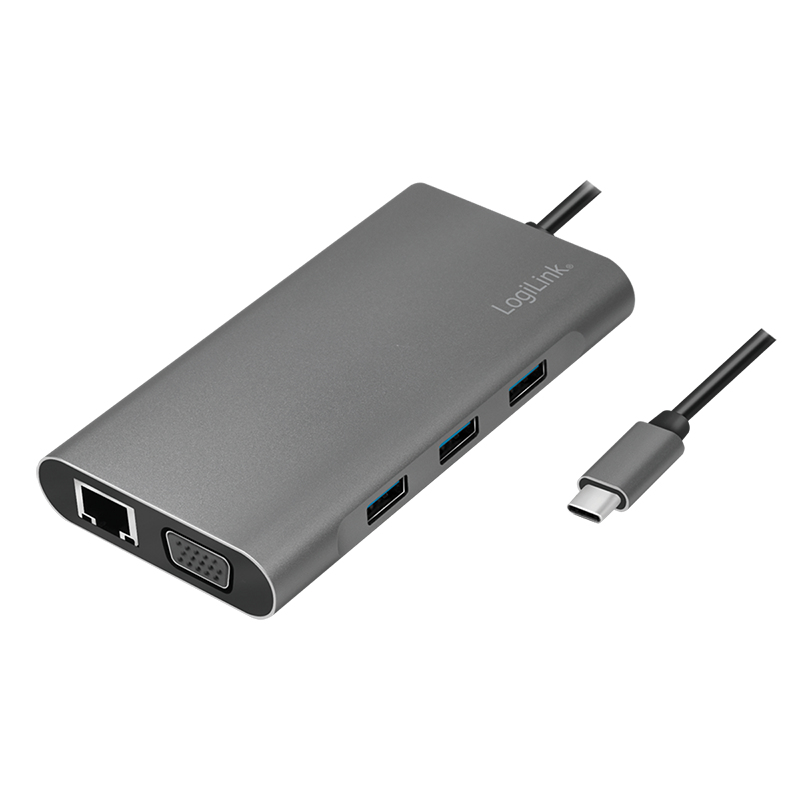

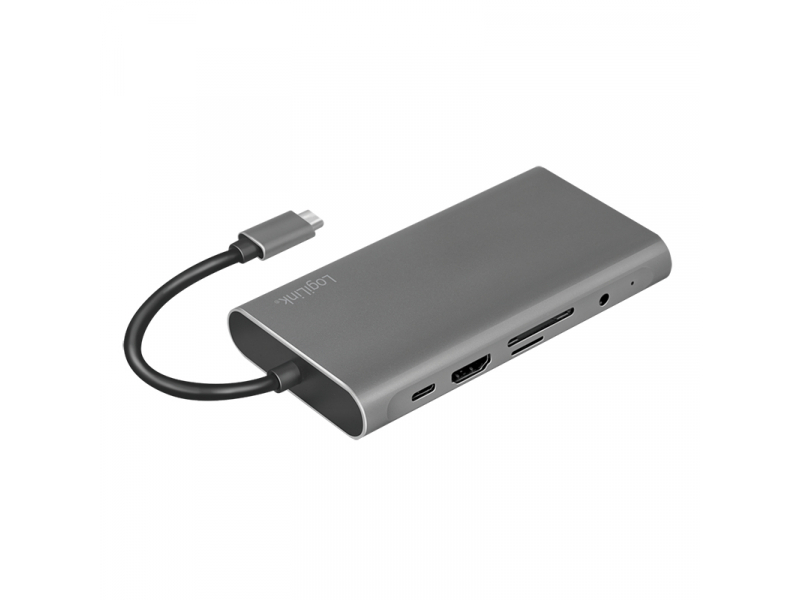

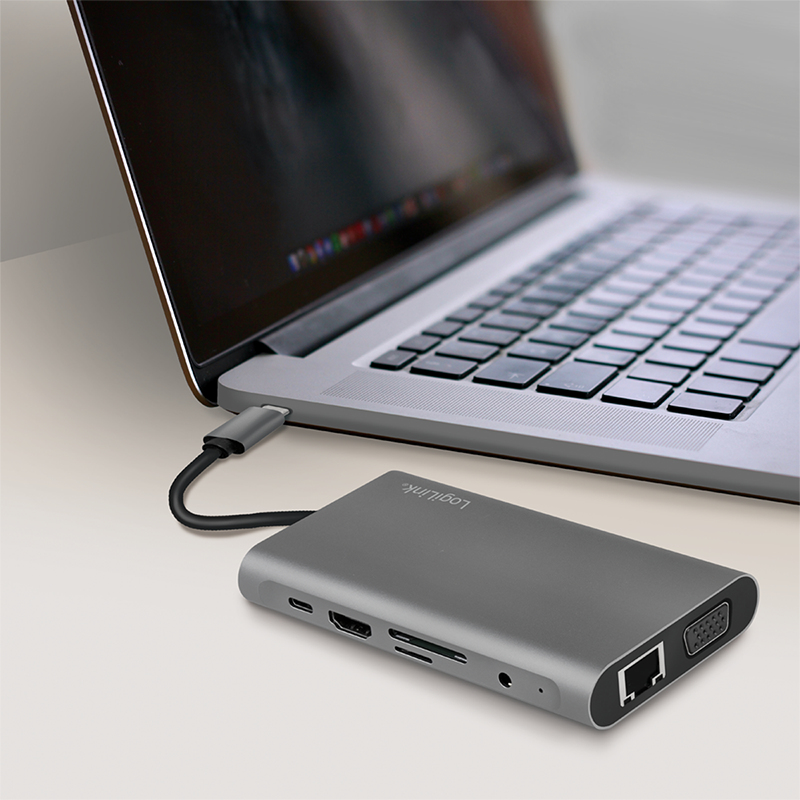

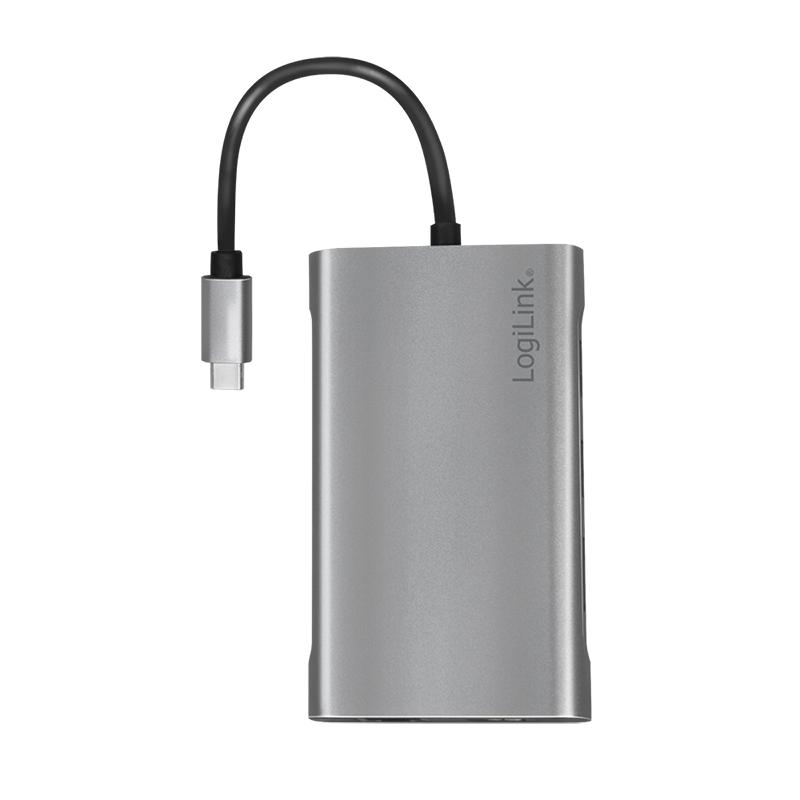

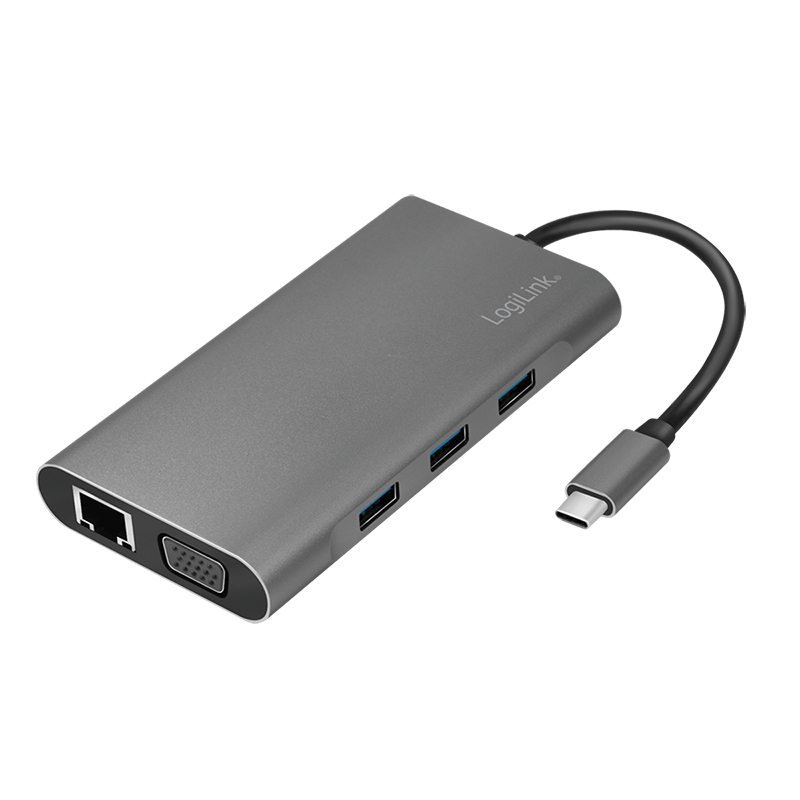

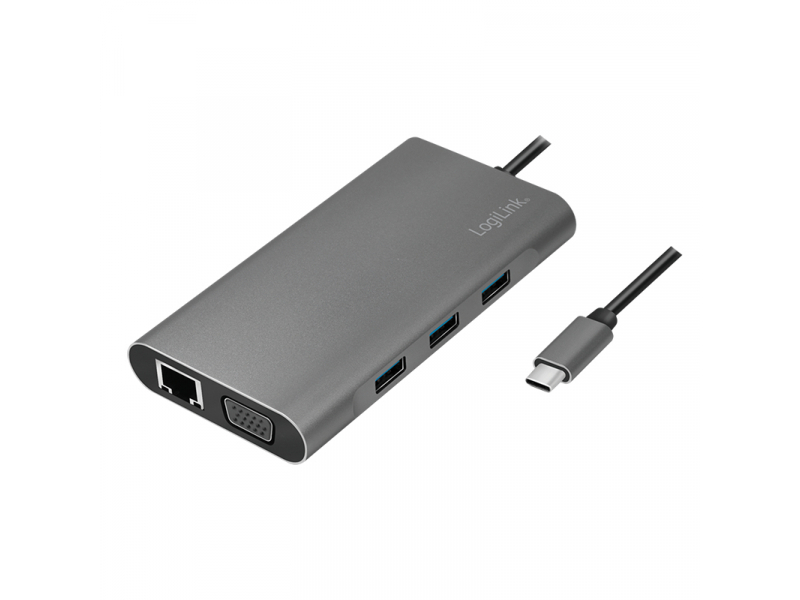

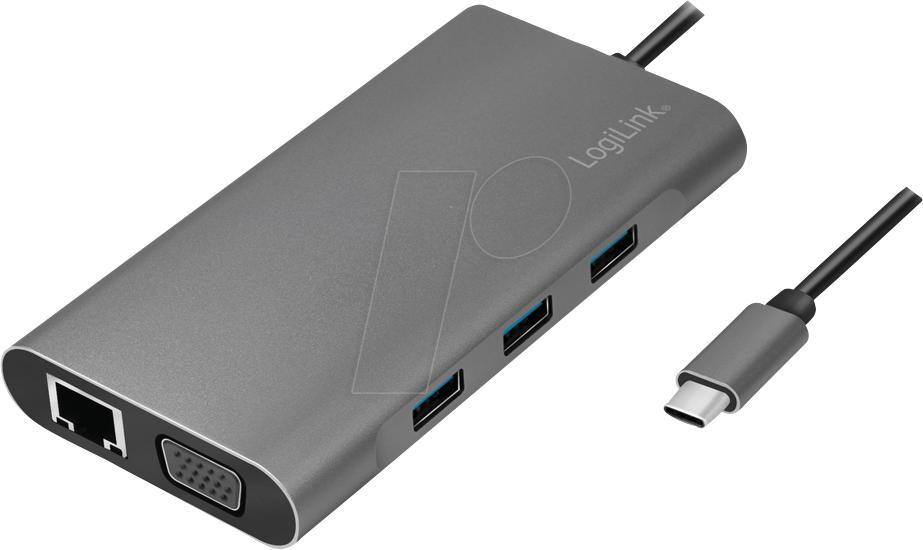

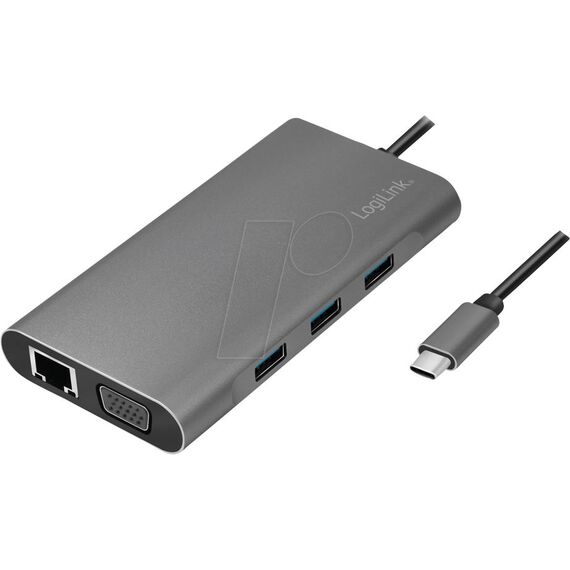

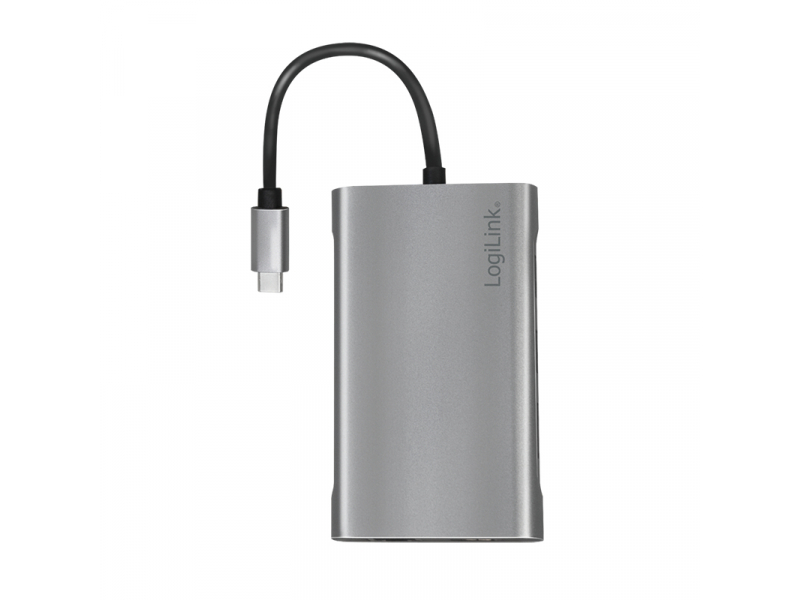

LogiLink / Docking station / USB-C 3.2 Gen 1 / VGA, HDMI / 1GbE | UA0383
Please sign in so that we can notify you about a reply
Product Features
- Convenient USB-C charging
Power supply via the 100 W USB-C Power Delivery port for keeps your laptop fully charged while you're using all the other devices on the docking. - Fast data transfer

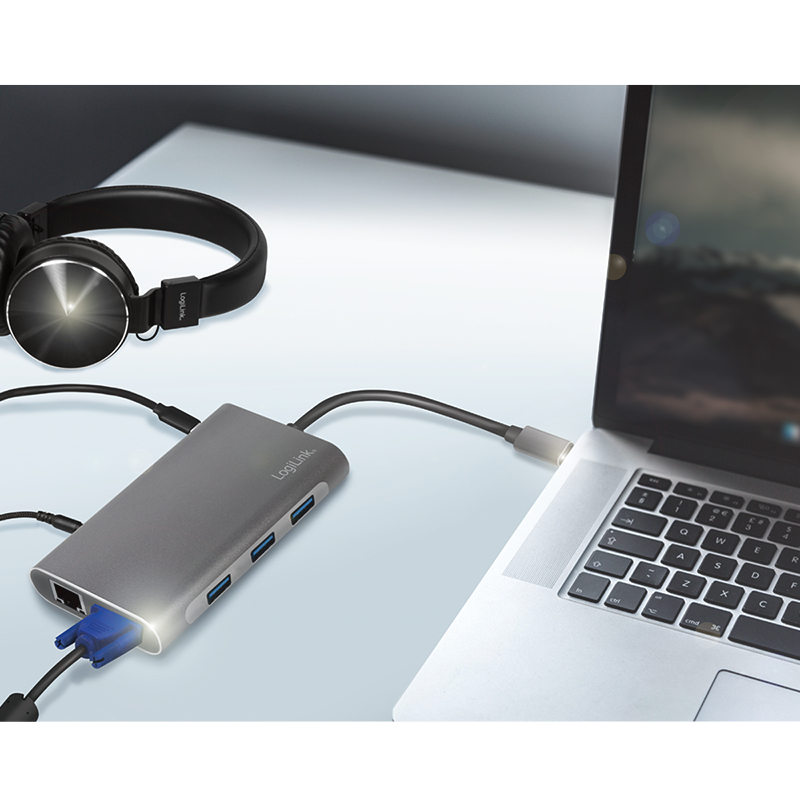

Connect your laptop via the USB-C port (Thunderbolt 3 compatible) to give you extra ports to connect your peripherals. Quick data transfer speeds up to 5 Gbps. - Steady Internet performance
RJ45 Gigabit Ethernet network port provides stable and fast network transmission. (10M/100M/1000Mbps). - Crystal clear and simultaneous video output
Extend up to two monitors through one HDMI port and one VGA port at the same time. Easily stream videos to a HDTV, monitor, or projector; enjoy your crisp and colorful pictures. - Wide compatibility
Works with all USB-C (Thunderbolt 3 compatible) laptops, computers and tablets; fully compatible with Windows and Mac OS.
Special Features
- Connects up to 10 devices to a laptop/tablet through a single USB-C cable (0.12 m)
- Supports USB Power Delivery (USB-PD 3.0) for charging/usage of external devices with up to 100 W
- Supports SST (Single-Stream Transmission) in Windows
- Supports UHD 4K at 30 Hz resolutions (3840 x 2160) over HDMI with HEC, CEC, ARC and HDCP
- Supports Full HD 1080p at 60 Hz resolutions (1900 x 1200) over VGA
- Supports simultaneous use of VGA/HDMI
- Fast data transfer speeds of up to 5 Gbit/s
- Supports headphones and headsets
- Supports SD/SDHC/SDXC up to 2 TB card capacity (SD v3.0, UHS-I, MMC)
- Plug-and-Play - no driver installation needed, compatible with Windows and Mac OS
- Aluminum housing
Product Specification
| Product Type | Docking station |
| Width | 11.5 cm |
| Depth | 6.22 cm |
| Height | 1.65 cm |
| Weight | 97.6 g |
| Enclosure Colour | Silver |
| Video | Video |
| Max Resolution Details | 3840 x 2160 - 30 Hz (HDMI only) 1920 x 1080 - 60 Hz (VGA only) |
| Networking | Networking |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 microSDXC 1 SDXC Memory Card |

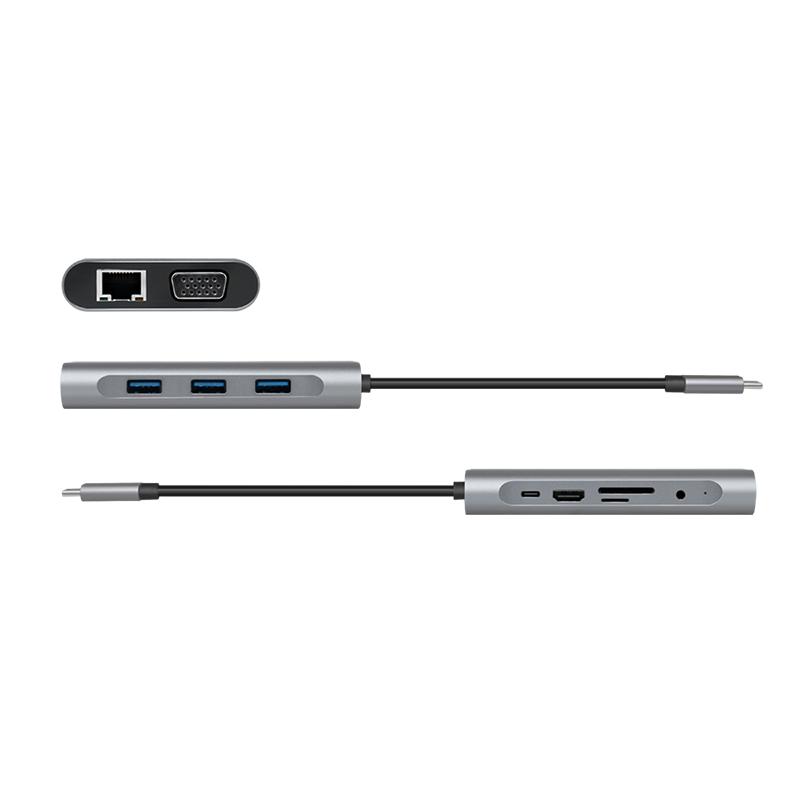

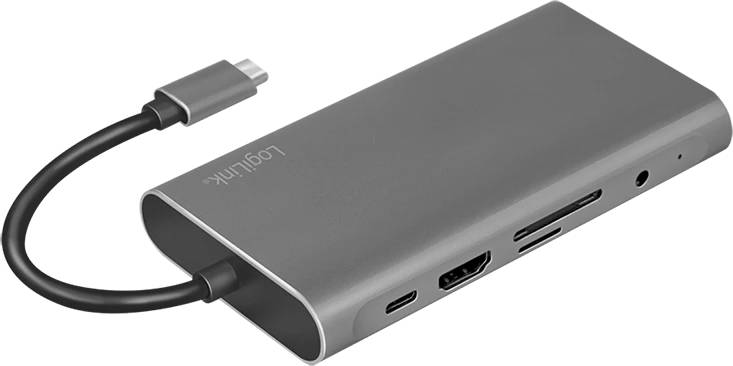

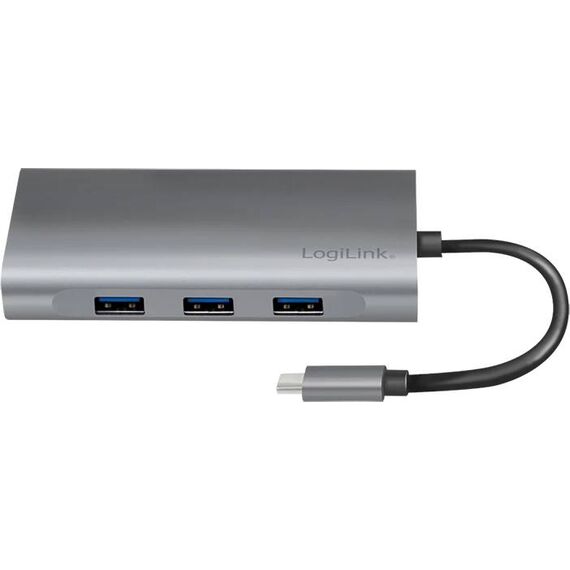

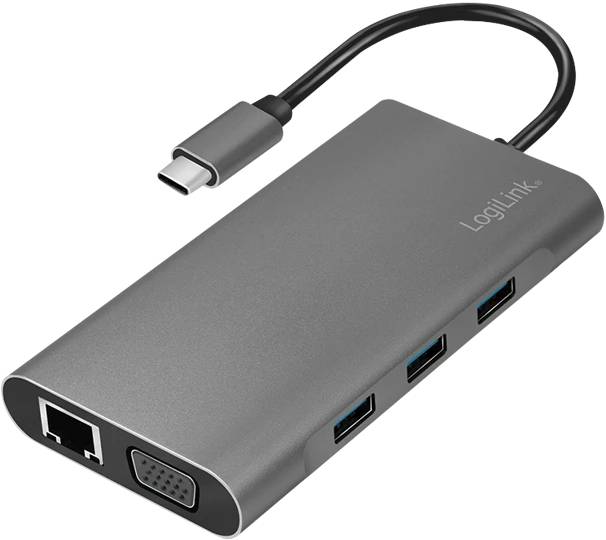

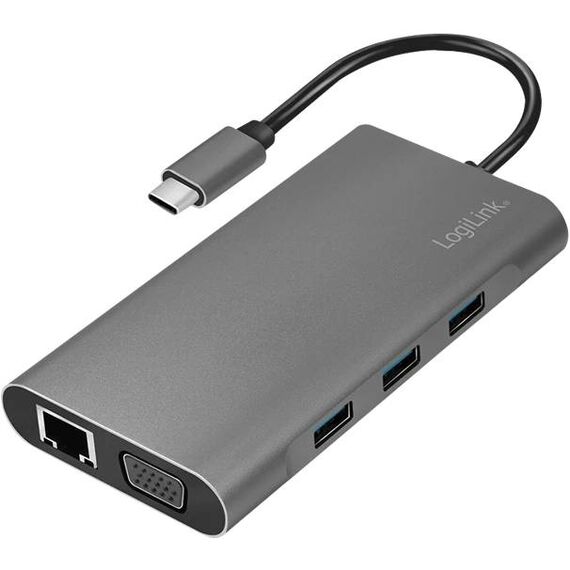

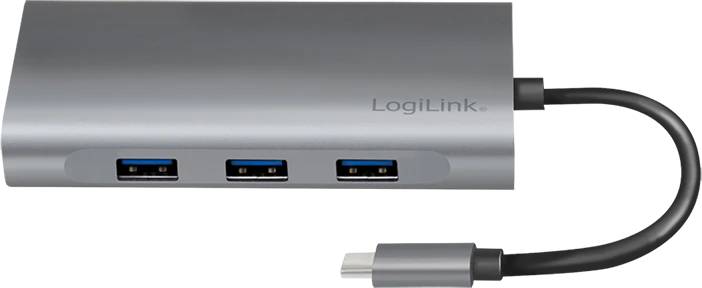

| Interfaces | 1 x audio / video - HDMI output - 19 pin HDMI Type A 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) 1 x USB-C with Power Delivery (100 W) - 24 pin USB-C 3 x SuperSpeed USB 3.0 - 9 pin USB Type A 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 1 x audio - line-out - mini-phone stereo 3.5 mm |
| Miscellaneous | Miscellaneous |
| Cables Included | USB-C cable - 12 cm |
| Features | Aluminum enclosure, 100W power delivery, SST (single-stream transport) |
| Compliant Standards | Plug and Play, RoHS |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
Features - LogiLink - UA0383
More Details
Product Code
04:381230
EAN Code
4052792064711
