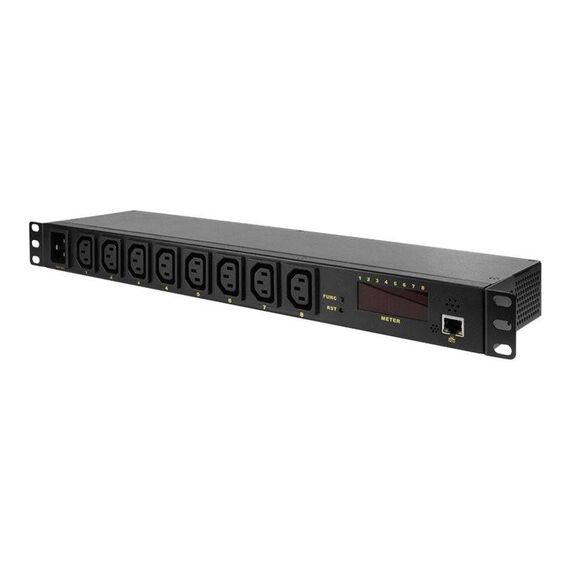

LogiLink IP PDU Control Unit / Power distribution unit (rack-mountable) / AC 110-240 V / Ethernet / input: IEC 60320 C20 / output connectors: 8 (8 x IEC 60320 C13) / 1U / black | PDU8P01
Please sign in so that we can notify you about a reply
Special Features
- Current, voltage (total input) measurement over IP
- Built-in temperature and humidity sensor, can set up two level values of warning and overload
- Embedded technology, support Java, web browsing
- LED indicates power supply condition, voltage and current, built-in lightning protection circuit and resisting voltage surge circuit
Product Specification
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 1U |
| Colour | Black |
| Power Device | Power Device |
| Input Voltage | AC 110-240 V |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60320 C20 |
| Power Output Connectors Details | 8 x power IEC 60320 C13 |
| Max Electric Current | 16 A |
| Surge Suppression | Yes |
| Networking | Networking |
| Remote Management Interface | Ethernet |
| Miscellaneous | Miscellaneous |
| Features | Voltage monitoring, humidity monitoring, current meter, overload protection, short-circuit protection, lightning protection, temperature sensor |
| Dimensions & Weight | Dimensions & Weight |
| Width | 44.2 cm |
| Height | 4.45 cm |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 48.5 cm |
| Shipping Depth | 20 cm |
| Shipping Height | 9 cm |
| Shipping Weight | 2.4 kg |
Features - LogiLink - PDU8P01
More Details
Product Code
04:252309
EAN Code
4052792046427
Manufacturer
LogiLink
