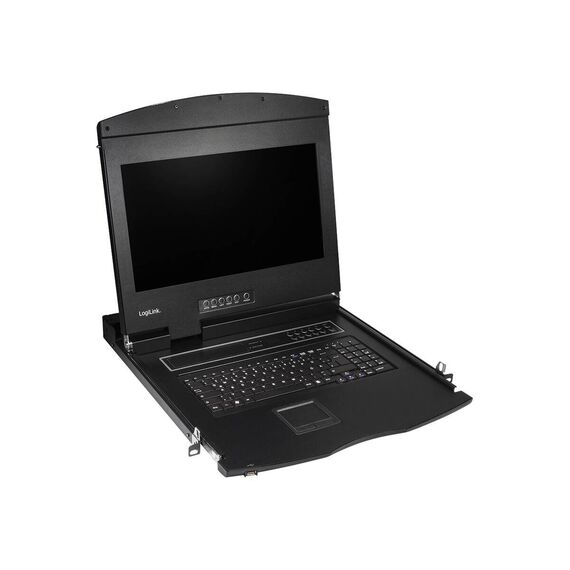

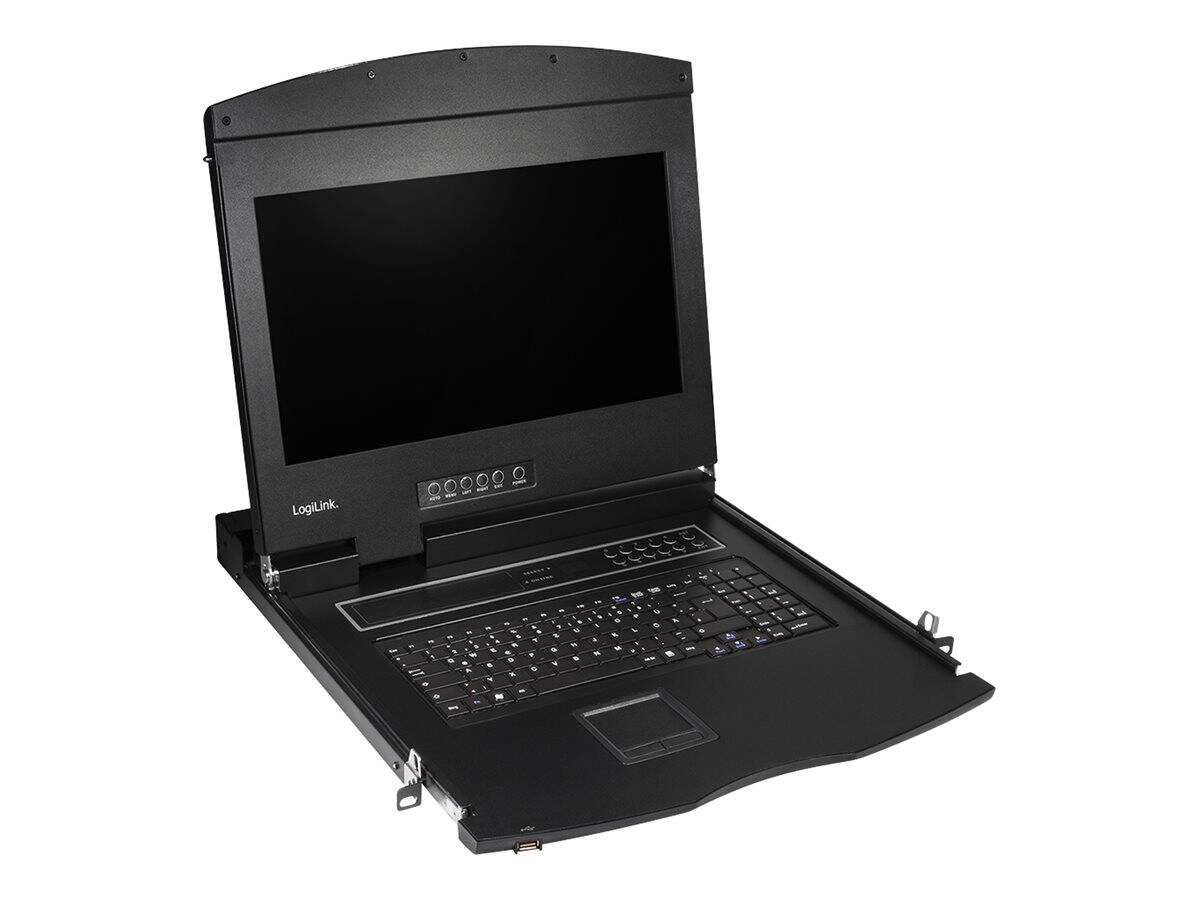

LogiLink LC702GE - KVM console - PS/2, USB - QWERTZ - 17.3" - rack-mountable - 1920 x 1080 Full HD (1080p) @ 60 Hz - AHVA - 600:1 - 1U | LC703GE
Please sign in so that we can notify you about a reply
Product Specification
| Display Type | KVM console / TFT active matrix |
| Diagonal Size | 17.3" |
| Panel Type | AHVA |
| Aspect Ratio | 16:9 |
| Native Resolution | Full HD (1080p) 1920 x 1080 at 60 Hz |
| Pixel Pitch | 0.1989 mm |
| Contrast Ratio | 600:1 |
| Colour Support | 16.7 million colours (6-bit) |
| Backlight Technology | LED backlight |
| Features | OSD controller, metal casing |
| Dimensions (WxDxH) | 44.5 cm x 46.3 cm x 4.5 cm |
| Height (Rack Units) | 1U |
| Weight | 11 kg |
| Input | |
| Type | Keyboard, touchpad |
| KVM | |
| Keyboard / Mouse Interface | PS/2, USB |
| Max Resolution | 3840 x 2160 @ 30 Hz |
| Features | German keyboard layout |
| Connectivity | |
| Interfaces | 2 x USB (Type A) ¦ HDMI |
| Mechanical | |
| Tilt Angle | 110 |
| Miscellaneous | |
| Features | Lockable, single rail, for 19" wide racks |
| Cables Included | 1 x HDMI / USB / audio cable |
| Backlight Life | 50,000 hours |
| MTBF | 100,000 hour(s) |
| Compliant Standards | RoHS, CE/EAC |
| Power | |
| Input Voltage | DC 12 V |
| Software / System Requirements | |
| OS Required | Apple MacOS, SunOS, Linux, Microsoft Windows |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 74 cm |
| Shipping Depth | 61 cm |
| Shipping Height | 18.5 cm |
| Shipping Weight | 14.2 kg |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 80% RH (non-condensing) |
Features - LogiLink - LC703GE
More Details
Product Code
04:430457
EAN Code
4052792065824
Manufacturer
LogiLink
