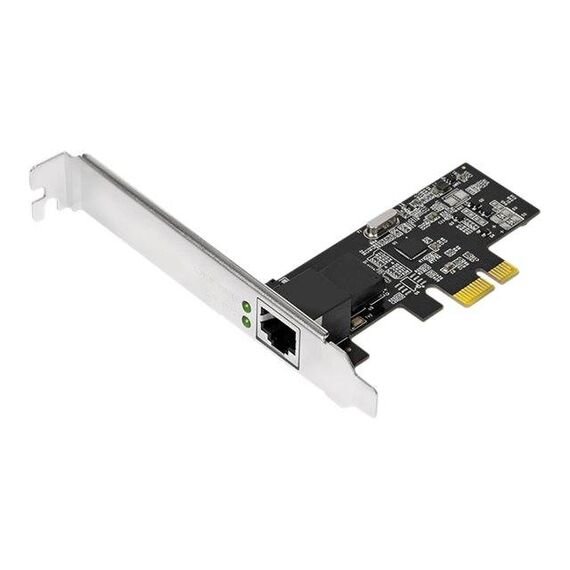

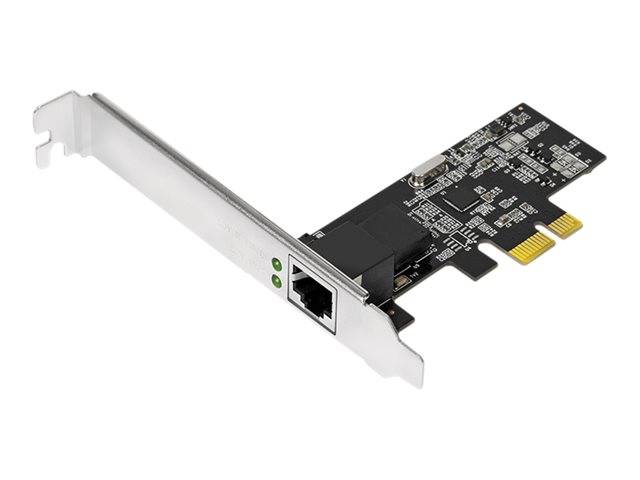

LogiLink / Network adapter / PCIe 2.1 low profile / 2.5GBase-T | PC0087
Please sign in so that we can notify you about a reply
Special Features
- Gigabit PCI Express Card, PCI Express 1-lane interface
- IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3az und IEEE802.3bz standards
- Automatic speed detection
- LED for Link/Activity
- Supports Windows, Linux and Mac OS
- Supports Auto-Negotiation, Auto MDI/MDI-X, Jumbo Frame and Wake On LAN (WOL)
- Maximum transfer rates of up to 2.5 GBit/s
- Compliant with PCI Express 2.1
Product Specification
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.1 x1 |
| PCI Specification Revision | PCIe 2.1 |
| Networking | Networking |
| Ports | 2.5GBase-T |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 1000Base-T, Ethernet 2.5GBase-T |
| Data Link Protocol | Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Data Transfer Rate | 2.5 Gbps |
| Status Indicators | Link/activity/speed |
| Features | Auto-negotiation, wake on LAN (WOL), auto-uplink (auto MDI/MDI-X), full duplex mode, Jumbo Frames support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x 2.5Gb Ethernet - RJ-45 |
| Miscellaneous | Miscellaneous |
| Compliant Standards | RoHS |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 15 cm |
| Shipping Depth | 13.5 cm |
| Shipping Height | 3 cm |
| Shipping Weight | 105 g |
Features - LogiLink - PC0087
More Details
Product Code
04:337366
EAN Code
4052792059854
Manufacturer
LogiLink
