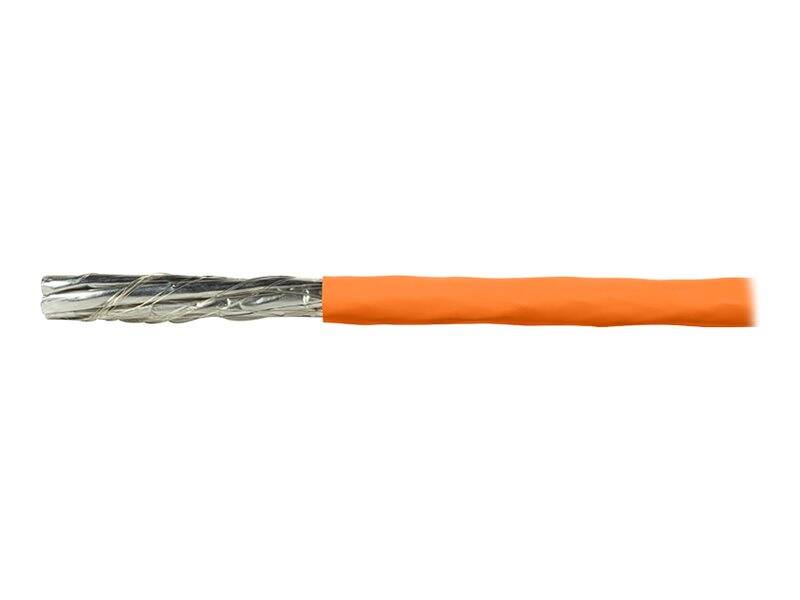

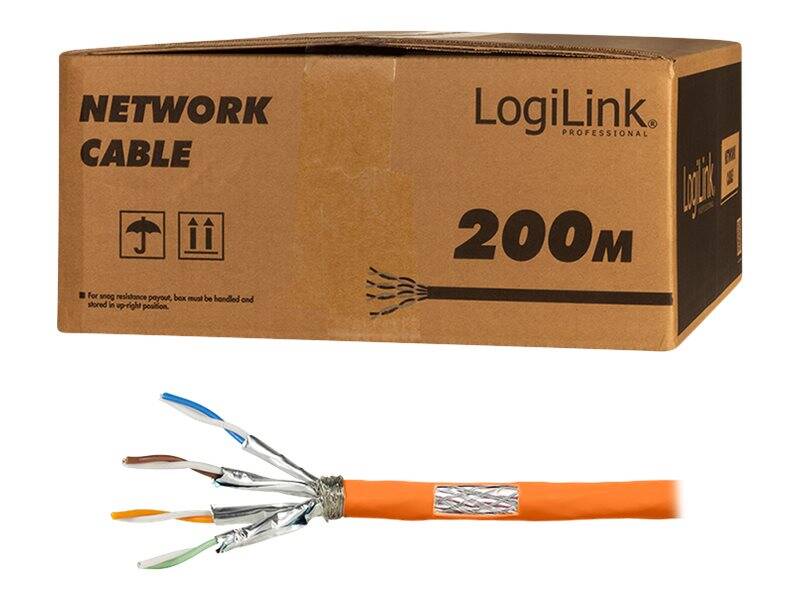

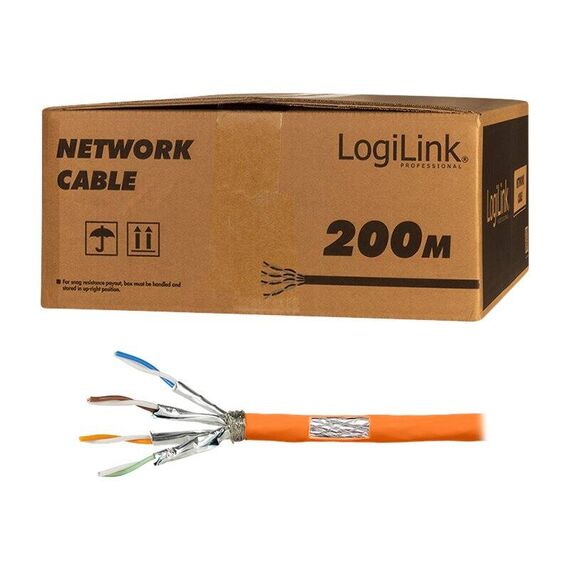

LogiLink Professional - Bulk cable - 200 m - 7.5 mm - S/FTP - CAT 7 - halogen-free, solid - orange | CPV0061
Please sign in so that we can notify you about a reply
Special Fetures
- Cat.7 AWG23 S/FTP solid cable, OFC, 200m reel

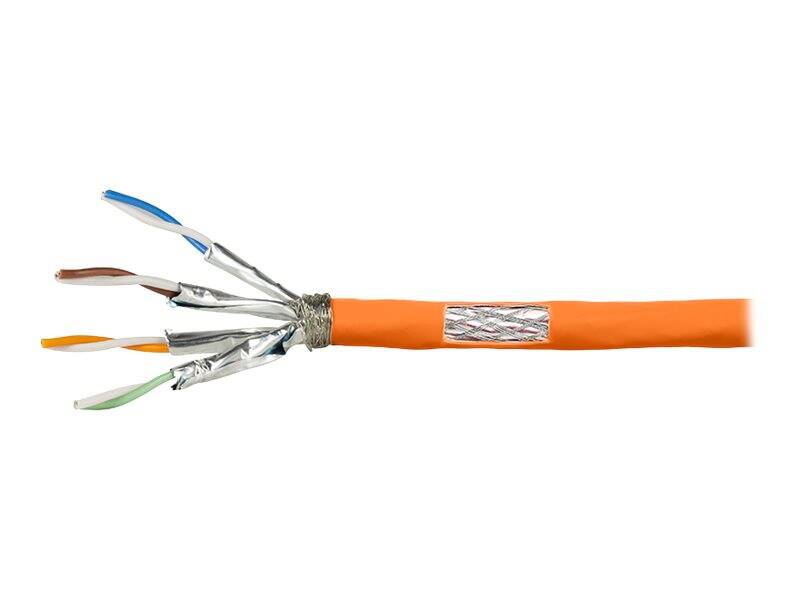

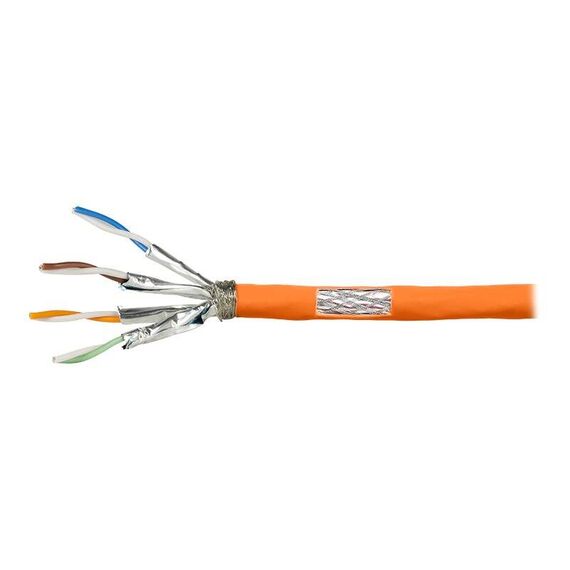

- 4 individually screened pairs (PIMF)
- Tin plated copper braiding overall screen
- LSZH outer jacket, orange, 7.5mm diameter
- Complies with EN50575 + EN50399 (CPR), class Dca-s1a,d0,a1
- For Fast-, Gigabit- & 10 Gigabit Ethernet cabling
- Complies with ISO/IEC 11801 and IEC 61156-5
Product Specification
| Network Cable Type | Bulk cable - CAT 7 |
| Technology | S/FTP |
| Shielding Material | Tinned copper braid |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| American Wire Gauge (AWG) | 23 |
| Wires per Cable | 8 wires |
| Pairs per Cable | 4 pairs |
| Features | Halogen-free, solid, OFC (Oxygen Free Copper), reel package, bare copper conductors |
| Length | 200 m |
| Diameter | 7.5 mm |
| Colour | Orange |
| Miscellaneous | |
| Compliant Standards | ISO/IEC 11801, IEC 61156-5, EN 50173, ANSI/TIA-568-C.2, EN 50575:2014, EN 50399 - up to 1000 MHz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 40 cm |
| Shipping Depth | 40 cm |
| Shipping Height | 18 cm |
| Shipping Weight | 10.53 kg |
Features - LogiLink - CPV0061
Colour
orange
Length
>50m
More Details
Product Code
04:342599
EAN Code
4052792059687
Manufacturer
LogiLink
