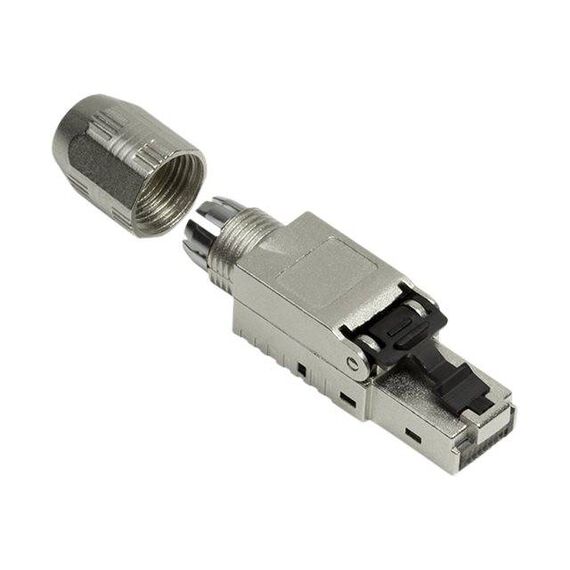

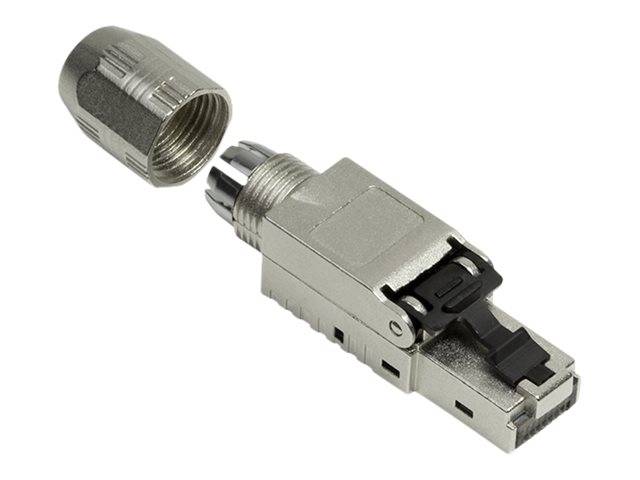

LogiLink Professional / Network connector / RJ-45 (M) / shielded / CAT 6a | MP0040N
Please sign in so that we can notify you about a reply
Special Features
- Cat.6A Class EA Modular Plug Terminated Link (MPTL)
- Comply with ISO/IEC11801, TIA568-C.2, TIA568.2-D
- Fully shielded zinc diecast housing, screw type
- Contact pins with phosphor bronze alloy, gold plated
- For solid wire: 22/1 to 26/1 AWG
- For stranded wire: 23/7 to 27/7 AWG
Product Specification
| Network Cable Type | Network connector - CAT 6a |
| Technology | Shielded |
| Wiring Scheme | T568A/B |
| American Wire Gauge (AWG) | 22/1-26/1 / 23/7-27/7 |
| Features | PoE+ Ready, phosphor bronze connectors, zinc die-cast housing, PoE ready, PoE++ ready, field assembly, modular connector, for cable diameter from 5.0 - 8.5 mm, gold-plated pins |
| Width | 1.42 cm |
| Depth | 5.62 cm |
| Height | 1.34 cm |
| Weight | 21 g |
| Connectivity | Connectivity |
| Connector | RJ-45 - male |
| Miscellaneous | Miscellaneous |
| Compliant Standards | ISO/IEC 11801, ANSI/TIA-568-C.2, ANSI/TIA-568.2-D, UKCA |
Features - LogiLink - MP0040N
More Details
Product Code
04:426672
EAN Code
4052792062557
Manufacturer
LogiLink
