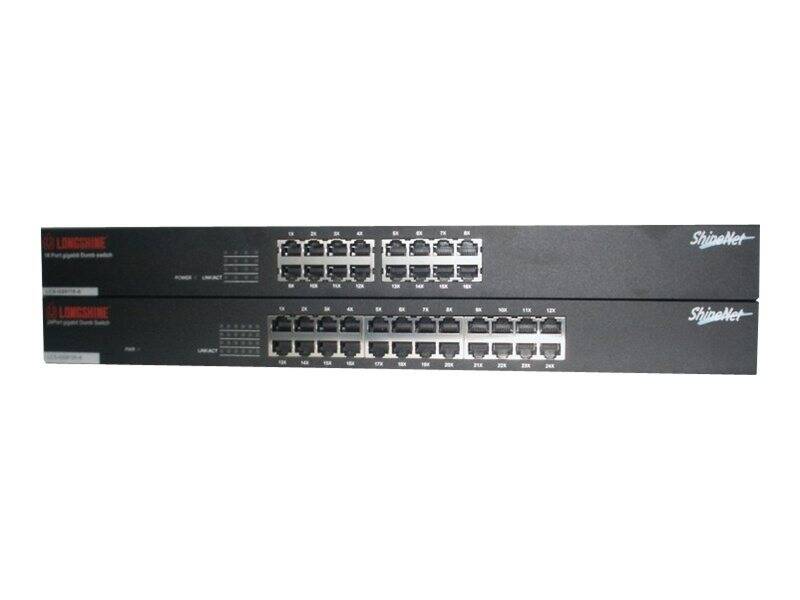

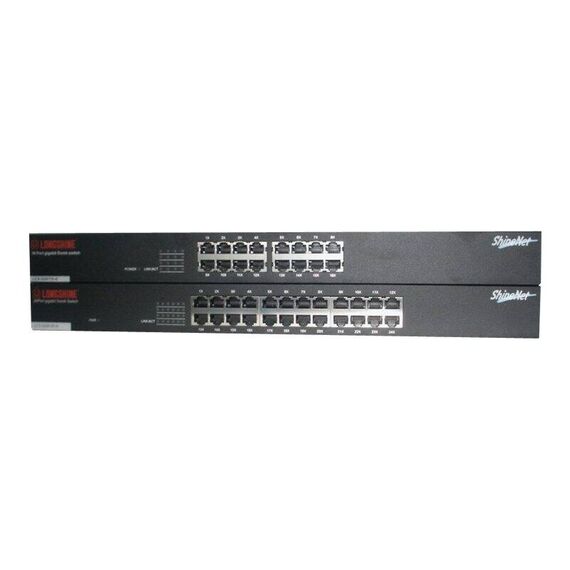

Longshine LCS-GS9116-A - Switch - unmanaged - 16 x 10/100/1000 - desktop, rack-mountable | LCS-GS9116-A
Please sign in so that we can notify you about a reply
Special Fetures
- Complies with 10 BASE-T specifications of the IEEE802.3 standard
- Complies with 100BASE-TX specifications of the IEEE802.3u standard
- Complies with 1000BASE-T specifications of the IEEE802.3ab standard
- Supports back-pressure (half duplex) and flow control (IEEE 802.3x)
- Supports NWay protocol for speed (10/100/1000 Mbps) and duplex mode (half/full) auto-detection
- Supports MDI/MDI-X auto crossover and polarity correction
- Store-and-forward architecture filters fragment & CRC error packets
- Supports 8K MAC address
- Supports 256K bytes buffer memory
Product Specification
| Device Type | Switch - 16 ports - unmanaged |
| Enclosure Type | Desktop, rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 16 x 10/100/1000 |
| Performance | Backplane switching capacity: 32 Gbps |
| MAC Address Table Size | 8K entries |
| Features | Flow control, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, 256KB packet buffer |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Expansion / Connectivity | |
| Interfaces | 16 x 1000Base-T RJ-45 |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous | |
| Included Accessories | Rubber feet |
| Rack Mounting Kit | Included |
| Compliant Standards | FCC Class A certified |
| Dimensions & Weight | |
| Width | 44.1 cm |
| Depth | 19.7 cm |
| Height | 4.41 cm |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - LogiLink - LCS-GS9116-A
General
16-Port
More Details
Product Code
04:94436
EAN Code
4016621115319
Manufacturer
LogiLink
