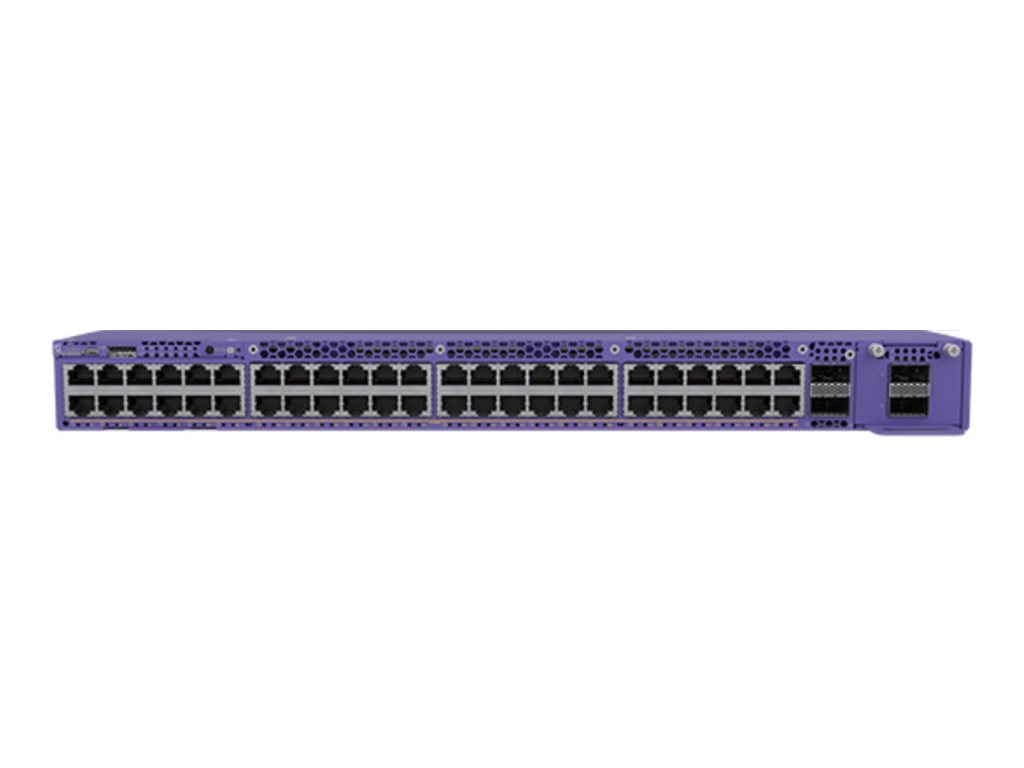

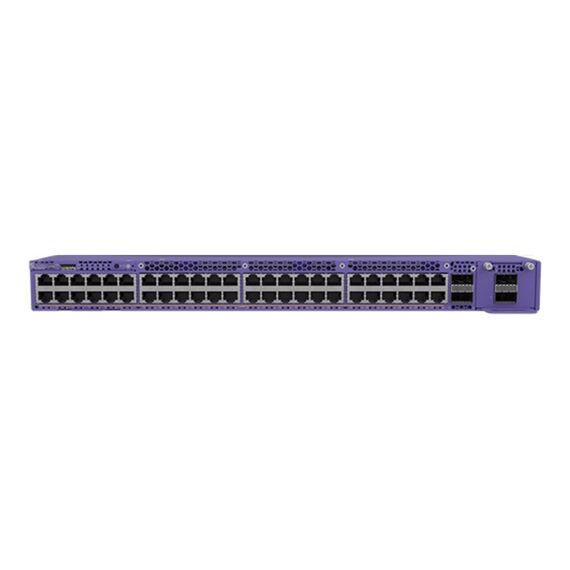

Switch - Managed - 48 x 1/2.5/5/10GBase-T (PoE++) + 2 x 100 Gigabit QSFP28 (stacking) - rack-mountable - PoE++ - for P/N: 5720-24MW, 5720-24MXW | 5720-48MXW
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Switch - 48 ports - Managed - stackable |
| Enclosure Type | Rack-mountable |
| Subtype | 10 Gigabit Ethernet |
| Ports | 48 x 1/2.5/5/10GBase-T (PoE++) + 2 x 100 Gigabit QSFP28 (stacking) |
| Power Over Ethernet (PoE) | PoE++ |
| Performance | Stacking bandwidth: 400 Gbps <br /> Switching bandwidth: 1760 Gbps <br /> Forwarding rate: 810 Mpps |
| Max Units In A Stack | 8 |
| Remote Management Protocol | CLI |
| Features | Full duplex mode, cloud managed, MACsec support, AVB, non-blocking architecture |
| Compliant Standards | IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bm, IEEE 802.3by, IEEE 802.3bz, IEEE 802.3bt |
| Expansion / Connectivity | |
| Interfaces | 48 x 1/2.5/5/10GBase-T RJ-45 PoE++ - 90 W <br /> 2 x 100GBase-X QSFP28 stacking <br /> 1 x management (Gigabit LAN) RJ-45 <br /> 1 x serial (console) RJ-45 <br /> 2 x USB Type A management <br /> 1 x micro-USB Type B console |
| Expansion Slots | 1 (total) / 1 (free) x Versatile Interface Module (VIM) <br /> 1 (total) / 1 (free) x SSD |
| Power | |
| Power Device | Internal power supply (not installed) - hot-plug |
| Power Redundancy | Yes |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Compliant Standards | BSMI, EN 61000-3-2, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, NOM, EN 61000-3-3, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EMC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, KCC, ANATEL, CQC, CDRH, VCCI Class A, EAC, WEEE 2012/19/EU, EN 300 386, EN 62368-1, IEC 62368-1, EN 55032 Class A, NRCS, ASTM D3580, ACMA RCM, CISPR 32 Class A, EN 60825-1 Class 1, EN 55035, EN/ETSI 300 019-2-1 v2.1.2 - Class 1.2, EN/ETSI 300 019-2-2 v2.1.2 - Class 2.3, EN/ETSI 300 019-2-3 v2.1.2 - Class 3.1e, FCC CFR21 Part 1040.10, AS/NZS CISPR 32, TEC, EN/ETSI 300 753 (1997-10), China RoHS II (GB/T 26572-2011), UL/CUL 62368-1, ROHS Directive 2011/65/EU, 2014/30/EU, FCC CFR 47 Part 15 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition 2014, REACH 1907/2006/CE, 2014/35/EU, Taiwan RoHS CNS 15663 (2013.7) |
| Software / System Requirements | |
| Software Included | Base Software License |
| Dimensions & Weight | |
| Width | 44.45 cm |
| Depth | 52.58 cm |
| Height | 4.32 cm |
| Weight | 8.55 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 95% RH (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 10 - 95% RH (non-condensing) |
| Compatibility Information | |
| Designed For | P/N: 5720-24MW, 5720-24MXW |
Features - extreme networks - 5720-48MXW
General
48-Port
More Details
Product Code
CD36830
EAN Code
0644728054527
Manufacturer
extreme networks
