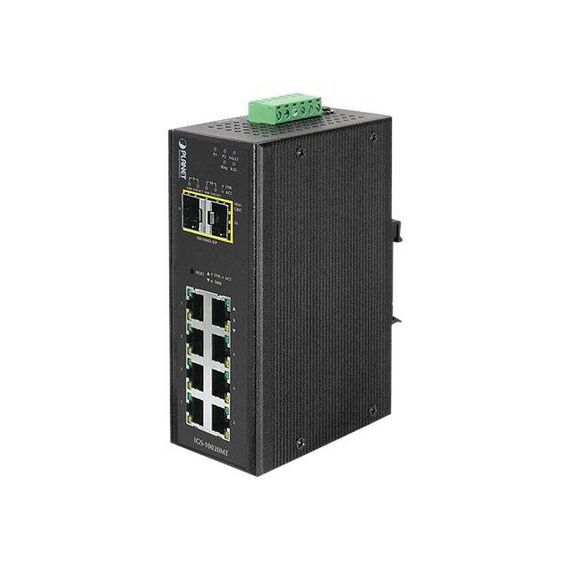

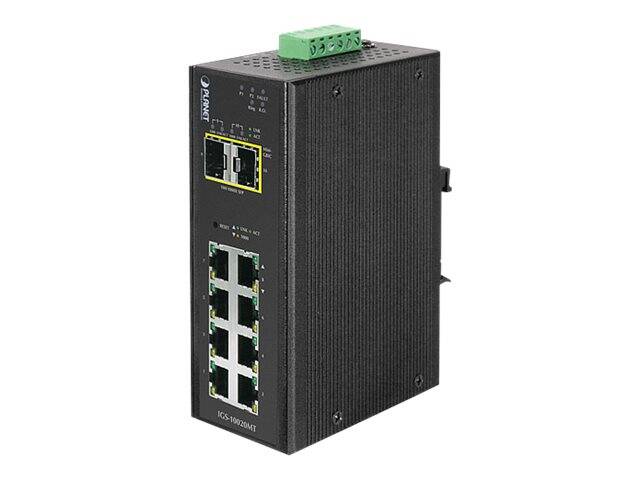

PLANET IGS-10020MT - Switch - Managed - 8 x 10/100/1000 + 2 x Gigabit SFP - DIN rail mountable, wall-mountable - AC 24 V / DC 12 - 48 V | IGS-10020MT

IGS-10020MT
417.29
(496.58 inc. VAT)
Out of stock
Find similar
Delivery
Payment options
Product Code04:247743 EAN Code4711213688782 ManufacturerPlanet

Product Features

  • IPv6 / IPv4 Full-functioned secure switch for building automation networking
    The IGS-10020MT is the ideal solution to fulfilling the demand of IPv6 management Gigabit Ethernet Switch, especially in the Industrial hardened environment. It supports both IPv4 and IPv6 management functions and can work with original network structure. It provides advanced Layer 2 to Layer 4 data switching and redundancy, Quality of Service traffic control, network access control and authentication, and Secure Management features to protect customer's industrial and building automation network connectivity with reliable switching recovery capability that is suitable for implementing fault tolerant and mesh network architectures.
  • Redundant ring, fast recovery for surveillance system
    The IGS-10020MT supports redundant ring technology and features strong rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer's industrial automation network to enhance system reliability and uptime in harsh factory environments. In certain simple Ring network, the recovery time of data link can be as fast as 20 ms.
  • Environmentally hardened design
    With IP30 aluminum industrial case protection, the IGS-10020MT provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. It also possesses an integrated power supply source with wide range of voltages (12 to 48V DC or 24V AC) for worldwide high availability applications requiring dual or backup power inputs. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-10020MT can be placed in almost any difficult environment.
  • Flexible and extendable solution
    The 2 mini-GBIC slots built in the IGS-10020MT support dual-speed, 100Base-FX and 1000Base-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. The IGS-10020MT supports SFP-DDM(Digital Diagnostic Monitor) function that can easily monitor real-time parameters of the SFP for network administrator, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

Special Fetures

  • IPv6 / IPv4 Full-functioned secure switch for building automation networking
  • Redundant ring, fast recovery for surveillance system
  • Environmentally hardened design
  • Flexible and extendable solution

Product Specification

Device TypeSwitch - 10 ports - Managed
Enclosure TypeDIN rail mountable, wall-mountable
SubtypeGigabit Ethernet
Ports8 x 10/100/1000 + 2 x Gigabit SFP
PerformanceSwitching fabric bandwidth: 20 Gbps ¦ Bandwidth: 20 Gbps ¦ Throughput: 14.8 Mpps
CapacityVLAN groups: 255 ¦ ACL entries: 123 ¦ Virtual interfaces (VLANs): 4095
MAC Address Table Size8K entries
Jumbo Frame Support9KB
Routing ProtocolIGMPv2, IGMP, IGMPv3, MLDv2, MLD
Remote Management ProtocolSNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, SSH
Encryption AlgorithmSSL
Authentication MethodRADIUS, TACACS+
FeaturesFlow control, full duplex capability, DHCP support, auto-negotiation, BOOTP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, IPv6 support, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), SSH support, Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), reset button, Cable Diagnostics Function, bandwidth control, IPv4 support, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Multicast VLAN Registration (MVR), Class of Service (CoS), tagged VLAN, TFTP client, Denial of Service (DoS), 6KV ESD Protector, Type of Service (ToS), DiffServ Code Point (DSCP) support, Ethernet Ring Protection Switching (ERPS), system log, Bridge protocol data unit (BPDU), Redundant Ring Technology, Link Aggregation, Digital Diagnostics Monitoring (DDM), 6KV EFT protector, Network Timing Protocol (NTP)
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (LLDP)
Status IndicatorsPort transmission speed, power, fail, link/activity
Expansion / Connectivity
Interfaces8 x 1000Base-T RJ-45 ¦ 2 x 1000Base-X SFP
Power
Power DeviceInternal power supply
Power RedundancyYes
Voltage RequiredAC 24 V / DC 12 - 48 V
Power Consumption Operational10 Watt
Miscellaneous
Compliant StandardsIEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, FCC Part 15 A, IP30
Dimensions & Weight
Width8.78 cm
Depth13.5 cm
Height5.6 cm
Weight720 g
Environmental Parameters
Min Operating Temperature-40 °C
Max Operating Temperature75 °C
Humidity Range Operating5 - 95% (non-condensing)
Min Storage Temperature-40 °C
Max Storage Temperature75 °C
Humidity Range Storage5 - 95% (non-condensing)
