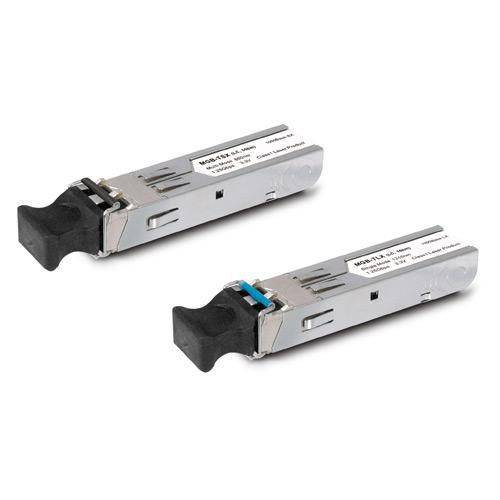

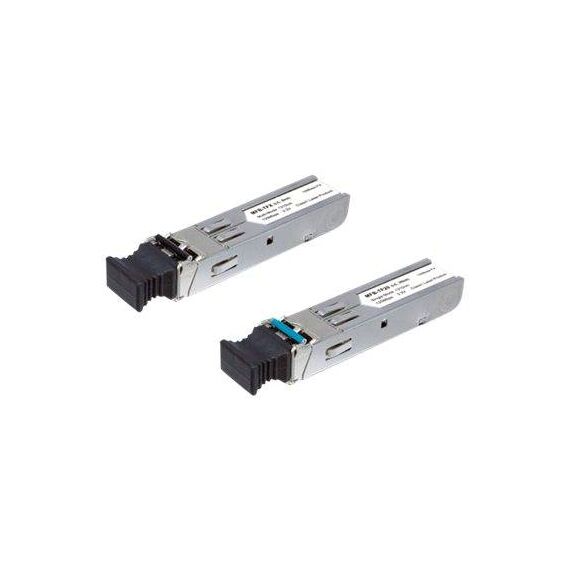

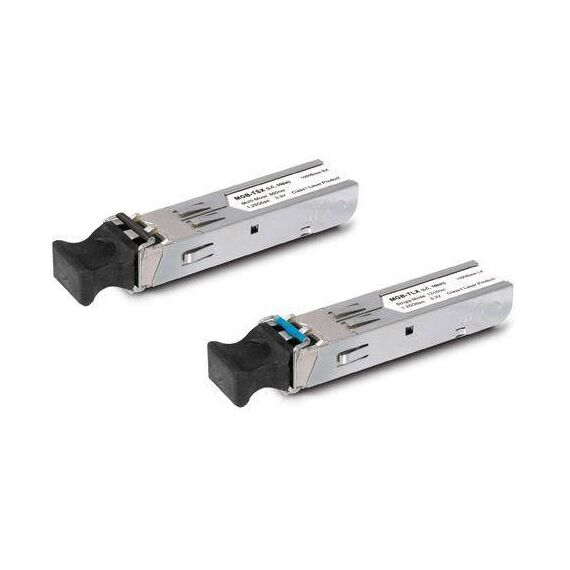

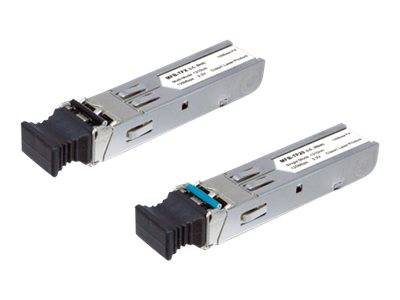

PLANET MGB-Series MGB-L120 / SFP (mini-GBIC) transceiver module / GigE / 1000Base-ZX / LC single-mode / up to 120 km / 1550 nm | MGB-L120
Please sign in so that we can notify you about a reply
Special Features
- Comply with the IEEE 802.3ab/802.3z Gigabit Ethernet standard
- 1 X 1000Mbps TP/LC fiber port
- Duplex/single LC connector
- Differential PECL inputs and outputs
- Single power supply 3.3V
- TTL signal detect indicator
- Hot pluggable
- Plug and Play installation
- 0 to 60 degrees C operating temperature
Product Specification
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Networking | Networking |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-ZX |
| Data Link Protocol | GigE |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 1550 nm |
| Max Transfer Distance | 120 km |
| Features | Bi-directional WDM transmission |
| Compliant Standards | IEEE 802.3z, IEEE 802.3ab |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x Ethernet 1000Base-BX - LC single-mode |
| Miscellaneous | Miscellaneous |
| Compliant Standards | Plug and Play, EN 60825-1 |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 60 °C |
Features - Planet - MGB-L120
More Details
Product Code
04:199655
EAN Code
4711213688102
Manufacturer
Planet
