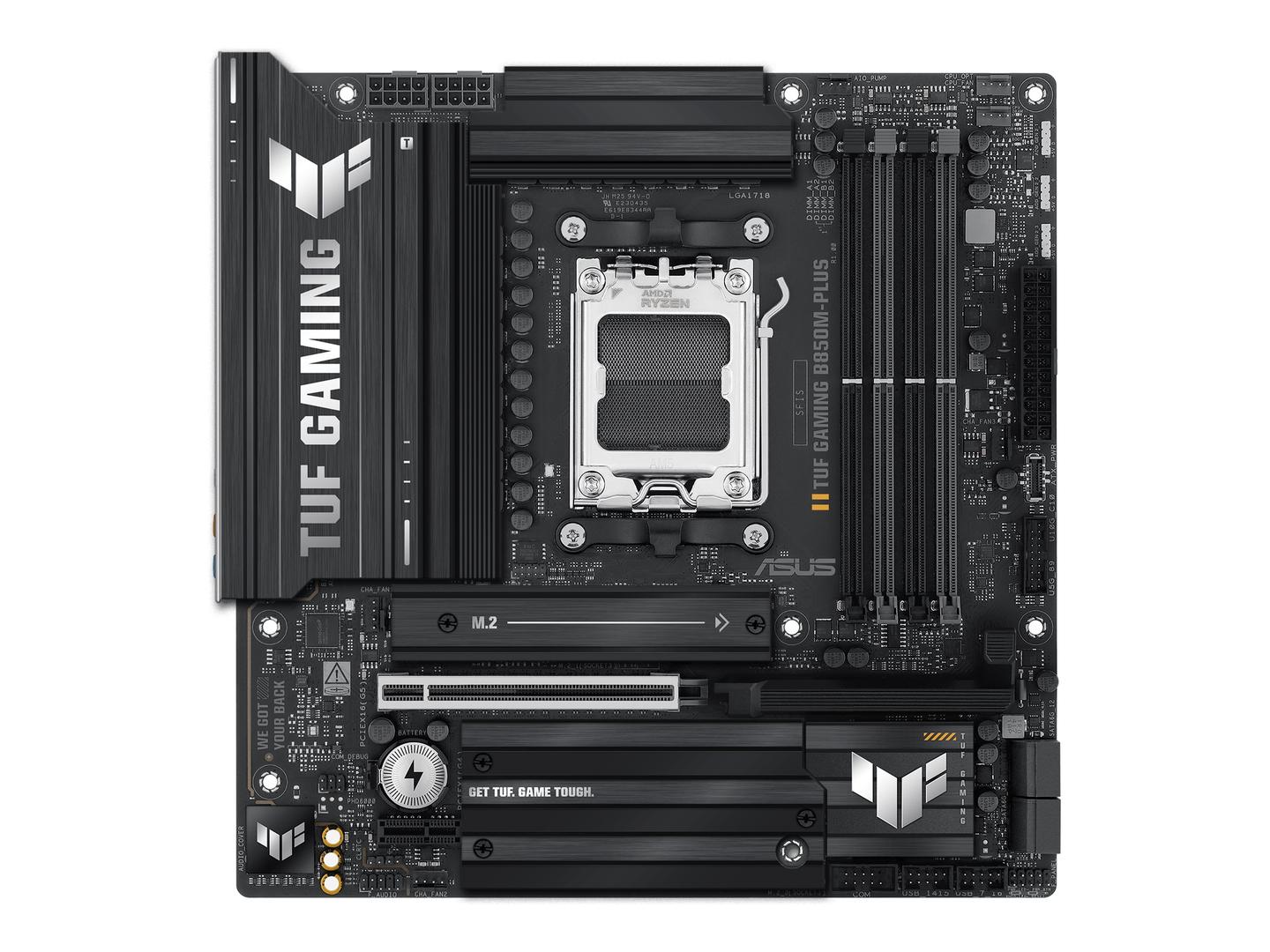

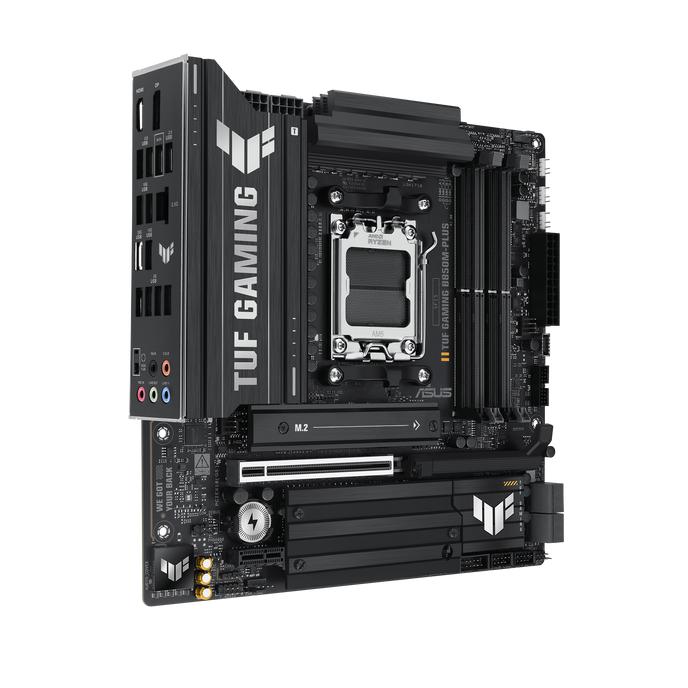

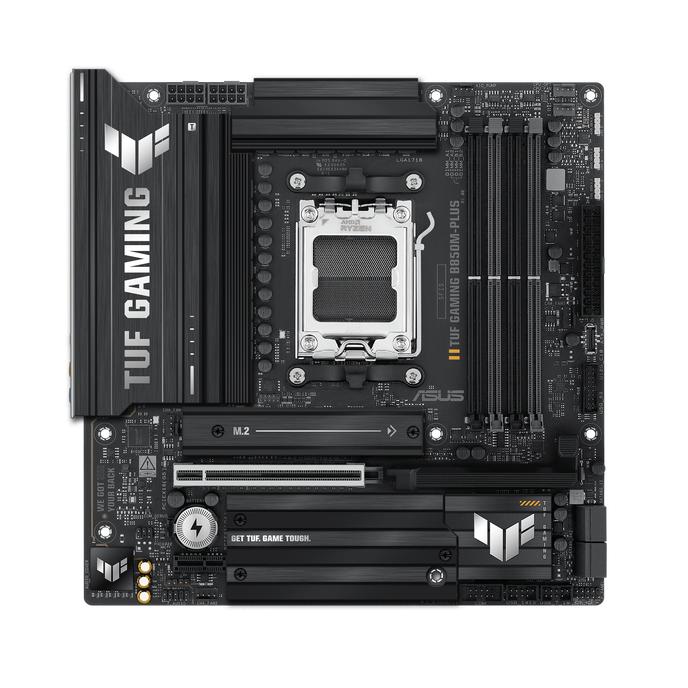

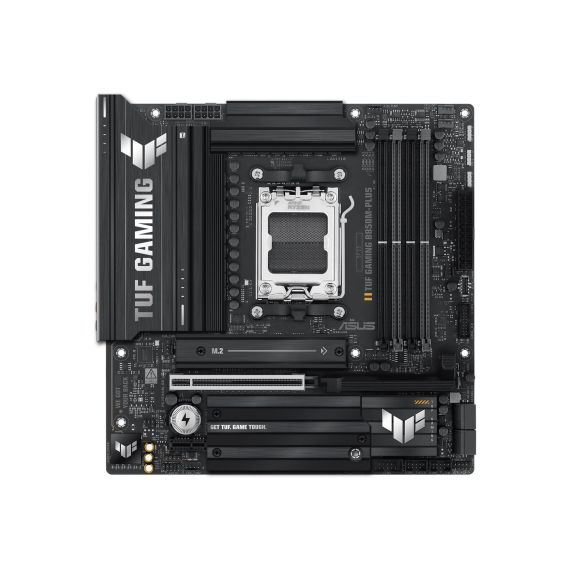

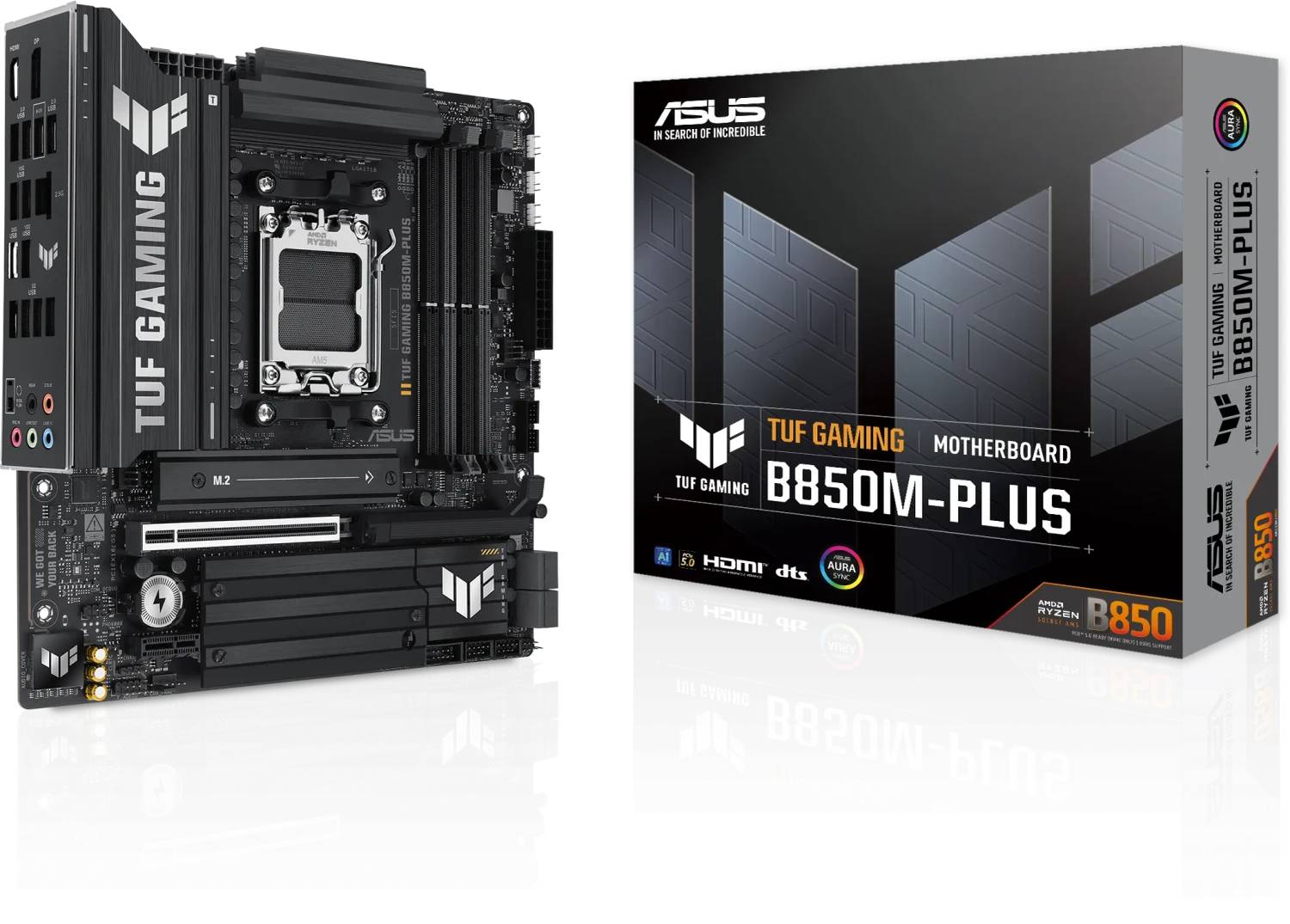

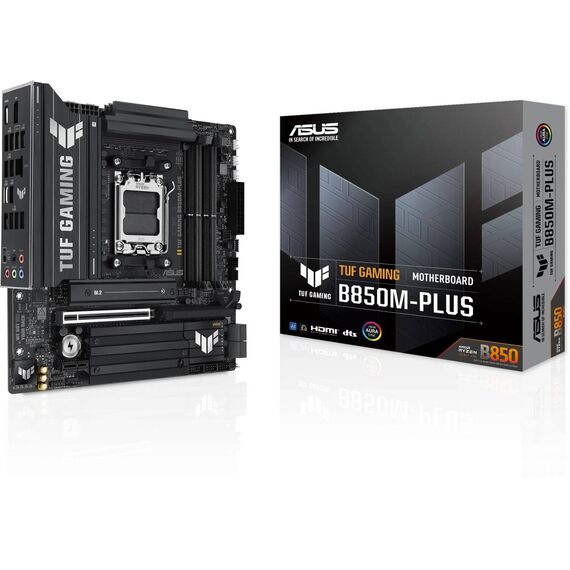

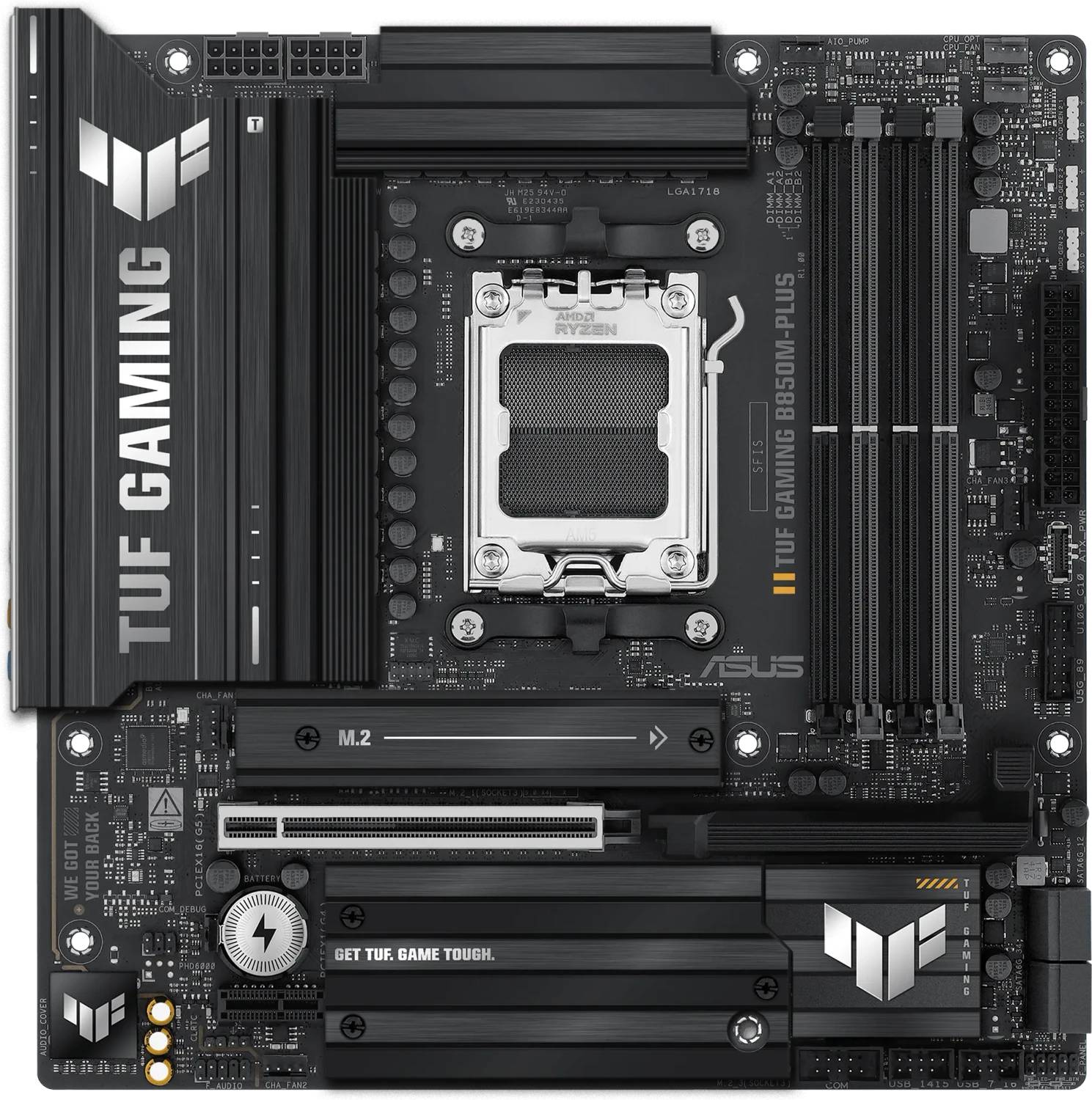

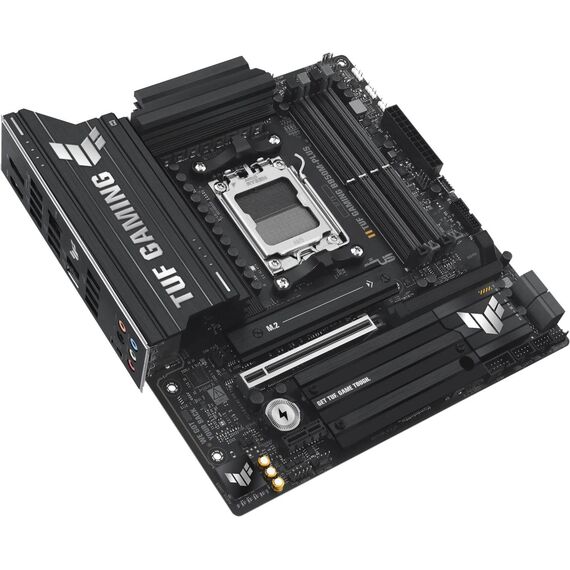

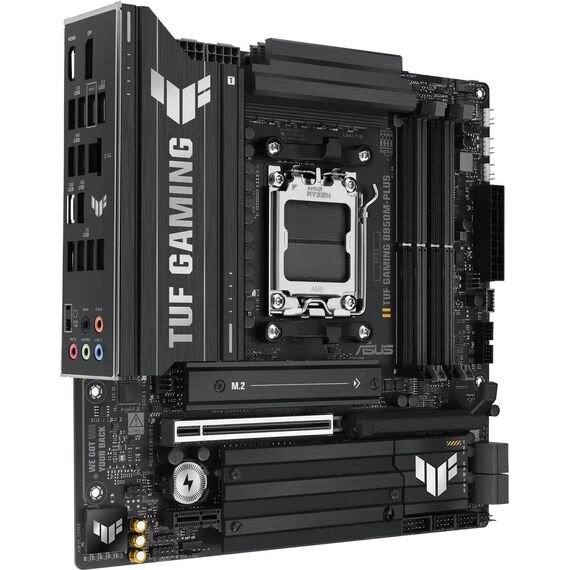

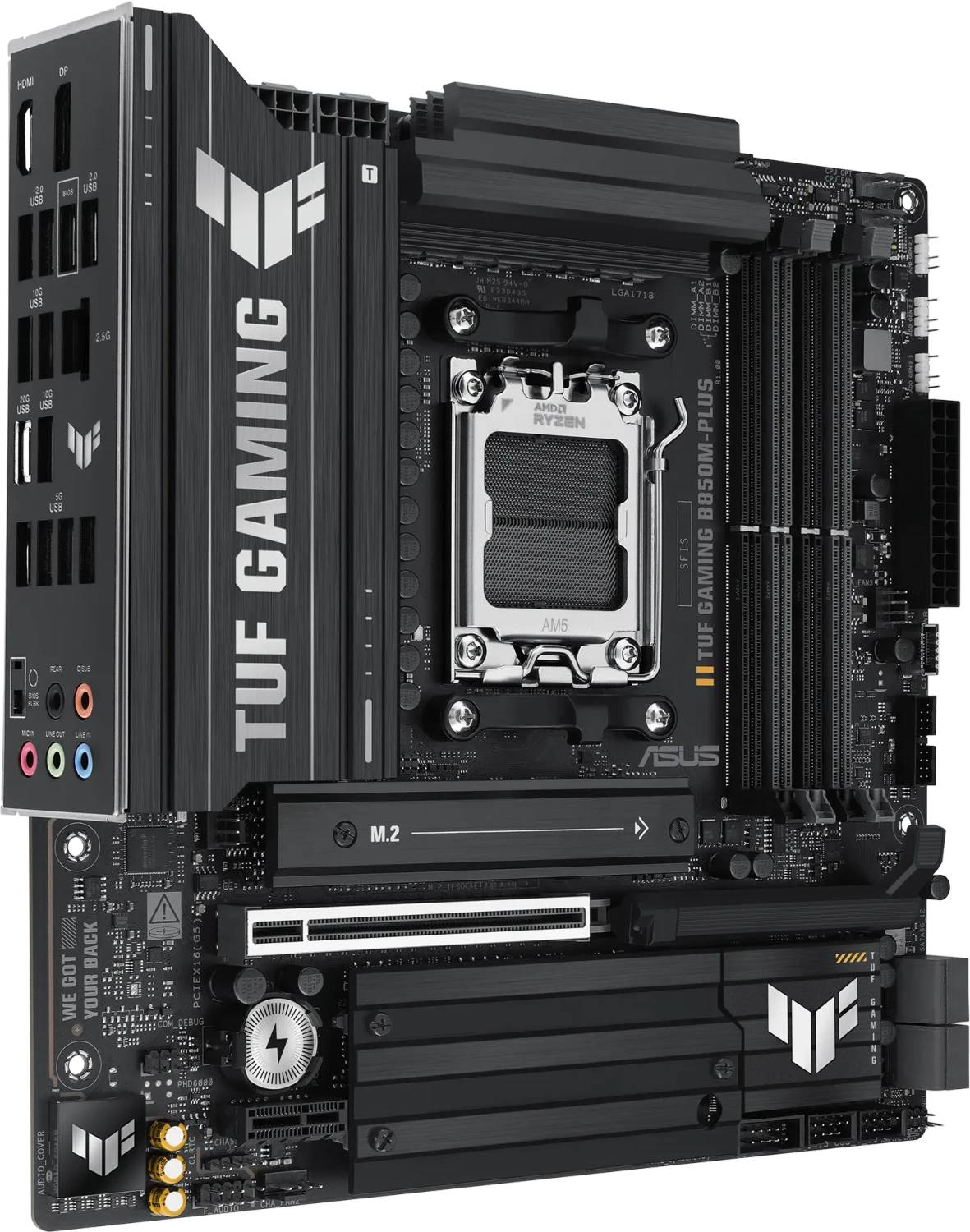

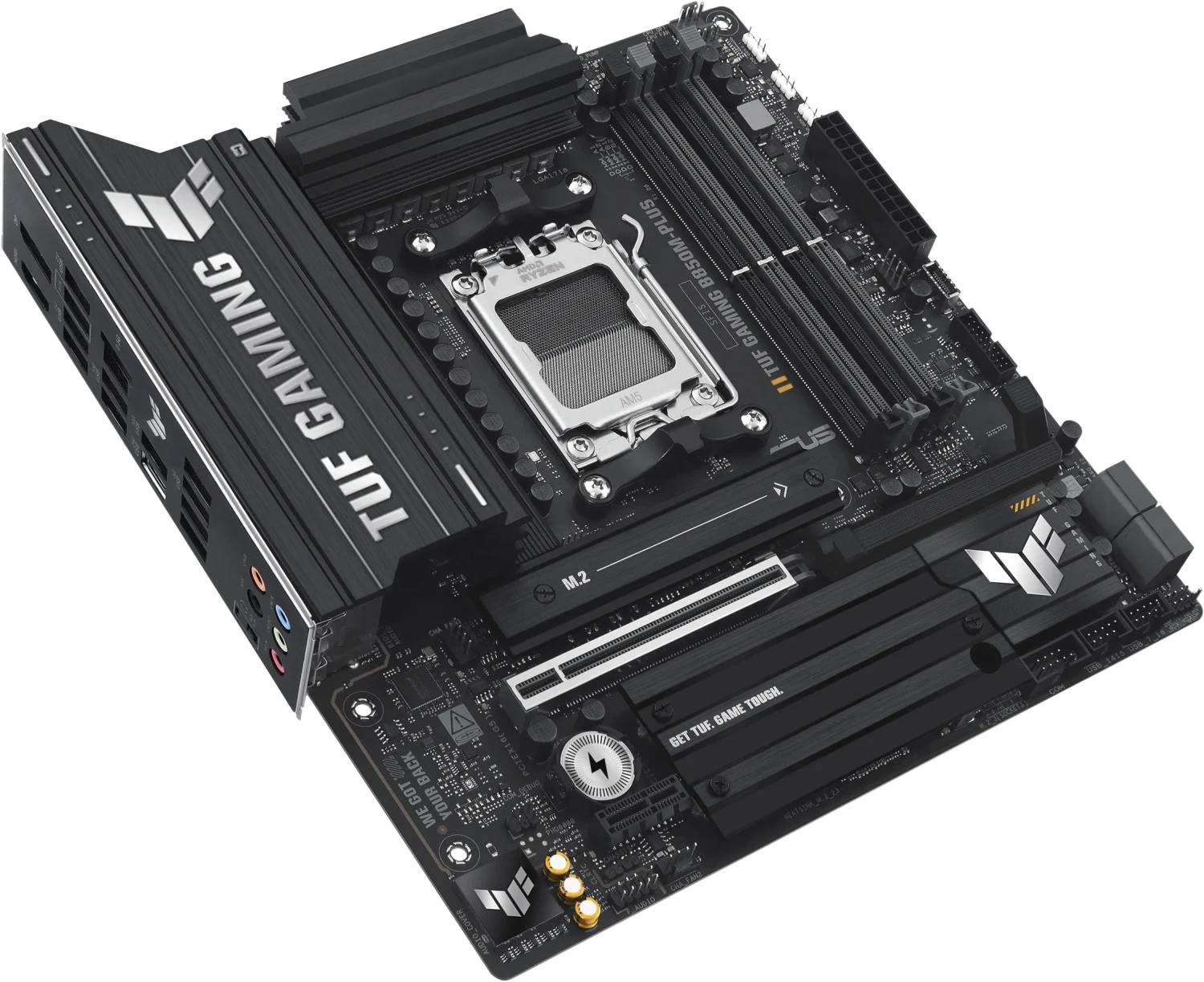

ASUS TUF GAMING B850M-PLUS / Motherboard / micro ATX / Socket AM5 / AMD B850 Chipset / USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1 / 2.5 Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB1IX0-M0EAY0
Please sign in so that we can notify you about a reply
Product Features
- Robust audio performance
The motherboard features high definition audio with support for 8-channel output, powered by the Realtek ALC1220P codec, ensuring a cinematic sound experience for gaming and multimedia. - Versatile connectivity options
Equipped with multiple interfaces including HDMI, DisplayPort, and various USB ports, this motherboard ensures that all peripherals and devices can be easily connected and utilized. - Enhanced power design
The motherboard showcases a 14+2+1 Phase Power Design with 80A Power Stage, providing stable and efficient power delivery for demanding applications and overclocking. - Efficient cooling solutions
With VRM heatsink design and connectivity for water pump headers, cooling solutions can be effectively integrated to maintain optimal temperatures even under high loads. - User-friendly features
The ASUS Q-Design and EZ DIY features promote easy installation and future upgrades, accommodating both novice builders and seasoned professionals.
Special Features
- Supports Ryzen 7000/8000/9000 Series processors
- Offers DDR5 SDRAM support with up to 4000 MHz speeds
- Contains multiple USB ports including USB-C 3.2 Gen 2x2
- Features high definition audio with Realtek ALC1220P codec
- Micro ATX form factor for versatile build options
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD B850 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000/8000/9000 Series) |
| Supported RAM | Supported RAM |
| Max Size | 192 GB |
| Technology | DDR5 |
| Bus Clock | 4000 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, on-die ECC |
| Registered or Buffered | Unbuffered |
| Features | AMD EXPO technology, dual channel memory architecture |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC1220P |
| Compliant Standards | High Definition Audio, DTS Sound Unbound |
| LAN | LAN |
| Network Interfaces | 2.5 Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x8/x4 mode) 2 x PCIe 4.0 x1 2 x M.2 socket (2280 M.2 Key M slot) 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 |

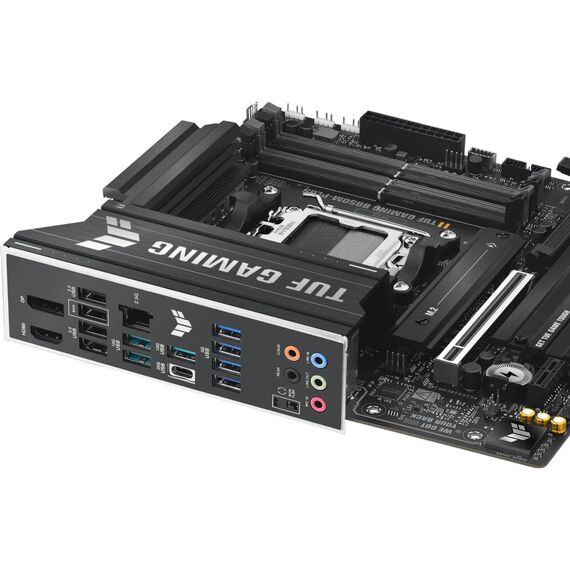

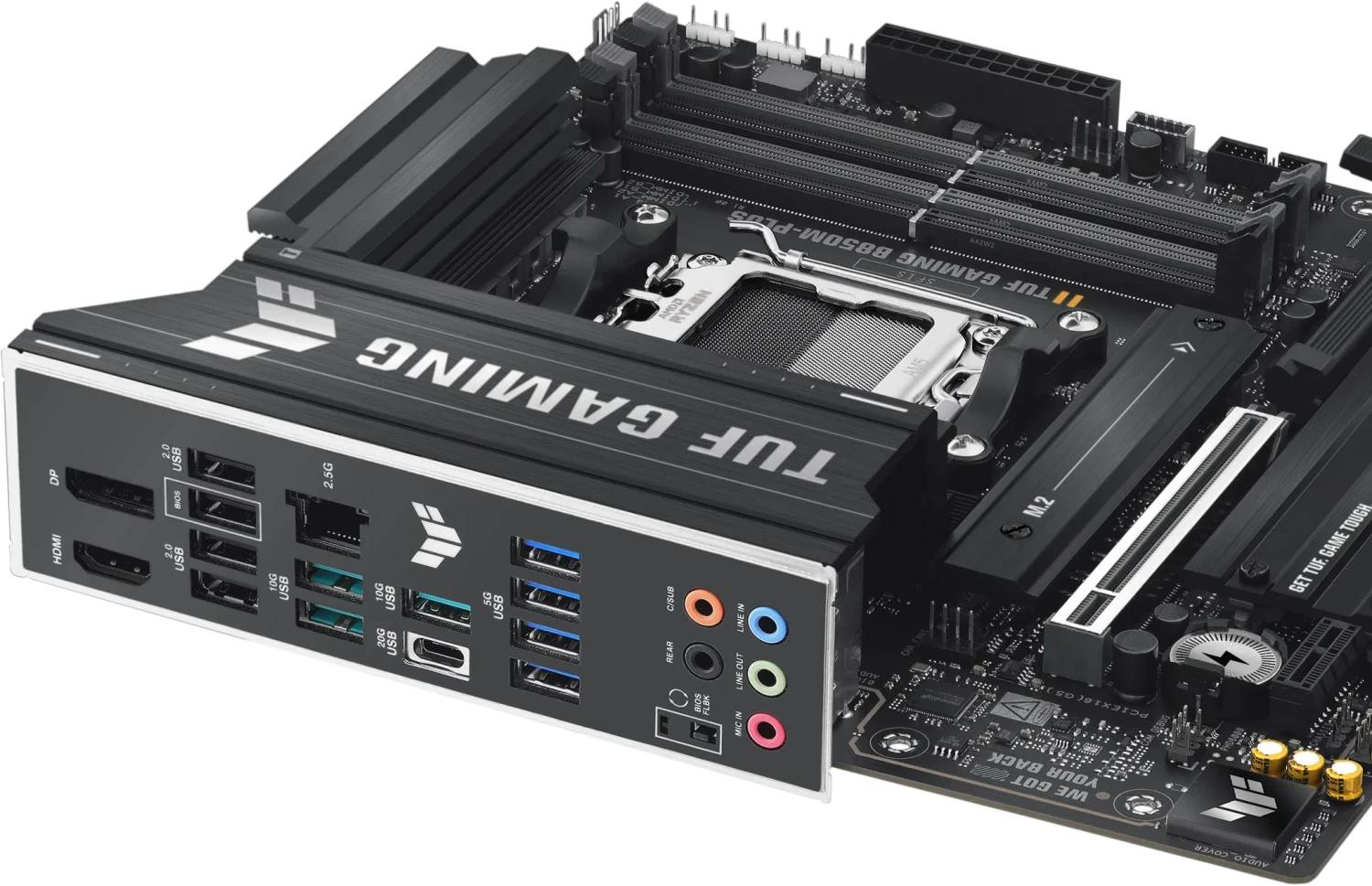

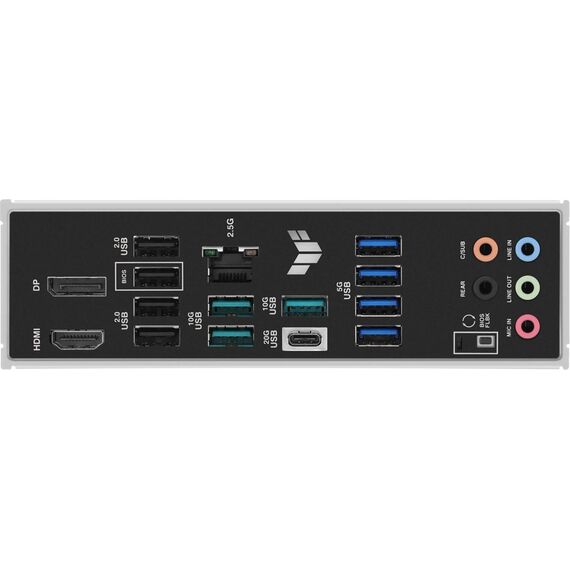

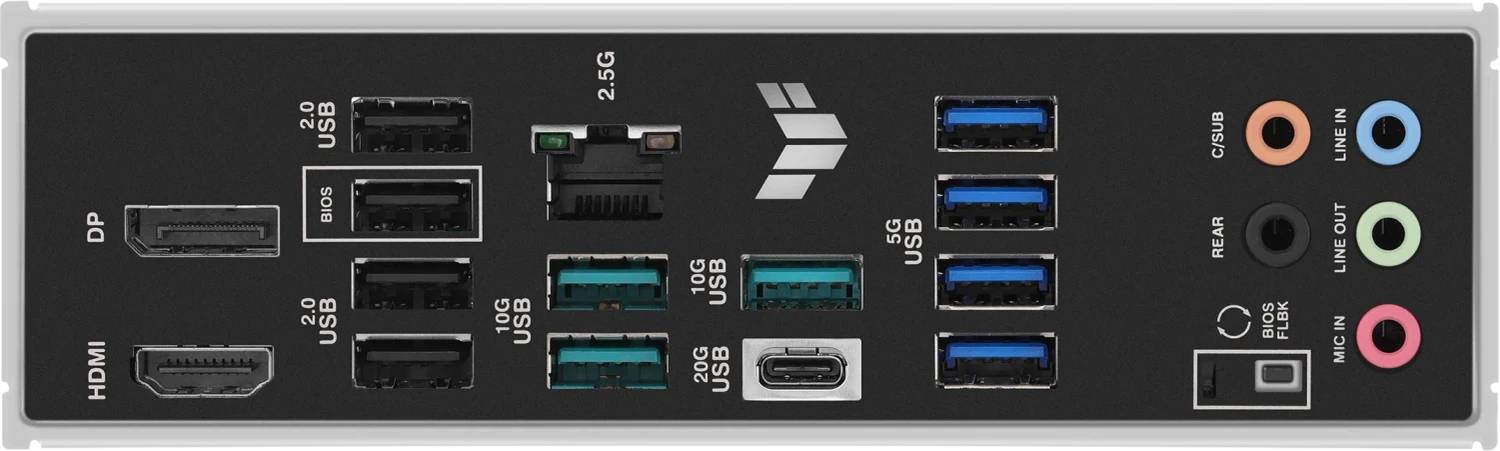

| Interfaces | 1 x HDMI 1 x DisplayPort 1 x USB-C 3.2 Gen2x2 3 x USB 3.2 Gen 2 4 x USB 3.2 Gen 1 4 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 1 x SPDIF out 1 x microphone - mini-jack 1 x audio line-out - mini-jack |
| Internal Interfaces | 4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x USB-C 3.2 Gen 2 - header 1 x audio - header 1 x serial - header |
| Power Connectors | 24-pin main power connector, 4-pin ATX12V connector, 2 x 8-pin ATX12V connectors |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3 |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | ASUS OptiMem II, SupremeFX Shielding technology, Savitech SV3H712 amplifier, BIOS FlashBack button, Water Pump Header, jack retasking, audio jack detect technology, ASUS Extreme Engine Digi+, 5K Black Metallic Capacitors, ASUS Q-Design, M.2 Q-Latch, PCIe Slot Q-Release, Q-LED, Q-DIMM, Q-Slot, VRM heatsink design, ASUS EZ DIY, BIOS FlashBack LED, ASUS ProCool, pre-mounted I/O shield, ASUS SafeSlot, ASUS SafeDIMM, ASUS Aura Sync, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, CrashFree BIOS 3, 14+2+1 Phase Power Design, 80A Power Stage, DIY Friendly Design, ASUS Enhanced Memory Profile (AEMP), ESD Guards |
| Miscellaneous | Miscellaneous |
| Included Accessories | 2 x M.2 rubber package, TUF GAMING sticker, M.2 screw package |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Sonic Radar III, Sonic Studio III, Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 4, ASUS AI Suite III, ASUS Turbo App, PC Cleaner, MyAsus, WinRAR, Adobe Creative Cloud (free trial) |
| Compliant Standards | FCC Part 15 Class B, VCCI Class B ITE, JATE, EU REACH, EU RoHS, UKCA, DisplayPort 1.4 |
| Width | 24.4 cm |
| Depth | 24.4 cm |
Features - Asus - 90MB1IX0-M0EAY0
CPU Socket
- Socket AM5
More Details
Product Code
03:260360
EAN Code
4711387775172
Manufacturer
Asus
