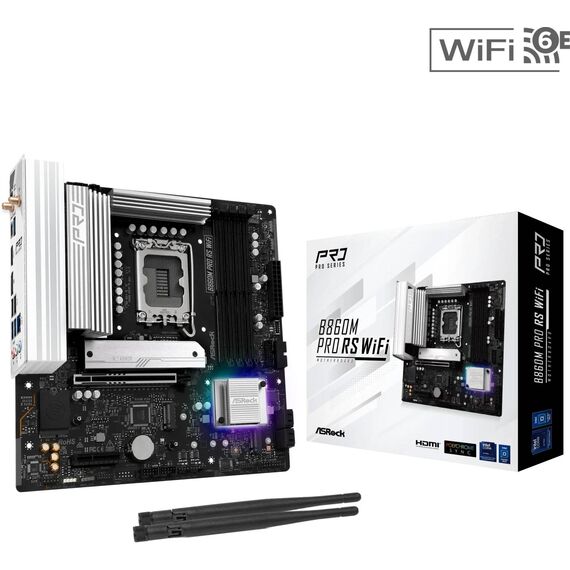

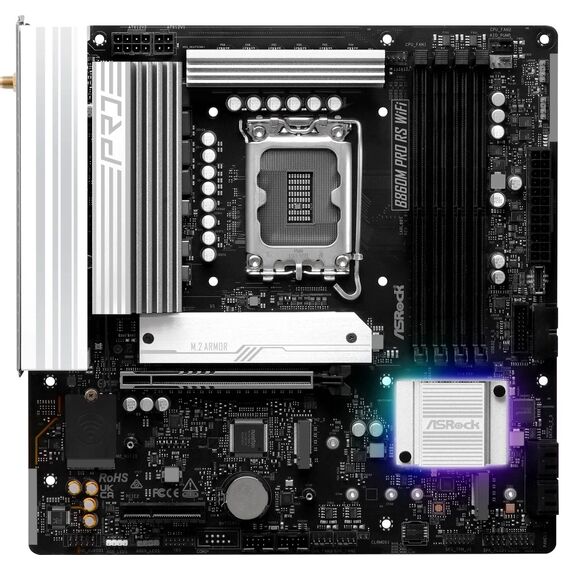

micro ATX - LGA1851 Socket - B860 Chipset - USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1 - 2.5 Gigabit LAN, Bluetooth, Wi-Fi 6E - onboard graphics (CPU required) - HD Audio (8-channel) | 90-MXBRQ-A0UAYZ
Please sign in so that we can notify you about a reply
Product Features
- Versatile connectivity options

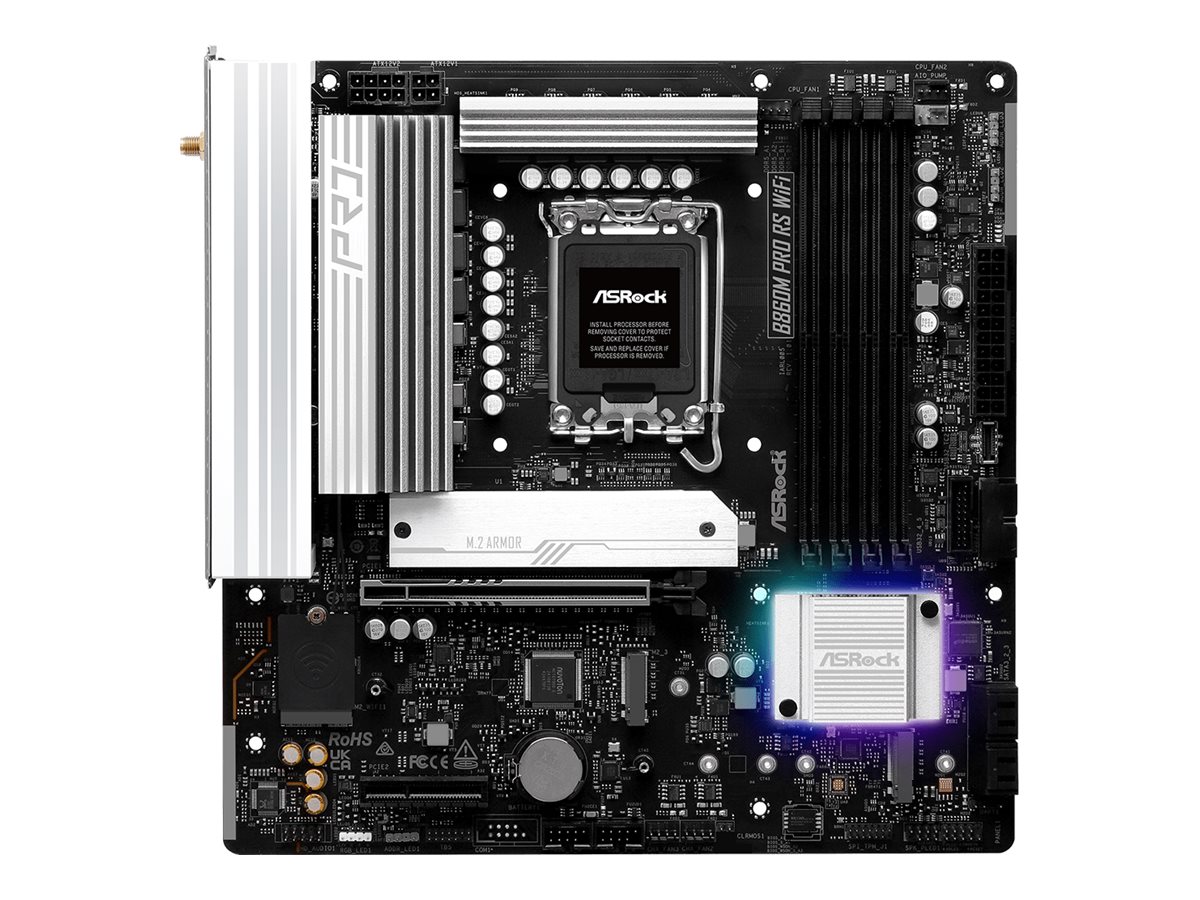

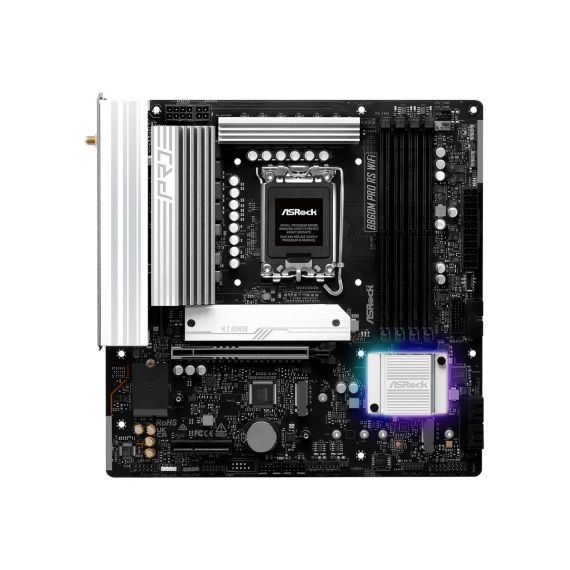

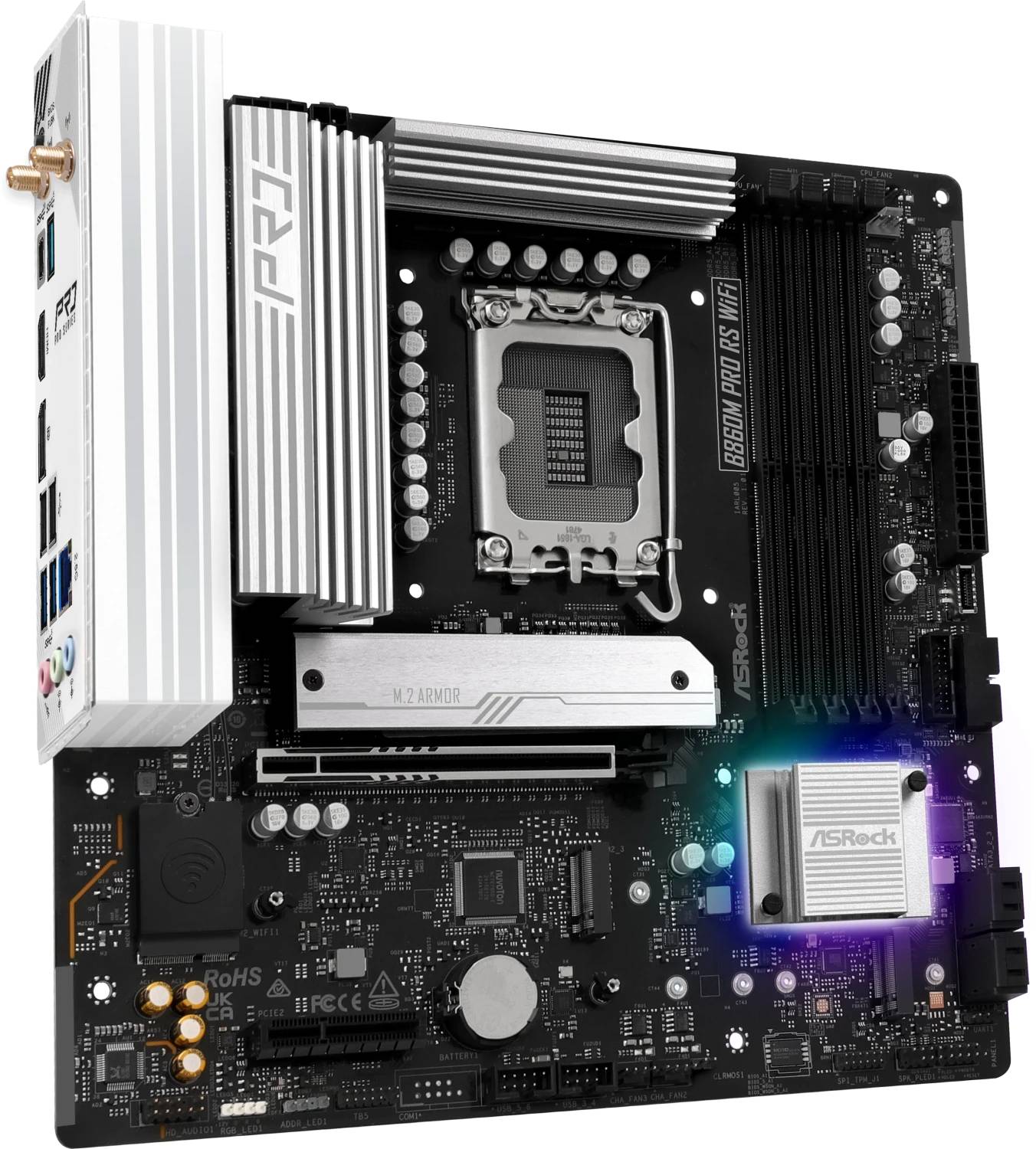

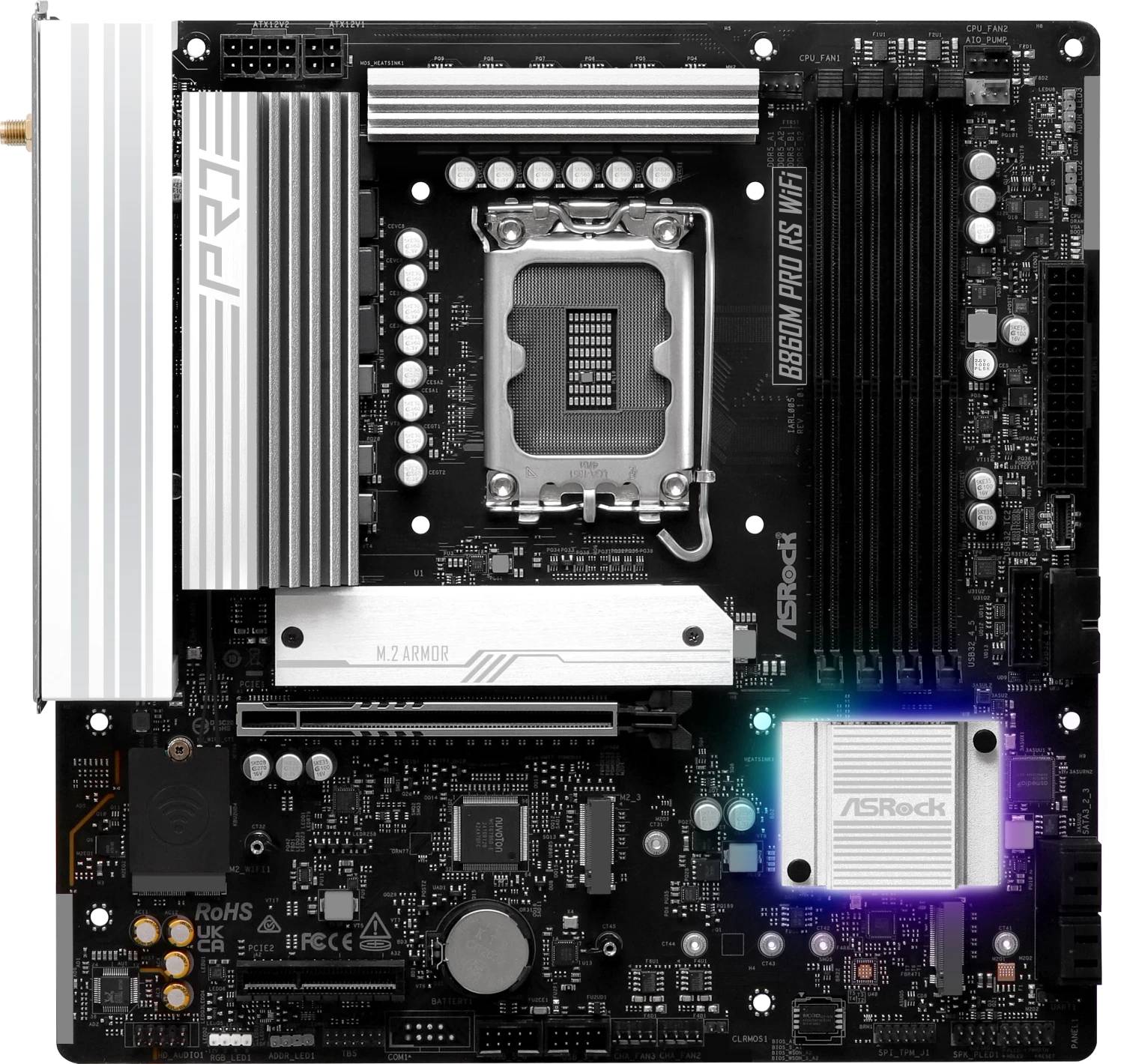

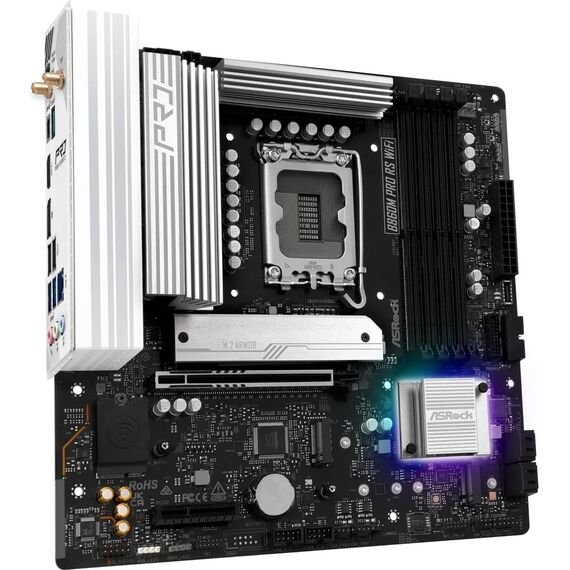

The B860M Pro RS WiFi motherboard is equipped with an array of connectivity options, including HDMI, DisplayPort, and multiple USB ports. This enhances user experience by allowing connections to various devices. - Enhanced audio capabilities
Featuring a high definition audio codec (Realtek ALC897) and 8-channel audio output, this motherboard ensures that users enjoy sound quality for an immersive audio experience. - Robust design for stability
Constructed with a 6-layer PCB and Dr.MOS MOSFET, the B860M Pro RS WiFi motherboard offers stability and performance under load, making it suitable for both casual users and gamers. - Advanced memory architecture
With support for dual-channel memory architecture and Intel Extreme Memory Profiles (XMP) 3.0, this motherboard optimizes RAM performance, allowing users to unlock the potential of their memory modules. - Easy upgrade options
Designed for flexibility, users can utilize the Hyper M.2 and Blazing M.2 sockets along with RAID support to expand their storage options, accommodating higher capacity drives as needed.
Special Fetures
- Supports Intel Core Ultra processors Series 2
- Compatible with DDR5 SDRAM and speeds up to 4333 MHz
- Features multiple USB ports including USB-C and USB 3.2 Gen 2
- Includes integrated Wi-Fi 6E and Bluetooth 5.3 for robust wireless connections
- Equipped with RAID support and various M.2 slots for storage expansion
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel B860 |
| Processor Socket | LGA1851 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
| Supported RAM | |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 4333 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered, clocked unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0 |
| Audio | |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| LAN | |
| Network Controller | Dragon RTL8125BG |
| Network Interfaces | 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU <br /> 4 x DIMM 288-pin <br /> 1 x PCIe 5.0 x16 <br /> 1 x PCIe 4.0 x4 <br /> 1 x M.2 socket (2230 M.2 Key E slot) <br /> 4 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 <br /> PCIe 5.0 -connectors: 1 x Blazing M.2 <br /> PCIe 4.0 -connectors: 3 x Hyper M.2 |

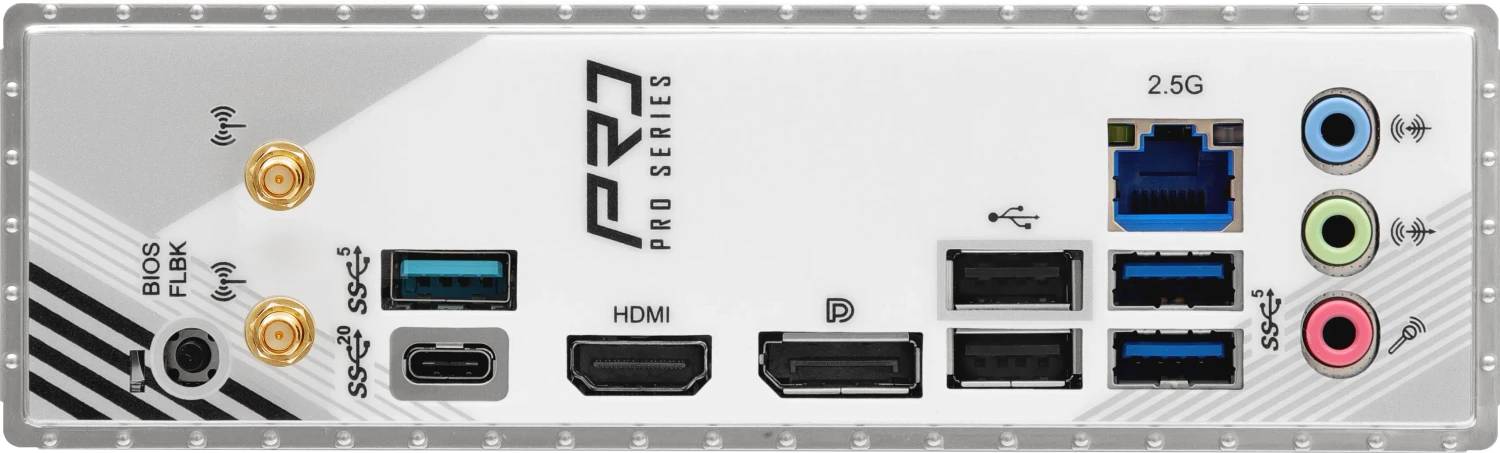

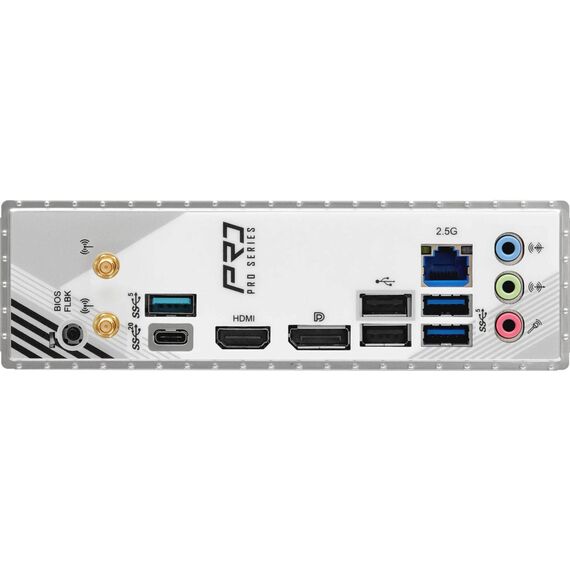

| Interfaces | 1 x USB-C 3.2 Gen2x2 <br /> 3 x USB 3.2 Gen 1 <br /> 2 x USB 3.2 Gen 2 <br /> 2 x USB 2.0 <br /> 1 x LAN (2.5Gigabit Ethernet) <br /> 2 x aerial <br /> 1 x DisplayPort <br /> 1 x HDMI <br /> 1 x SPDIF out <br /> 1 x audio line-out - mini-jack <br /> 1 x microphone - mini-jack |
| Internal Interfaces | 4 x USB 3.2 Gen 1 - header <br /> 4 x USB 2.0 - header <br /> 1 x SPI - header <br /> 1 x USB-C 3.2 Gen 1 - header <br /> 1 x audio - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features | |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS |
| Hardware Features | ASRock Auto Driver Installer, ASRock EZ Mode, ASRock Full HD UEFI, ASRock Instant Flash, ASRock My Favorites in UEFI, BIOS FlashBack button, ASRock POST Status Checker (PSC), Intel Hybrid Technology, Intel Turbo Boost Max Technology 3.0, Intel Thermal Velocity Boost (TVB), Intel Adaptive Boost Technology (ABT), CUDIMM support, 10+1+1+1+1 Power Phase Design, 20K black capacitors, pre-mounted I/O shield, M.2 heatsink, VRM heatsink design, chipset heatsink, Smart Power Stage (SPS) technology, DIY Friendly Design, aluminium heatsink design, ASRock Polychrome RGB, ASRock Steel Slots, enlarged M.2 heatsink, Dr.MOS MOSFET, 6 Layer PCB, Nahimic Audio Enhacer |
| Miscellaneous | |

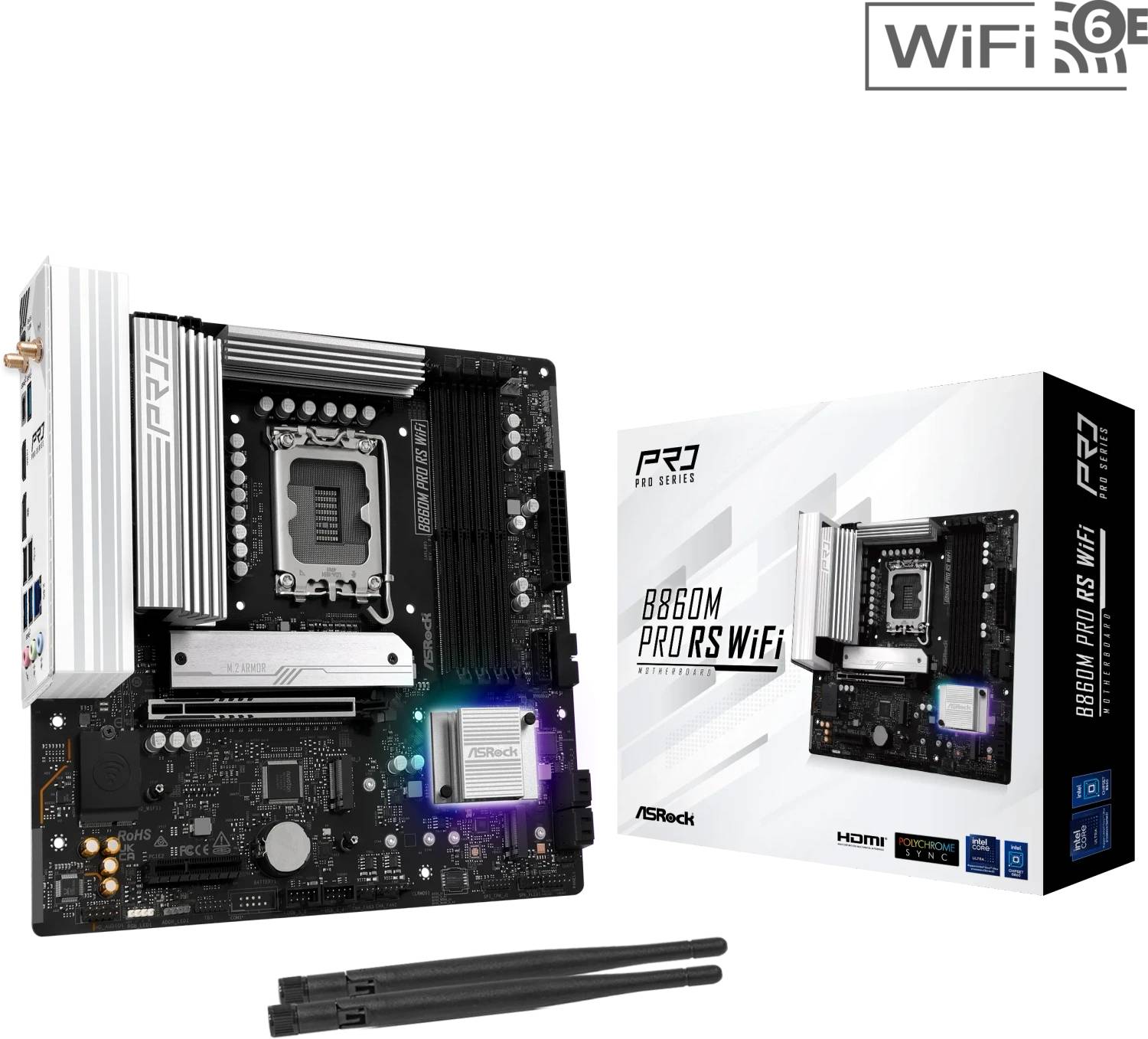

| Included Accessories | 1 x M.2 screw, 2 x ASRock WiFi 2.4/5/6 GHz Antennas |
| Cables Included | 2 x Serial ATA cable |
| Software Included | ASRock A-Tuning, ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC |
| Compliant Standards | FCC, ErP Ready, EuP Ready |
| Width | 24.4 cm |
| Depth | 24.4 cm |
Features - Asrock - 90-MXBRQ0-A0UAYZ
CPU Socket
- Socket 1851
More Details
Product Code
04:519496
EAN Code
4711581490284
Manufacturer
Asrock
