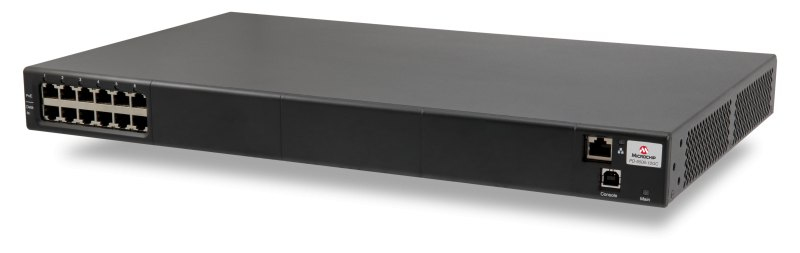

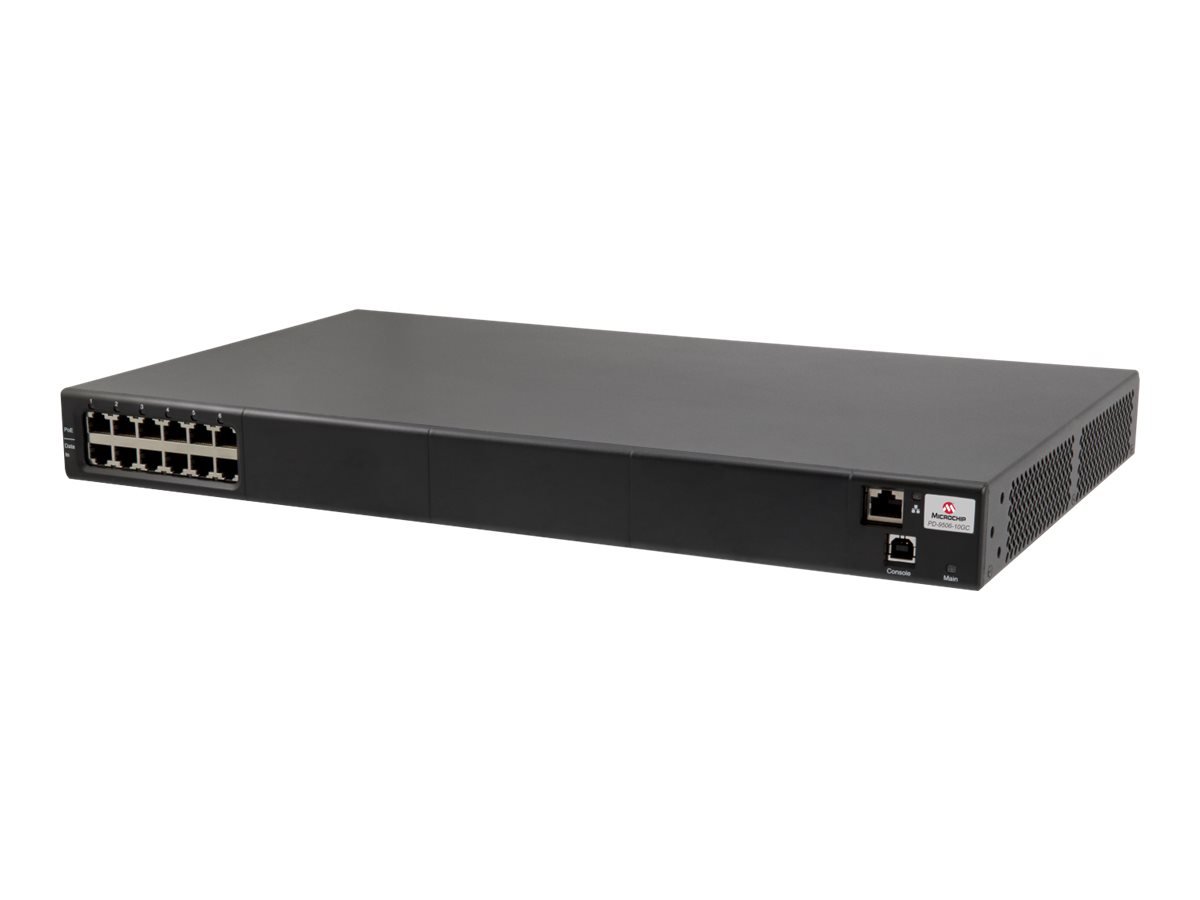

Microchip PD-9506-10GC - PoE injector (rack-mountable) - AC 100-240 V - 450 Watt - Ethernet, USB - output connectors: 6 - United Kingdom, European Union | PD-9506-10GC/AC-EK
Please sign in so that we can notify you about a reply
Special Fetures
- Supports IEEE 802.3bt Type 3 standard PDs
- IEEE 802.3af/at backward compatible
- Legacy and pre-standard support
- Supports 10/100/1000 Mbps, 2.5/5/10 Gbps
- PowerView Pro remote, web-based SNMPv3 power management environment
Product Specification
| Device Type | PoE injector - rack-mountable |
| Power Over Ethernet (PoE) | 4PPoE |
| Localisation | United Kingdom, European Union |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Power Output Connectors Details | 6 x RJ-45 60 W |
| Power Capacity | 450 Watt |
| Networking | |
| Remote Management Interface | Ethernet, USB |
| Remote Management Protocol | SNMP 3 |
| Expansion / Connectivity | |
| Interfaces | 6 x 10 Gigabit LAN - RJ-45 ¦ 1 x management (USB) ¦ 1 x management - RJ-45 |
| Miscellaneous | |
| MTBF | 100,000 hours |
| Features | For indoor use |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Type 3, VCCI, EN55024, FCC Part 15 B, WEEE, EN 55032 Class B, IEC/EN/UL 62368-1 |
| Software / System Requirements | |
| Software Included | PowerView Pro |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 43.5 cm |
| Depth | 27.1 cm |
| Height | 4.4 cm |
| Weight | 4.54 kg |
Features - Microchip - PD-9506-10GC/AC-EK
General
24-Port
More Details
Product Code
CC00543
EAN Code
0844117003628
Manufacturer
Microchip
