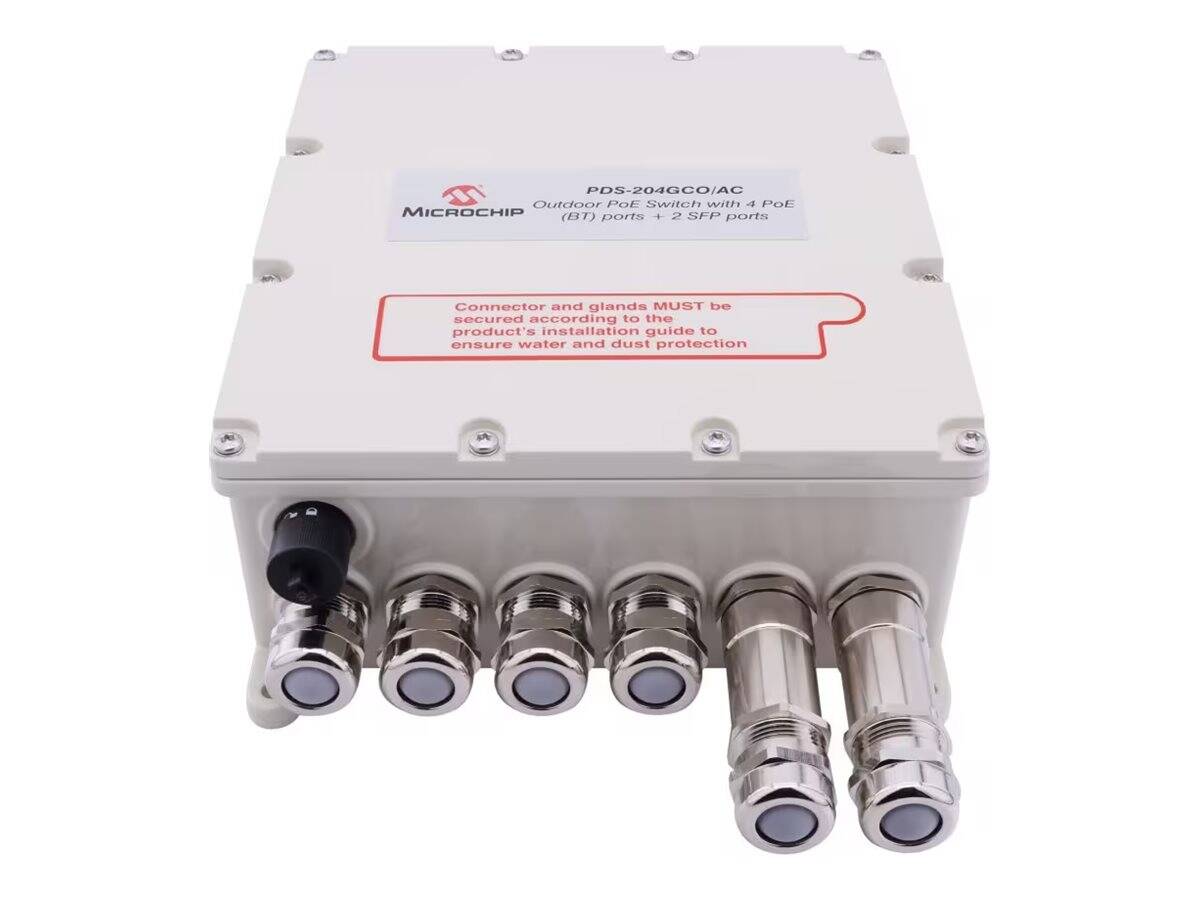

Microchip PDS-204GCO - Switch - Managed - 4 x 10/100/1000 (PoE) + 2 x 1/2.5G SFP - PoE (150 W) | PDS-204GCO/AC
Please sign in so that we can notify you about a reply
Special Fetures
- Four-port Gigabit 802.3bt PoE and two-port 1G/2.5G SFP
- Supports IEEE 802.3bt Type 4 standard PDs with an output power of up to 90 W per port and a total power of 150 W
- Supports robust L2 features include advanced VLAN management and translation, Quality of Service (QoS)-rich features, multiple and rapid spanning tree protocol (IEEE 802.1w and IEEE 802.1s) and link aggregation (IEEE 802.1ad)
- Supports advanced network features for network redundancy and high availability including 1:1 port protection (G.8031) and ring protection (G.8032)
- Supports robust security features in all security levels: user access level, device management level and network data frames reception and transmission level
- Integral surge protection
- Outdoor rated: IP67
- Plug-and-Play installation
Product Specification
| Device Type | Switch - 4 ports - Managed |
| Subtype | Gigabit Ethernet |
| Ports | 4 x 10/100/1000 (PoE) + 2 x 1/2.5G SFP |
| Power Over Ethernet (PoE) | PoE |
| PoE Budget | 150 W |
| Remote Management Protocol | SNMP 3, CLI |
| Features | Power over Ethernet (PoE), VLAN support, surge protection, Quality of Service (QoS), Link Aggregation Control Protocol (LACP) |
| Compliant Standards | IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, ITU-T G.8031, ITU-T G.8032, IEEE 802.3bt Type 4 |
| Expansion / Connectivity | |
| Interfaces | 4 x 1000Base-T RJ-45 90 W ¦ 2 x 1/2.5GBase-T SFP |
| Miscellaneous | |
| Included Accessories | Mounting kit |
| Compliant Standards | Plug and Play, RoHS, IP67, China EFUP |
| Dimensions & Weight | |
| Weight | 2.805 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 39.7 cm |
| Shipping Depth | 49.6 cm |
| Shipping Height | 38 cm |
| Shipping Weight | 15.979 kg |
| Environmental Parameters | |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 50 °C |
Features - Microchip - PDS-204GCO/AC
More Details
Product Code
CG71004
EAN Code
0844117004557
Manufacturer
Microchip
