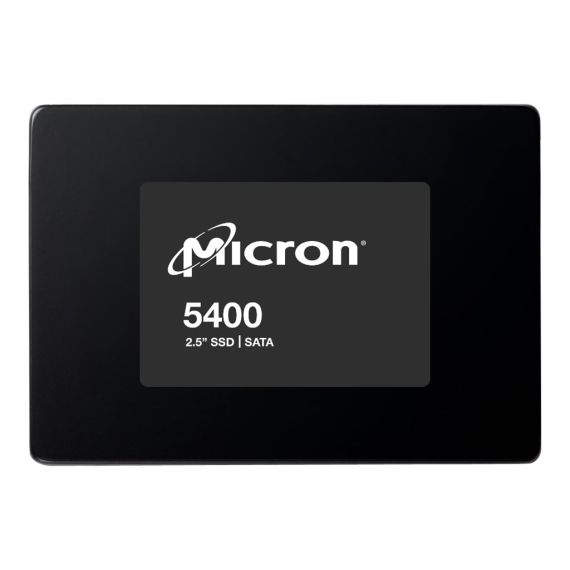

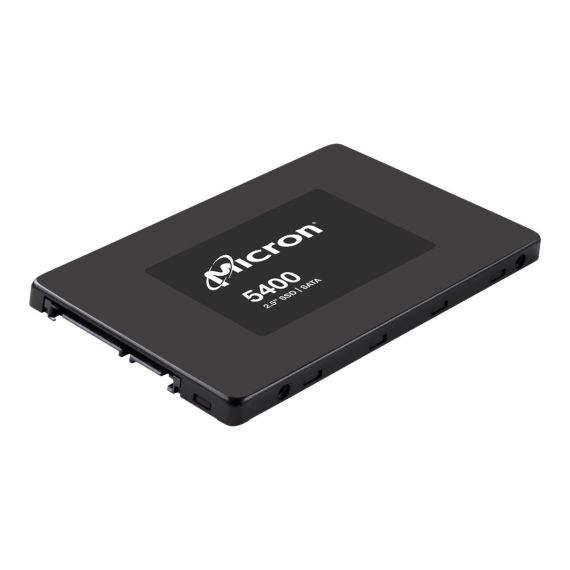

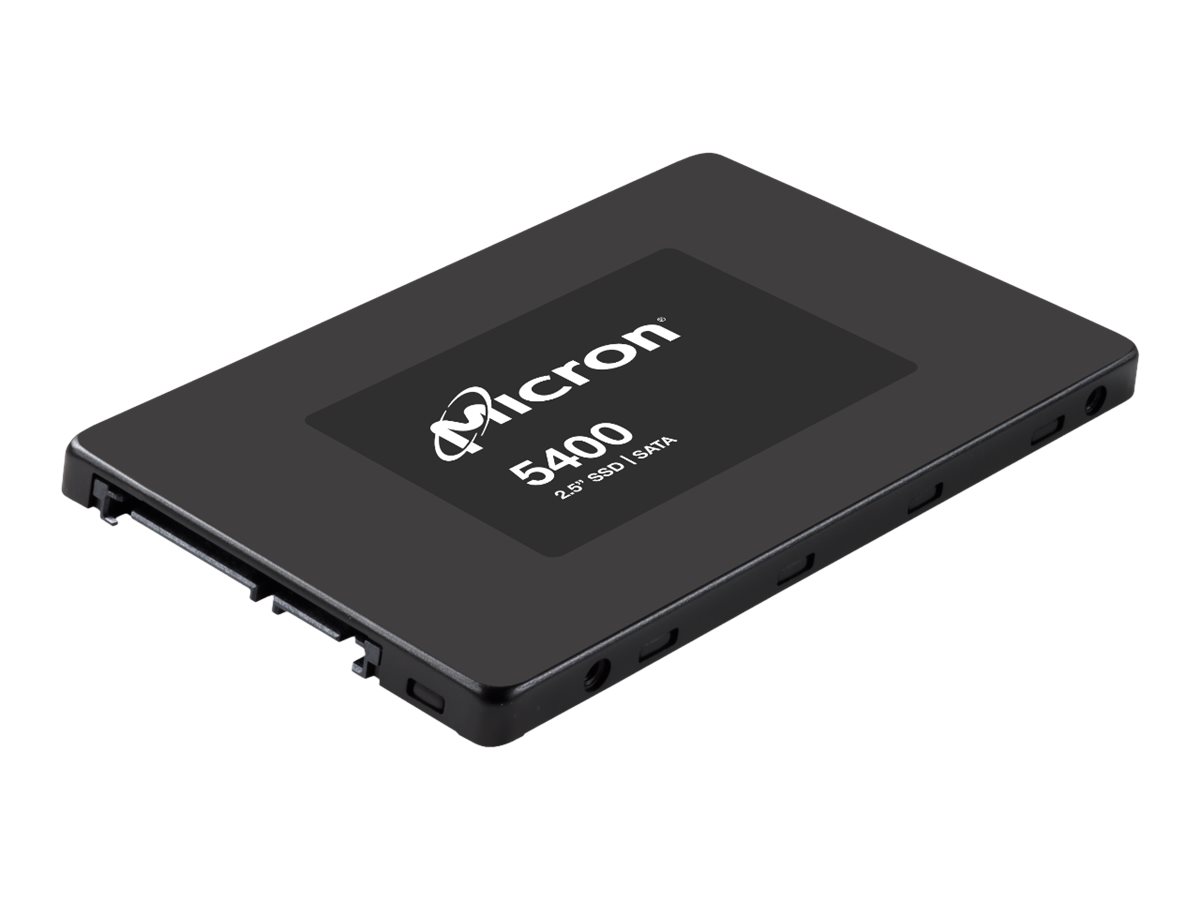

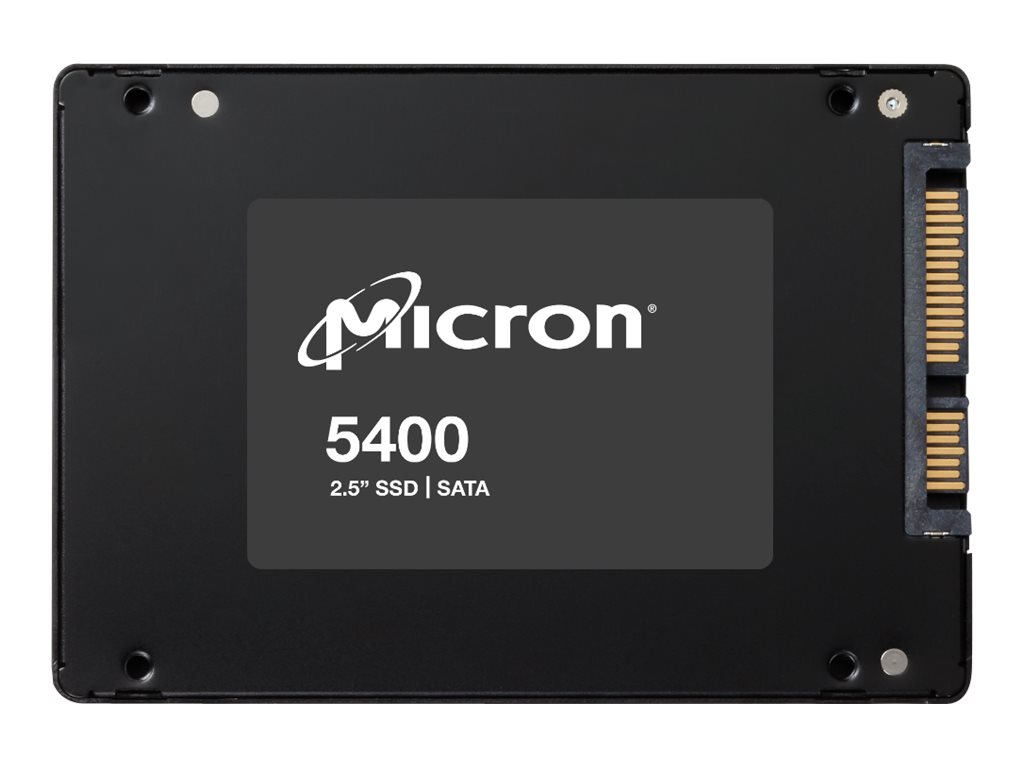

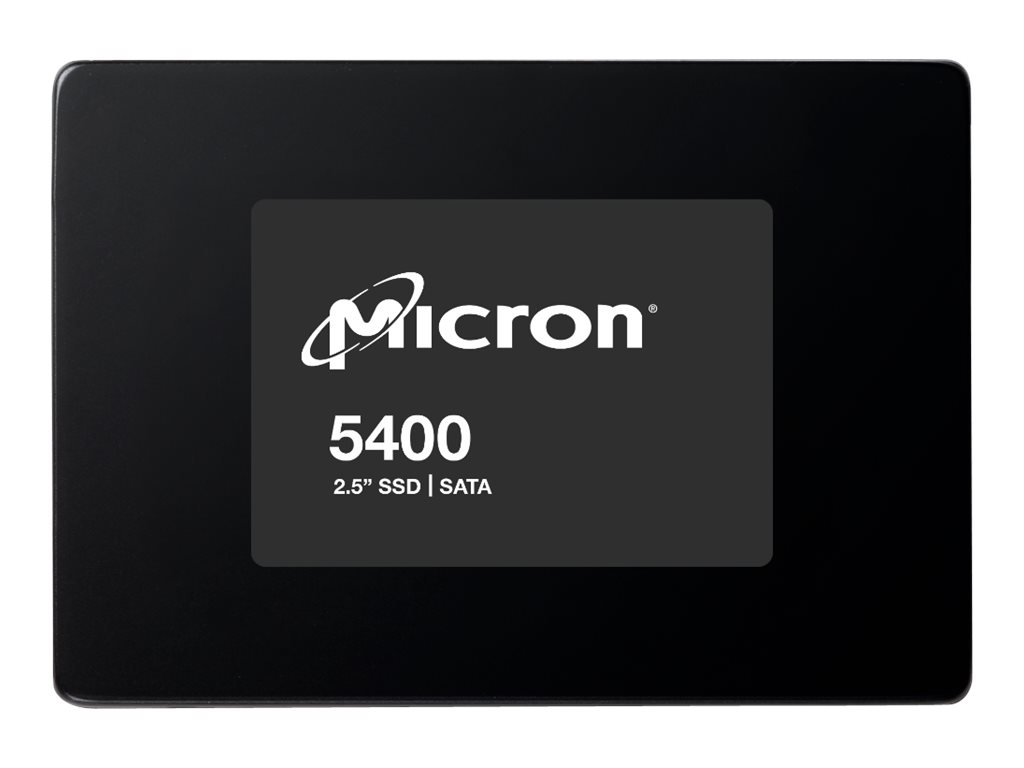

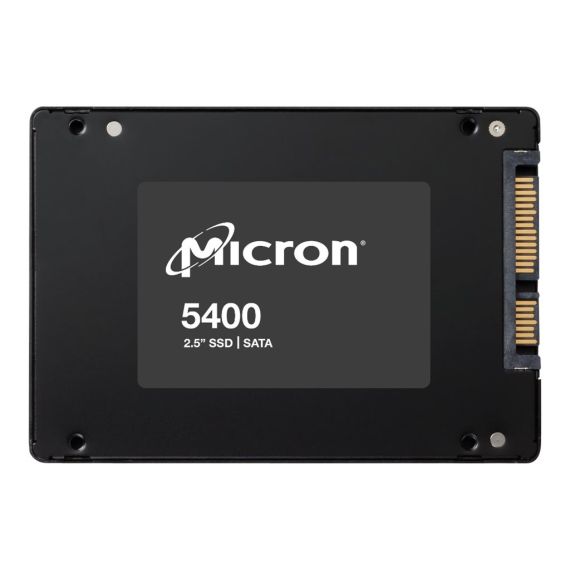

Micron 5400 PRO - SSD - 240 GB - internal - 2.5" - SATA 6Gb/s | MTFDDAK240TGA-1BC1ZABYYR
Please sign in so that we can notify you about a reply
Product Features
- Get more out of your SATA platforms
The Micron 5400 SSD is a 176-layer data center SATA SSD. It offers broad portfolio with more than enough performance to saturate typical network bandwidth and great mixed-use write performance. - Fast and easy to qualify
Qualify Micron's 11th generation data center SATA SSD with confidence, with 176-layer NAND. It's a proven and stable architecture trusted for generations by all major server OEMs. - Longer life and fewer field failures
The Micron 5400 SSD offers industry-leading reliability (MTTF) rating that is higher than the other leading data center SATA SSD. It also delivers higher endurance rating on M.2 PRO vs competing M.2, read-intensive data center SATA SSDs and higher endurance rating on MAX vs competing mixed-use, data center SATA SSDs.
Special Fetures
- Get more out of your SATA platforms
- Fast and easy to qualify
- Longer life and fewer field failures
Product Specification
| Device Type | Solid state drive - internal |
| Capacity | 240 GB |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Form Factor | 2.5" |
| Interface | SATA 6Gb/s |
| Bytes per Sector | 512 |
| Features | Non-SED, 176-layer 3D NAND technology, Adaptive thermal monitoring, Enterprise Data Path Protection, Hot-Plug Support, RAIN technology, Read Intensive, power loss data protection |
| Width | 69.85 mm |
| Depth | 100.45 mm |
| Height | 7 mm |
| Weight | 70 g |
| Performance | |
| Drive Writes Per Day (DWPD) | 1.5 |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 540 MBps (read) / 350 MBps (write) |
| 4KB Random Read | 75000 IOPS |
| 4KB Random Write | 37000 IOPS |
| Reliability | |
| MTBF | 3,000,000 hours |
| Non-Recoverable Errors | 1 per 10^17 |
| Expansion & Connectivity | |
| Interfaces | 1 x SATA 6 Gb/s - 7 pin Serial ATA |
| Compatible Bay | 2.5" |
| Power | |
| Power Consumption | 3 Watt (sequential read) <br /> 3.9 Watt (sequential write) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
Features - Micron - MTFDDAK240TGA-1BC1ZABYYR
Form Factor
- 2.5"
Capacity
256GB
Interface
- SATA
More Details
Product Code
03:197419
EAN Code
0649528933515
Manufacturer
Micron
