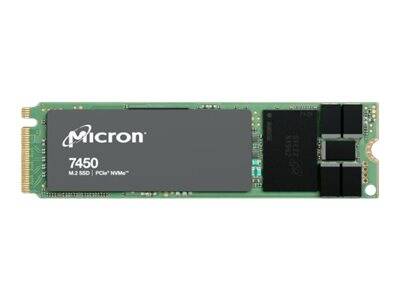

Micron 7450 PRO - SSD - Enterprise, Read Intensive - 480 GB - internal - M.2 2280 - PCIe 4.0 x4 (NVMe) - TAA Compliant | MTFDKBA480TFR-1BC1ZABYYR
Product Features
- Improves storage performance across data center workloads
The Micron 7450 SSD utilizes Micron's innovative 176-layer NAND. The Micron 7450 combines the high layer count NAND with Micron's CMOS-under-array technology and PCIe Gen4 to provide industry-leading performance - enabling faster booting and improved application responsiveness. - Enables rapid, reliable and responsive data center workloads
The Micron 7450 SSD consistently delivers 2 ms and lower latency for 99.9999% QoS improving performance in databases such as Microsoft SQL Server, Oracle, MySQL, RocksDB, Cassandra and Aerospike. - Delivers OCP NVMe SSD 2.0 support - enabling rapid resolution of common data center issues
The Micron 7450 SSD latency monitoring improves monitoring and diagnostics in production environments. Additionally, administrative commands allow standardized control over functions such as namespaces and security, easily integrating with OCP-compliant management systems.
Special Fetures
- Improves storage performance across data center workloads
- Enables rapid, reliable and responsive data center workloads
- Delivers OCP NVMe SSD 2.0 support - enabling rapid resolution of common data center issues
Product Specification
Device Type | Solid state drive - internal |
Capacity | 480 GB |
NAND Flash Memory Type | 3D triple-level cell (TLC) |
Form Factor | M.2 2280 |
Interface | PCIe 4.0 x4 (NVMe) |
Features | Power Loss Protection (PLP), NVM Express (NVMe) 1.4, 176-layer 3D TLC NAND technology |
Width | 22 mm |
Depth | 80 mm |
Performance | |
Drive Writes Per Day (DWPD) | 1 |
SSD Endurance | 800 TB |
Drive Class | Enterprise, Read Intensive |
Internal Data Rate | 5000 MBps (read) / 700 MBps (write) |
4KB Random Read | 280000 IOPS |
4KB Random Write | 40000 IOPS |
Reliability | |
MTBF | 2,000,000 hours |
Non-Recoverable Errors | 1 per 10^17 |
Expansion & Connectivity | |
Interfaces | 1 x PCI Express 4.0 x4 (NVMe) - M.2 Card |
Compatible Bay | M.2 2280 |
Power | |
Power Consumption | 8 Watt (sequential read) ¦ 7.9 Watt (sequential write) |
Miscellaneous | |
TAA Compliant | Yes |
Manufacturer Warranty | |
Service & Support | Limited warranty - 5 years |
Environmental Parameters | |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 70 °C |
