Microsemi Adaptec SmartRAID 3154-24i / Storage controller (RAID) / 24 Channel / SATA 6Gb/s / SAS 12Gb/s low profile / 12 Gbit/s / RAID 0, 1, 5, 6, 10, 50, 60, 1ADM, 10ADM / PCIe 3.0 x8 | 2294700-R
Description
This is the 12 Gbps PCIe Gen3 SAS/SATA Smart RAID adapter with 24 internal native ports and LP/MD2 form factor.

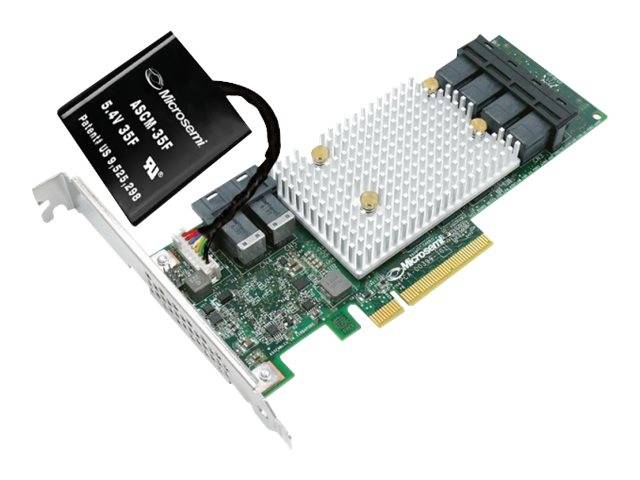

Microsemi Adaptec SmartRAID 3154-24i / Storage controller (RAID) | 2294700-R
Special Features
- Ideal for enabling 12 Gbps storage capabilities in performance-hungry server and workstation platforms
- Provides high I/O transaction and high bandwidth processing solutions that reduce energy consumption and maintenance costs
- Mixed mode allows devices connected to the same adapter to be used in RAID and HBA modes simultaneously
- Adapter dynamic power management to save power
- Supports up to 256 SAS or SATA devices using SAS expanders
Product Specification
| Device Type | Storage controller (RAID) - plug-in card - low profile |
| Host Bus | PCIe 3.0 x8 |
| Interface | SATA 6Gb/s / SAS 12Gb/s |
| Data Transfer Rate | 12 Gbit/s |
| Buffer Size | 4 GB |
| Supported Devices | Tape drive, disk array (RAID) |
| Channel Qty | 24 |
| Max Storage Devices Qty | 256 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, 1ADM, 10ADM |
| Interfaces | 6 x SATA 6Gb/s / SAS 12Gb/s - 4 x Mini SAS HD (SFF-8643) (internal) |
| Included Accessories | Low-profile bracket |
| Features | Online Capacity Expansion (OCE), Native Command Queuing (NCQ), SCSI Enclosure Services (SES), SecureBoot, HBA Mode, dynamic caching algorithm, RAID Level Migration, dynamic sector repair, Background RAID Initialization, Staggered Drive Spin Up, Bootable RAID Array support, flash backup module, S.M.A.R.T. support, 4K Native Sector support |
| MTBF | 1,700,000 hours |
| Compliant Standards | UL, VCCI, C-Tick, FCC, RoHS, KCC |
| OS Required | SunSoft Solaris, FreeBSD, Red Hat Linux, SuSe Linux, Microsoft Windows, Debian Linux, Ubuntu, VMware ESXi, Citrix XenServer |
| Service & Support | Limited warranty - 3 years |
| Depth | 16.7 cm |
| Height | 6.4 cm |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 55 °C |
