Microsemi PD-OUT/SP11 / Surge protector | PD-OUT/SP11
Description

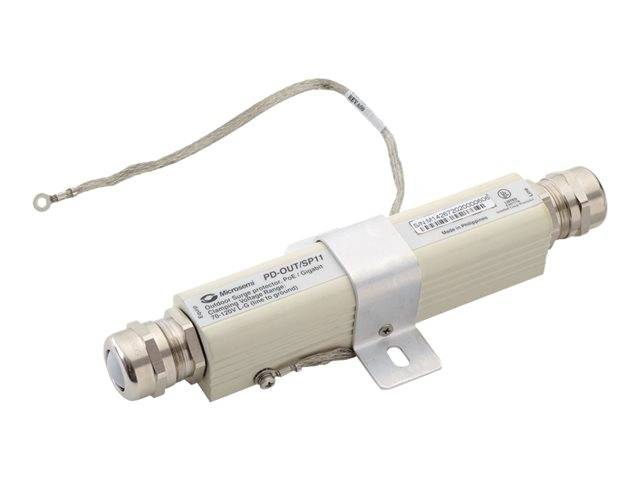

The PD-OUT/SP11 is a high-quality surge protection device designed to protect indoor Ethernet networks from lightning that may come from the outdoor environment through the Ethernet cable. The product is enclosed in a metal weatherproof enclosure. It can be easily mounted on a wall or a pole. The SP device can be installed before the cable enters the building to protect the indoor network or immediately adjacent to the wall- or pole-mounted outdoor device.
Microsemi PD-OUT / SP11 | PD-OUT/SP11
Special Features
- All eight lines protected including PoE
- Waterproof
- Can be wall or pole mounted
Product Specification
| Device Type | Surge protector |
| Max Spike Voltage | 10000 V |
| Max Spike Current | 5000 A |
| MTBF | 400,000 hours |
| Compliant Standards | UL 497B, IEC 60529 IP66, RoHS, WEEE, REACH, GR-1089-CORE |
| Service & Support | Limited warranty - 1 year |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 85 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Width | 3 cm |
| Depth | 19 cm |
| Height | 3 cm |
| Weight | 270 g |
Features - Microchip - PD-OUT/SP11
More Details
Product Code
2961633
EAN Code
0844117002041
Manufacturer
Microchip
