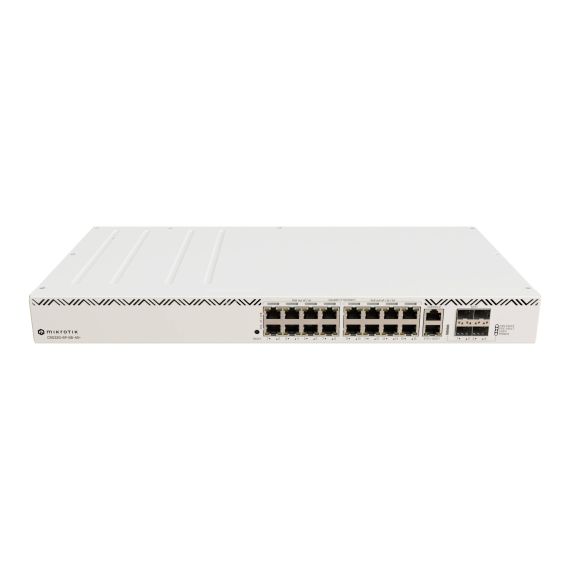

MikroTik CRS320-8P-8B-4S+RM / Switch / smart / 17 x 10/100/1000 (PoE++) + 4 x combo 2.5/10 Gigabit SFP+ / desktop, rack-mountable / PoE++ (963 W) | CRS320-8P-8B-4S+RM
Please sign in so that we can notify you about a reply
Product Features
- Reliable connectivity
The MikroTik CRS320-8P-8B-4S+RM features 17 ports that support both 10/100/1000 Base-T and 2.5/10 Gbit SFP+ connections, allowing for flexible network setups. - Efficient power management
With a PoE budget of 963 W, this switch delivers ample power to connected devices, ensuring uninterrupted operation in various network scenarios. - Robust environmental monitoring
Integrated voltage monitoring and temperature sensors for PCB and CPU support proactive management, enhancing system stability and reliability. - Versatile form factor
Designed for both desktop and rack-mounted installation, offering easy integration into any network infrastructure. - Durable performance standards
With an MTBF of 200,000 hours and compliance with RoHS and IP20 standards, this switch is built for longevity and reliability in network operations.
Special Features
- Includes 17 fast Ethernet ports with PoE++ support
- Robust power budget of 963 W for reliable device connectivity
- Equipped with environmental monitoring capabilities
- Configured for both desktop and rack-mounted setups
- Features a powerful ARM processor and sufficient memory for efficient operation
Product Specification
| Device Type | Switch - 17 ports - smart |
| Enclosure Type | Desktop, rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 17 x 10/100/1000 (PoE++) + 4 x combo 2.5/10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 963 W |
| Features | PCB temperature monitor, voltage monitoring, CPU temperature monitor |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Processor | 1 x ARM 98DX226S: 800 MHz |
| RAM | 256 MB DDR3 SDRAM |
| Flash Memory | 32 MB |
| Built-in Devices | 3 x fans |
| Status Indicators | Fan failure, power fail, user, power, port status |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 17 x 10/100/1000 Base-T (PoE++) RJ-45 4 x 2.5/10Gbit LAN SFP+ 1 x console RJ-45 1 x management RJ-45 |
| Expansion Slots | System Power Supply Unit (PSU) |
| Power | Power |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Miscellaneous | Miscellaneous |
| Included Accessories | Rack mounting ears, fastening set, cable management bracket |
| Rack Mounting Kit | Included |
| MTBF | 200,000 hours |
| Compliant Standards | EAC, RoHS, IP20 |
| Software / System Requirements | Software / System Requirements |
| Software Included | MikroTik RouterOS (licence level 5) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 44.4 cm |
| Depth | 23.5 cm |
| Height | 4.4 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 50 °C |
