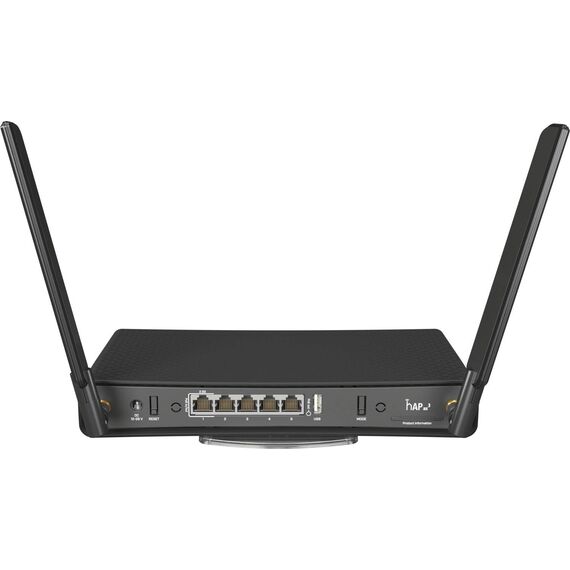

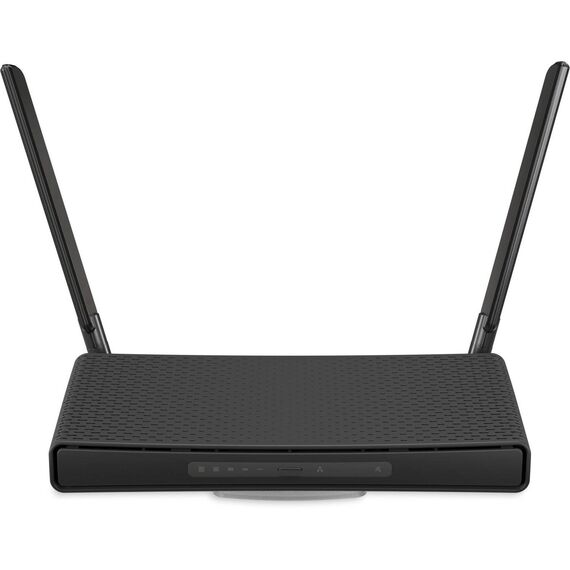

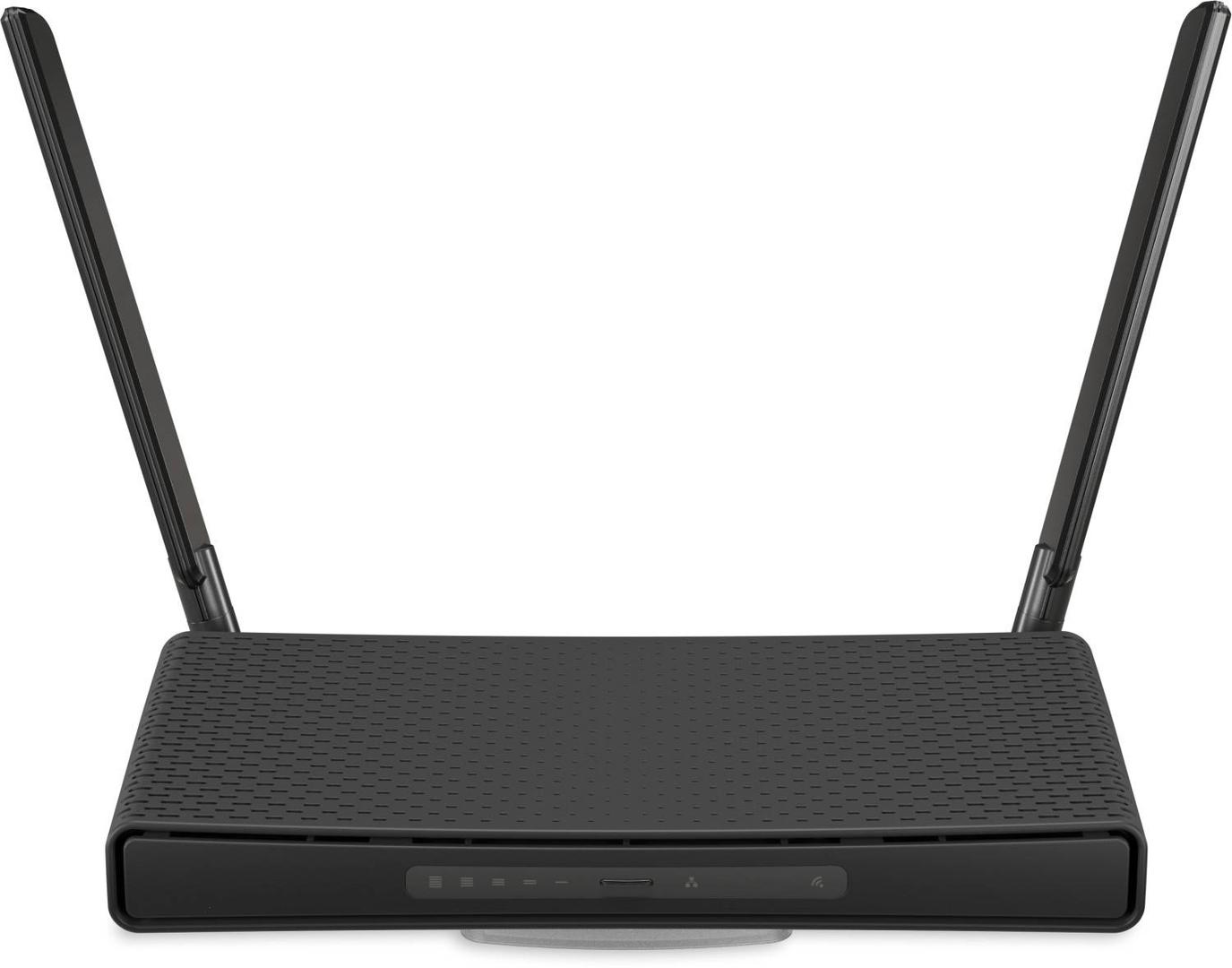

MikroTik hAP ax³ / Wireless router / 5-port switch / GigE, 2.5 GigE / Wi-Fi 6 / Dual Band | C53UIG+5HPAXD2HPAXD
Product Features
- Ultimate power for your whole home
hAP ax³ is the most powerful AX device with the best wireless network coverage so far. It features a modern quad-core ARM CPU running at 1.8 GHz and enough memory (1GB RAM + 128 MB NAND) for most tasks. Complex firewall rules, IPsec hardware encryption, Wireguard, BGP, advanced routing, or multiple remote work VPN tunnels won't stop your family from comfortable browsing, streaming, gaming, and so on. There's enough processing power for everyone. And MikroTik has added a speedy USB 3 port for all your storage purposes or an additional LTE modem. - AX wireless - as strong as an ox
Depending on your overall setup, the AX product family offers up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum! Potent external antennas allow reaching gain up to 5.5 dBi, so you can forget about Wi-Fi Boosters and other tricks. Smooth and fast connectivity for your whole apartment - that's just how hAP ax³ works. Home network speeds are getting serious. There are 4x Gigabit Ethernet ports and an ultra-fast 2.5 Gigabit port. - Safer in many ways
hAP ax³ can ease your mind on multiple levels simultaneously. European-based production, the famous Nordic work ethic, and cooperation with the EU lawmakers ensure full compliance with all the necessary safety policies. Multiple power options (DC Jack & PoE-in) result in fewer worries about potential downtime. The RouterOS v7 updates and the addition of WPA3 advanced encryption support bring unprecedented software security.
Special Features
- Ultimate power for your whole home
- AX wireless - as strong as an ox
- Safer in many ways
Product Specification
Device Type | Wireless router - 5-port switch (integrated) |
Enclosure Type | Desktop |
Connectivity Technology | Wireless, wired |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6) |
Frequency Band | 2.4 GHz / 5 GHz |
Performance | Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 1200 Mbps |
Wi-Fi Rating | AX1800 |
Features | Power over Ethernet (PoE), Access Point operational mode, mode button, CPU temperature monitor |
Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IC, FCC, RoHS, EAC, WPA3 |
Processor | 1 x ARM IPQ6010 1.8 GHz |
RAM | 1 GB |
Flash Memory | 128 MB |
Expansion / Connectivity | Expansion / Connectivity |
Interfaces | LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 1 x 10Base-T/100Base-TX/1000Base-T (PoE) - RJ-45 ¦ LAN: 1 x 2.5GBase-T - RJ-45 ¦ USB 3.0: 1 x 9 pin USB Type A |
Aerial | Aerial |
Aerial | External detachable |
Antenna Qty | 2 |
Power | Power |
Power Device | External power adapter |
Power Consumption Operational | 15 Watt |
Miscellaneous | Miscellaneous |
Included Accessories | Fastening set, hAP case base |
MTBF | 200,000 hours |
Software / System Requirements | Software / System Requirements |
OS Provided | MikroTik RouterOS v7 |
Dimensions & Weight | Dimensions & Weight |
Width | 25.1 cm |
Depth | 13 cm |
Height | 3.9 cm |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | -40 °C |
Max Operating Temperature | 70 °C |
