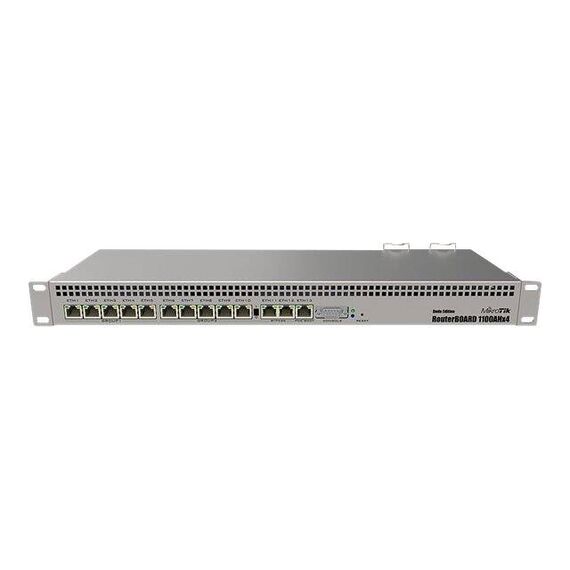

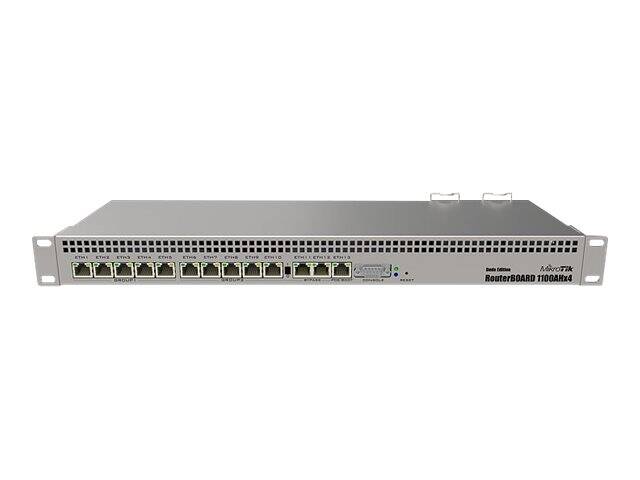

MikroTik RouterBOARD RB1100AHx4 - Dude Edition - router - 13-port switch - GigE - rack-mountable | RB1100Dx4
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Router - 13-port switch (integrated) |
| Enclosure Type | Rack-mountable - 1U |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Power over Ethernet (PoE), auto-uplink (auto MDI/MDI-X), PoE+, bypass interface pair |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at |
| Processor | 1 x Annapurna Labs Cortex-A15 1.4 GHz |
| RAM | 1 GB |
| Flash Memory | 128 MB |
| Hard Drive | 60 GB |
| Built-in Devices | microSD card reader |
| Expansion / Connectivity | |
| Interfaces | 13 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Console: 1 x RS-232C - 9 pin D-Sub (DB-9) |
| Expansion Slots | 2 (total) / 1 (free) x M.2 |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 (installed) / 2 (max) |
| Voltage Required | AC 120/230 V |
| Power Consumption Operational | 25 Watt |
| Miscellaneous | |
| Cables Included | Serial ATA cable |
| Software / System Requirements | |
| OS Provided | MikroTik RouterOS |
| Dimensions & Weight | |
| Width | 44.4 cm |
| Depth | 14.8 cm |
| Height | 4.7 cm |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 70 °C |
Features - MikroTik - RB1100Dx4
More Details
Product Code
07:229882
EAN Code
4752224002648
Manufacturer
MikroTik
