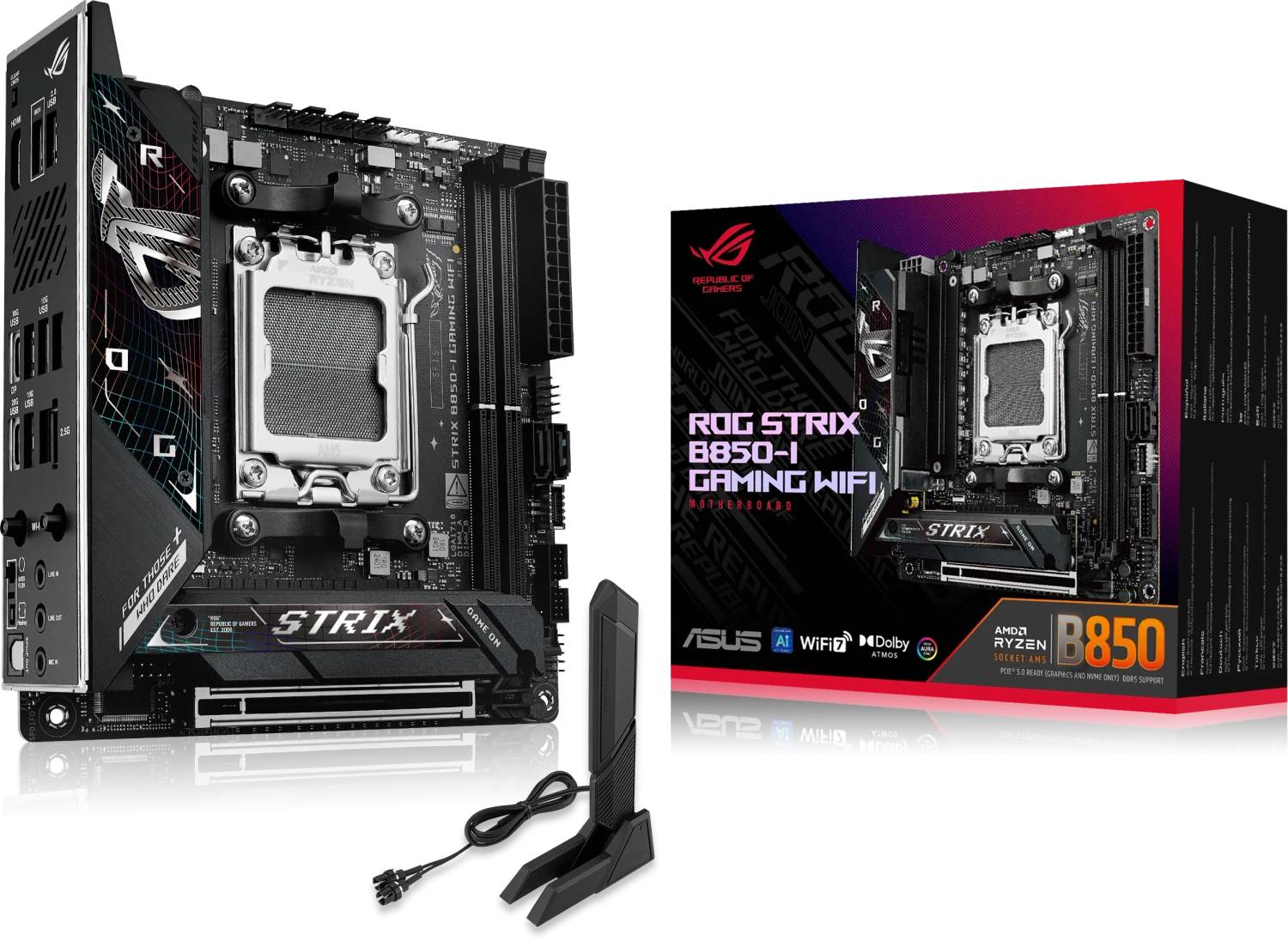

ASUS ROG STRIX B850-I GAMING WIFI / Motherboard / mini ITX / Socket AM5 / AMD B850 Chipset / USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1 / 2.5 Gigabit LAN, Wi-Fi 7, Bluetooth / onboard graphics (CPU required) / HD Au | 90MB1K30-M0EAY0
Please sign in so that we can notify you about a reply
Product Features
- Compact design
The mini ITX form factor allows for a smaller build while maintaining powerful performance and capabilities, making it suitable for compact gaming setups or space-constrained environments. - High-speed networking
Equipped with 2.5 Gigabit Ethernet and Wi-Fi 7 support, this motherboard ensures fast and stable Internet connectivity for gaming and media streaming. - Advanced compatibility
The motherboard supports AMD Ryzen processors and DDR5 RAM, providing flexibility for high-performance configurations and upgrades. - Enhanced audio features
Utilizing the Realtek ALC4080 codec, the motherboard delivers immersive high definition audio for a richer gaming and entertainment experience. - User-friendly enhancements
Featuring ASUS EZ DIY technology and multiple design improvements like ASUS Q-Design, the motherboard simplifies the setup and upgrade process.
Special Features
- Compatible with AMD Ryzen 7000/8000/9000 Series processors
- Supports up to 4200 MHz DDR5 SDRAM for high-speed performance
- Includes 2.5 Gigabit Ethernet and Wi-Fi 7 for connectivity
- Realtek ALC4080 audio codec for high definition audio output
- DIY-friendly design with features like ASUS Q-Design and easy BIOS updates
Product Specification
| Product Type | Motherboard - mini ITX |
| Chipset Type | AMD B850 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000/8000/9000 Series) |
| Supported RAM | Supported RAM |
| Max Size | 96 GB |
| Technology | DDR5 |
| Bus Clock | 4200 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, on-die ECC |
| Registered or Buffered | Unbuffered |
| Features | AMD EXPO technology, dual channel memory architecture |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC4080 |
| Compliant Standards | High Definition Audio, DTS Sound Unbound |
| LAN | LAN |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4 |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 2 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 |
| Interfaces | 1 x HDMI 1 x USB-C 3.2 Gen 2/DisplayPort 1 x USB-C 3.2 Gen2x2 4 x USB 3.2 Gen 2 4 x USB 3.2 Gen 1 2 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 1 x SPDIF out 1 x microphone - mini-jack 1 x audio line-out - mini-jack 2 x aerial 1 x audio line-in - mini-jack |
| Internal Interfaces | 3 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x USB-C 3.2 Gen 2 - header 1 x audio - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3 |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | ASUS OptiMem II, SupremeFX Shielding technology, Savitech SV3H712 amplifier, BIOS FlashBack button, Water Pump Header, jack retasking, audio jack detect technology, ASUS Extreme Engine Digi+, 5K Black Metallic Capacitors, ASUS Q-Design, M.2 Q-Latch, PCIe Slot Q-Release, Q-LED, Q-DIMM, Q-Slot, ASUS EZ DIY, BIOS FlashBack LED, ASUS ProCool, pre-mounted I/O shield, ASUS SafeDIMM, ASUS Aura Sync, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, CrashFree BIOS 3, 10+2+1 Phase Power Design, 70A Power Stage, DIY Friendly Design, ASUS Enhanced Memory Profile (AEMP) |
| Miscellaneous | Miscellaneous |
| Included Accessories | ASUS Wi-Fi Q-antenna, 2 x M.2 rubber package, TUF GAMING sticker, M.2 screw package, cable ties, M.2 backplate Q-Latch, M.2 Q-Slide, ROG key chain, ROG Strix sticker, M.2 backplate rubber package |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Sonic Radar III, Sonic Studio III, Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 4, ASUS AI Suite III, ASUS Turbo App, PC Cleaner, MyAsus, WinRAR, Adobe Creative Cloud (free trial), ROG CPU-Z, AIDA64 Extreme (60 days trial), HWiNFO |
| Compliant Standards | FCC Part 15 Class B, VCCI Class B ITE, JATE, EU REACH, EU RoHS, UKCA, DisplayPort 1.4 |
| Width | 17 cm |
| Depth | 17 cm |
Features - Asus - 90MB1K30-M0EAY0
CPU Socket
- Socket AM5
More Details
Product Code
03:260354
EAN Code
4711387823620
Manufacturer
Asus
