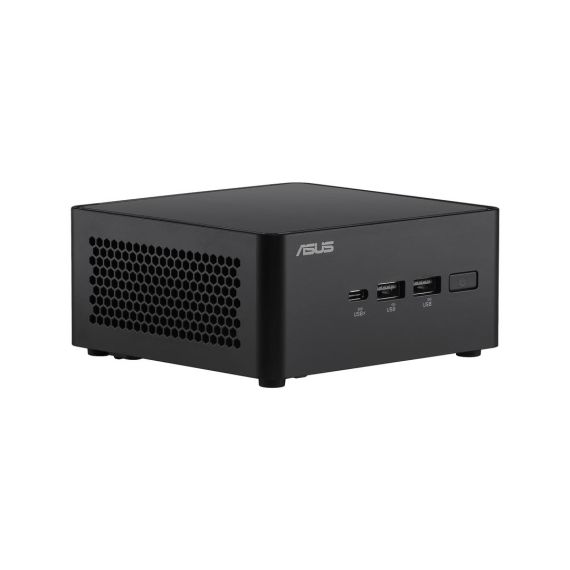

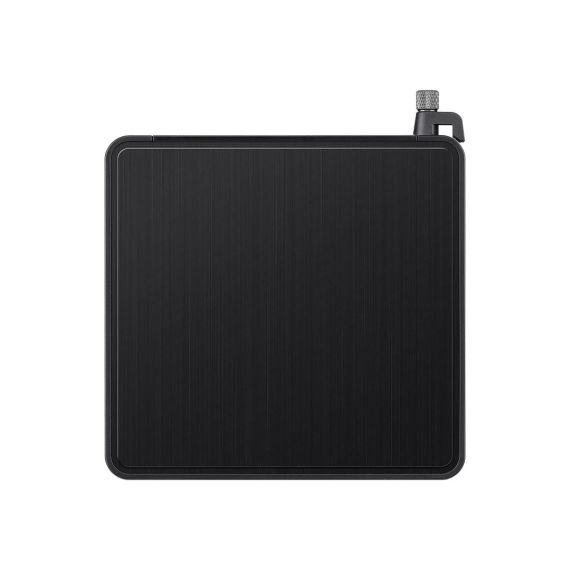

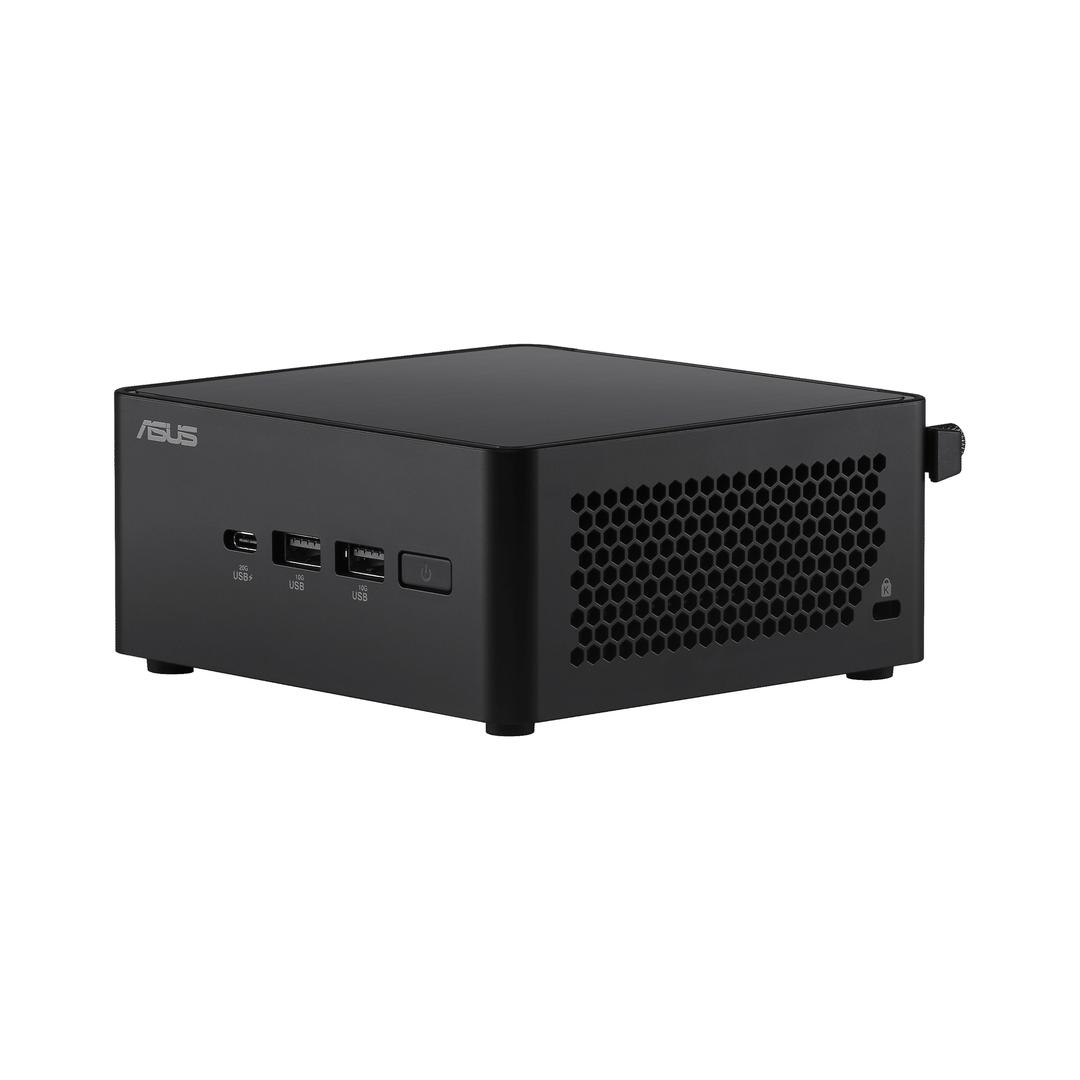

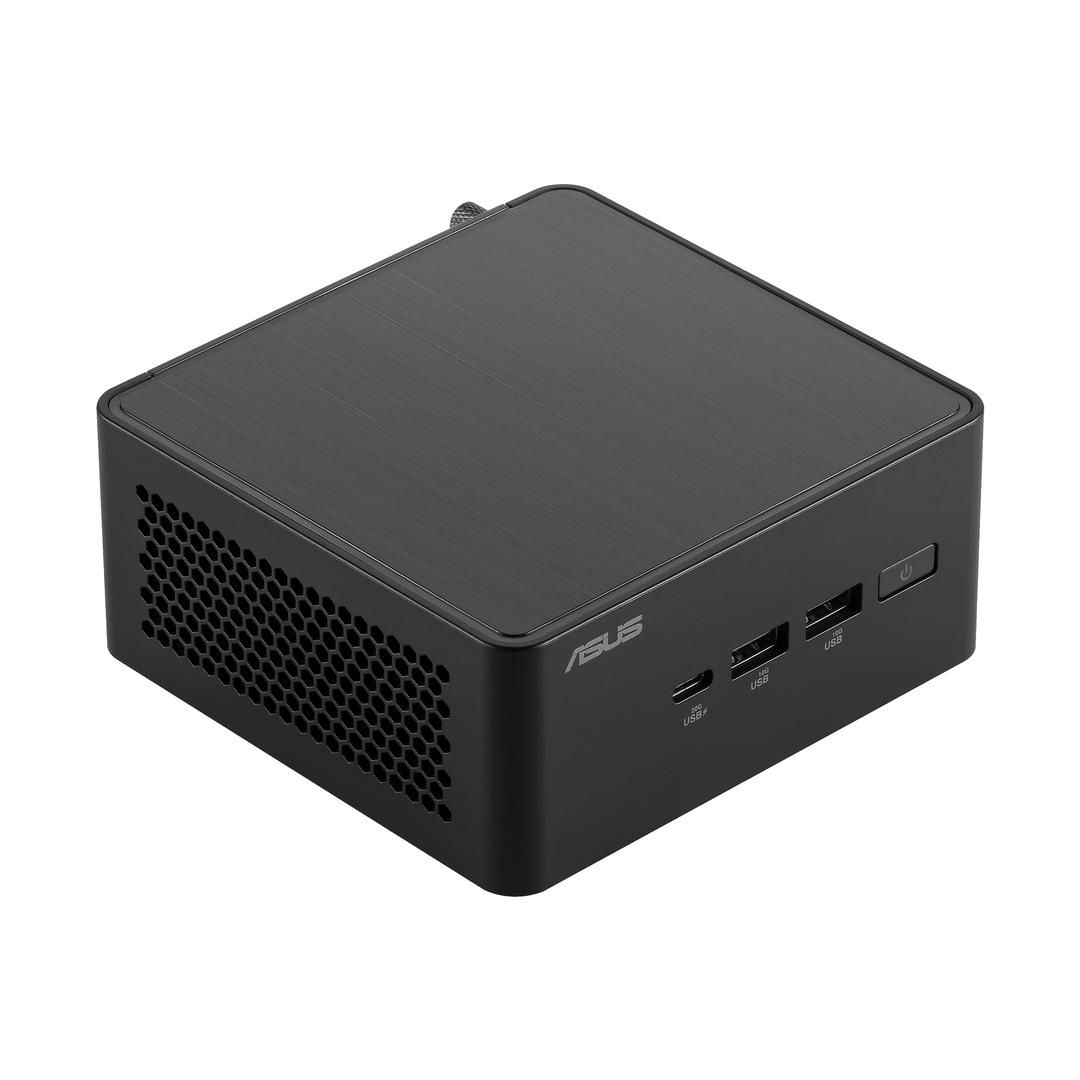

Barebone - mini PC 1 x Core Ultra 7 165H / up to 5 GHz - vPro - RAM 0 GB - Intel Arc Graphics - Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 - black | 90AR0072-M00250
Please sign in so that we can notify you about a reply
Product Features
- Compact design
The ASUS NUC 14 Pro+ redefines workspace efficiency with its ultra small form factor, making it an ideal choice for environments where space is at a premium. - Powerful connectivity
Equipped with multiple USB 3.2 Gen 2, Thunderbolt 4, and HDMI ports, this mini PC offers versatile connectivity options for a wide range of peripherals and displays. - Advanced networking
Featuring 2.5 Gigabit Ethernet, Bluetooth 5.3, and Intel Wi-Fi 6E AX 211, the ASUS NUC 14 Pro+ ensures high-speed, reliable connections for both wired and wireless networking needs. - High-performance graphics
With Intel Arc Graphics, this PC barebone supports demanding applications and provides excellent visuals for both creative projects and entertainment. - Expandable storage

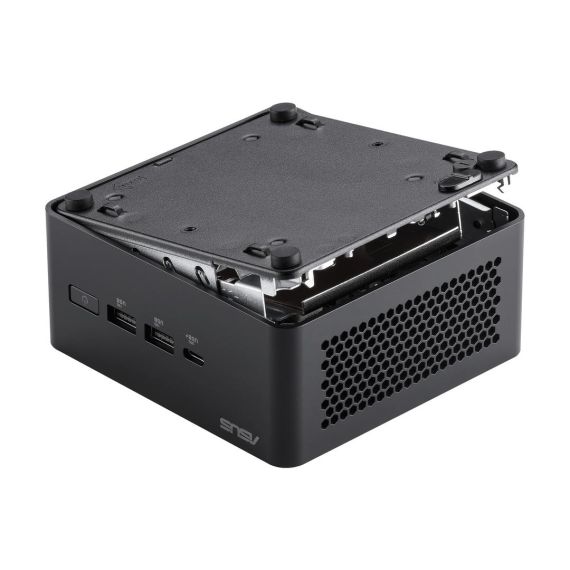

Thanks to its M.2 card slots and support for Serial ATA-600, users can easily expand storage to meet their specific needs, ensuring a flexible and future-proof solution.
Special Fetures
- Ultra small form factor for space-saving installation
- Multiple USB 3.2 Gen 2 and Thunderbolt 4 ports for extensive peripheral compatibility
- 2.5 Gigabit Ethernet, Bluetooth 5.3, and Wi-Fi 6E for high-speed networking
- Intel Arc Graphics for superior visual performance
- Flexible storage expansion with M.2 card slots and Serial ATA-600 support
Product Specification
| Platform Technology | Intel vPro Platform |
| Type | PC barebone |
| Product Form Factor | Mini PC |
| Colour | Black |
| Processor / Chipset | |
| CPU | Intel Core Ultra 7 (Series 1) 165H |
| Clock Speed | 1.4 GHz (P-core) / 700 MHz (E-core) |
| Max Turbo Speed | 5 GHz (P-core) / 3.8 GHz (E-core) |
| Number of Cores | 16-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Smart Cache |
| Cache Memory | |
| Installed Size | 24 MB |
| Cache Per Processor | 24 MB |
| RAM | |
| Installed Size | 0 GB (installed) / 96 GB (max) |
| Technology | DDR5 SDRAM |
| Form Factor | SO-DIMM 262-pin |
| Slots | 2 (Total) / 2 (empty) |
| Hard Drive | |
| Type | No HDD |
| Storage Controller | |
| Type | SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 1 |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel Arc Graphics |
| Video Interfaces | HDMI |
| Networking | |
| Ethernet Controller | Intel I226-LM |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wi-Fi 6E AX 211 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 1 (total) / 1 (free) x M.2 Card - 2280 <br /> 1 (total) / 1 (free) x M.2 Card - 2242 |

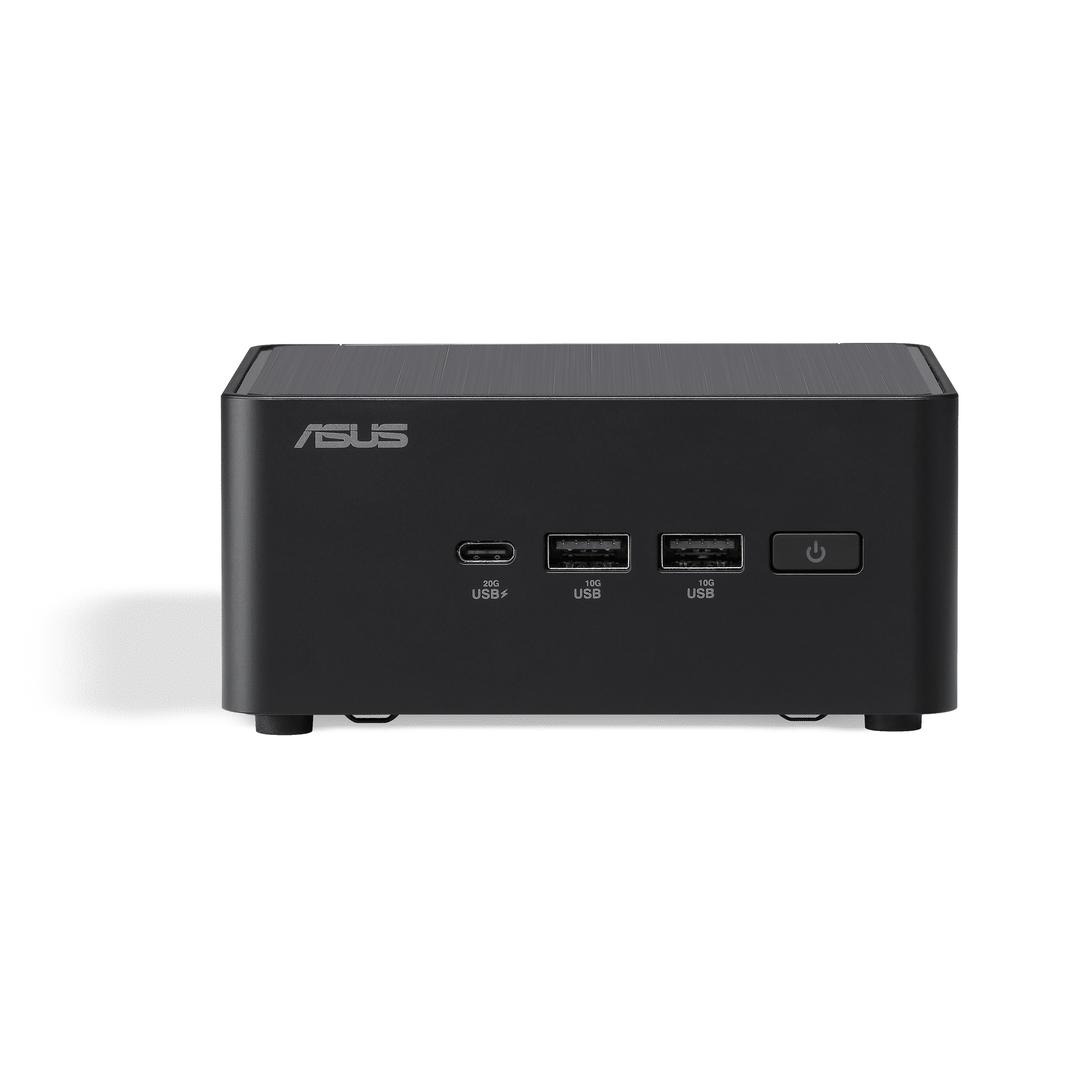

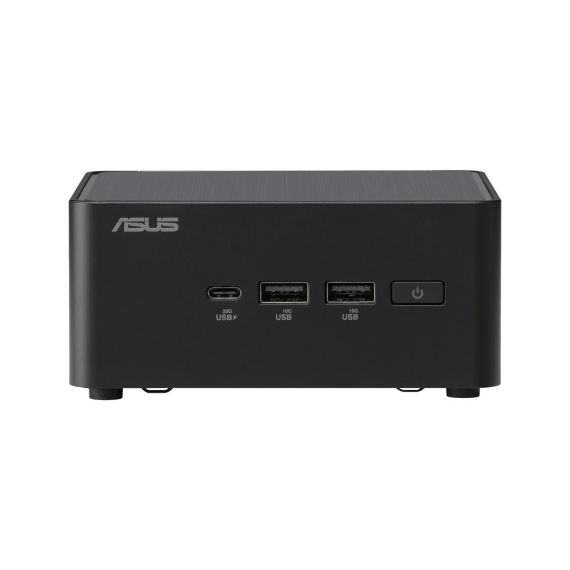

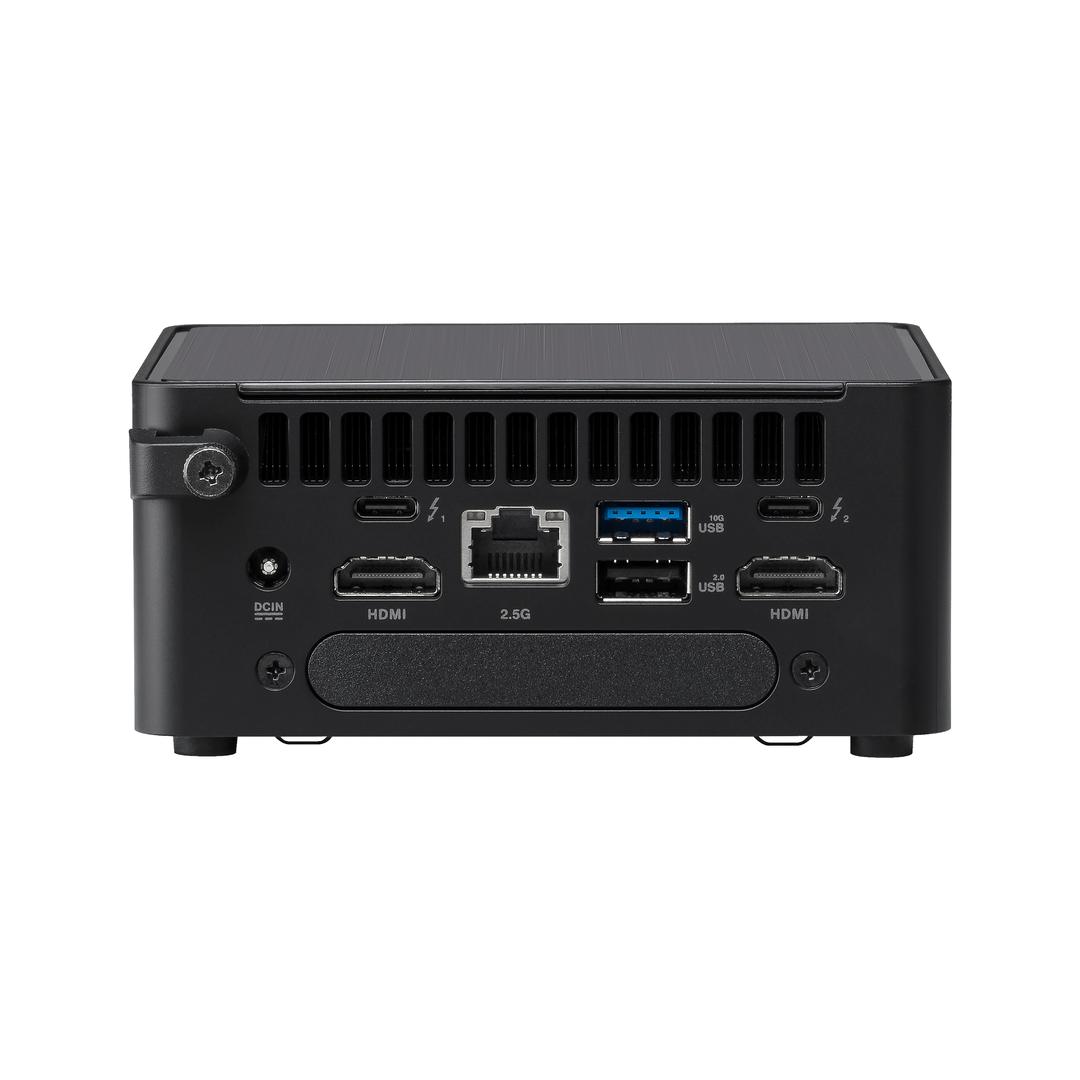

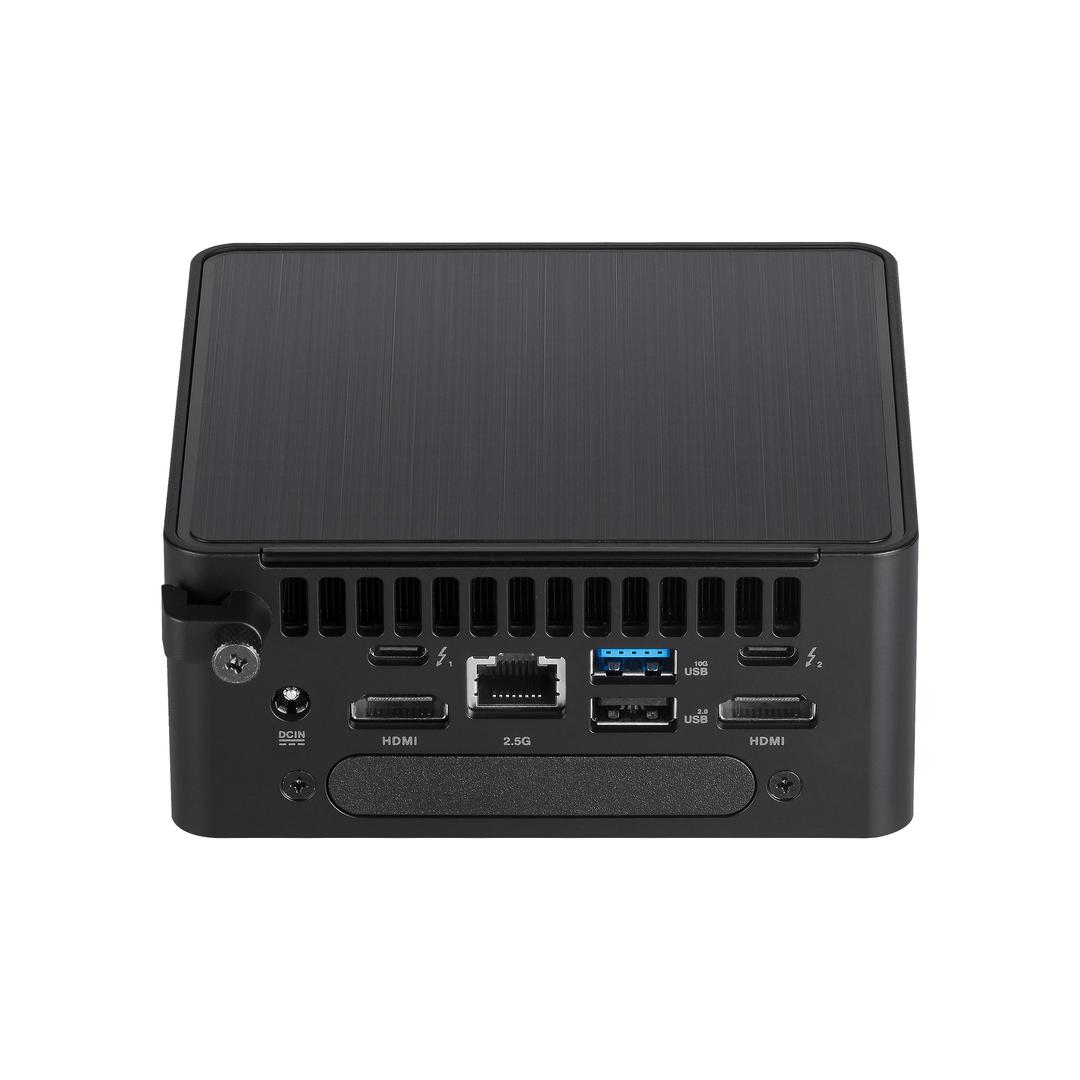

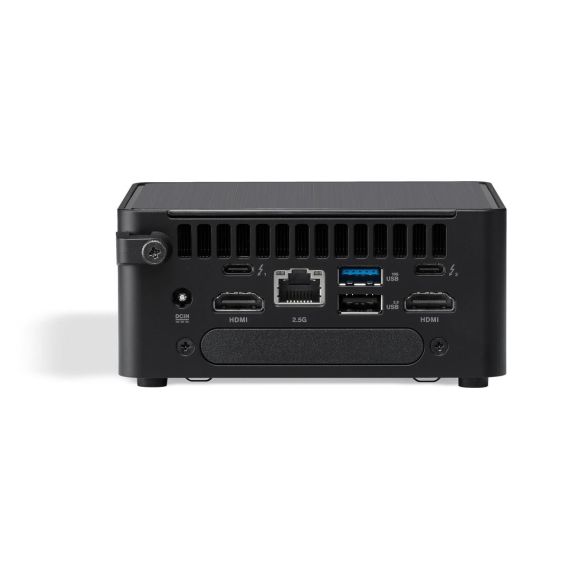

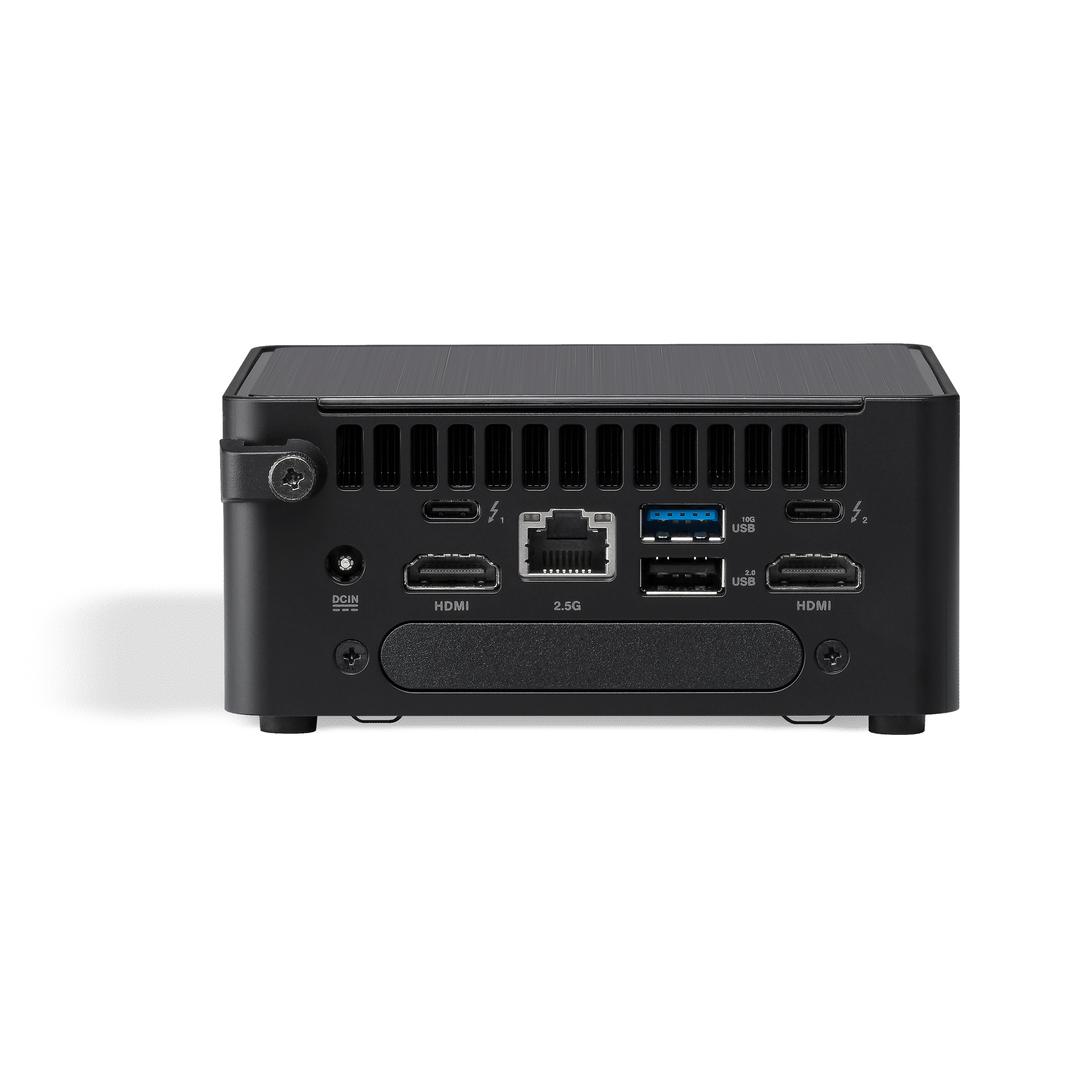

| Interfaces | 3 x USB 3.2 Gen 2 (2 front, 1 rear) <br /> 2 x Thunderbolt 4 (2 rear) <br /> 2 x HDMI (2 rear) <br /> 1 x LAN (2.5Gigabit Ethernet) (1 rear) <br /> 1 x USB-C 3.2 Gen 2x2 (1 front) <br /> 1 x USB 2.0 (1 rear) |
| Miscellaneous | |

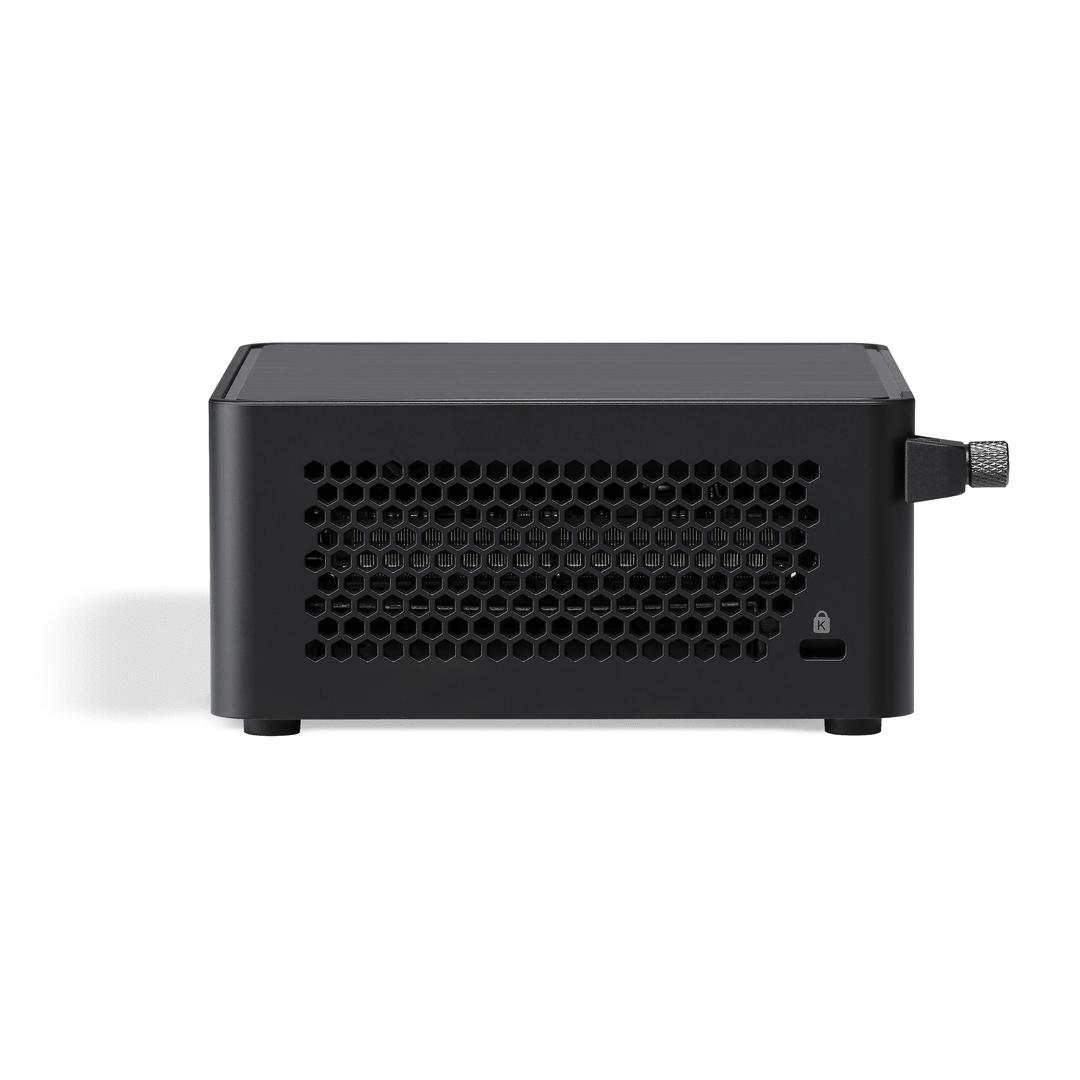

| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |

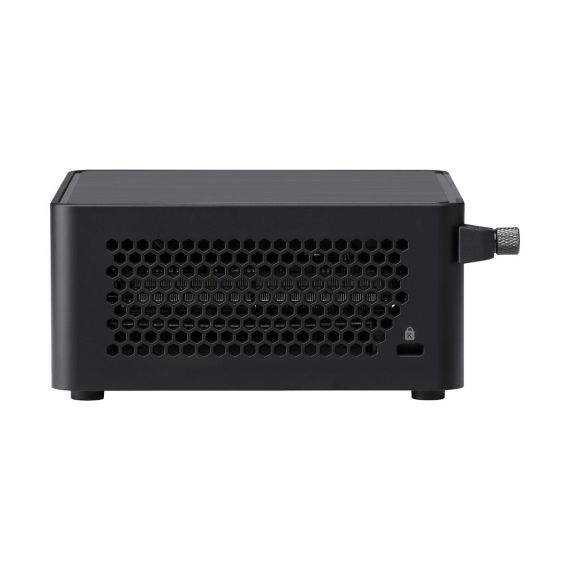

| Security Slot Type | Kensington security slot |
| VESA Mounting Interface | Yes |
| Power | |
| Device Type | Power adapter |
| Power Provided | 120 Watt |
| Operating System / Software | |
| OS Provided | No operating system |
| Dimensions & Weight | |
| Width | 14.4 cm |
| Depth | 11.2 cm |
| Height | 4.1 cm |
| Weight | 570 g |
Features - Asus - 90AR0072-M00250
CPU Type
- Intel Ultra 7
More Details
Product Code
07:260994
EAN Code
4711387492055
Manufacturer
Asus
