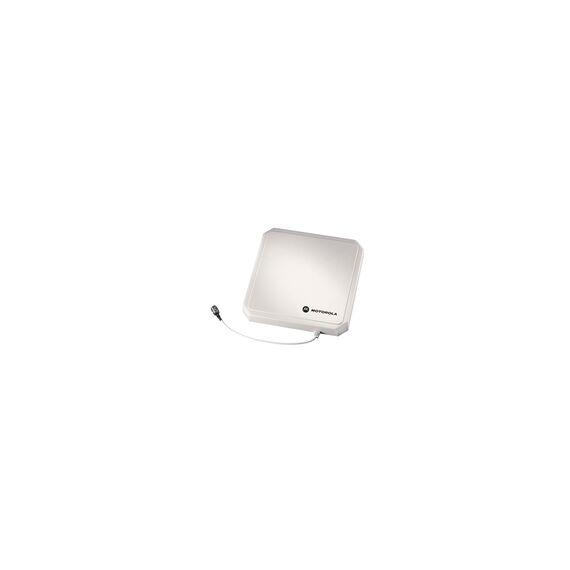

Motorola Solutions AN480-CR66100WR Motorola Solutions AN480 RFID ANTENNA (AN480-CR66100WR)
This single port antenna offers the maximum flexibility and performance required to meet the needs of enterprises around the world. Compatible in virtually any global market, Motorola's AN480 can be installed throughout the enterprise from the manufacturing and warehouse floors to the dock doors and outside in the yard.The AN480 antenna offers the environmental sealing required for indoor and outdoor use. Its extremely low axial ratio delivers a more uniform gain for superior performance.
Feature list
| Antenna gain level max: | 6 dBi |
| Antenna type: | directional |
| Impedance: | 50 Ω |
| Antenna connector type: | N-type |
| Power handling: | 2 W |
| Horizontal beam width: | 65 ° |
| Vertical beam width: | 65 ° |
| Voltage Standing Wave Ratio VSWR: | 1.22:1 |
| Purpose: | Outdoor |
| Colour of product: | White |
| Certification: | RoHS, UL |
| Weight: | 1130 g |
| Width: | 259.1 mm |
| Depth: | 259.1 mm |
| Height: | 50.3 mm |
| Frequency range: | 865 - 868 MHz |
Features - Motorola - AN480-CR66100WR
More Details
Product Code
V351314
EAN Code
5656565656562
Manufacturer
Motorola
