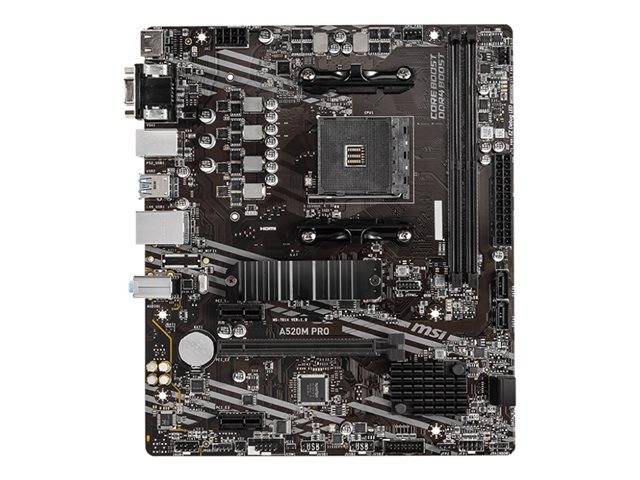

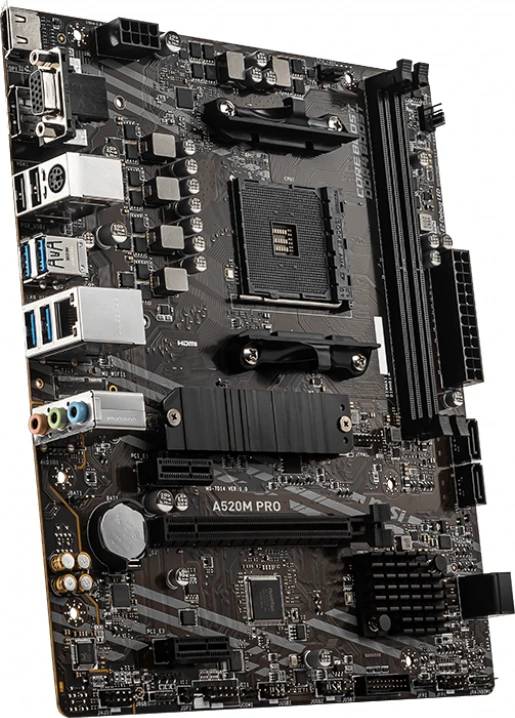

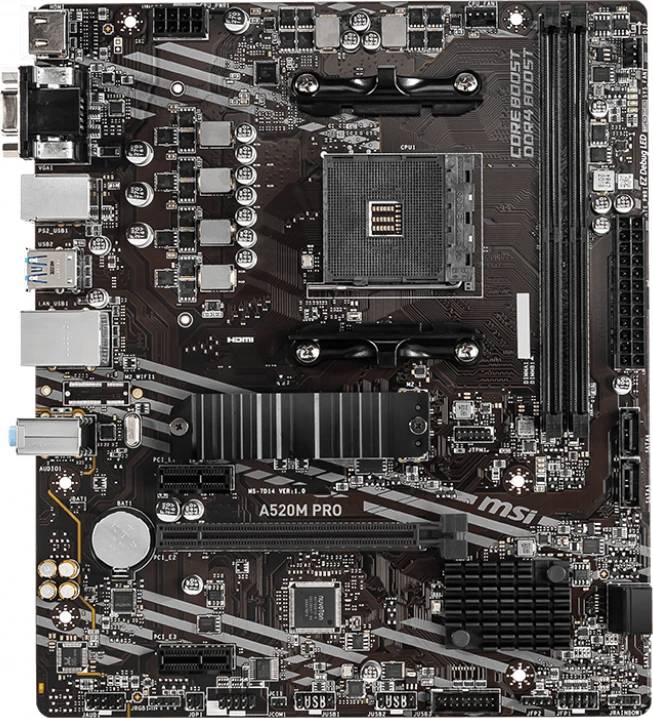

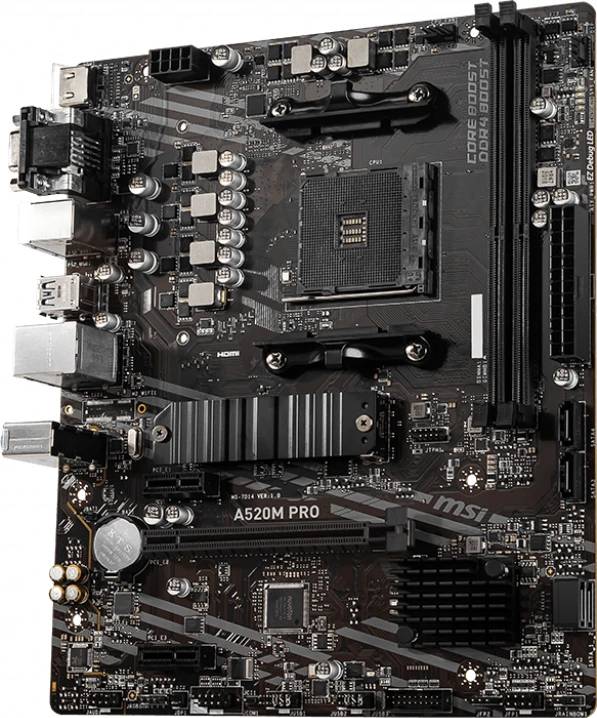

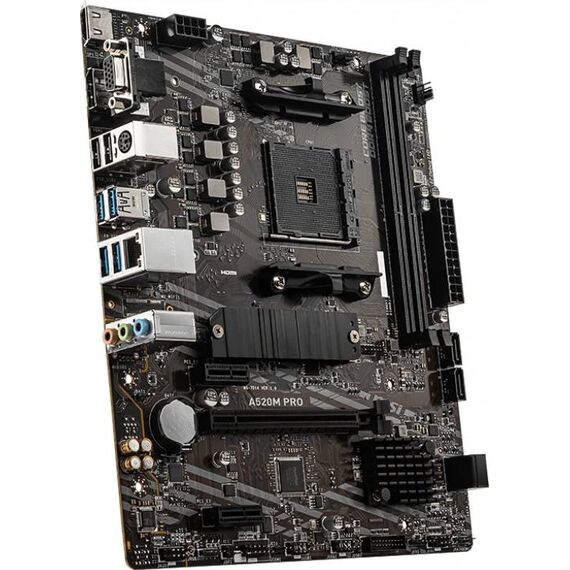

MSI A520M PRO / Motherboard / micro ATX / Socket AM4 / AMD A520 / USB 3.2 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 7D14-005R
Please sign in so that we can notify you about a reply
MSI A520M PRO / Motherboard / micro ATX / Socket AM4 / AMD A520 / USB 3.2 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 7D14-005R
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD A520 |
| Processor Socket | Socket AM4 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports 3rd Generation Ryzen and Ryzen 4000 G-Series) |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 1866 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz, 3066 MHz |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, supported ECC modules operate in non-ECC mode, A-XMP support |
| Max Allocated RAM Size | 2 GB |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC892 |
| Compliant Standards | High Definition Audio |
| Network Controller | Realtek RTL8111H |
| Network Interfaces | Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe x16 ¦ 2 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |

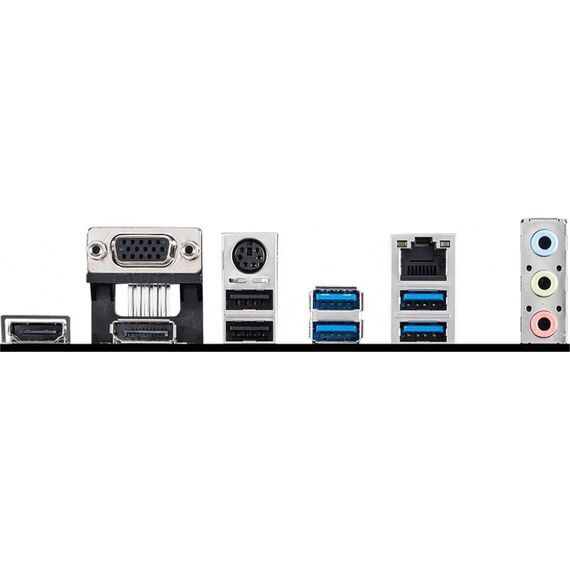

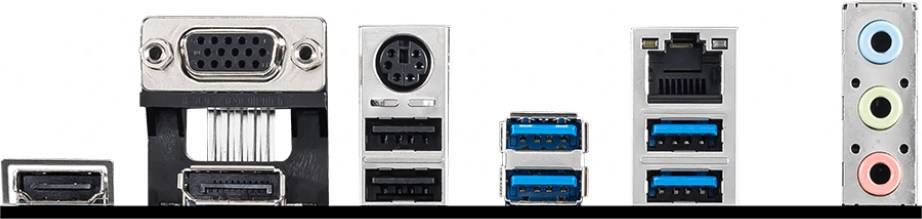

| Interfaces | 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 4 x USB 3.2 Gen 1 ¦ 1 x PS/2 keyboard / mouse ¦ 2 x USB 2.0 ¦ 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x VGA |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Features | MSI ClickBIOS 5 |

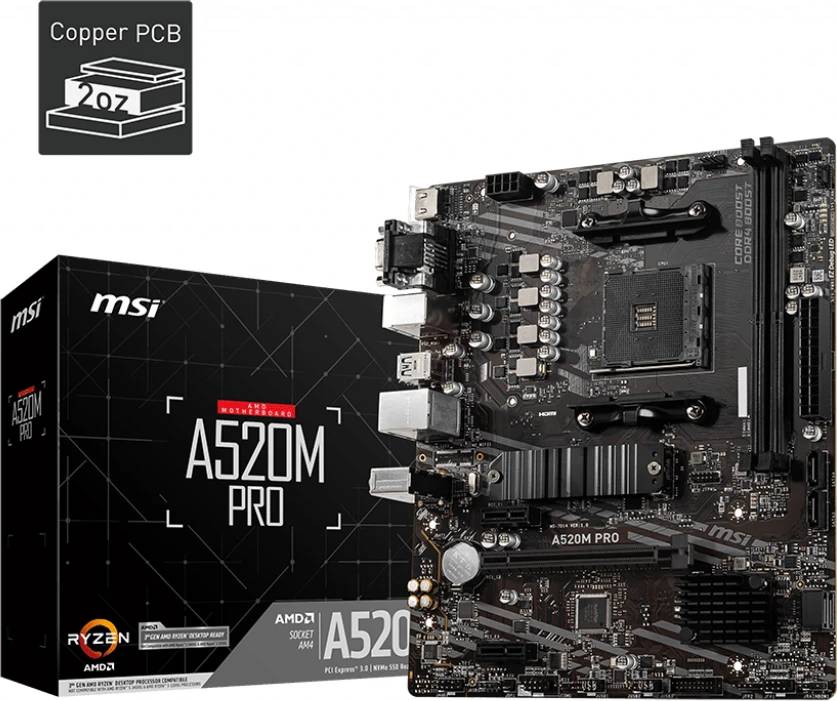

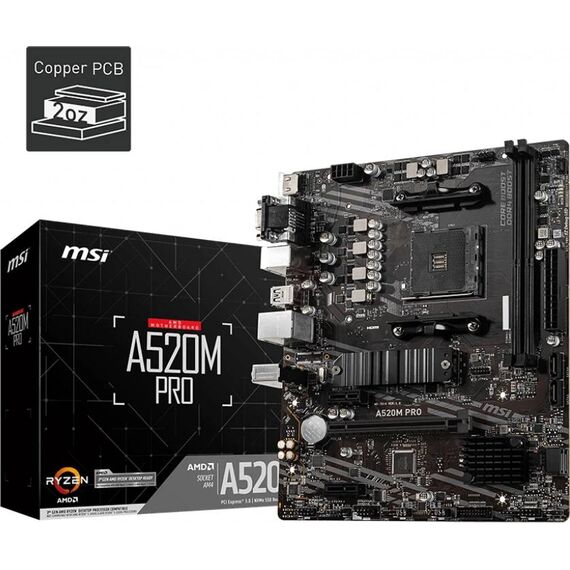

| Hardware Features | MSI Audio Boost, Debug LED, Turbo M.2, Double ESD Protection, 2oz Copper PCB, M.2 Shield FROZR, MSI Core Boost, MSI Mystic Light Sync |
| Included Accessories | Case badge, I/O back cover |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & Utilities |
| Width | 24.4 cm |
| Depth | 21 cm |
Features - MSI - 7D14-005R
More Details
Product Code
04:342982
EAN Code
4719072755492
Manufacturer
MSI
