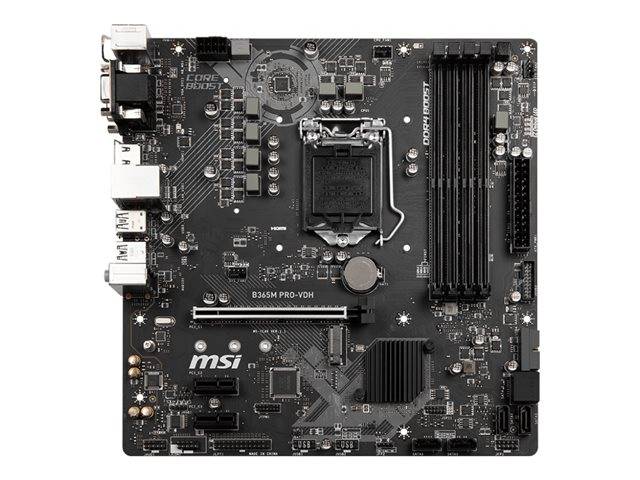

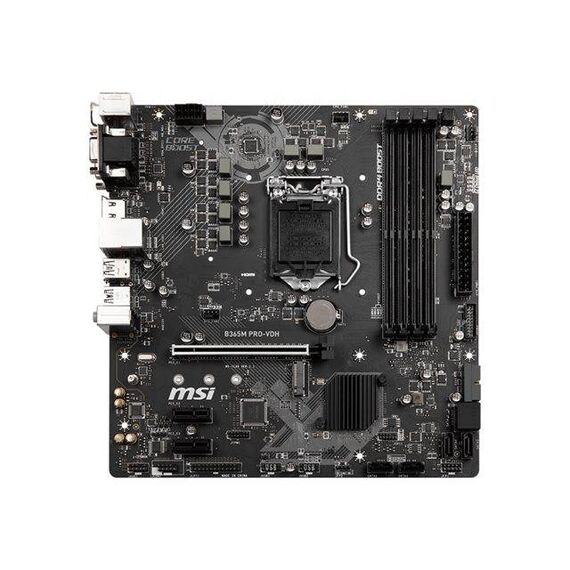

MSI B365M PRO-VDH / Motherboard / micro ATX / LGA1151 Socket / B365 / USB 3.1 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 7C39-001R
Please sign in so that we can notify you about a reply
MSI B365M PRO-VDH / Motherboard / micro ATX / LGA1151 Socket / B365 / USB 3.1 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 7C39-001R
Description
MSI motherboards have tons of convenient and smart design features, such as convenient pin-header keep out zone, friendly SATA & USB location and so on, so DIY users can pick and choose any gaming rig they want.
MSI B365M PRO-VDH / Motherboard | 7C39-001R
Special Features
- Excellent cooling
- Enhanced performance
- Quality components
- Optimized memory layout
Product features
- Excellent cooling
Cooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with solid and heavy heatsink. - Enhanced performance
MSI motherboards featured all the latest solution for enthusiast gamers and pro consumers. CPU and memory enhancement and fast storage and USB transfer speed are ready to be on the battlefield. - Quality components
High-quality power supply components and intelligent fans optimize CPU cooling performance, which is a key factor in ensuring stable and high-speed operation of the system. - Optimized memory layout
Optimized layout design and a fully isolated memory circuitry ensures perfect stability and performance.
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel B365 |
| Processor Socket | LGA1151 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Celeron, Core i5, Core i3, Core i7, Core i9, Pentium Gold (supports 9th and 8th Generation Intel Core / Pentium Gold / Celeron) |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2666 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC892 |
| Compliant Standards | High Definition Audio |
| Network Controller | Realtek RTL8111H |
| Network Interfaces | Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| Interfaces | 1 x HDMI ¦ 1 x DVI-D ¦ 1 x VGA ¦ 3 x USB 3.1 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x USB-C Gen1 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 4 x USB 3.1 Gen 1 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x parallel - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Hardware Features | MSI Audio Boost, Debug LED, Turbo M.2, MSI Steel Armor, Intel Optane Memory Ready, MSI Core Boost |
| Included Accessories | I/O back plate |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & Utilities, MSI X-BOOST |
| Width | 24.4 cm |
| Depth | 24.4 cm |
Features - MSI - 7C39-001R
More Details
Product Code
03:125011
EAN Code
4719072655297
Manufacturer
MSI
