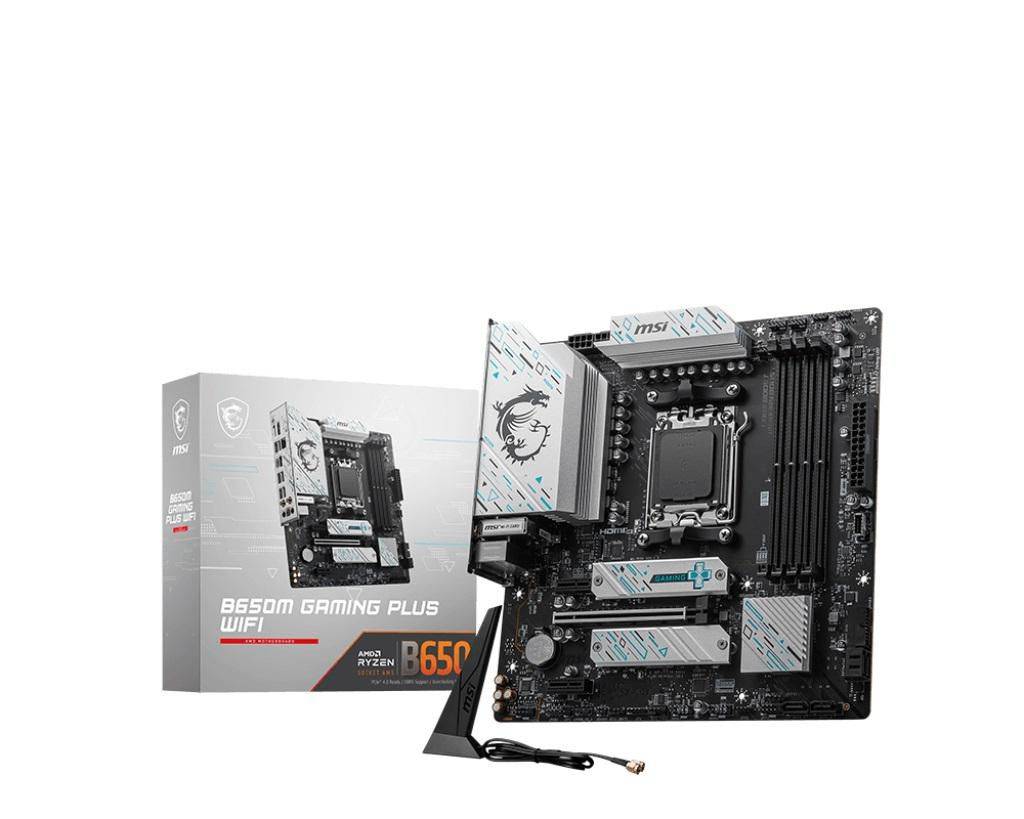

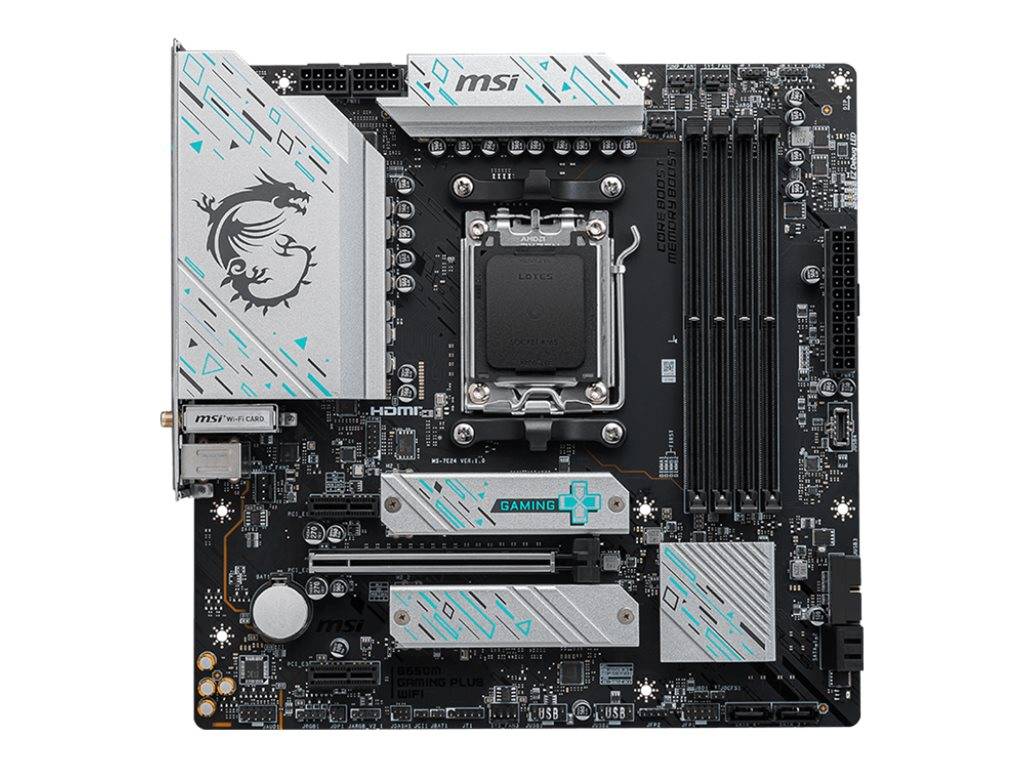

MSI B650M GAMING PLUS WIFI / Motherboard / micro ATX / Socket AM5 / AMD B650 Chipset / USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2 / 2.5 Gigabit LAN, Bluetooth, Wi-Fi / onboard graphics (CPU required) / HD Audio (8-channel) | 7E24-001R
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD B650 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000/8000 Series) |
| Supported RAM | Supported RAM |
| Max Size | 192 GB |
| Technology | DDR5 |
| Bus Clock | 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, AMD EXPO technology |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Realtek RTL8125BG |
| Network Interfaces | 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe x16 ¦ 2 x PCIe x1 ¦ 2 x M.2 socket (2260/2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 |
| Interfaces | 1 x HDMI ¦ 1 x DisplayPort ¦ 3 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen 2 ¦ 4 x USB 3.2 Gen 1 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 2 x aerial |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2 - header ¦ 1 x audio - header ¦ 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features | Features |
| BIOS Features | M-Flash, MSI ClickBIOS 5 |
| Hardware Features | ASUS Stainless Steel Back I/O, overcurrent protection, 6 Layer PCB, MSI Steel Armor, 10 Phase Power Design, 2oz Copper PCB, M.2 Shield FROZR, MSI Core Boost, Solid Pin Power Connectors, Extended Heatsink Design, DIY Friendly Design, 10+2+1 Phase Power Design, MSI Memory Boost, Frozr AI Cooling |
| Miscellaneous | Miscellaneous |
| Included Accessories | Wi-Fi aerial, 2 x EZ M.2 clips |
| Cables Included | 1 x Serial ATA cable |
| Software Included | MSI CPU-Z, MSI Center, Norton 360 |
| Width | 24.384 cm |
| Depth | 24.384 cm |
Features - MSI - 7E24-001R
More Details
Product Code
04:464057
EAN Code
4711377180955
Manufacturer
MSI
