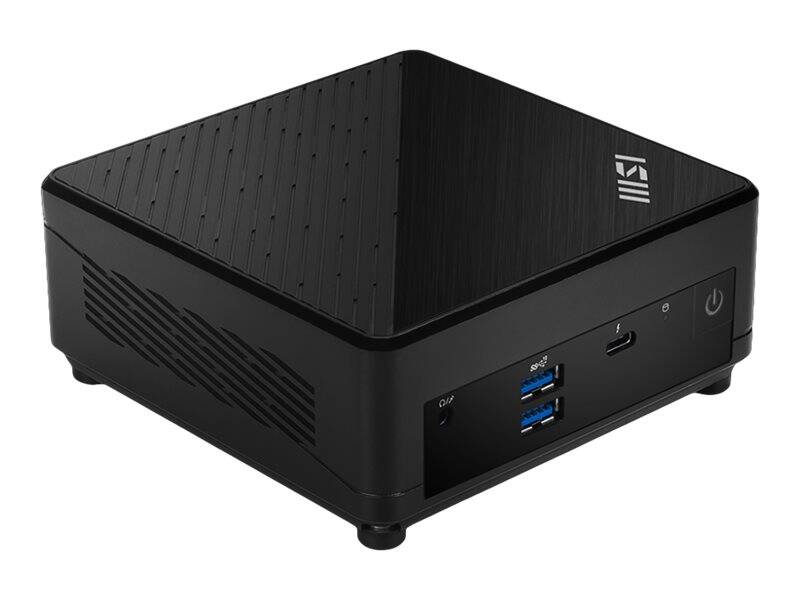

MSI Cubi 5 12M 020BDE - Barebone - mini PC - 1 x Core i7 1255U / 1.7 GHz - RAM 0 GB - Intel Iris Xe Graphics - GigE, 2.5 GigE, 802.11ax (Wi-Fi 6E), Bluetooth 5.3 - WLAN: 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3 - black | 936-B0A811-020
Product Features
- Small but powerful
Bring it home when you need without any inconvenience that it can be your mini-PC and your portable storage device. - Great watching experience
Cubi 5 allows you to enjoy great experience of watching movie with your family or attending online conference call while working from home or learning professional tasks at home. - Bolt to the next power
Thunderbolt 4 brings Thunderbolt to USB-C at speeds up to 40 Gbps, creating one compact port that does it all - delivering the fastest, most versatile connection to any dock, display, or data device and NAS. - See more, do more
With HDMI, DP, and Thunderbolt 4, Cubi 5 allows you to extend to three monitors to preview your E-commerce content and data at home or in the office, enhancing your efficiency. - Fast, secure and wireless backup
Fast, secure, and wireless backup and download between your PC and mobile devices. Transfer files, photos, videos, and more between your PC, Android, and iOS device faster and easier than a cabled connection. You can make these files accessible to your family or team members, or you can also make files as private as you want. The decision is in your hands. - Stable and powerful
Equips a powerful processor, delivering computing capability and keeping you in the flow, wherever you go. Also, enjoy more detailed, immersive viewing experience with excellent graphics. - Wi-Fi 6E technology
Wi-Fi 6E puts more emphasis on transmission security and improves the signal between the interference problem can also be connected to more devices at the same time, thereby meeting the trend of higher and higher data transmission bandwidth requirements with speed up to 2.4 Gbps. - FW TPM support
FW TPM (Trusted Platform Module) technology is designed to provide hardware-based, security-related functions. You can store your sensitive data and passwords by encryption keys for advanced security. - Various I/O ports
With a complete array of I/O ports, it can connect all devices you need and connect many devices at the same time so you can multi-task with those devises to make you work more efficiently and of course you won't need an adaptor or a dock.
Special Fetures
- Support three displays that allow you to see more and do more
- Thunderbolt 4 delivers the fastest, most versatile connection to any dock, display, or data device and NAS
- Dual LAN - back up your file/secure data and prevent the hacker (with MSI exclusive BIOS)
- Get all the performance benefits from USB 3.2 Gen 2 and enjoy great data transmission experience
- Experience lower latency with Wi-Fi 6E technology
- FW TPM design secures your confidential data with encryption keys
Product Specification
Type | PC barebone |
Product Form Factor | Mini PC |
Built-in Devices | Air cooling solution |
Embedded Security | Firmware Trusted Platform Module (TPM) Security Chip |
Colour | Black |
Processor / Chipset | |
CPU | Intel Core i7 (12th Gen) 1255U |
Clock Speed | 1.7 GHz (P-core) / 1.2 GHz (E-core) |
Max Turbo Speed | 4.7 GHz (P-core) / 3.5 GHz (E-core) |
Number of Cores | 10-core |
CPU Qty | 1 |
Max CPU Qty | 1 |
Processor Main Features | Intel Smart Cache |
Cache Memory | |
Installed Size | 12 MB |
Cache Per Processor | 12 MB |
RAM | |
Installed Size | 0 GB / 64 GB (max) |
Technology | DDR4 SDRAM |
Form Factor | SO-DIMM 260-pin |
Slots | 2 (Total) / 2 (empty) |
Hard Drive | |
Type | No HDD |
Storage Controller | |
Type | 1 x SATA |
Optical Storage | |
Type | No optical drive |
Monitor | |
Monitor Type | None. |
Graphics Controller | |
Graphics Processor | Intel Iris Xe Graphics |
Video Interfaces | HDMI, DisplayPort, USB-C |
Audio Output | |
Sound Output Mode | 2.1 channel surround |
Compliant Standards | High Definition Audio |
Networking | |
Ethernet Ports | 2.5 Gigabit Ethernet |
Ethernet Controller | Realtek RTL8125BG-CG, RTL8111H |
Wireless LAN Supported | Yes |
Wireless NIC | Intel Wi-Fi 6E AX 211 |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 |
Expansion / Connectivity | |
Bays | 1 (total) / 1 (free) x internal 2.5" |
Slots | 1 (total) / 1 (free) x M.2 Card |
Interfaces | 1 x headphones/microphone (1 in front) ¦ 1 x Thunderbolt 4 (1 front) ¦ 1 x HDMI output (1 rear) ¦ 1 x DisplayPort (1 rear) ¦ 4 x USB 3.2 Gen 2 (2 front, 2 rear) ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x LAN (2.5Gigabit Ethernet) |
Miscellaneous | |
Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
Security Slot Type | Kensington security slot |
VESA Mounting Interface | 100 x 100 mm |
Compliant Standards | FCC Class B certified, UL, VCCI, C-Tick, BSMI, cUL, CB, RCM |
Power | |
Device Type | Power adapter |
Power Provided | 65 Watt |
Operating System / Software | |
OS Provided | No operating system |
Software | MSI Center |
Manufacturer Warranty | |
Service & Support | Limited warranty - 2 years |
Dimensions & Weight | |
Width | 12.4 cm |
Depth | 12.4 cm |
Height | 5.37 cm |
Weight | 590 g |
Dimensions & Weight (Shipping) | |
Shipping Width | 22.1 cm |
Shipping Depth | 50.6 cm |
Shipping Height | 46.9 cm |
Shipping Weight | 1.33 kg |
Features - MSI - 936-B0A811-020
- Intel Core i7
