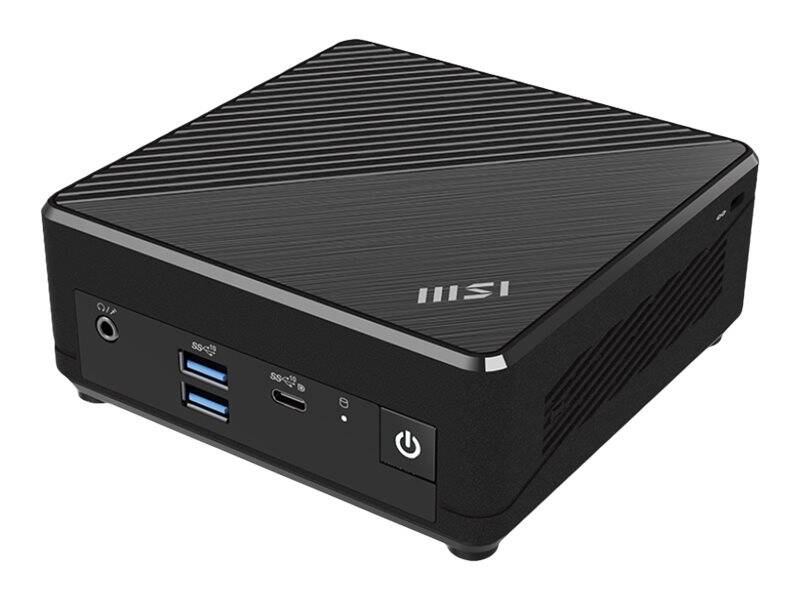

MSI Cubi N ADL 007DE - Mini PC - N-series N100 / 800 MHz - RAM 4 GB - SSD 128 GB - UHD Graphics - Gigabit Ethernet WLAN: - 802.11a/b/g/n/ac, Bluetooth 5.0 - Win 11 Pro - black | 00B0A911-007
Product Features
- Compact and efficient design
The MSI Cubi N ADL's small form factor and mini PC design make it an ideal choice for spaces where room is at a premium, without compromising on performance. Its built-in air cooling solution ensures that the system remains cool, even under heavy use, maintaining optimal efficiency. - Seamless connectivity
Equipped with a variety of interface options including DisplayPort/USB-C 3.2 Gen 2, USB 3.2 Gen 2, and HDMI, the MSI Cubi N ADL offers versatile connectivity solutions. Whether it's connecting to the displays or peripherals, this desktop has you covered. - Robust wireless capabilities
With support for Bluetooth 5.0 and 802.11a/b/g/n/ac wireless protocols, the MSI Cubi N ADL ensures you can connect to the Internet and your Bluetooth devices seamlessly. This feature is perfect for a clutter-free workspace, eliminating the need for excessive cables. - Enhanced security
The inclusion of a Discrete Trusted Platform Module (TPM 2.0) security chip in the MSI Cubi N ADL provides an added layer of security, safeguarding your data from potential threats and making it an excellent choice for sensitive environments.
Special Fetures
- Small form factor and mini PC design for space-saving
- Built-in air cooling solution for optimal performance
- Multiple interface options including DisplayPort/USB-C 3.2 Gen 2 and HDMI
- Supports Bluetooth 5.0 and 802.11a/b/g/n/ac for wireless connectivity
- Discrete Trusted Platform Module (TPM 2.0) security chip for enhanced data protection
Product Specification
Type | Personal computer |
Product Form Factor | Mini PC |
Built-in Devices | Air cooling solution |
Embedded Security | Discrete Trusted Platform Module (TPM 2.0) Security Chip |
Colour | Black |
Processor / Chipset | |
CPU | Intel N-series N100 |
Clock Speed | 800 MHz |
Max Turbo Speed | 3.4 GHz |
Number of Cores | Quad-Core |
CPU Qty | 1 |
Max CPU Qty | 1 |
Cache Memory | |
Installed Size | 6 MB |
Cache Per Processor | 6 MB |
RAM | |
Installed Size | 4 GB / 16 GB (max) |
Technology | DDR4 SDRAM |
Effective Memory Speed | 3200 MHz |
Rated Memory Speed | 3200 MHz |
Form Factor | SO-DIMM 260-pin |
Slots | 1 (Total) / 0 (empty) |
Configuration Features | 1 x 4 GB |
Hard Drive | |
Type | SSD - M.2 2280 |
Capacity | 1 x 128 GB |
Interface Type | PCI Express 3.0 x4 |
Storage Controller | |
Type | 1 x SATA |
Optical Storage | |
Type | No optical drive |
Monitor | |
Monitor Type | None. |
Graphics Controller | |
Graphics Processor | Intel UHD Graphics |
Audio Output | |
Sound Output Mode | 2.1 channel surround |
Networking | |
Ethernet Ports | 2 x Gigabit Ethernet |
Ethernet Controller | Realtek RTL8111H |
Wireless LAN Supported | Yes |
Wireless NIC | Intel Wireless-AC 9462 |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
Expansion / Connectivity | |
Bays | 1 (total) / 1 (free) x internal 2.5" |
Slots | 1 (total) / 1 (free) x M.2 Card (for SSD) |
Interfaces | 1 x DisplayPort/USB-C 3.2 Gen 2 (1 front) ¦ 1 x headphones/microphone (1 in front) ¦ 2 x USB 3.2 Gen 2 (2 front) ¦ 2 x USB 2.0 (2 rear) ¦ 1 x DisplayPort 1.4a (1 rear) ¦ 1 x HDMI (1 rear) ¦ 2 x LAN (Gigabit Ethernet) - RJ-45 (2 rear) |
Miscellaneous | |
VESA Mounting Interface | 100 x 100 mm |
Compliant Standards | VCCI, C-Tick, BSMI, CB, FCC, RCM |
Power | |
Device Type | Power adapter |
Voltage Required | AC 100-240 V (50/60 Hz) |
Power Provided | 65 Watt |
Operating System / Software | |
OS Provided | Windows 11 Pro |
Manufacturer Warranty | |
Service & Support | Limited warranty - 2 years |
Dimensions & Weight | |
Width | 12.4 cm |
Depth | 12.4 cm |
Height | 5.37 cm |
Weight | 540 g |
Dimensions & Weight (Shipping) | |
Shipping Width | 22.1 cm |
Shipping Depth | 50.6 cm |
Shipping Height | 46.9 cm |
Shipping Weight | 1.39 kg |
Environmental Parameters | |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 35 °C |
Humidity Range Operating | 0 - 85% |
