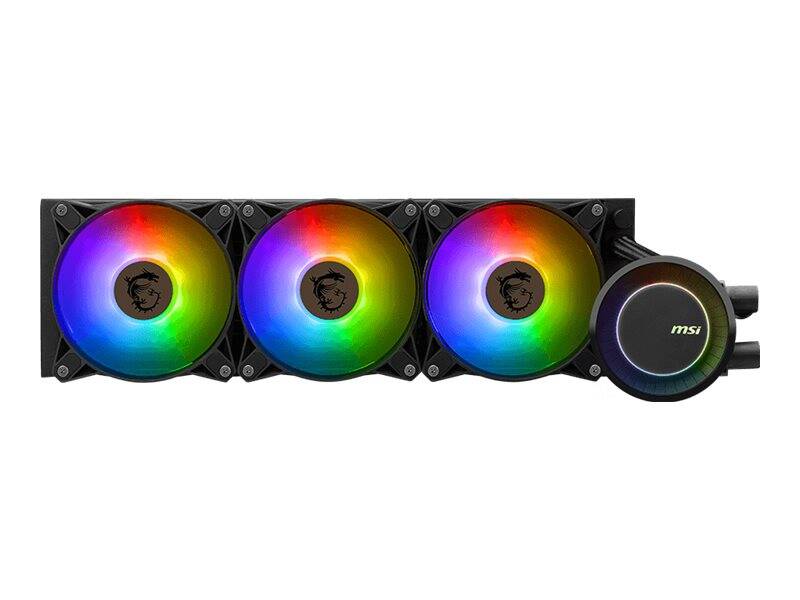

MSI MAG CORELIQUID E360 - Processor liquid cooling system - Radiator Size: 360 mm - (for: LGA1156, LGA1155, LGA1150, LGA1151, AM4, TR4, sTRX4, LGA1200, LGA1700, AM5) - copper base - 120 mm | 306-7ZW6E17-C24
Product Features
- Rotatable blockhead
Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright. - Achieve full CPU coverage
By enlarging the contact area between the coolant and the copper base of the water block, the MAG CORELIQUID E series maximizes heat dissipation from the CPU. The enhanced density of the micro-channel design improves the efficiency of the water-cooling system by enlarging the contact surface area. - Pump cooling design
Ensures that the cooled water temperature can be delivered to the desired location of the heat source, effectively reducing the temperature of the heat source. - Pump motor resonance elimination
A durable three-phase motor at the core of the pump generates minimal vibrations for long-lasting operation. - High thermal dissipation
The radiator has a 12-pathway designed to help rapidly dissipate heat. - Evaporation-proof tubing
The multi-layer structure effectively prevents the liquid from evaporating, while the reinforced mesh plastic tube enhances the durability of the exterior mesh. - Fan construction
The fan's FDB bearing helps reduce noise level while minimizing vibrations. The fan blades are constructed of low impurity acrylic for better ARGB lighting presentation. - Glow your PC
Splash on some color and vibrant RGB lighting effects using MSI Mystic Light with 16.8 million colors and fancy LED effects.
Special Fetures
- The enlarged copper base surface area helps achieve ultimate heat exchange
- Maximize micro-channels to dissipate heat efficiently
- Rotatable water block cap for 270 degrees
- Enhanced fan performance to dissipate heat quickly
- Pump is separating the rooms of cool water and hot water to avoid mixing water temperatures and effectively reduce the heat source
- Durable three-phase motor of the pump generates minimal vibrations for long-lasting operation
- Split pathway through the radiator rapidly dissipates heat
Product Specification
Product Type | Processor liquid cooling system |
Product Material | Black rubber |
Package Content | Thermal paste, 4-pin plug to 4-pin Molex adapter, Low-Noise Cable (LNC), 1-to-3 PWM cable |
Heatsink & Fan | |
Compatible With | LGA1156 Socket, LGA1155 Socket, LGA1150 Socket, LGA1151 Socket, Socket AM4, Socket TR4, Socket sTRX4, LGA1200 Socket, LGA1700 Socket, Socket AM5 |
Heatsink Material | Copper base |
Radiator Material | Aluminium |
Radiator Dimensions | 394 mm x 119.2 mm x 27 mm |
Fans Qty | 3 |
Fan Diameter | 120 mm |
Fan Height | 25 mm |
Fan Bearing | Fluid dynamic bearing |
Air Flow | 25.5-75.04 cfm |
Noise Level | 20 dBA |
Power Connector | 4-pin PWM |
Rated Current | 0.25 - 0.4 A |
Power Consumption | 3 - 4.8 W |
Cable Length | 55 cm |
Features | PWM control, ARGB fans, rotatable block housing |
Miscellaneous | |
Mounting Kit | Included |
MTBF | 200,000 hour(s) |
