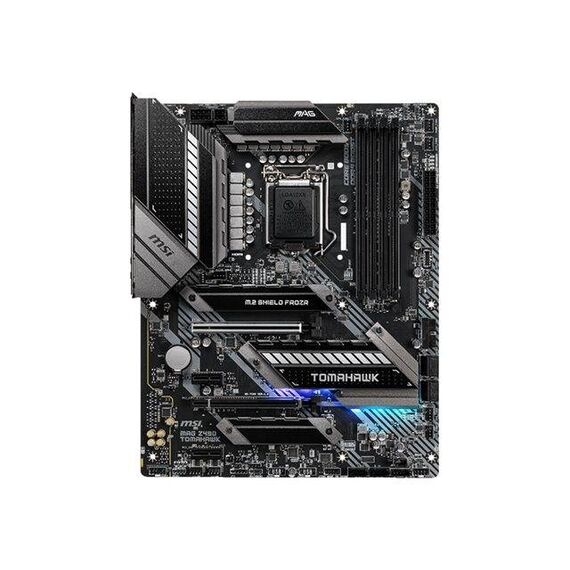

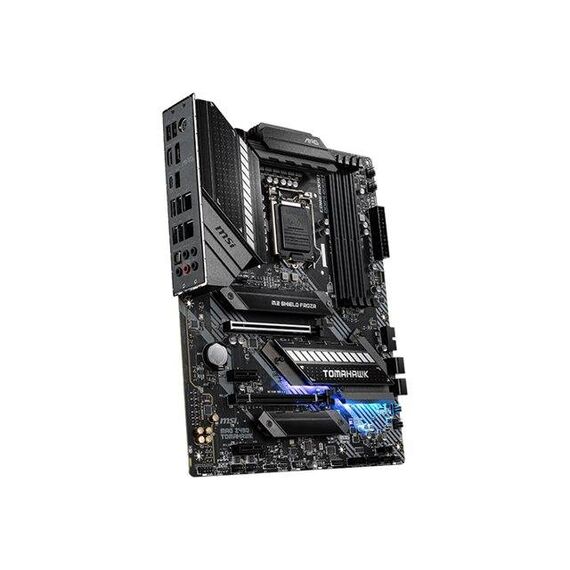

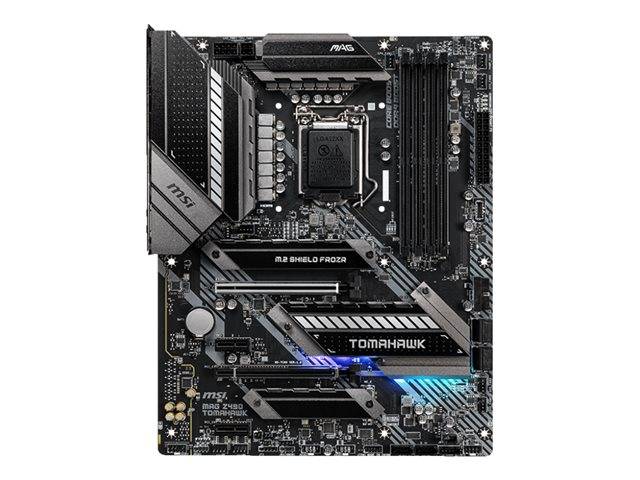

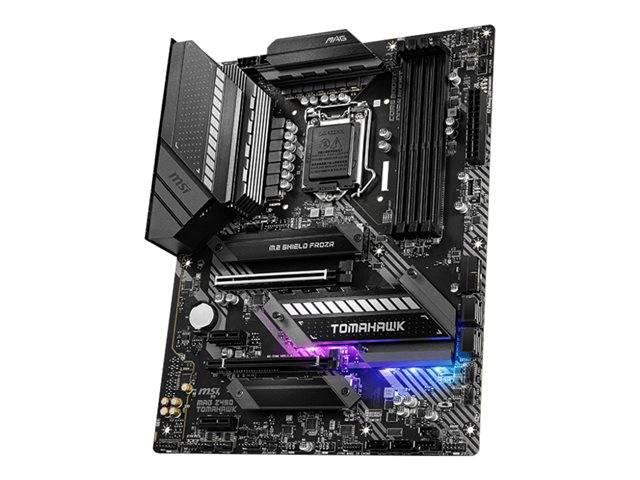

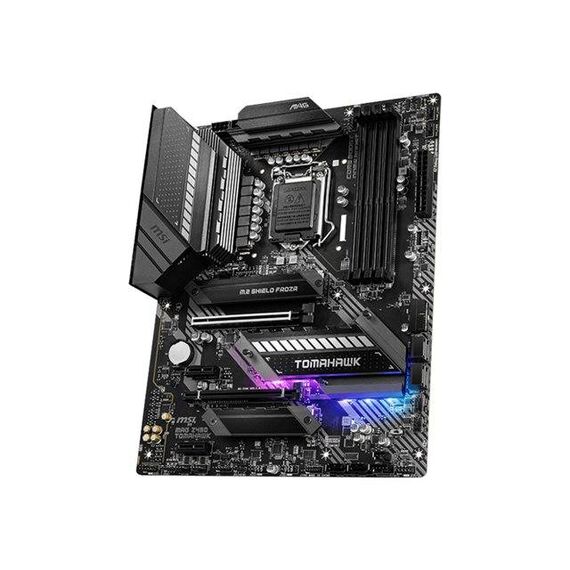

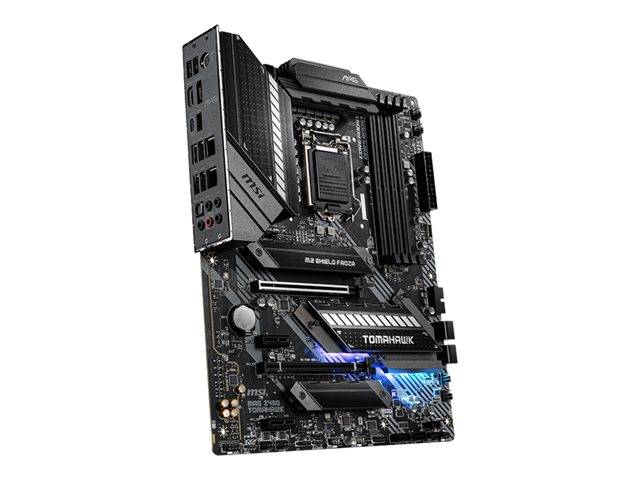

MSI MAG Z490 TOMAHAWK / Motherboard / ATX / LGA1200 Socket / Z490 / USB-C Gen1, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2 / Gigabit LAN, 2.5 Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 7C80-004R
MSI MAG Z490 TOMAHAWK / Motherboard / ATX / LGA1200 Socket / Z490 / USB-C Gen1, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2 / Gigabit LAN, 2.5 Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 7C80-004R
Description
The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing a great user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.
MSI MAG Z490 TOMAHAWK / Motherboard | 7C80-004R
Special Features
- Premium hardware design
- Thermal solution for better performance
- Advanced features
- Extreme stability
- Superior connectivity
Product features
- Premium hardware design
With years of experience, MSI is no stranger to building high-performance motherboards. MSI R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high-quality components, and developed products for reliability even under extreme conditions. - Thermal solution for better performance
Thermal design is important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures powerful CPUs run in full speed. - Advanced features
High-performance MSI motherboards are loaded with advanced features and modern technology to overwhelm any challenge at hand no matter whether you're a gamer, prosumer, or PC enthusiast. - Extreme stability
MSI conducts thorough memory testing with popular memory brands under extreme conditions to ensure your system runs stable no matter what. - Superior connectivity
MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one.
Product Specification
Product Type | Motherboard - ATX |
Chipset Type | Intel Z490 |
Processor Socket | LGA1200 Socket |
Max Processors Qty | 1 |
Compatible Processors | Celeron, Core i5, Core i3, Core i7, Core i9, Pentium Gold (supports 10th Generation Intel Core / Pentium Gold / Celeron) |
Max Size | 128 GB |
Technology | DDR4 |
Bus Clock | 2133 MHz, 2666 MHz, 2933 MHz, 4000 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4800 MHz (O.C.) |
Supported RAM Integrity Check | Non-ECC |
Registered or Buffered | Unbuffered |
Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
Type | HD Audio (8-channel) |
Audio Codec | Realtek ALC1200-VD1 |
Compliant Standards | High Definition Audio |
Network Controller | Intel I219V / Realtek RTL8125B-CG |
Network Interfaces | Gigabit Ethernet, 2.5 Gigabit Ethernet |
Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 3.0 x1 ¦ 1 x PCIe 3.0 x16 (x4 mode) |
Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 |

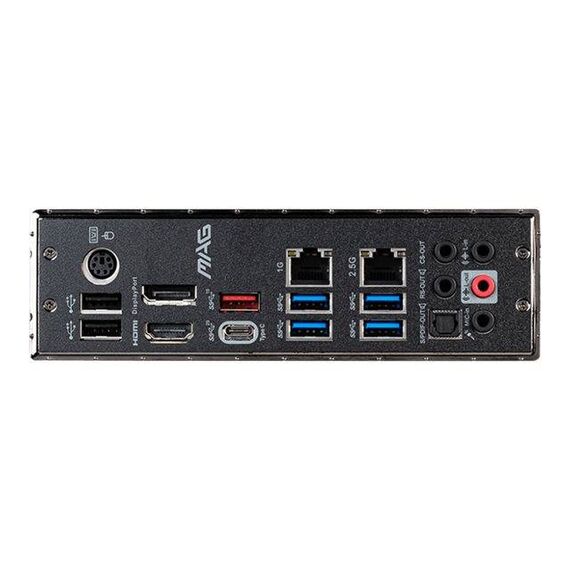

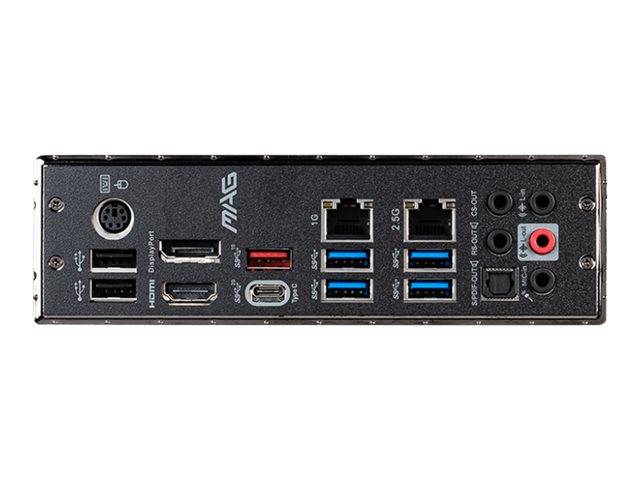

Interfaces | 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x DisplayPort ¦ 1 x USB-C Gen2x2 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x TOSLINK ¦ 1 x USB 3.2 Gen 2 |
Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen 1 ¦ 1 x audio - header ¦ 1 x serial - header |
Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
BIOS Features | MSI ClickBIOS 5 |
Hardware Features | AMD CrossFireX technology support, MSI Audio Boost, 6 Layer PCB, Turbo M.2, MSI Mystic Light, MSI Steel Armor, Double ESD Protection, Intel Optane Memory Ready, M.2 Shield FROZR, 12+1+1 Phase Power Design, pre-mounted I/O shield, MSI Core Boost, MSI PCIe Steel Slot, Extended Heatsink Design |
Included Accessories | Case badge |
Cables Included | 2 x Serial ATA cable |
Software Included | Drivers & Utilities |
Width | 30.5 cm |
Depth | 24.4 cm |
Service & Support | Limited warranty - 3 years |
