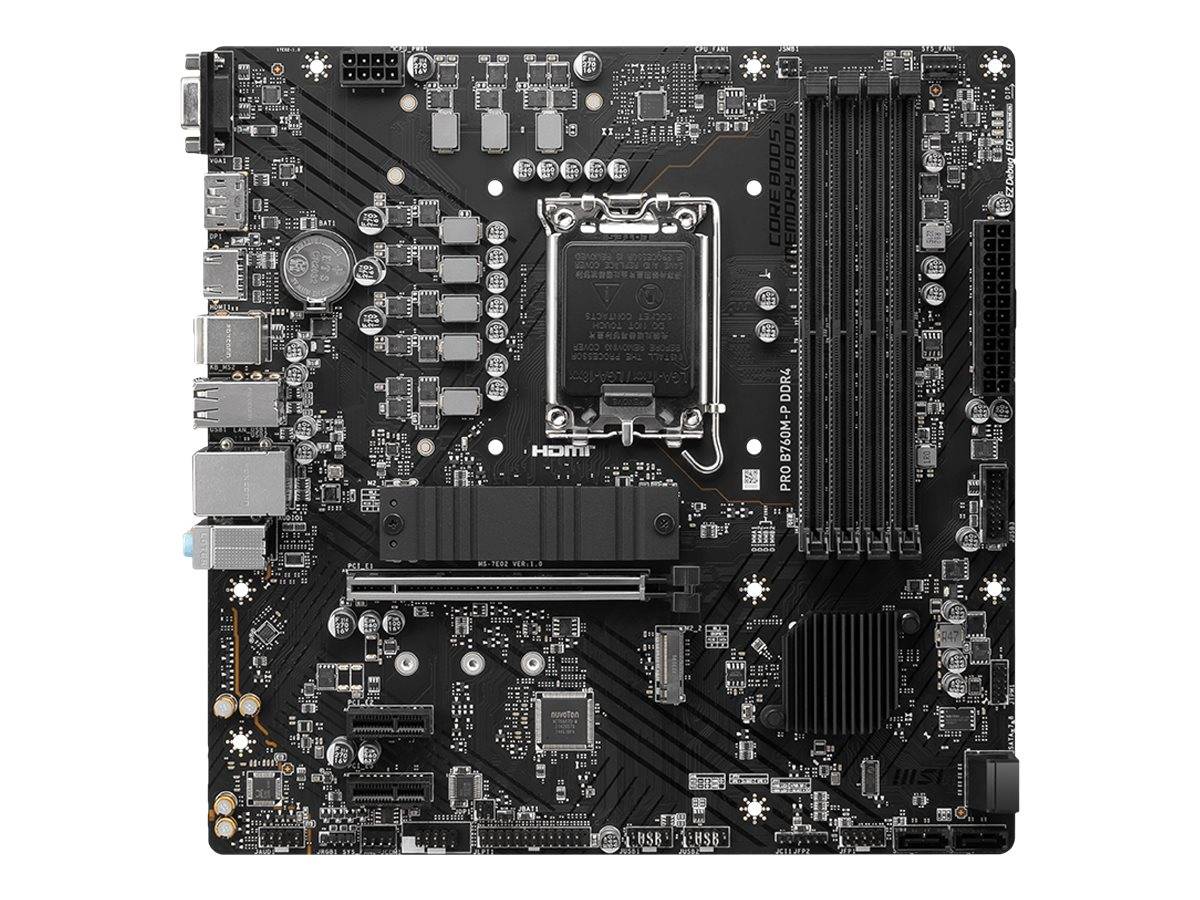

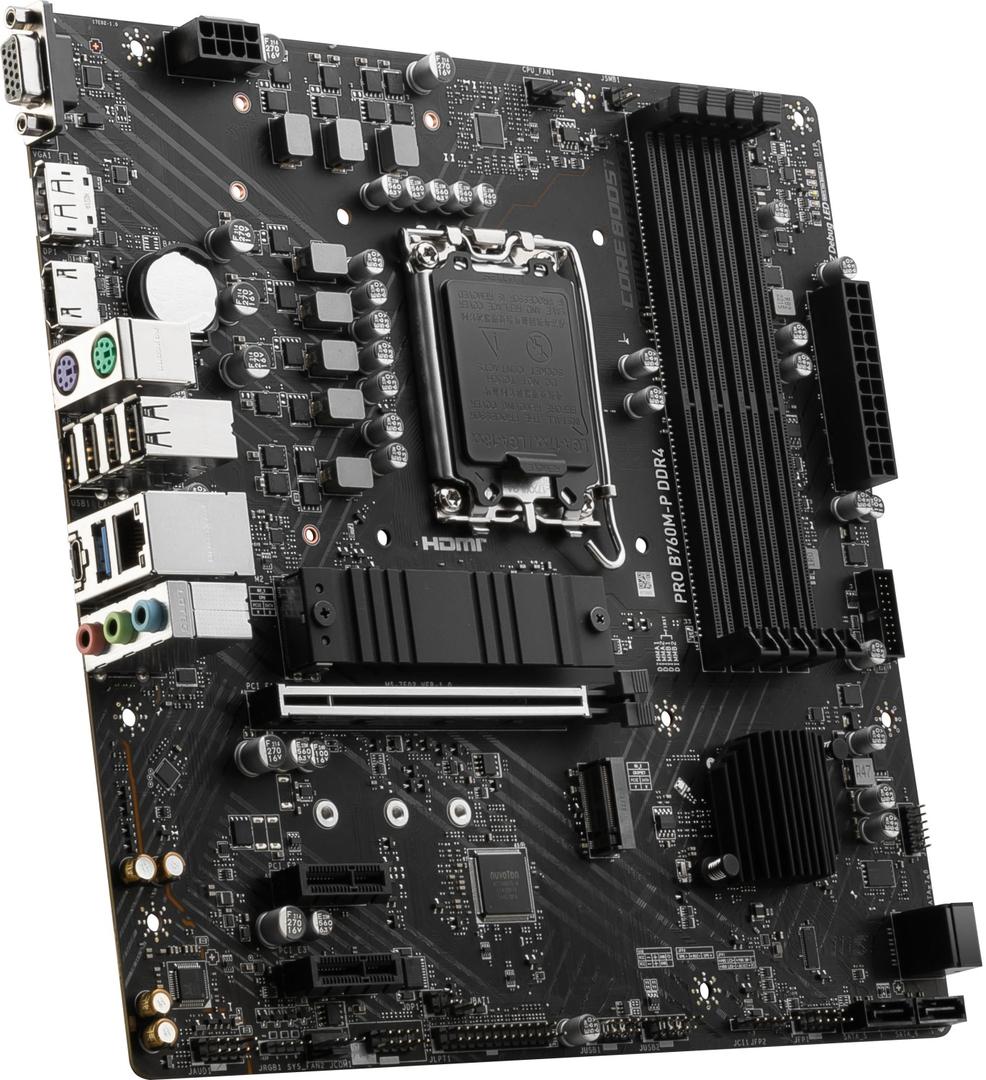

MSI PRO B760M-P DDR4 / Motherboard / micro ATX / LGA1700 Socket / B760 Chipset / USB 3.2 Gen 1, USB-C 3.2 Gen2 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 7E02-001R
Please sign in so that we can notify you about a reply
Product Features
- Core Boost
Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking. - Fast and future-ready storage
MSI PRO series motherboards support all the storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies. - DDR4 memory solution
With MSI Memory Boost technology and premium layout design, MSI PRO Series motherboards are ready to deliver the world-class memory performance.
Special Features
- Core Boost - with premium layout and digital power design to support more cores and provide better performance
- Memory Boost - advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning fast experience - PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- Audio Boost - reward your ears with studio grade sound quality for the most immersive gaming experience
- Steel armor - protecting VGA cards against bending and EMI for better performance, stability and strength
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel B760 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Realtek RTL8111H |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 4.0 x1 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 |

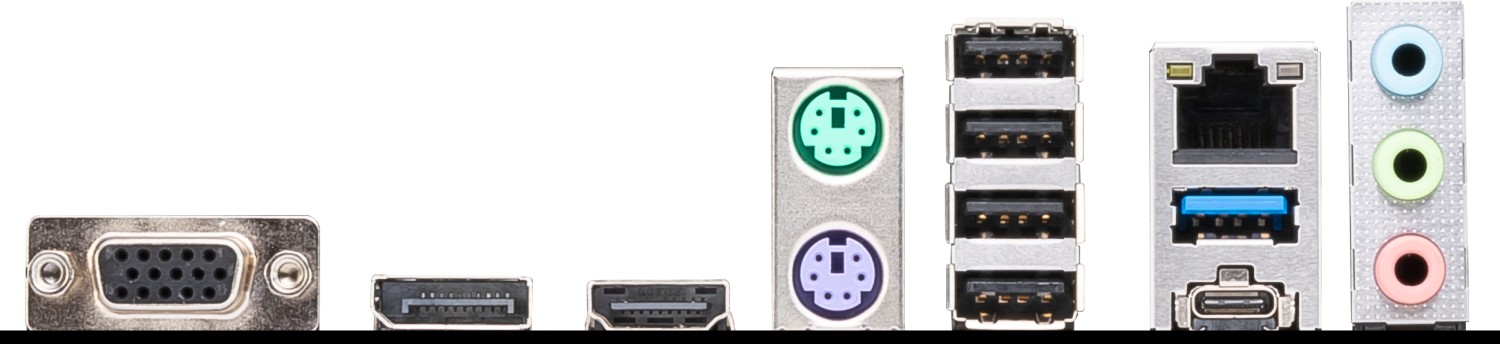

| Interfaces | 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x VGA ¦ 4 x USB 2.0 ¦ 1 x USB 3.2 Gen 1 ¦ 1 x USB-C 3.2 Gen 2 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Features | M-Flash, MSI ClickBIOS 5 |
| Hardware Features | MSI Audio Boost, Debug LED, MSI Steel Armor, M.2 Shield FROZR, MSI Core Boost, MSI Memory Boost |
| Miscellaneous | Miscellaneous |
| Included Accessories | IO shield, 2 x M.2 screw / standoff sets |
| Cables Included | 1 x Serial ATA cable |
| Software Included | AIDA64 Extreme (60 days trial), MSI Center |
| Compliant Standards | WEEE, FCC Part 15 Class B, DisplayPort 1.4 |
| Width | 24.384 cm |
| Depth | 24.384 cm |
Features - MSI - 7E02-001R
CPU Socket
- Socket 1700
More Details
Product Code
03:203306
EAN Code
4711377030991
