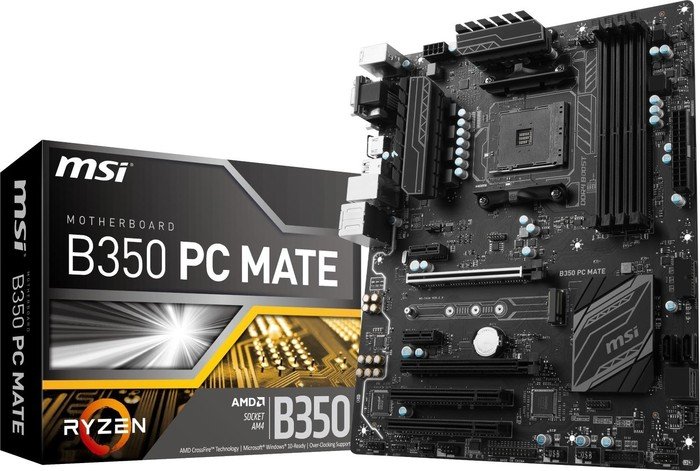

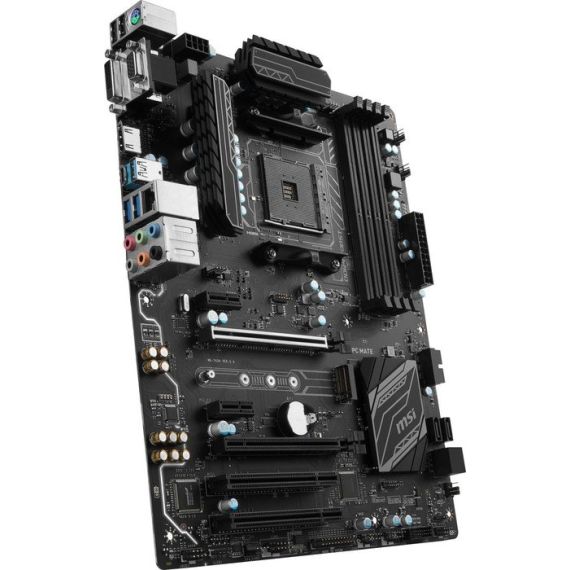

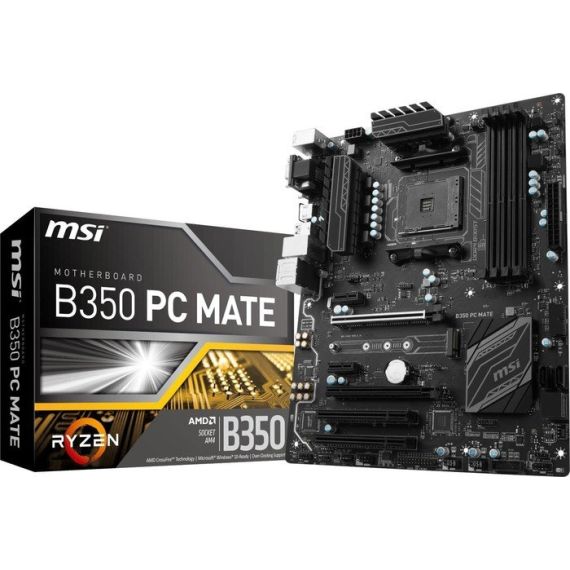

MSI B350 PC MATE / Motherboard / ATX / Socket AM4 / AMD B350 FCH / USB 3.1 Gen1, USB-C Gen1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 7A36-003R
MSI B350 PC MATE / Motherboard / ATX / Socket AM4 / AMD B350 FCH / USB 3.1 Gen1, USB-C Gen1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 7A36-003R
Description Combining quality you can rely on with top performance and clever business solutions are key aspects of the MSI motherboards. Engineered to gratify even the demanding professional, these motherboards will fit in any PC. Making your life easier and supporting your business with super-stable, reliable and long-lasting top performance. Special Features
Product features
|
Product Specification
Product Type | Motherboard - ATX |
Chipset Type | AMD B350 FCH |
Processor Socket | Socket AM4 |
Max Processors Qty | 1 |
Compatible Processors | Athlon, A series, Ryzen (supports 7th Generation A-series / Athlon) |
Max Size | 64 GB |
Technology | DDR4 |
Bus Clock | 2400 MHz, 1866 MHz, 2133 MHz, 2933 MHz (O.C.), 2667 MHz (O.C.), 3200 MHz (O.C.) |
Features | Dual channel memory architecture |
Max Allocated RAM Size | 2048 MB |
Type | HD Audio (8-channel) |
Audio Codec | Realtek ALC892 |
Compliant Standards | High Definition Audio |
Network Controller | Realtek RTL8111H |
Network Interfaces | Gigabit Ethernet |
Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 (x16 mode (with AMD Ryzen CPU); x8 mode (with AMD 7th Generation A-series/Athlon CPU)) ¦ 2 x PCIe 2.0 x1 ¦ 1 x PCIe 2.0 x16 (x4 mode) ¦ 2 x PCI |
Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |

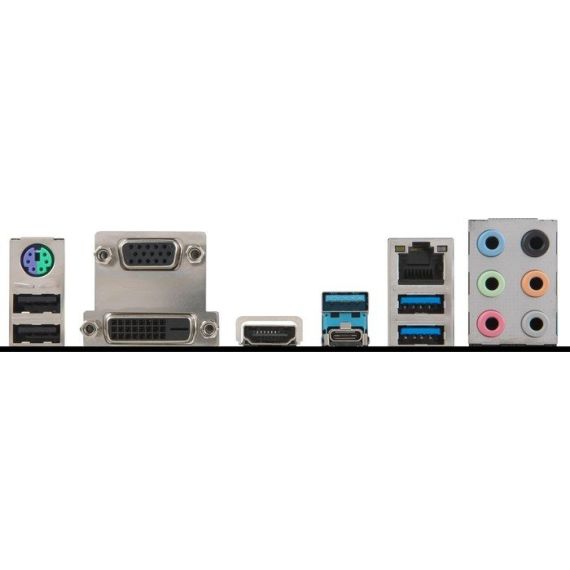

Interfaces | 1 x LAN (Gigabit Ethernet) ¦ 1 x USB-C Gen1 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x VGA ¦ 1 x DVI-D ¦ 1 x HDMI ¦ 3 x USB 3.1 Gen1 ¦ 2 x USB 2.0 ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out (side surround) - mini-jack |
Internal Interfaces | 4 x USB 2.0 - header ¦ 4 x USB 3.1 Gen1 - header ¦ 1 x serial - header ¦ 1 x parallel - header ¦ 1 x audio - header |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
BIOS Features | MSI ClickBIOS 5 |
Hardware Features | AMD CrossFireX technology support, MSI Military Class IV, MSI Audio Boost, MSI Guard-Pro, Debug LED, MSI Steel Armor, Double ESD Protection |
Software Included | MSI Command Center, RAMdisk, MSI Live Update 6, MSI M-Cloud, MSI X-BOOST |
Compliant Standards | WHQL |
Width | 30.4 cm |
Depth | 24.3 cm |
Service & Support | Limited warranty - 3 years |
