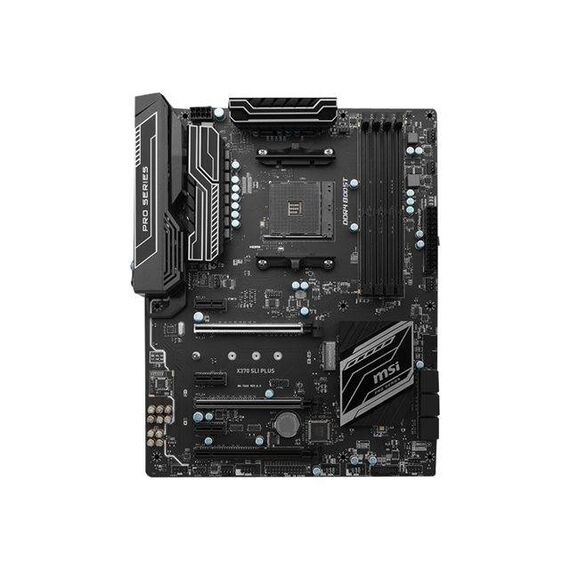

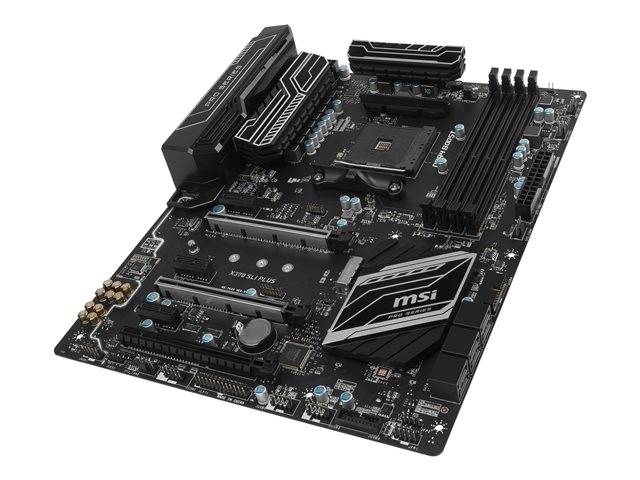

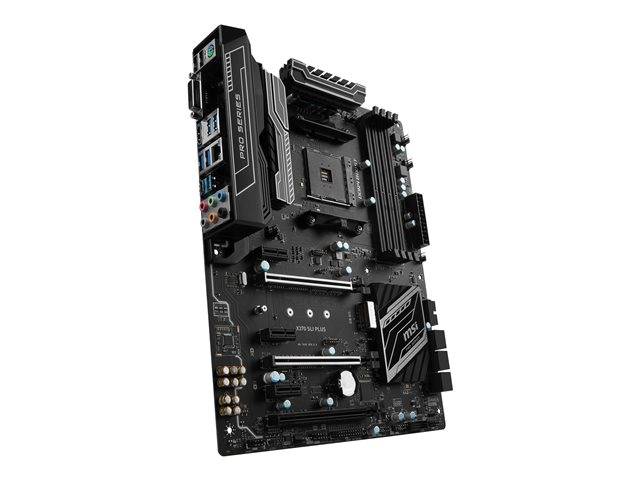

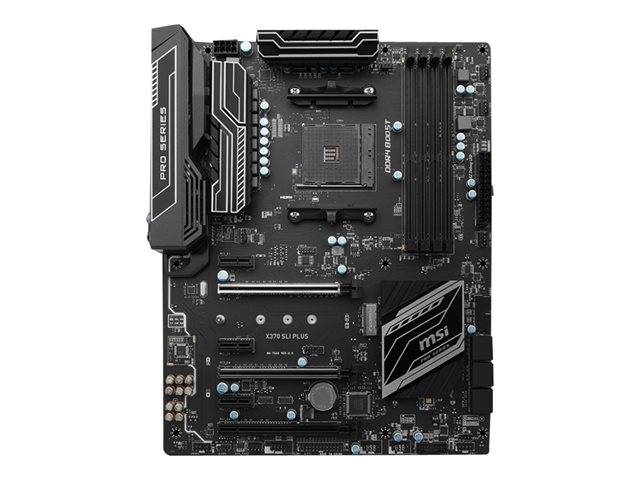

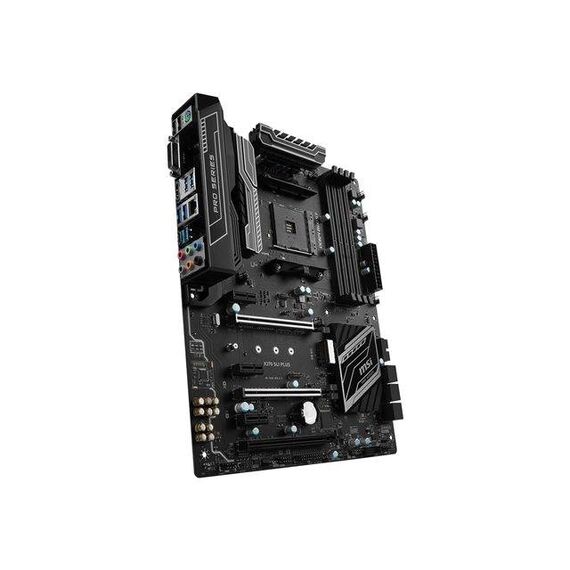

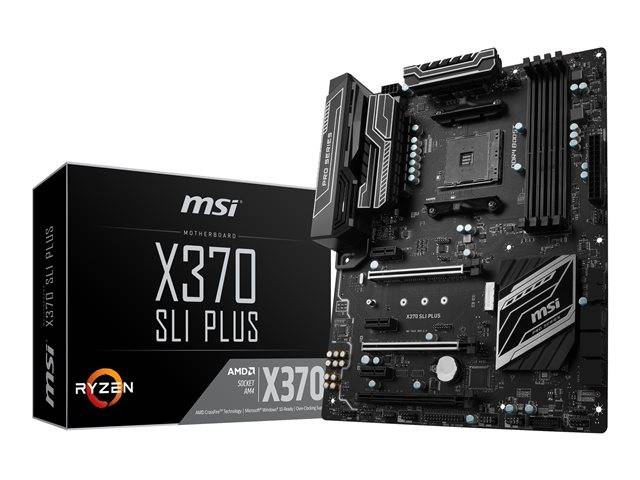

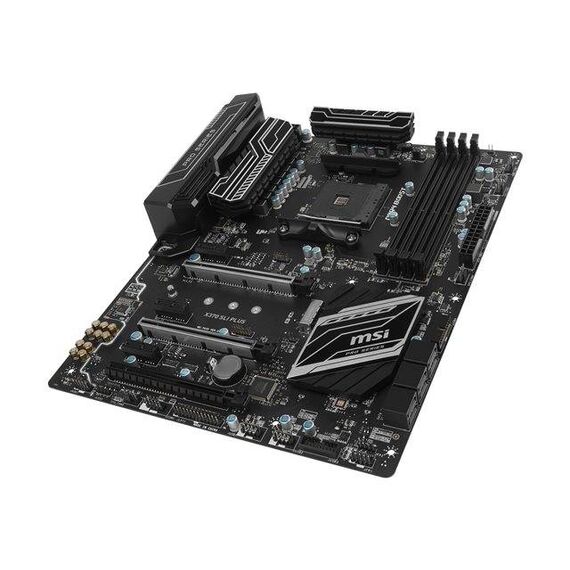

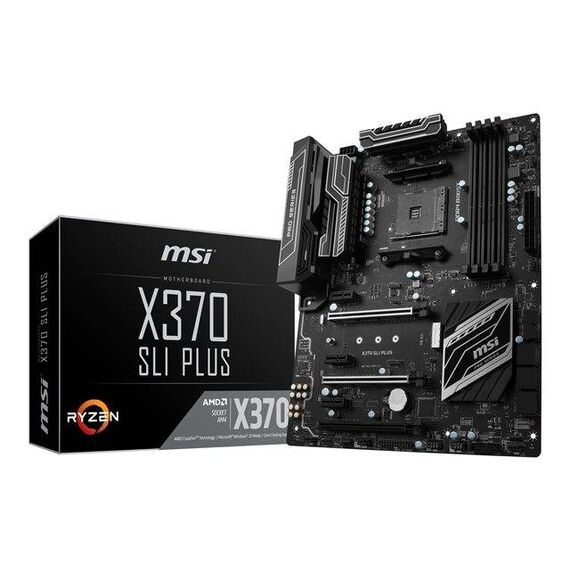

MSI X370 SLI PLUS / Motherboard / ATX / Socket AM4 / AMD X370 / USB 3.1 Gen1, USB-C Gen2, USB 3.1 Gen2 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 7A33-003R
MSI X370 SLI PLUS / Motherboard / ATX / Socket AM4 / AMD X370 / USB 3.1 Gen1, USB-C Gen2, USB 3.1 Gen2 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 7A33-003R
Description Combining quality you can rely on with top performance and clever business solutions are key aspects of the MSI motherboards. Engineered to gratify even the demanding professional, these motherboards will fit in any PC. Making your life easier and supporting your business with super-stable, reliable and long-lasting top performance. Special Features
Product features
|
Product Specification
Product Type | Motherboard - ATX |
Chipset Type | AMD X370 |
Processor Socket | Socket AM4 |
Max Processors Qty | 1 |
Compatible Processors | Athlon, A series, Ryzen (supports 7th Generation A-series / Athlon) |
Max Size | 64 GB |
Technology | DDR4 |
Bus Clock | 2400 MHz, 1866 MHz, 2133 MHz, 2933 MHz (O.C.), 2667 MHz (O.C.), 3200 MHz (O.C.) |
Registered or Buffered | Unbuffered |
Features | Dual channel memory architecture |
Max Allocated RAM Size | 2048 MB |
Type | HD Audio (8-channel) |
Audio Codec | Realtek ALC892 |
Compliant Standards | High Definition Audio |
Network Controller | Realtek RTL8111H |
Network Interfaces | Gigabit Ethernet |
Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 3.0 x16 (x16/x0, x8/x8 mode (with AMD Ryzen CPU); x8/x0 mode (with AMD 7th Generation A-series/Athlon CPU)) ¦ 3 x PCIe 2.0 x1 ¦ 1 x PCIe 2.0 x16 (x4 mode) |
Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |

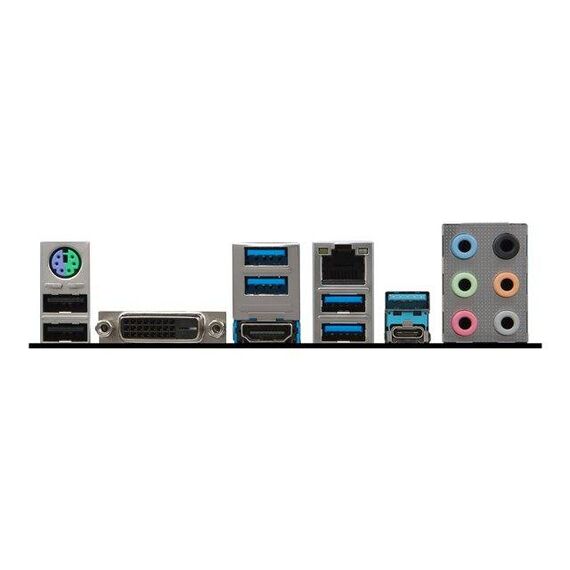

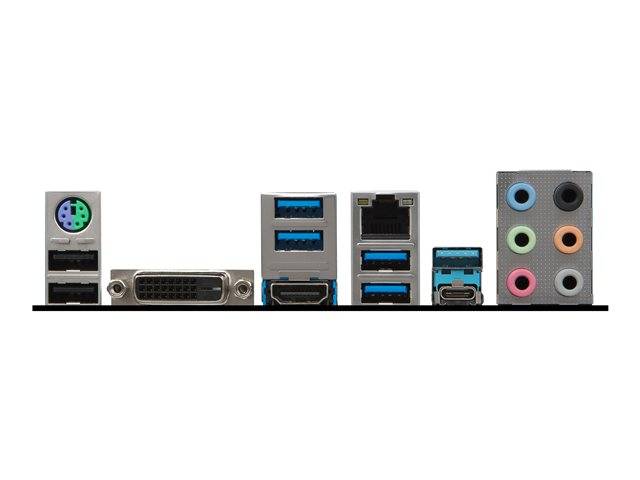

Interfaces | 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.1 Gen1 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (side surround) - mini-jack ¦ 1 x USB-C Gen2 ¦ 1 x USB 3.1 Gen2 ¦ 1 x HDMI ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 2 x USB 2.0 ¦ 1 x DVI-D |
Internal Interfaces | 4 x USB 2.0 - header ¦ 4 x USB 3.1 Gen1 - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x parallel - header |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
BIOS Features | MSI ClickBIOS 5 |
Hardware Features | NVIDIA 2-way SLI Technology Support, AMD CrossFireX technology support, AMD 3-way CrossFireX technology support, MSI Military Class IV, OC Genie 4, MSI Audio Boost, MSI Guard-Pro, Debug LED, MSI Mystic Light, MSI Steel Armor, LAN Protect, Double ESD Protection |
Software Included | MSI X-BOOST |
Compliant Standards | WHQL |
Width | 30.4 cm |
Depth | 24.3 cm |
Service & Support | Limited warranty - 3 years |
