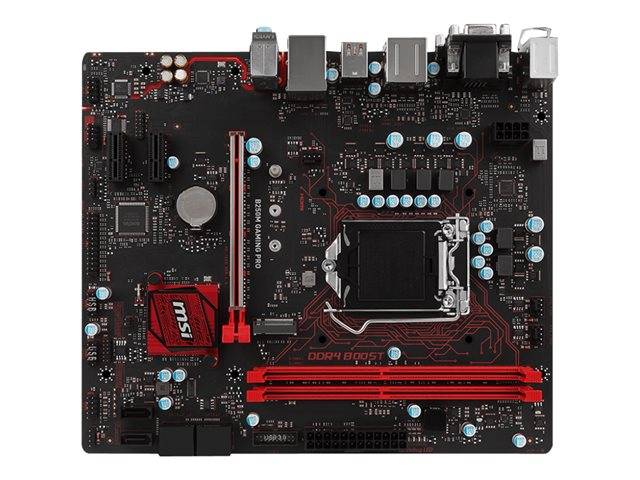

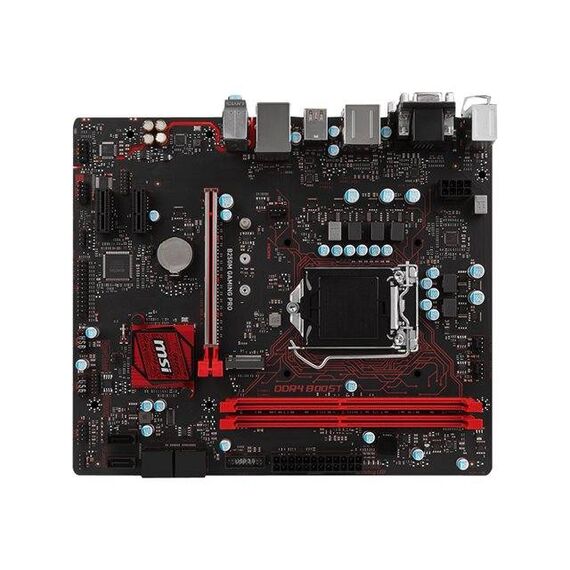

MSI B250M GAMING PRO / Motherboard / micro ATX / LGA1151 Socket / B250 / USB 3.1 Gen1, USB-C Gen1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 7A65-001R
MSI B250M GAMING PRO / Motherboard / micro ATX / LGA1151 Socket / B250 / USB 3.1 Gen1, USB-C Gen1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 7A65-001R
Description Customize and set up your own color scheme with RGB Mystic Light sync. Select any of the colors from the palette to match your system style. Bored of the same colors? Simply change the complete look of your system fast! Special Features
Product features
|
Product Specification
Product Type | Motherboard - micro ATX |
Chipset Type | Intel B250 Express |
Processor Socket | LGA1151 Socket |
Max Processors Qty | 1 |
Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 (supports 6th and 7th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron) |
Max Size | 32 GB |
Technology | DDR4 |
Bus Clock | 2400 MHz, 2133 MHz |
Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
Type | HD Audio (8-channel) |
Audio Codec | Realtek ALC887 |
Compliant Standards | High Definition Audio |
Network Controller | Intel I219V |
Network Interfaces | Gigabit Ethernet |
Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 3.0 x1 |
Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
Interfaces | 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 3 x USB 3.1 Gen1 ¦ 2 x USB 2.0 ¦ 1 x PS/2 keyboard ¦ 1 x DVI-D ¦ 1 x USB-C Gen1 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 mouse ¦ 1 x VGA |
Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.1 Gen1 - header ¦ 1 x serial - header ¦ 1 x parallel - header ¦ 1 x audio - header |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
BIOS Features | MSI ClickBIOS 5 |
Hardware Features | Intel Extreme Memory Profile (XMP) support, MSI Audio Boost, MSI Guard-Pro, Debug LED, MSI Mystic Light, MSI Steel Armor, MSI Military Class V, LAN Protect, Intel Optane Memory Ready |
Software Included | MSI Command Center, RAMdisk, MSI Live Update 6, MSI Gaming Hotkey, MSI Gaming LAN Manager, MSI CPU-Z, MSI X-BOOST |
Width | 24.3 cm |
Depth | 20.6 cm |
