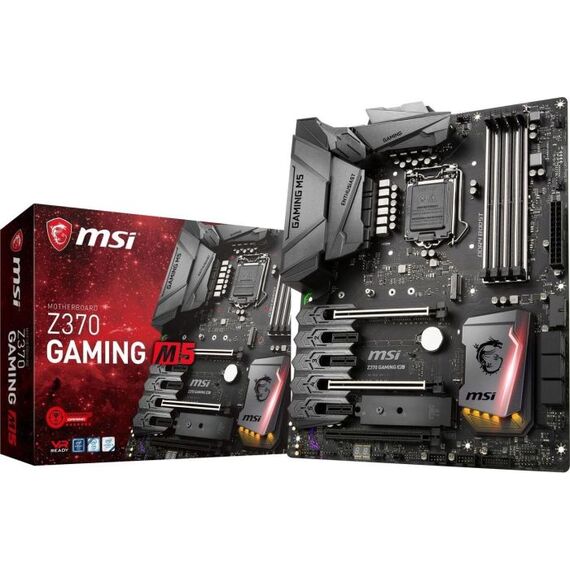

MSI Z370 GAMING M5 / Motherboard / ATX / LGA1151 Socket / Z370 / USB 3.1 Gen 1, USB-C Gen2, USB 3.1 Gen 2 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 7B58-003R
|
Description Personalize your PC with numerous colors and effects, controlled in one click with the mobile device. Special Features
Product features
|
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | Intel Z370 |
| Processor Socket | LGA1151 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron) |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2667 MHz, 2800 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC1220 |
| Compliant Standards | High Definition Audio |
| Network Controller | Killer Gaming E2500 |
| Network Interfaces | Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 3 x PCIe 3.0 x16 (x16/x0/x4, x8/x8/x4 modes) ¦ 3 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 |

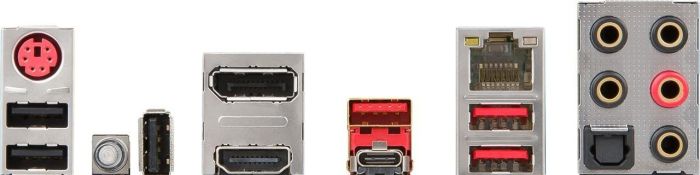

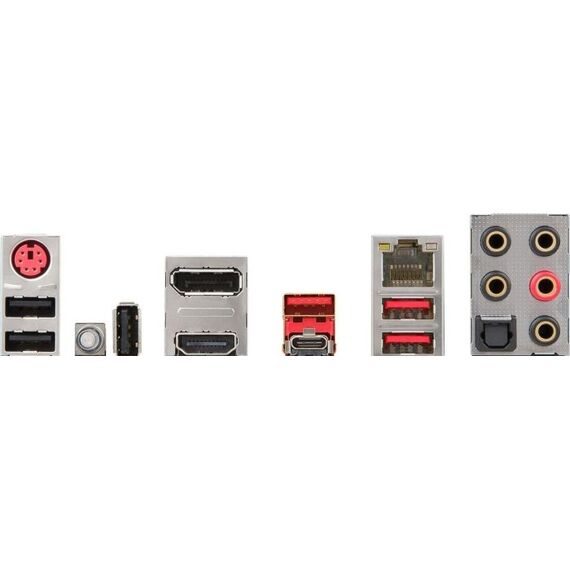

| Interfaces | 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.1 Gen 1 ¦ 3 x USB 2.0 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x TOSLINK ¦ 1 x USB 3.1 Gen 2 ¦ 1 x USB-C Gen2 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x DisplayPort |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 4 x USB 3.1 Gen 1 - header ¦ 1 x audio - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Features | MSI ClickBIOS 5 |
| Hardware Features | Intel Extreme Memory Profile (XMP) support, NVIDIA 2-way SLI Technology Support, AMD 3-way CrossFireX technology support, MSI Gaming Device Port, Debug LED, MSI Mystic Light, MSI Steel Armor, Double ESD Protection, Intel Optane Memory Ready, MSI Audio Boost 4, MSI Military Class VI, Nahimic 2+ Sound Technology |
| Included Accessories | I/O back plate |
| Cables Included | 4 x Serial ATA cable ¦ 1 x SLI bridge |
| Software Included | Drivers & Utilities, MSI Command Center, RAMdisk, MSI Live Update 6, MSI Gaming Hotkey, MSI X-BOOST |
| Width | 30.5 cm |
| Depth | 24.4 cm |
| Service & Support | Limited warranty - 3 years |
Features - MSI - 7B58-003R
More Details
Product Code
03:214714
EAN Code
4719072540418
Manufacturer
MSI
